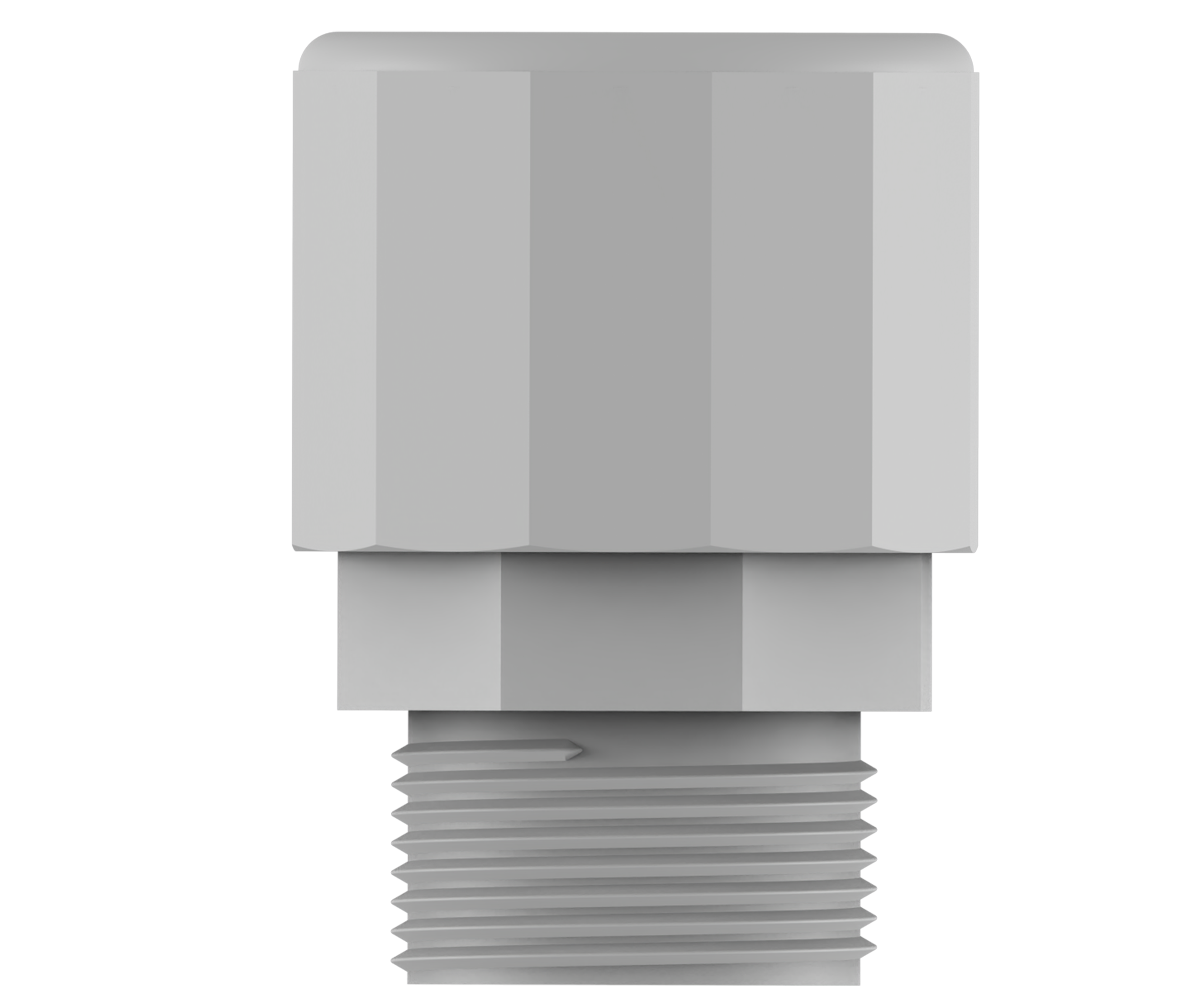

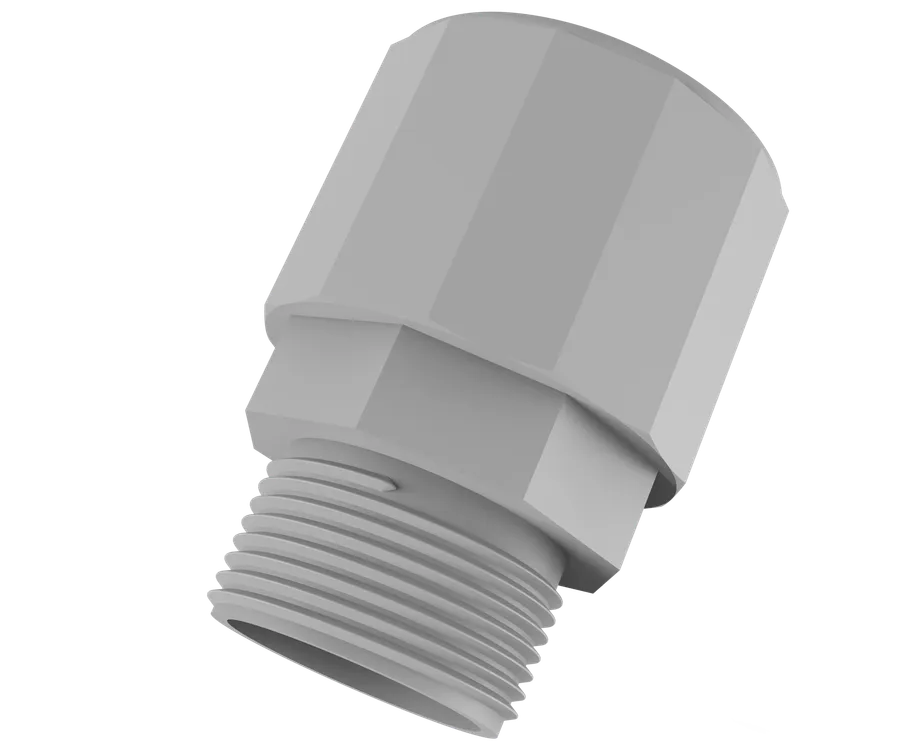

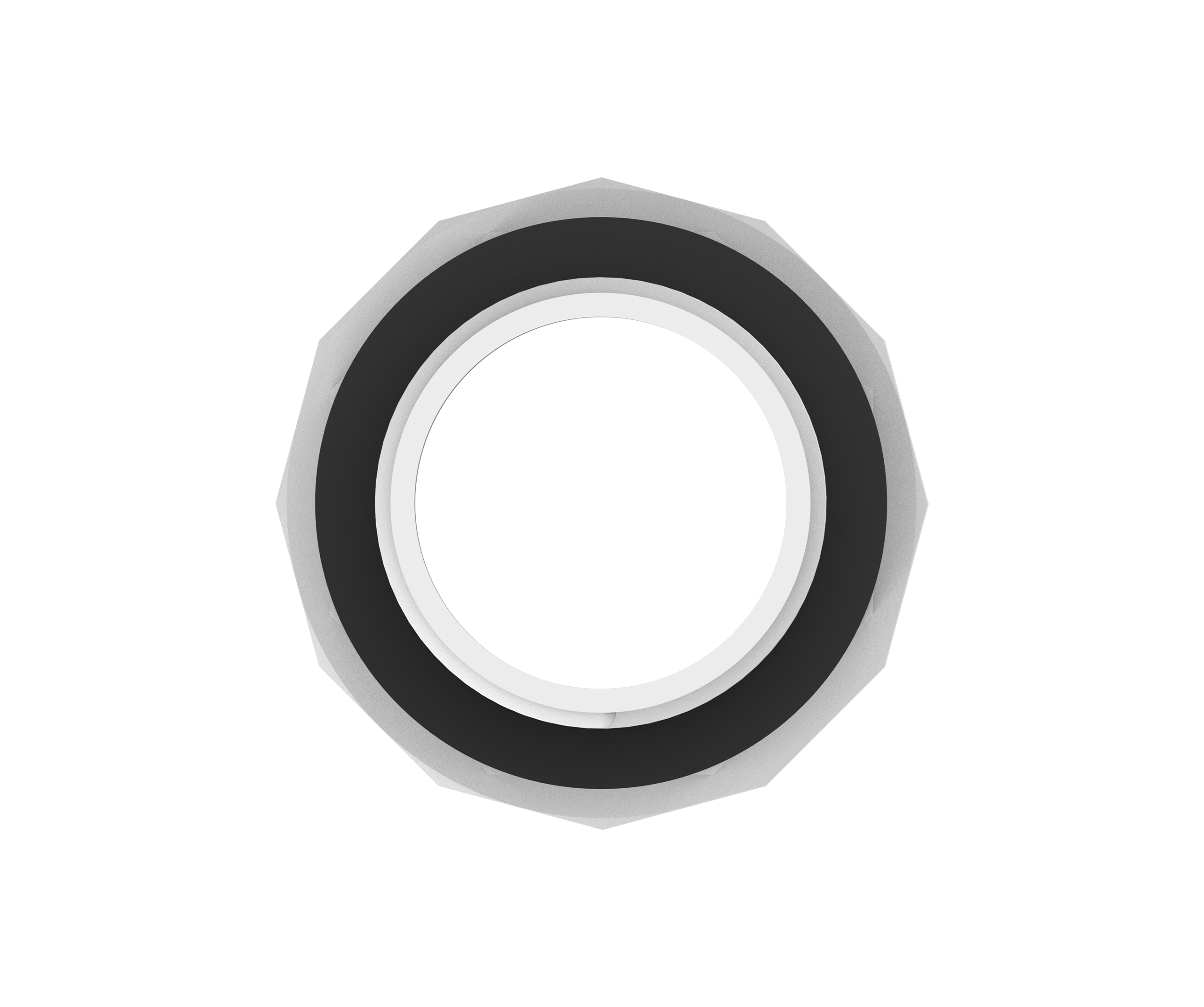

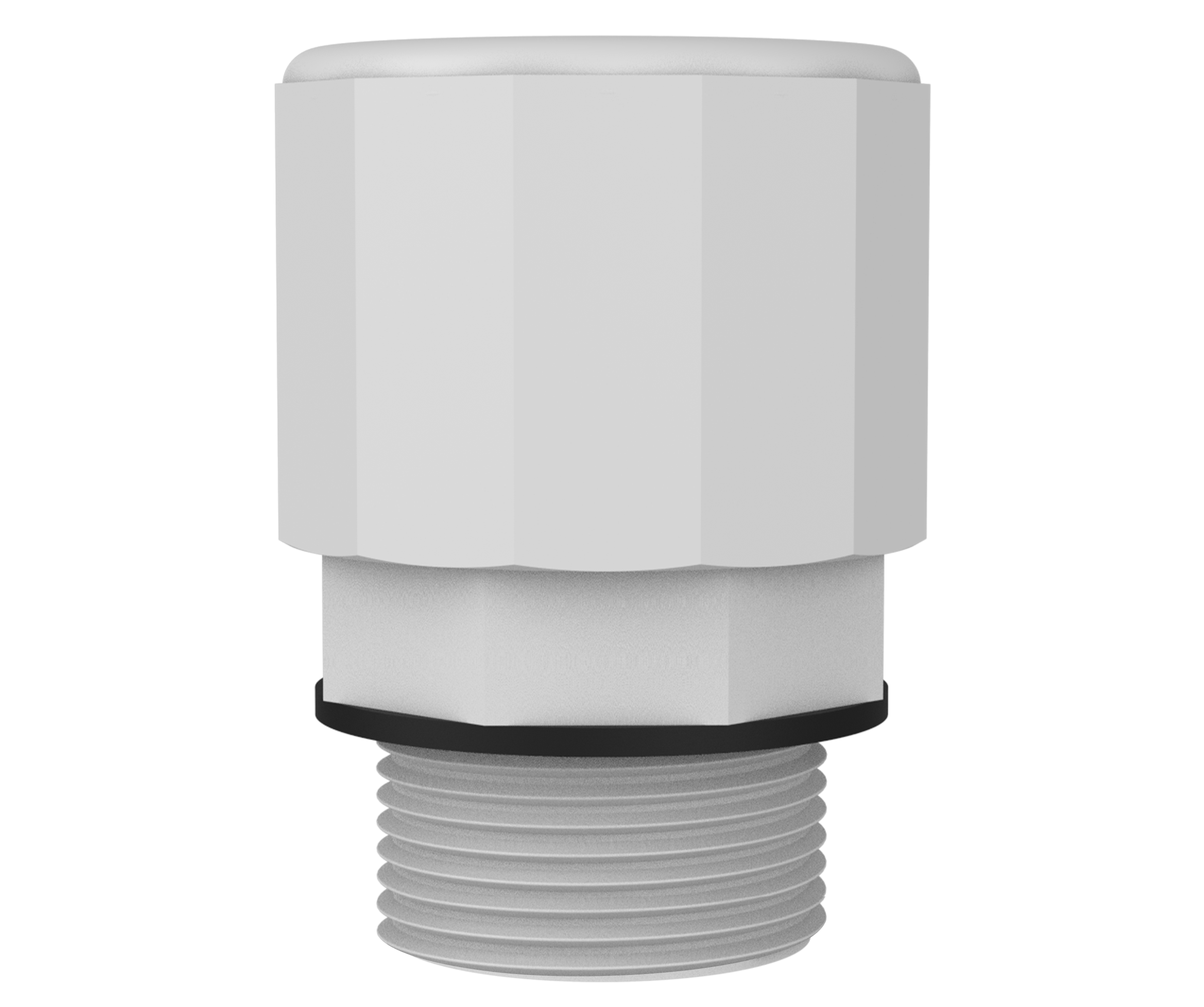

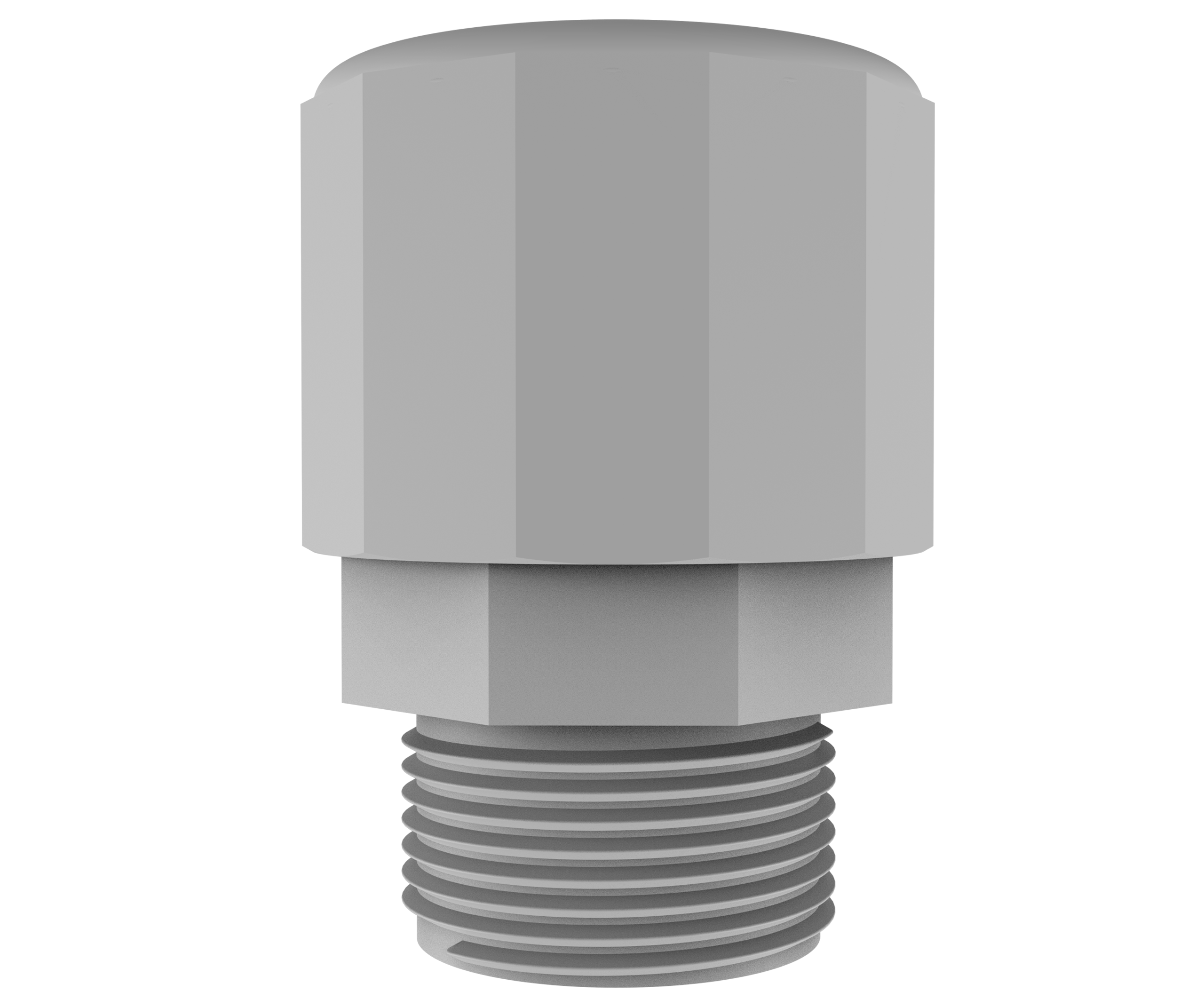

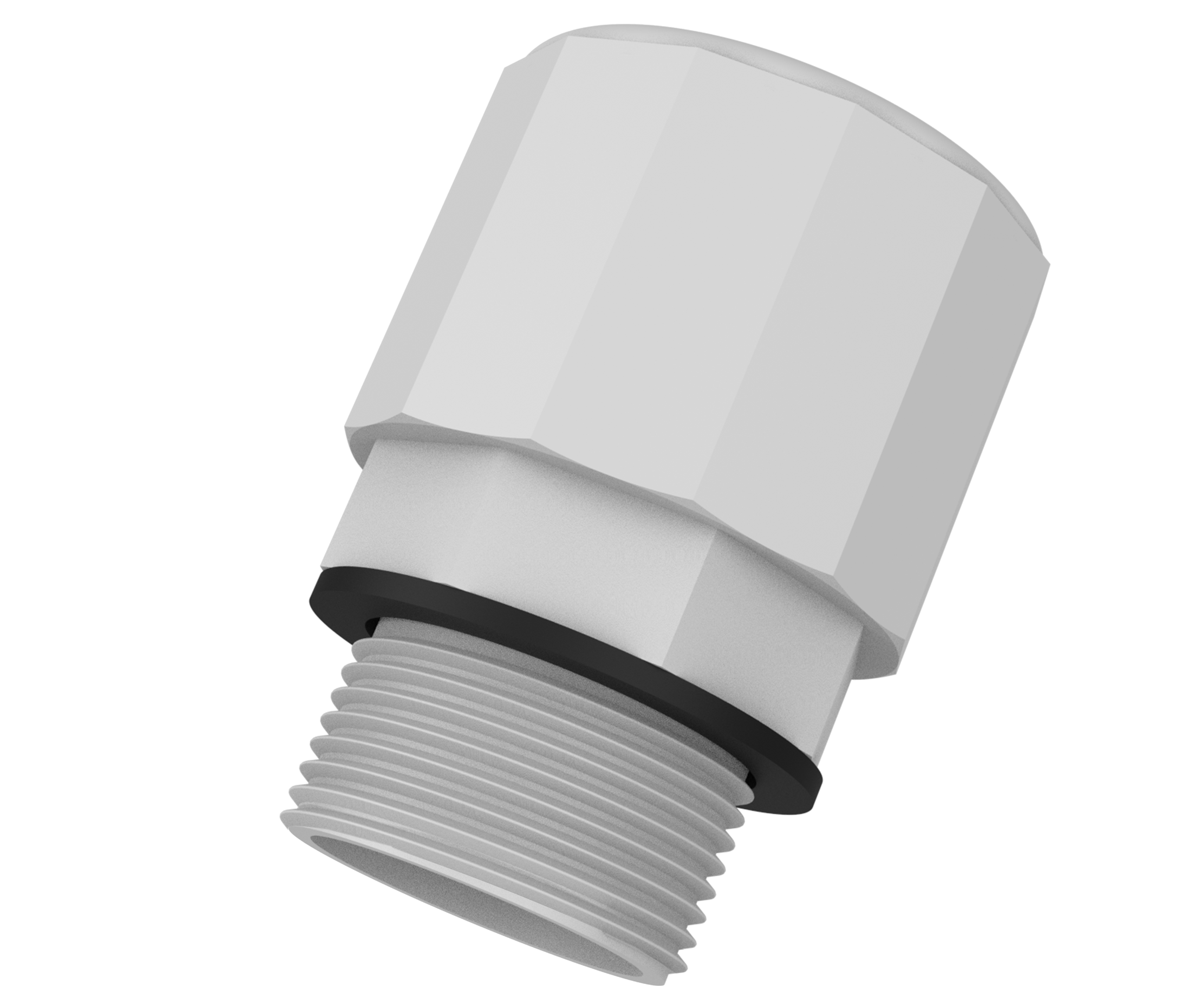

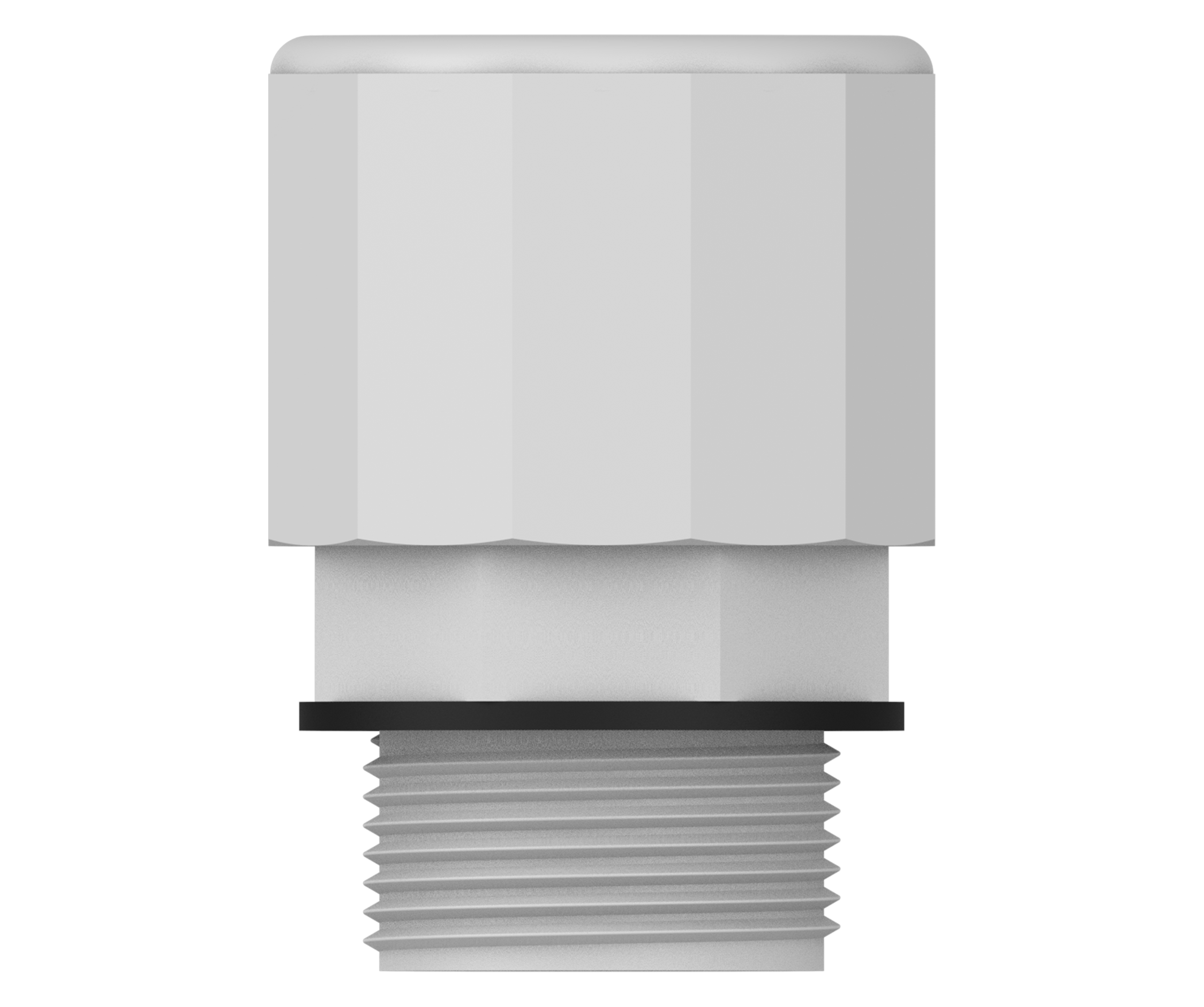

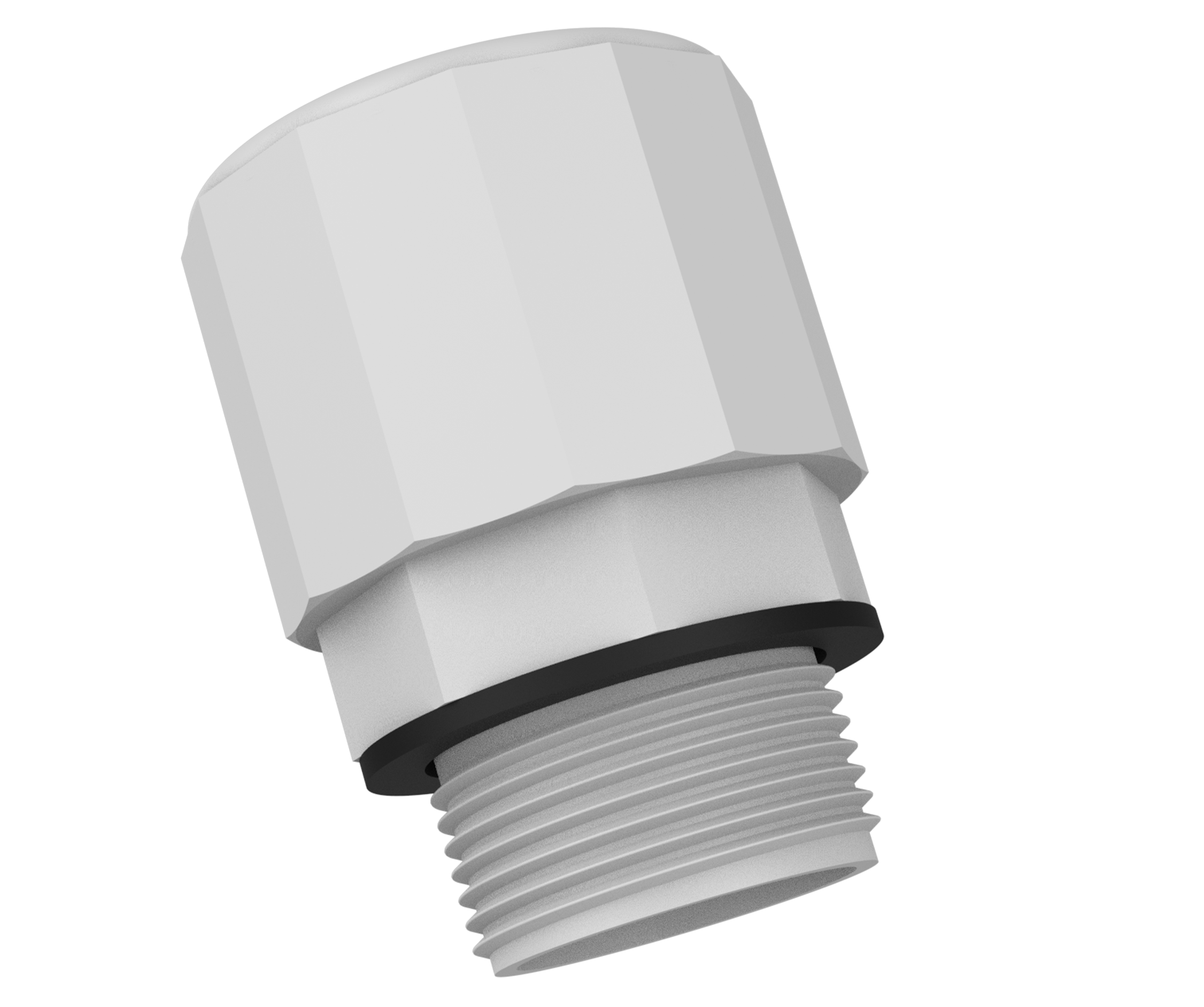

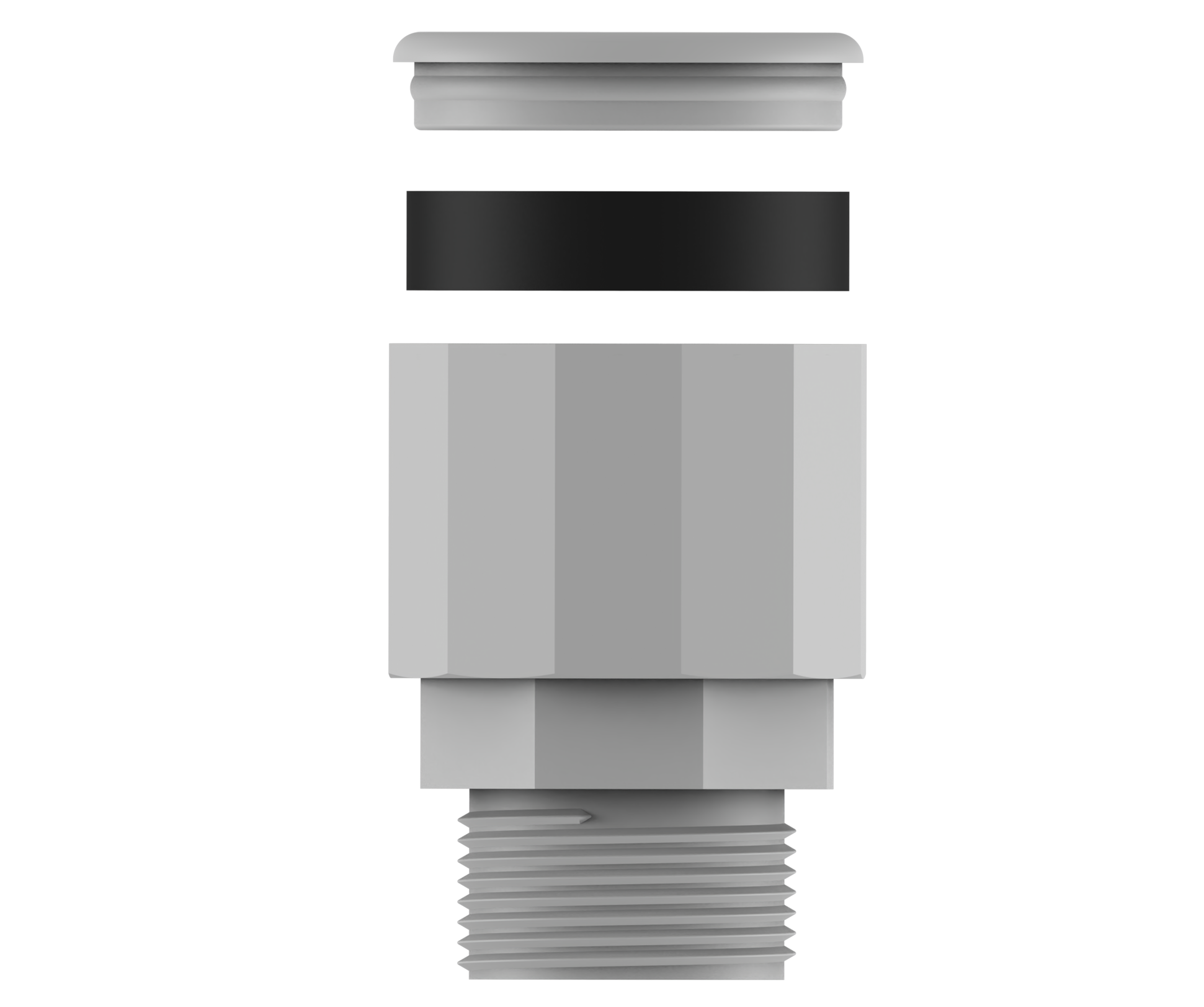

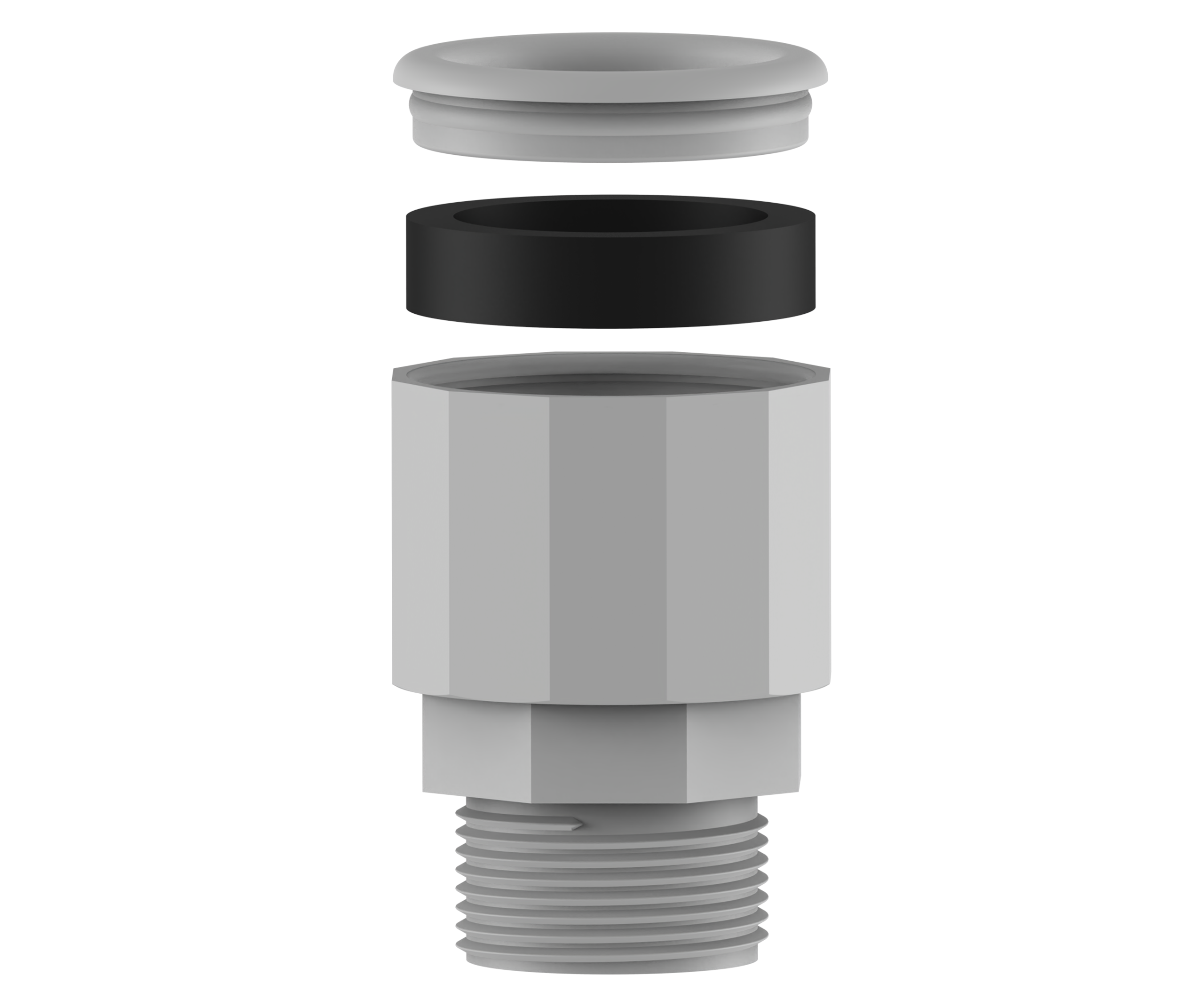

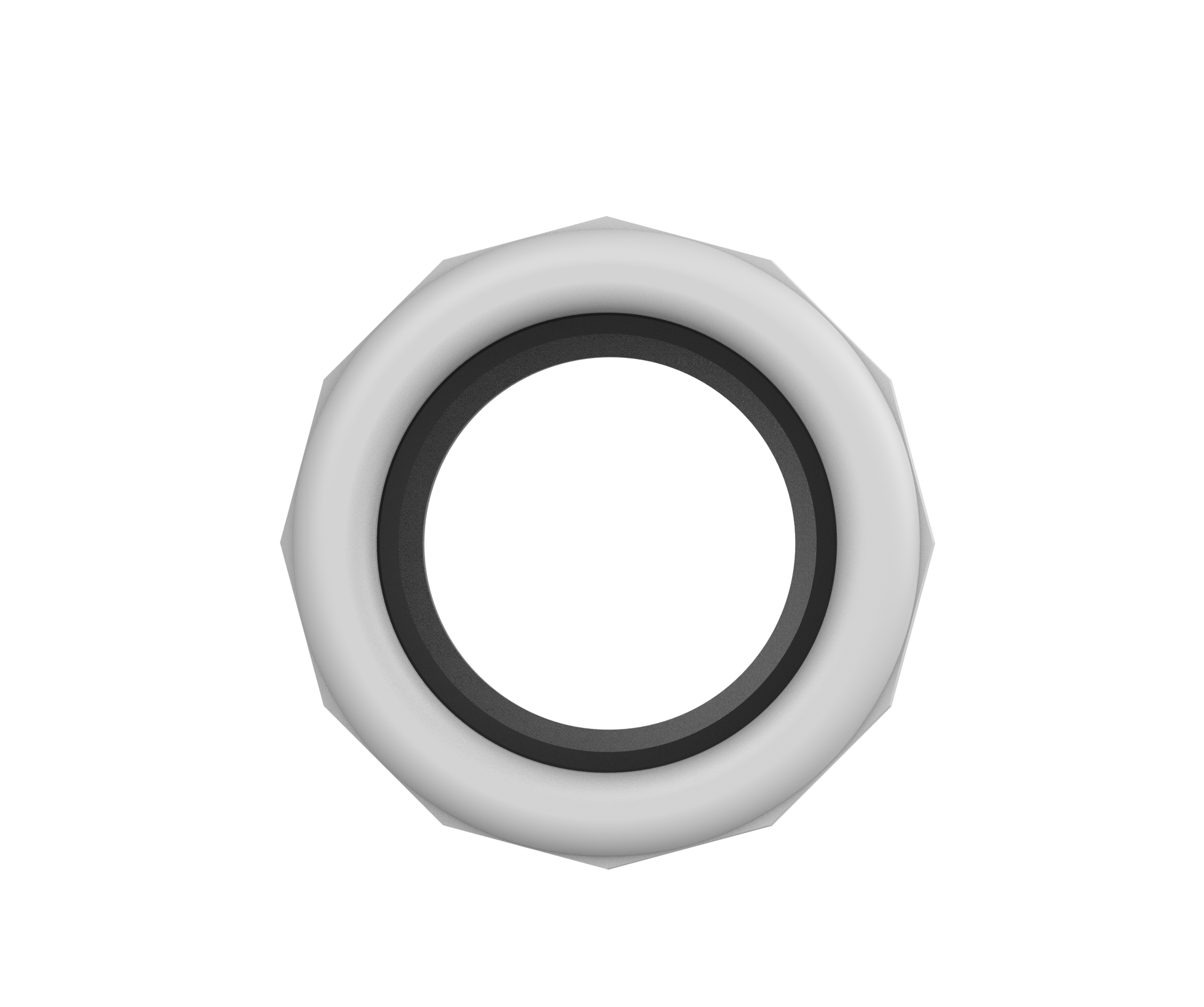

Kapslingskoblinger
○Halogenfri konduitkobling med metrisk eller PG-gjenge på den ene siden og spesialgjenge for konduitspiral på den andre
○Avgir ikke giftige gasser ved brann.
Spesifikasjoner

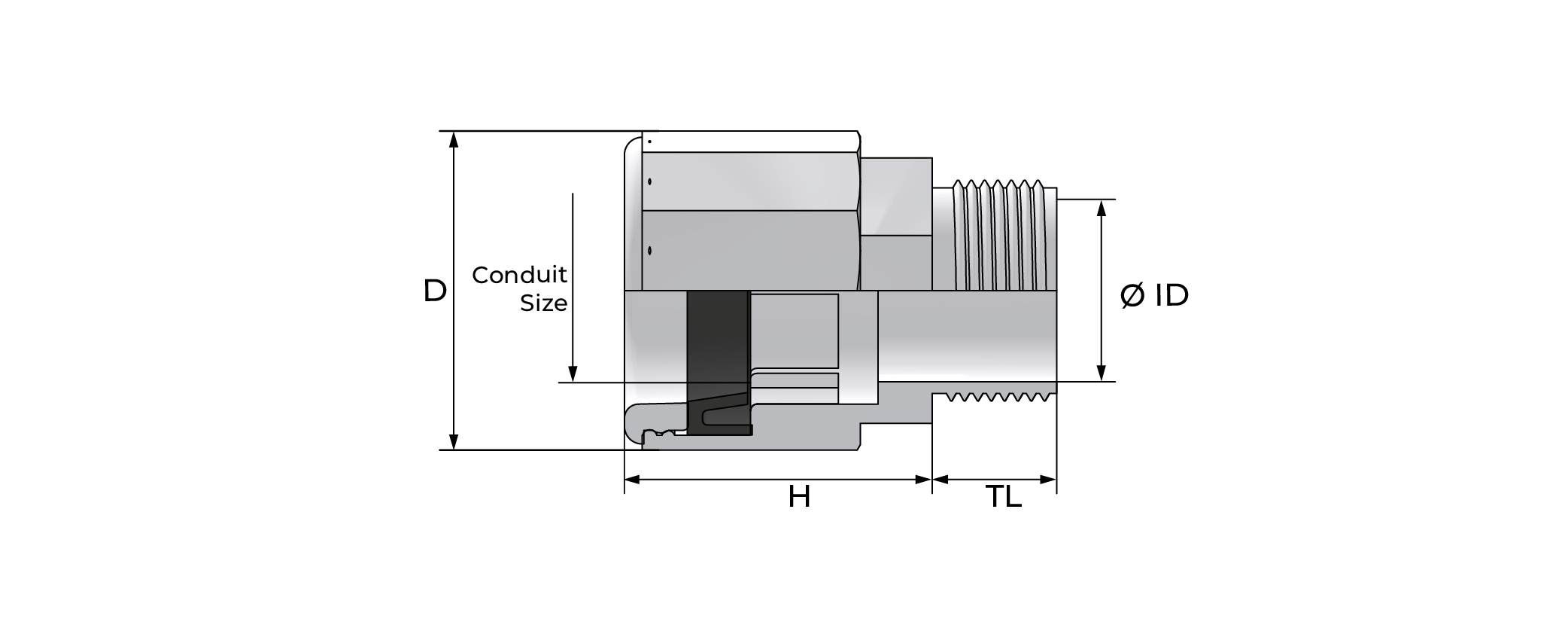

| Gjengestørrelse | Gjengelengde | Nøkkelvidde | Diameter | Height 'H' | Conduit Size | Inner Ø 'ID' | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|---|---|
| M16x1,5 | 14 | 26/21 | 26.3 | 34.5 | 16 | 16.5 | — | BRCF-01 | — | |
| M20x1,5 | 14 | 30/25 | 31.1 | 33.6 | 20 | 20.5 | — | BRCF-02 | — | |
| M25x1,5 | 14 | 35/30 | 35.7 | 34.7 | 25 | 25.1 | — | BRCF-03 | Get File | |
| M32x1,5 | 14 | 42/37 | 43 | 34.5 | 32 | 32.6 | — | BRCF-04 | — | |
| M40x1,5 | 19 | 50/45 | 51.5 | 42.2 | 40 | 40.4 | — | BRCF-05 | — | |
| M50x1,5 | 19 | 61/55 | 63.4 | 42.1 | 50 | 50.7 | — | BRCF-06 | — | |
| M63x1,5 | 19 | 74/68 | 77.2 | 42.2 | 63 | 58.2 | — | BRCF-07 | — |
