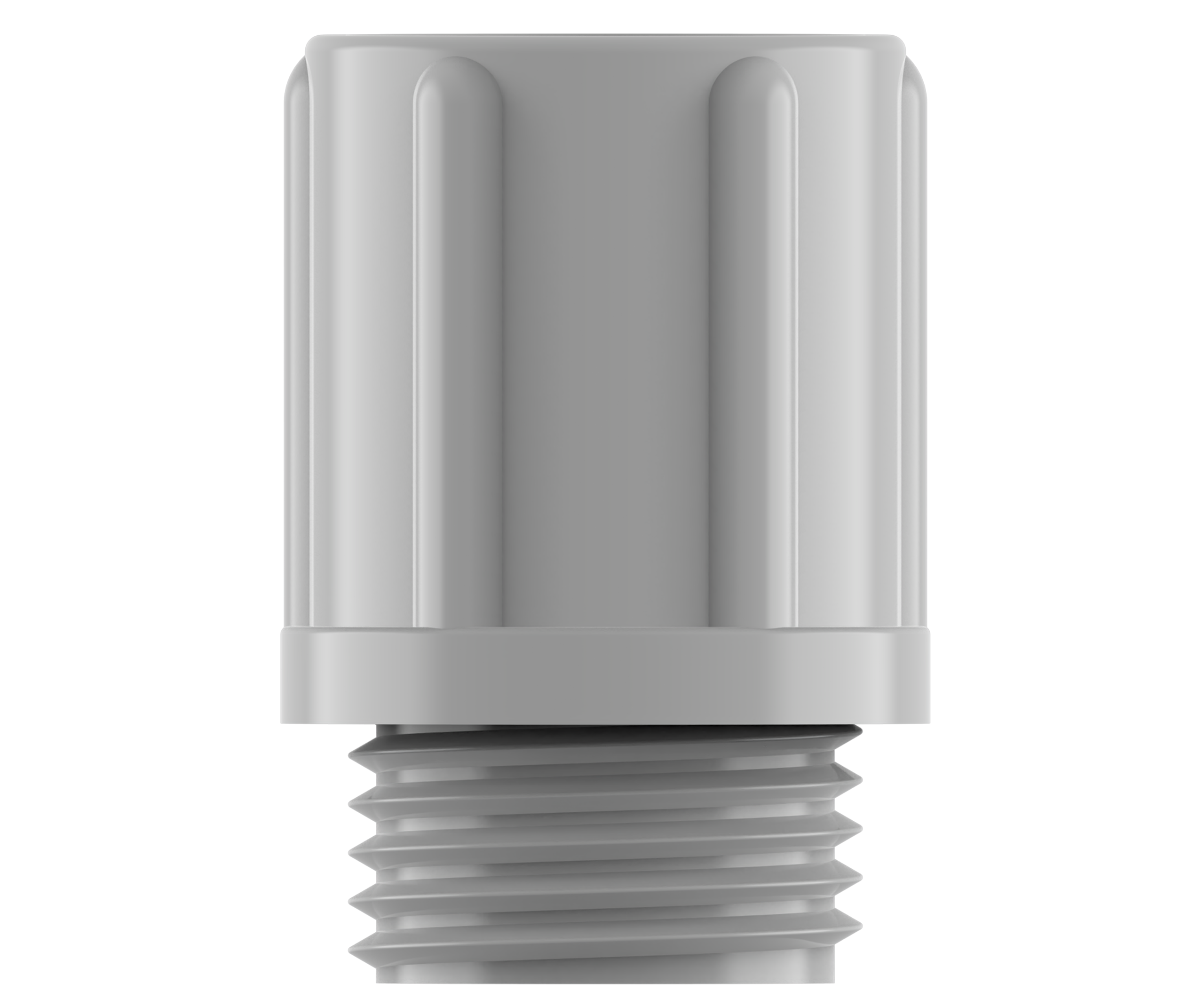

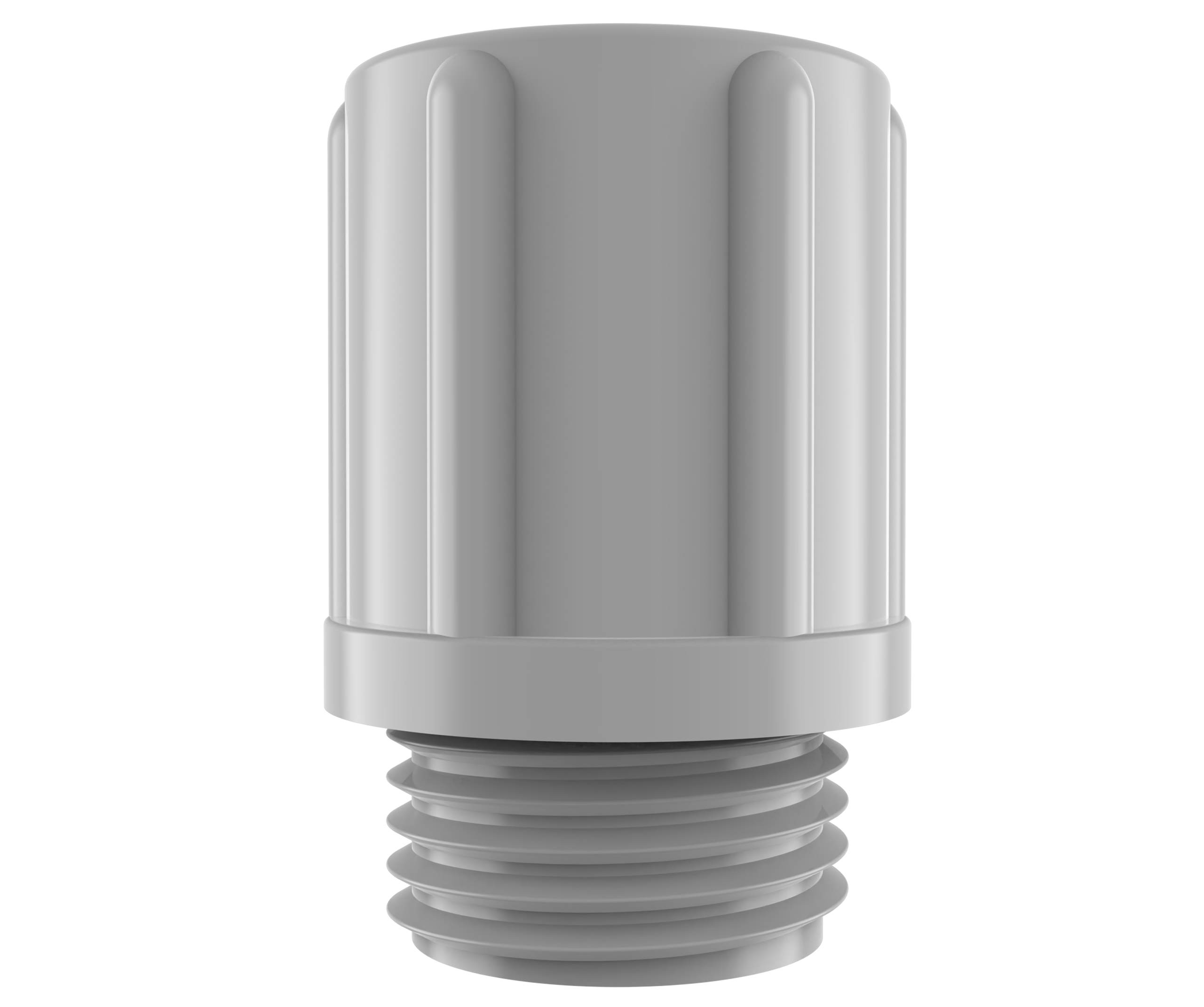

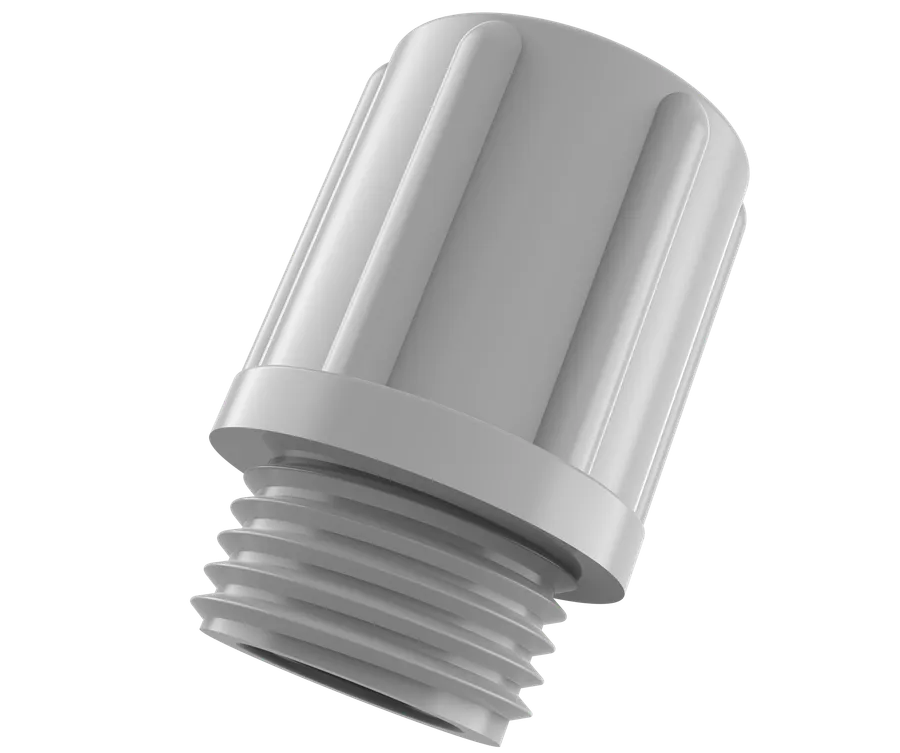

Rett konduitkobling i polyamid (PA6)
○Halogenfri kobling for fleksible spiralkonduitrør. Én side med standard metrisk eller PG-gjenge og spesialgjenge for konduitspiral på den andre
○Avgir ikke giftige gasser ved brann.
Spesifikasjoner
| Gjengestørrelse | Gjengelengde | Diameter | Height 'H' | Conduit Size | Inner Ø 'ID' | Varenummer | BIMED Kode | 3D File |
|---|---|---|---|---|---|---|---|---|
| PG 7 | 8 | 17.4 | 21.2 | 12.8 | 7 | — | BCF-01 | — |
| PG 9 | 8 | 20 | 21.3 | 15 | 10 | — | BCF-02 | — |
| PG 11 | 8 | 24 | 24.5 | 19 | 13.5 | — | BCF-03 | — |
| PG 13,5 | 9 | 25.9 | 25.3 | 21 | 14.5 | — | BCF-04 | — |
| PG 16 | 10 | 28.9 | 25.5 | 22 | 16 | — | BCF-05 | — |
| PG 21 | 11 | 38 | 27.5 | 28.3 | 21.5 | — | BCF-06 | — |
| PG 29 | 11 | 46.2 | 32.4 | 36.4 | 31.5 | — | BCF-07 | — |
| PG 36 | 14 | 56.2 | 39.9 | 46.2 | 41 | — | BCF-08 | — |
| PG 48 | 14 | 69.7 | 43.3 | 57 | 51 | — | BCF-10 | — |
