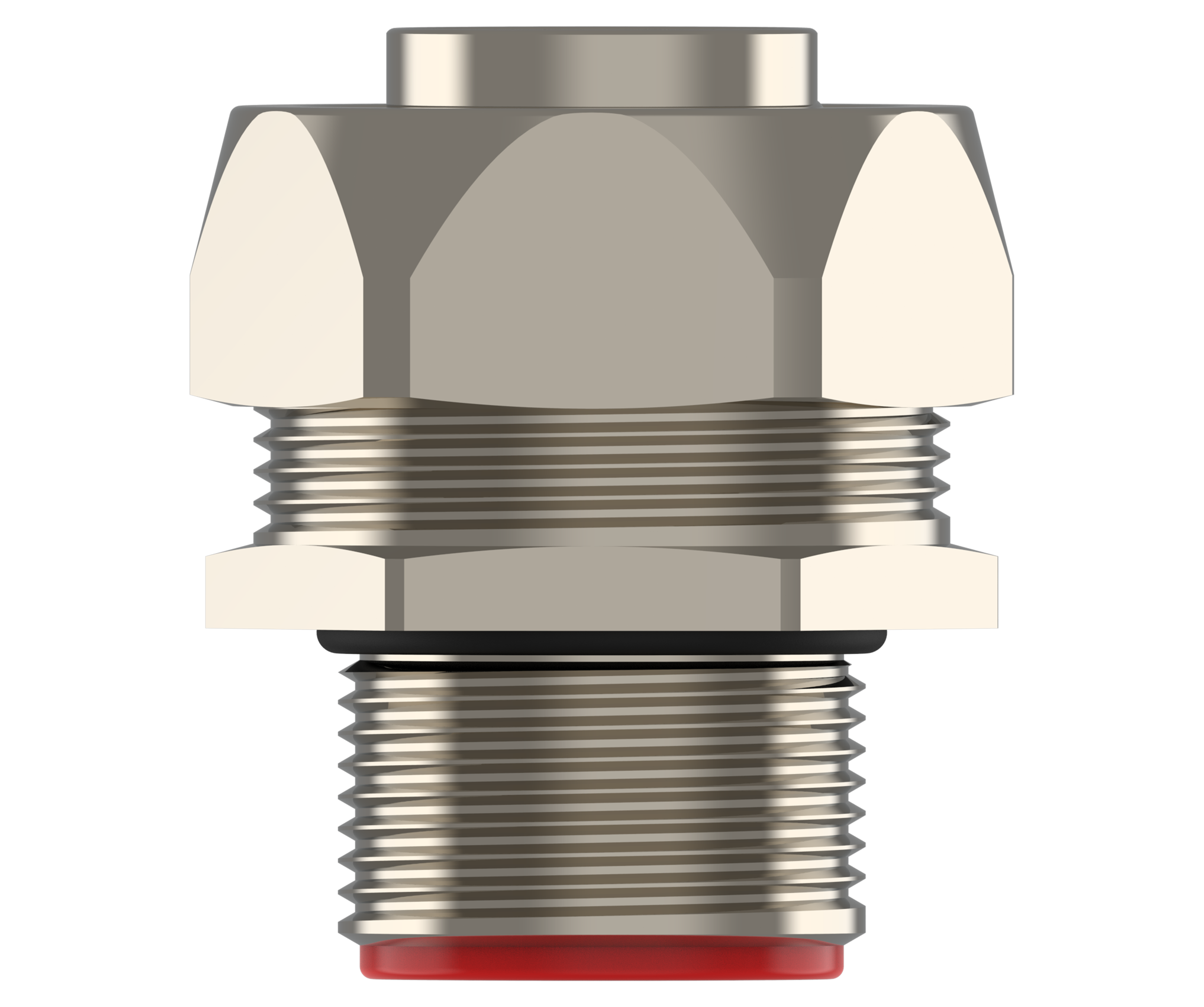

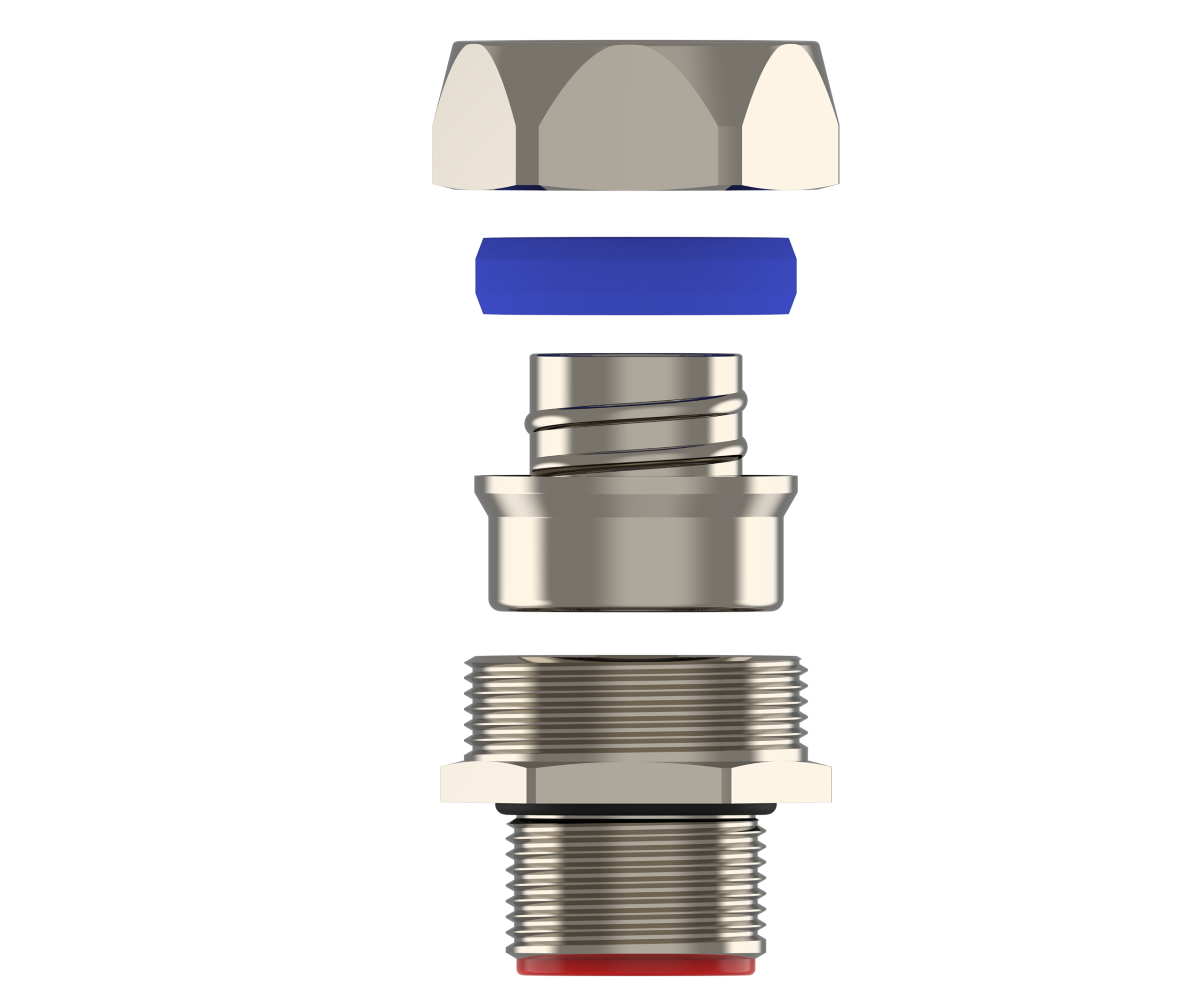

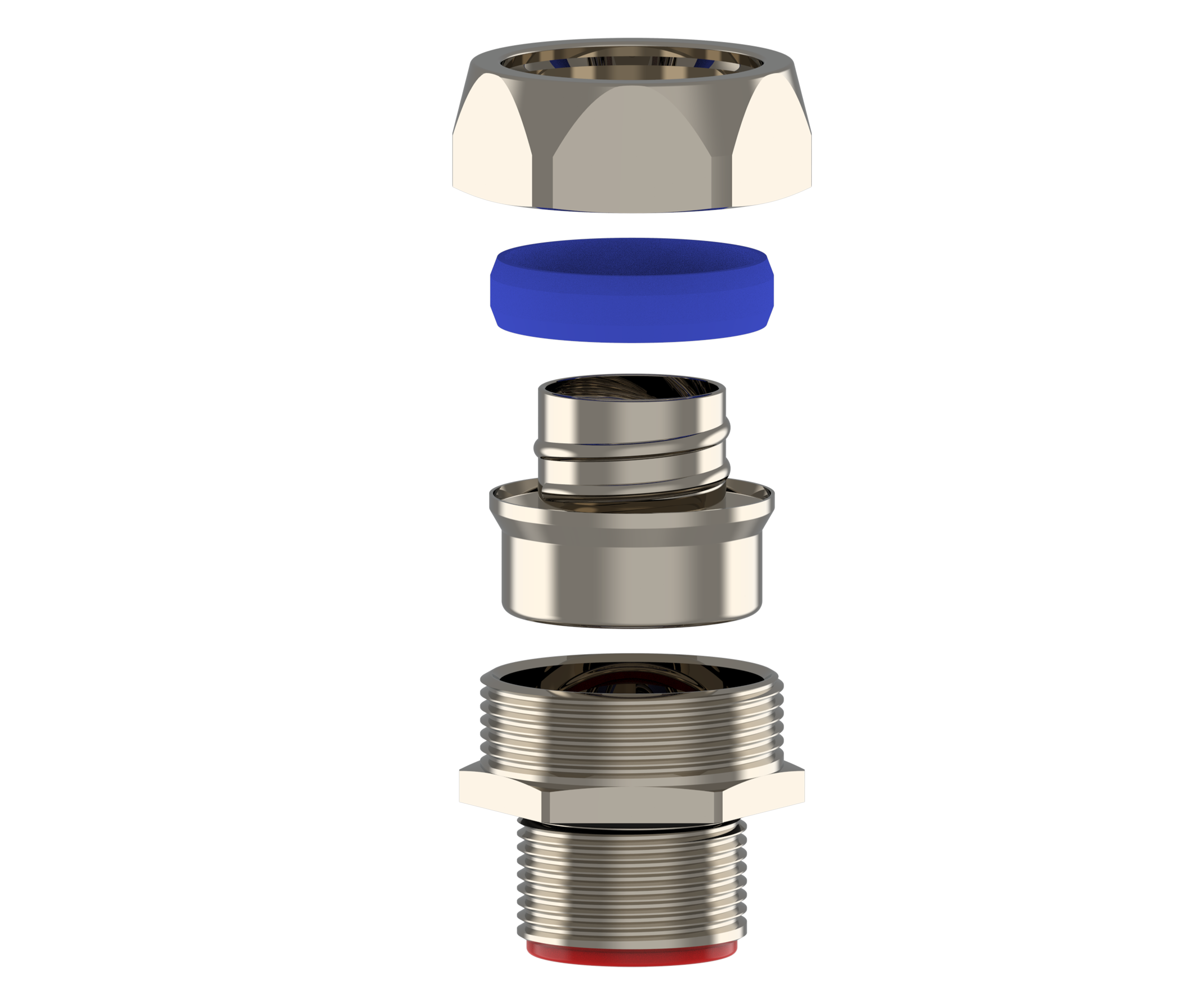

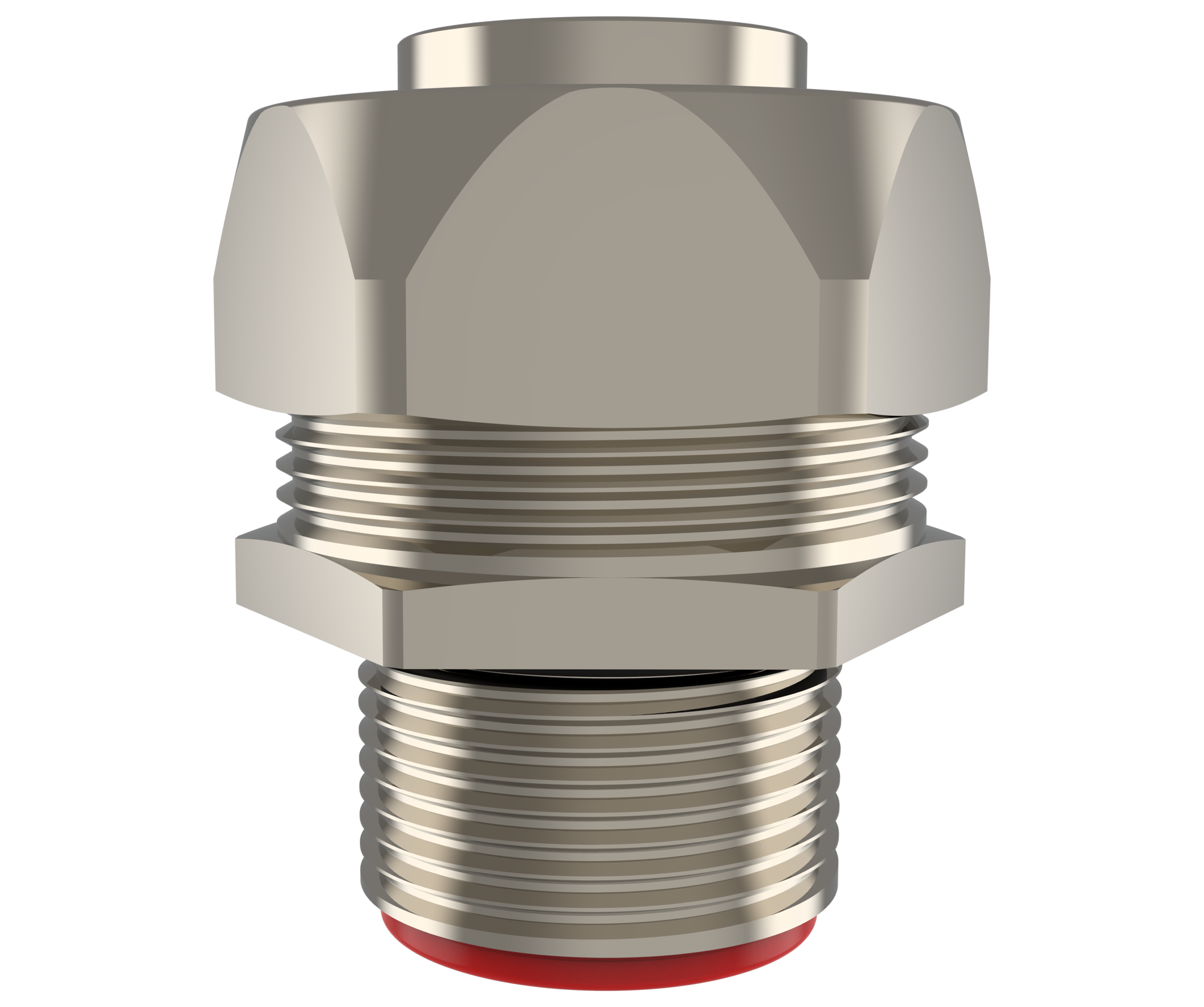

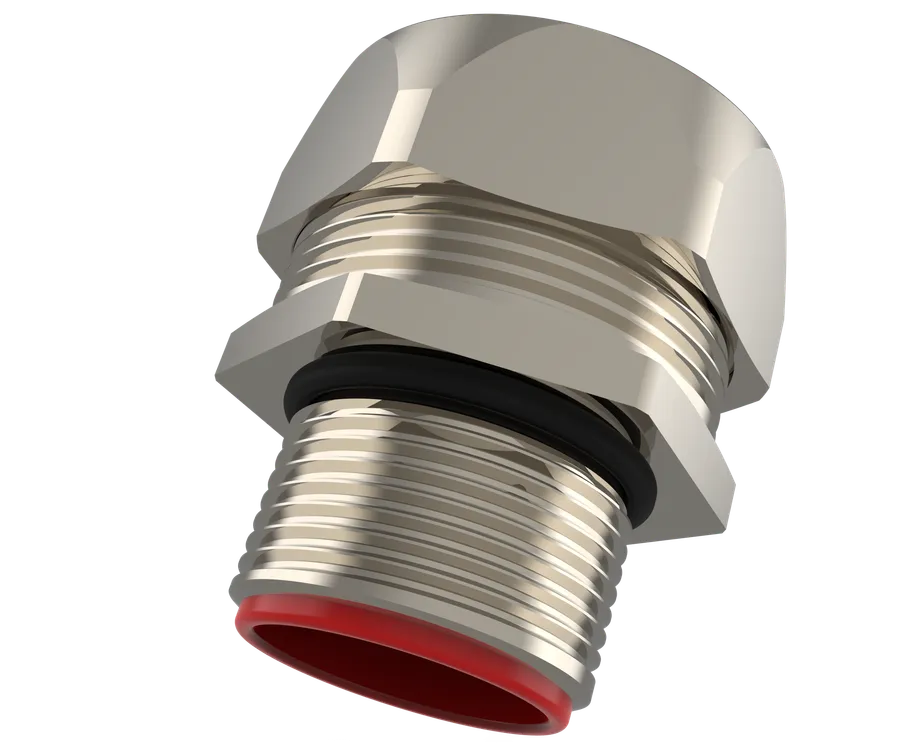

Rett Liquid Tight-kobling
○Koblinger for Liquidtight-rør til metallkabinetter og maskiner
○Gir god korrosjonsbeskyttelse og høy strekkavlastning for krevende industrielle miljøer.
Spesifikasjoner

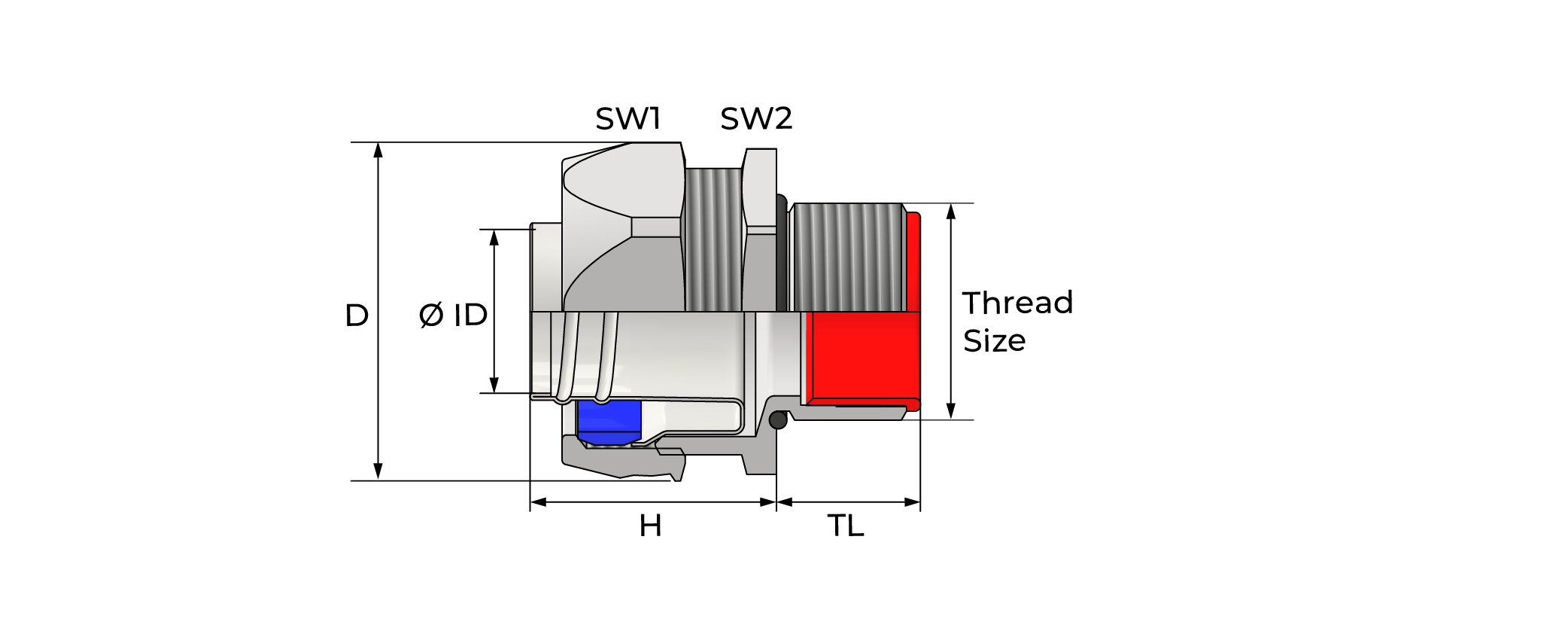

| Gjengestørrelse | Gjengelengde | Nøkkelvidde | Diameter | Maks høyde 'H' | Conduit Size | Inner Ø 'ID' | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|---|---|
| M12x1,5 | 10 | 22/20 | 24.5 | 23 | 1/4" | 5.2 | — | BBFM-01 | — | |
| M16x1,5 | 11.5 | 26/24 | 29 | 25 | 5/16" | 8.3 | — | BBFM-02(S) | — | |
| M16x1,5 | 11.5 | 26/24 | 29 | 25.5 | 3/8" | 10.2 | — | BBFM-02 | — | |
| M20x1,5 | 13 | 26/24 | 29 | 25.5 | 3/8" | 10.2 | — | BBFM-03(S) | — | |
| M20x1,5 | 13 | 29/27 | 32.7 | 26.5 | 1/2" | 13.5 | — | BBFM-03 | — | |
| M25x1,5 | 15 | 35/33 | 39 | 27 | 3/4" | 18.5 | — | BBFM-04 | Get File | |
| M32x1,5 | 15 | 45/43 | 50 | 34 | 1" | 23.5 | — | BBFM-05 | Get File | |
| M40x1,5 | 16 | 54/52 | 60 | 38.5 | 1 1/4" | 31.8 | — | BBFM-06 | — | |
| M50x1,5 | 18 | 63/60 | 69.3 | 40 | 1 1/2" | 36.8 | — | BBFM-07 | — | |
| M63x1,5 | 20 | 77/74 | 85 | 45 | 2" | 47.8 | — | BBFM-08 | — |
