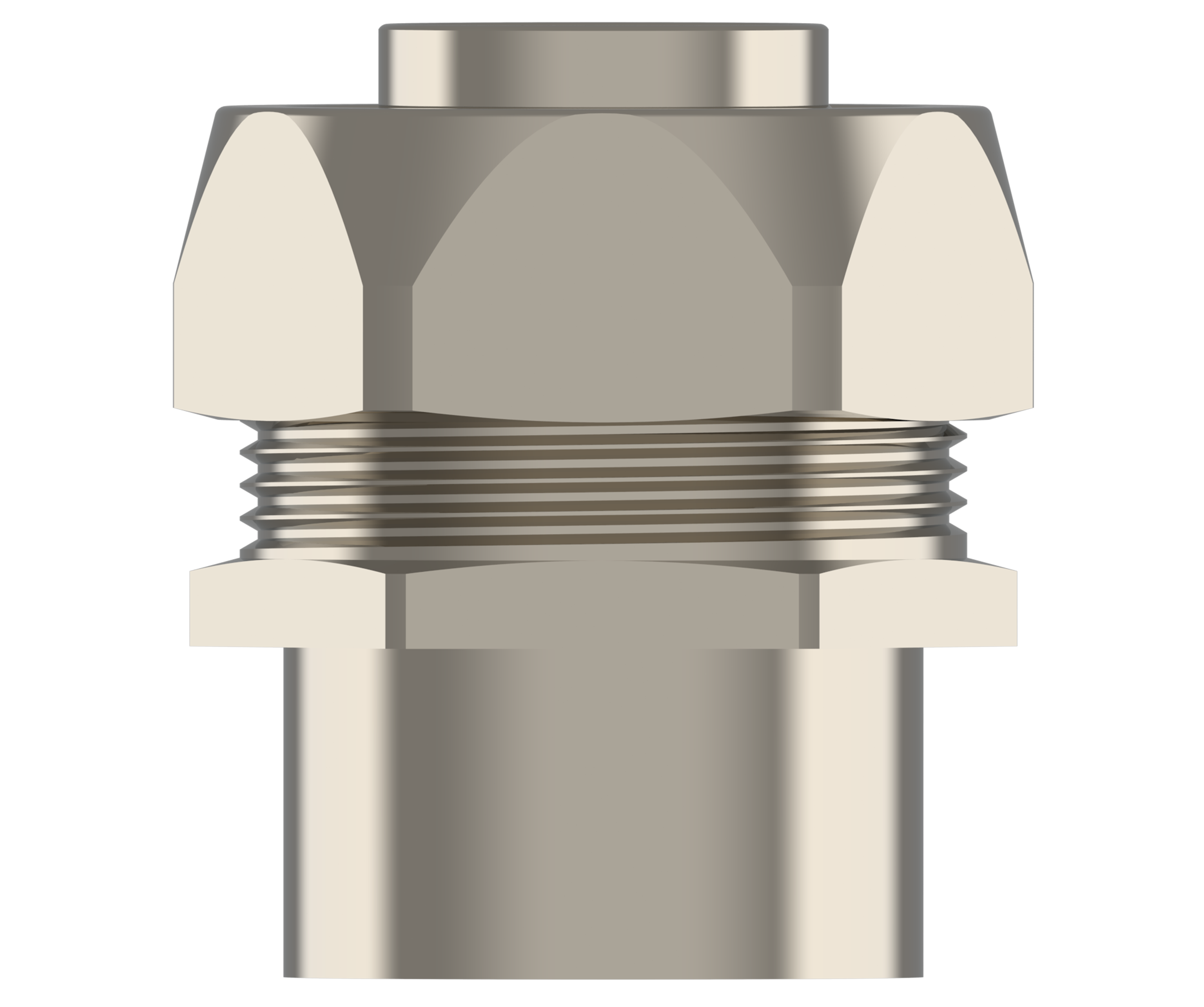

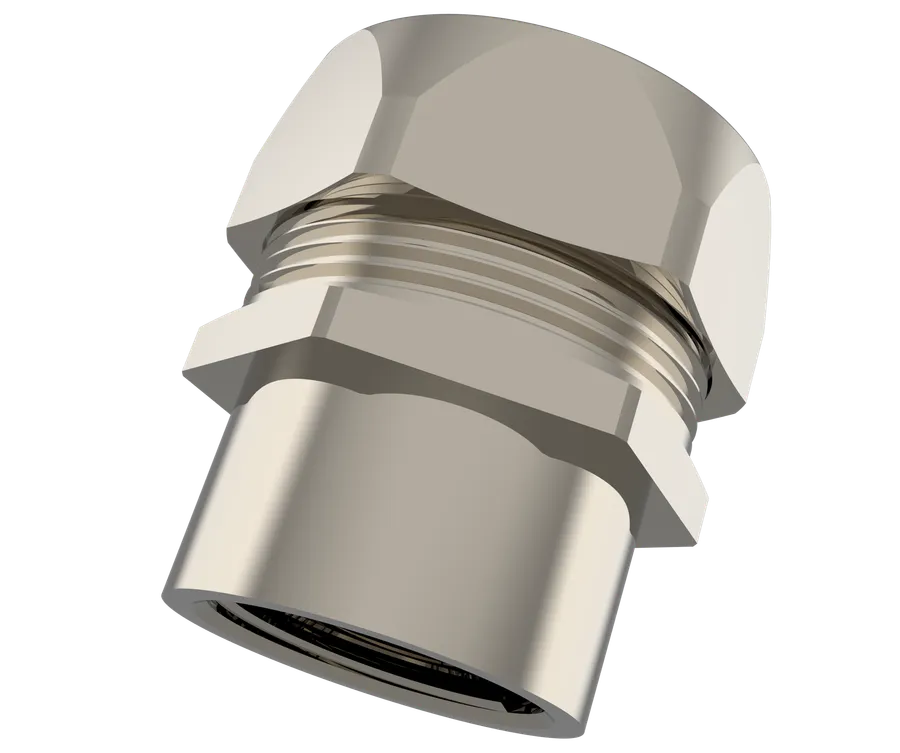

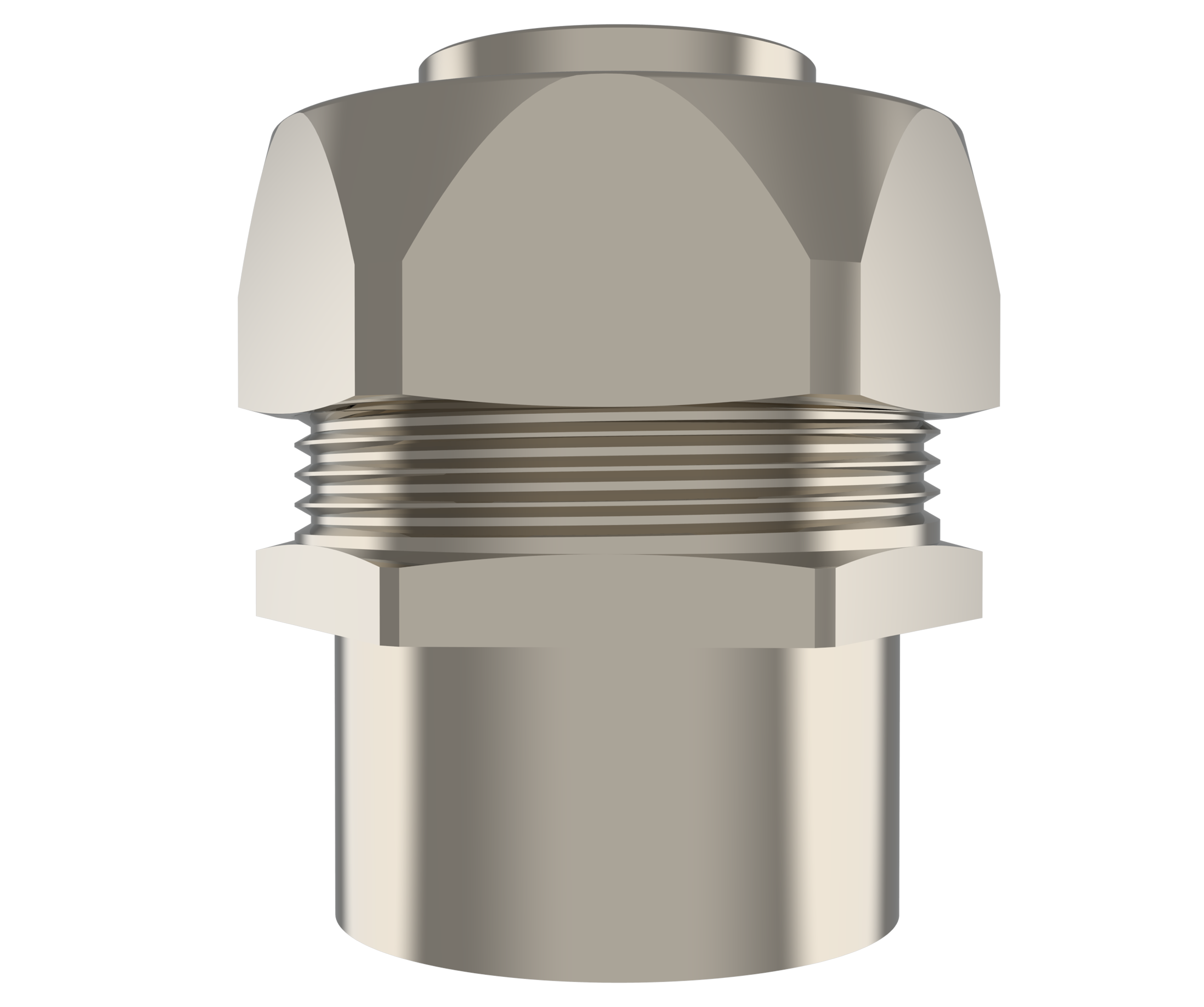

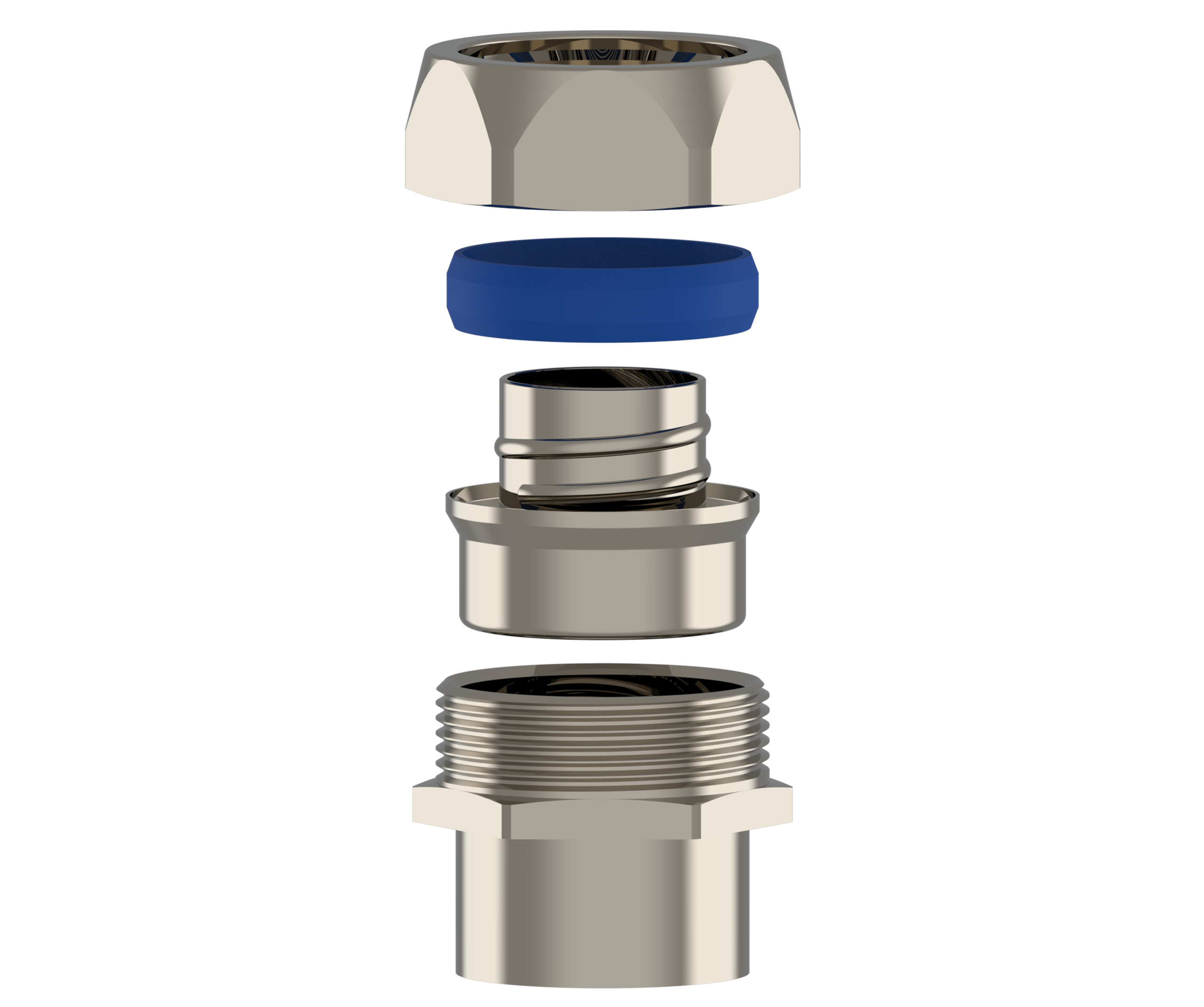

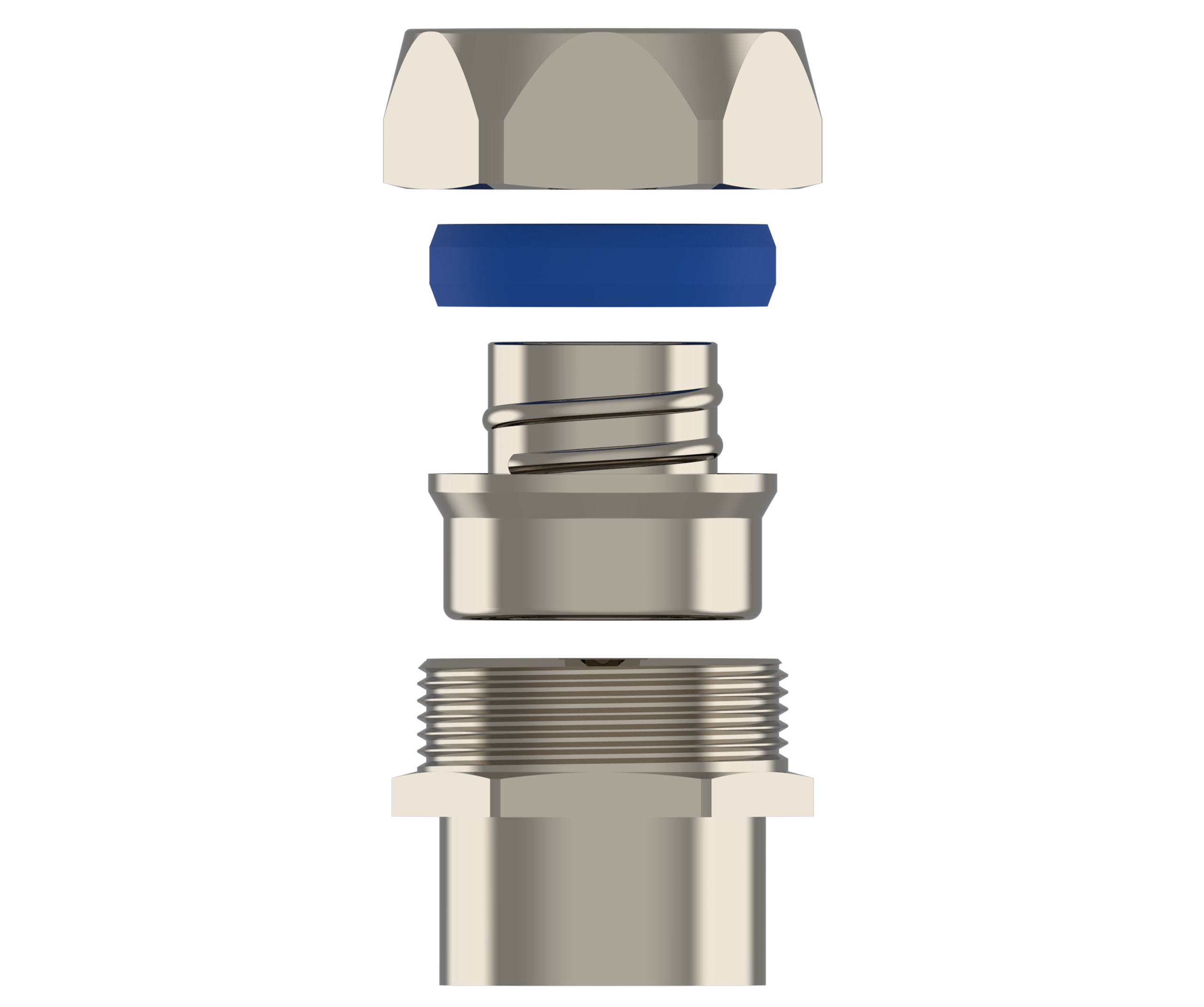

Rett Liquid Tight-kobling, hunn
○Koblinger for Sealtite-rør til metallkabinetter og maskiner
○Gir god korrosjonsbeskyttelse og høy strekkavlastning for krevende industrielle miljøer.
Spesifikasjoner

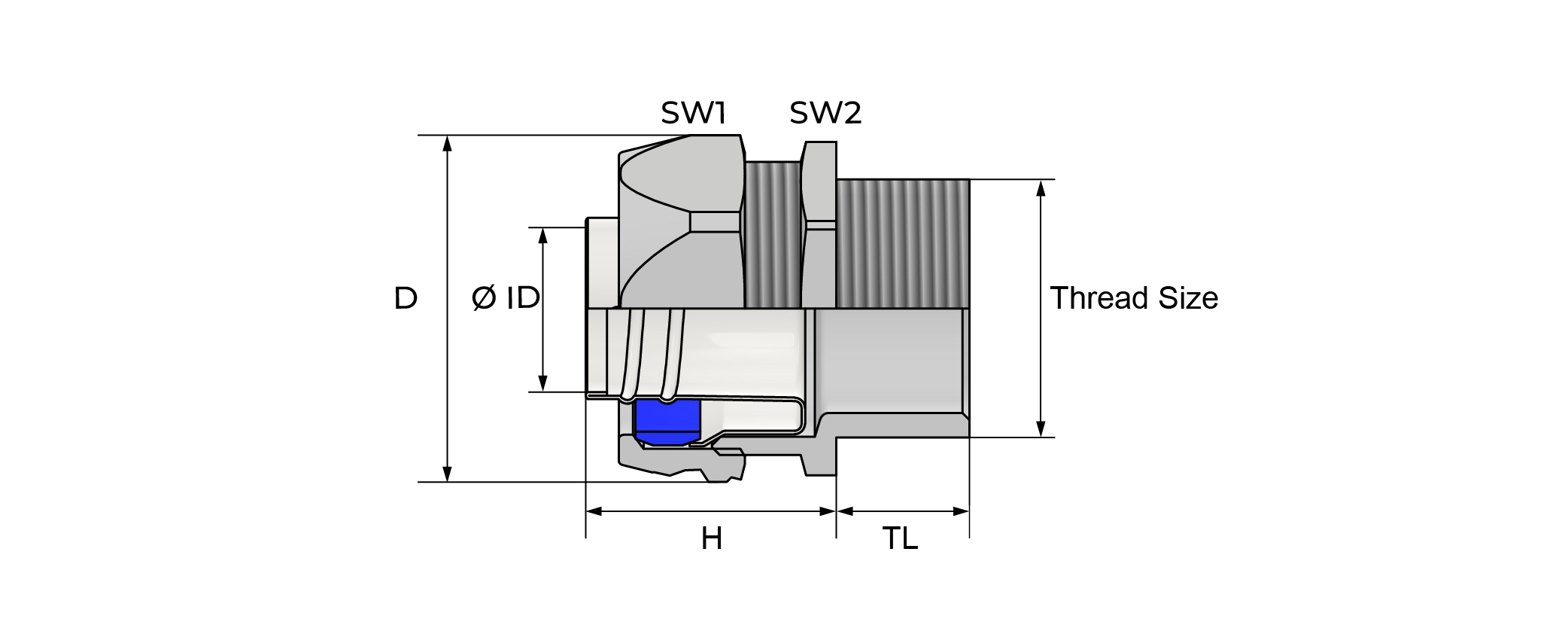

| Gjengestørrelse | Gjengelengde | Nøkkelvidde | Diameter | Maks høyde 'H' | Conduit Size | Inner Ø 'ID' | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|---|---|
| NPT 1/2 | 13 | 26/24 | 29 | 26 | 3/8" | 10.2 | — | BBFN-02(S) F | — | |
| NPT 1/2 | 13 | 29/27 | 32.7 | 26 | 1/2" | 13.5 | — | BBFN-02 F | — | |
| NPT 3/4 | 15 | 35/33 | 39 | 26.5 | 3/4" | 18.5 | — | BBFN-03 F | — | |
| NPT 1 | 15 | 45/43 | 50 | 33.5 | 1" | 23.5 | — | BBFN-04 F | — | |
| NPT 1 1/4 | 16 | 54/52 | 60 | 37.5 | 1 1/4" | 31.8 | — | BBFN-05 F | — | |
| NPT 1 1/2 | 18 | 63/60 | 69.3 | 41 | 1 1/2" | 36.8 | — | BBFN-06 F | — | |
| NPT 2 | 20 | 77/74 | 85 | 48 | 2" | 47.8 | — | BBFN-07 F | — |
