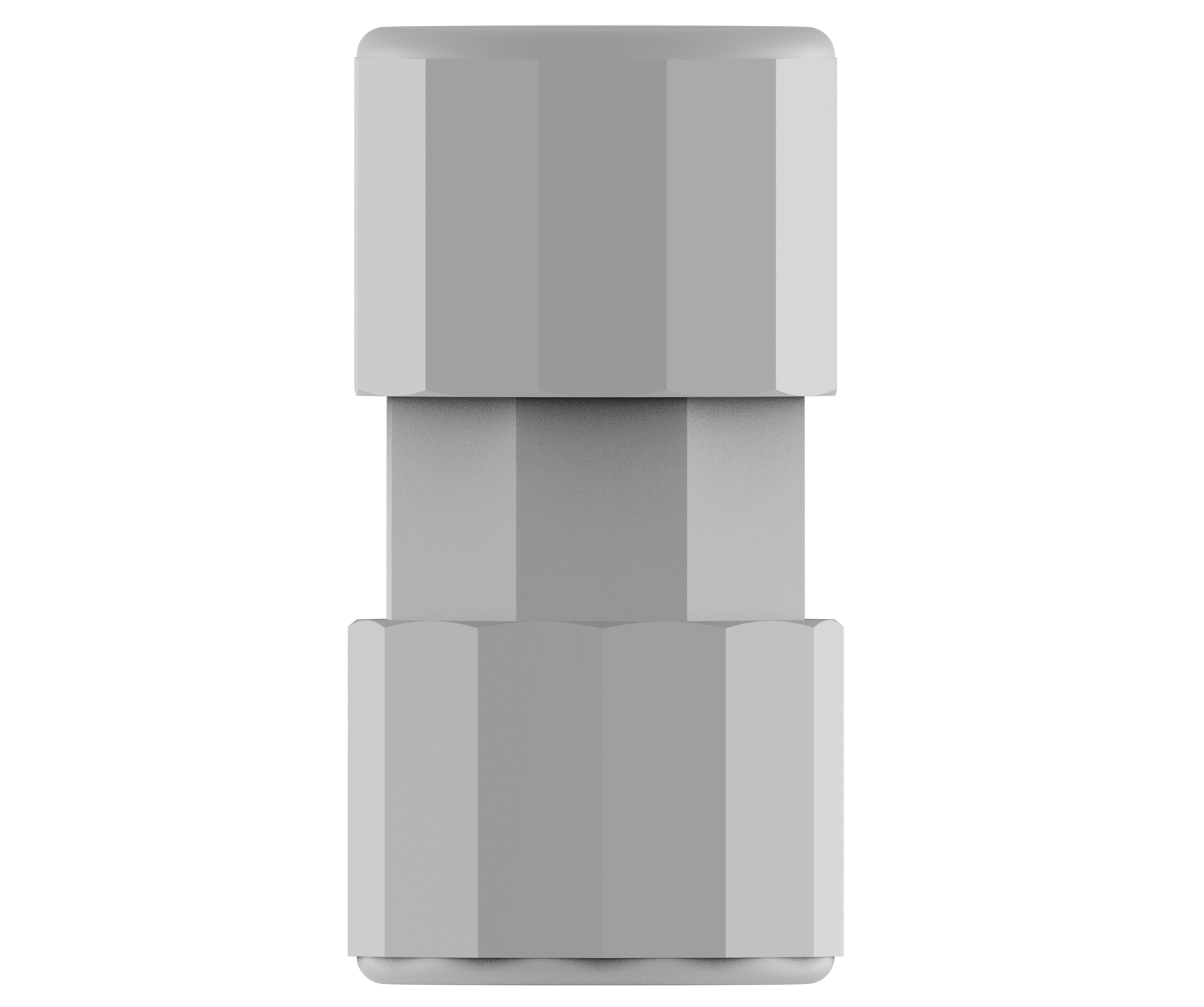

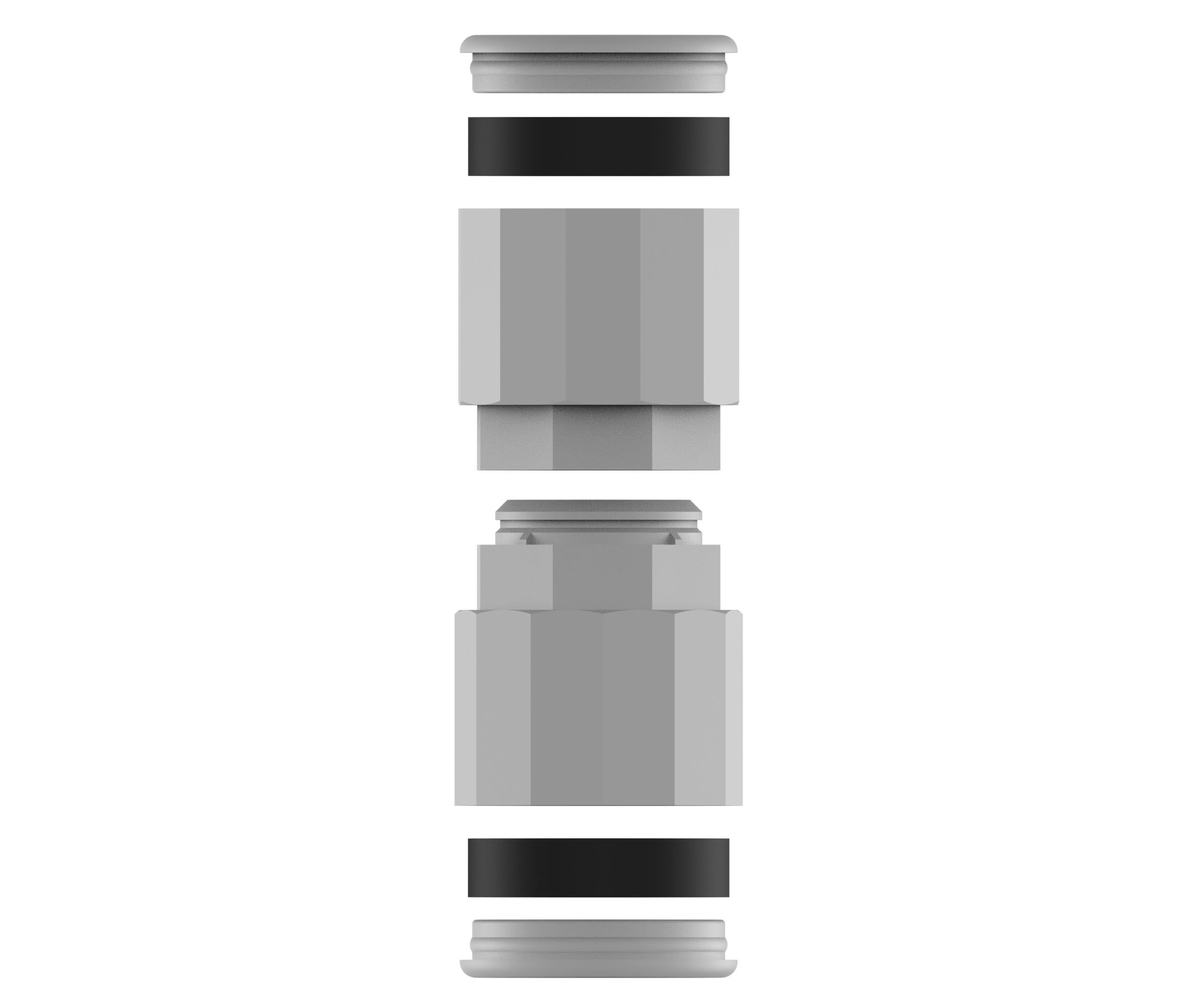

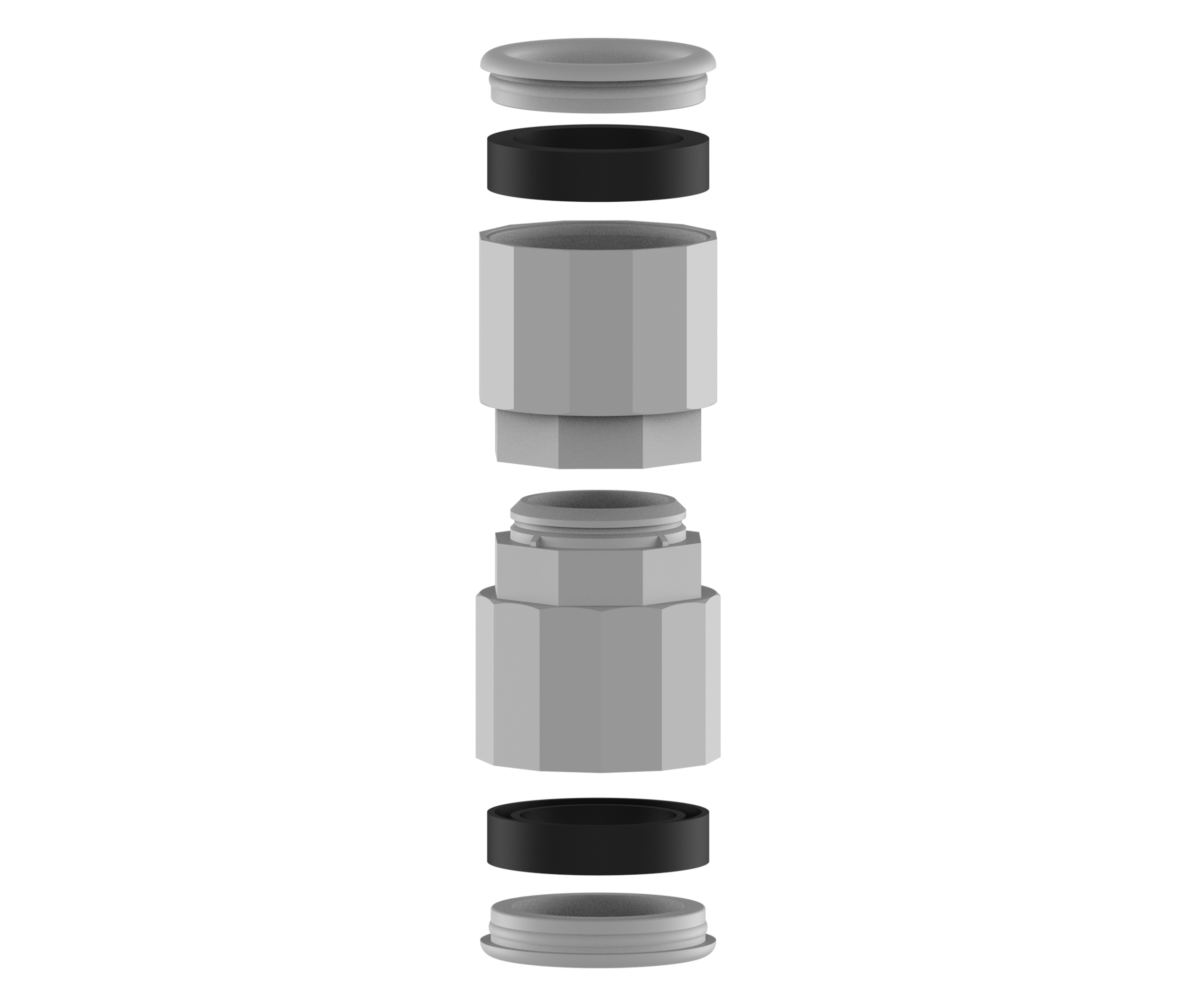

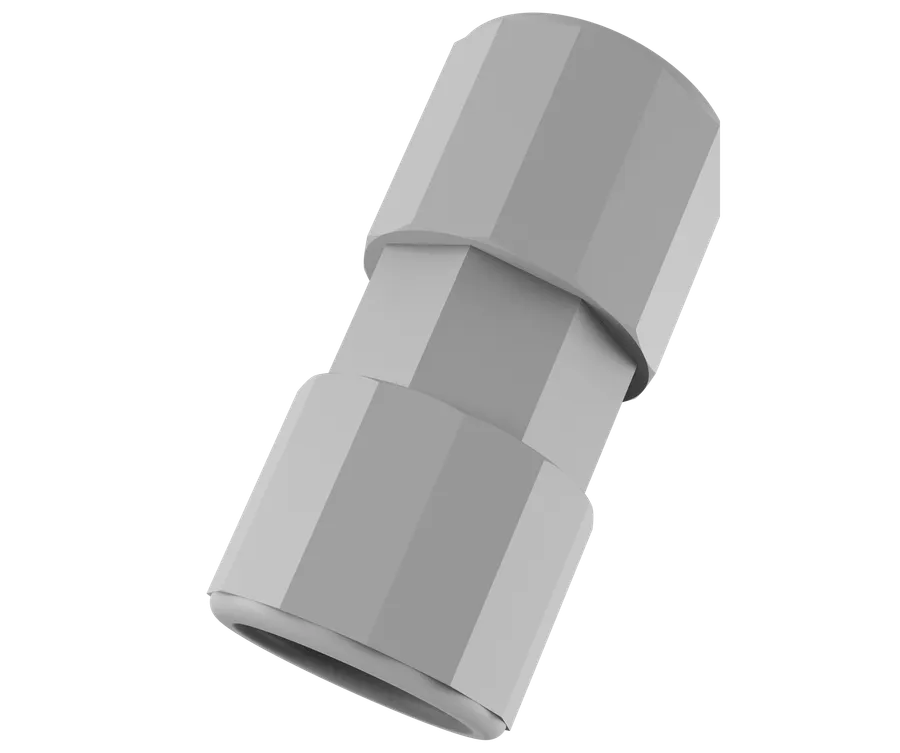

Rett kobling
○Halogenfri kobling for sammenkobling av to konduitrør
○Avgir ikke giftige gasser ved brann.
Spesifikasjoner
| Gjengestørrelse | Nøkkelvidde | Diameter | Height 'L' | Conduit Size | Inner Ø 'ID' | Varenummer | BIMED Kode | 3D File |
|---|---|---|---|---|---|---|---|---|
| M16x1,5 | 26/21 | 26.3 | 68.8 | 16 | 16.3 | — | BRCC-01 | — |
| M20x1,5 | 30/25 | 31.4 | 67.3 | 20 | 20.3 | — | BRCC-02 | — |
| M25x1,5 | 35/30 | 36 | 69 | 25 | 25.3 | — | BRCC-03 | Get File |
| M32x1,5 | 42/37 | 43.5 | 69.5 | 32 | 32.2 | — | BRCC-04 | — |
| M40x1,5 | 50/45 | 52 | 85 | 40 | 40.4 | — | BRCC-05 | — |
| M50x1,5 | 62/55 | 63.3 | 84.5 | 50 | 50 | — | BRCC-06 | — |
