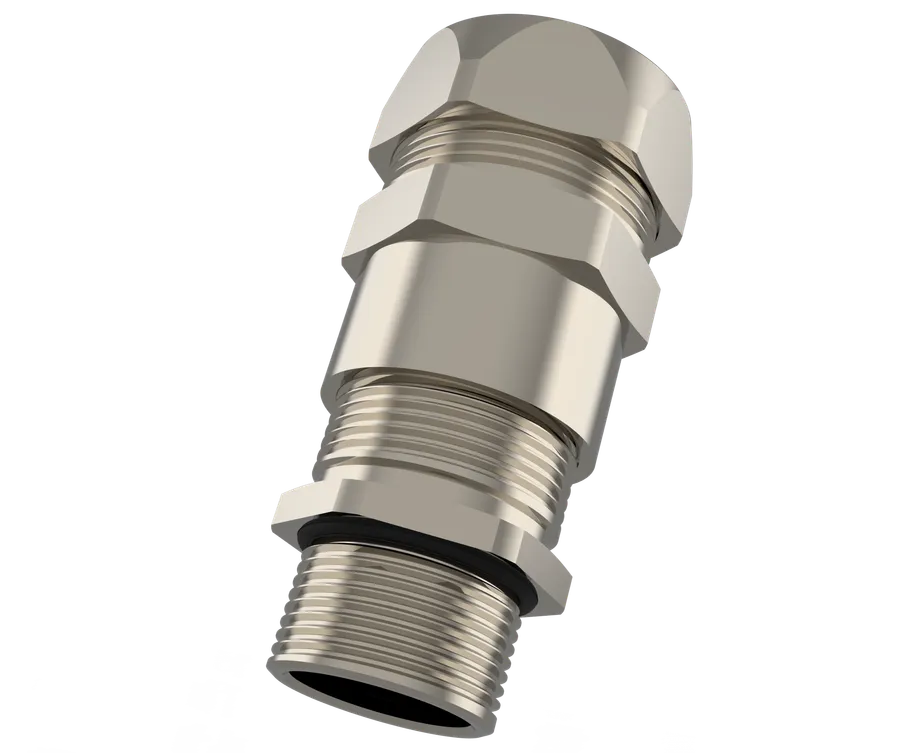

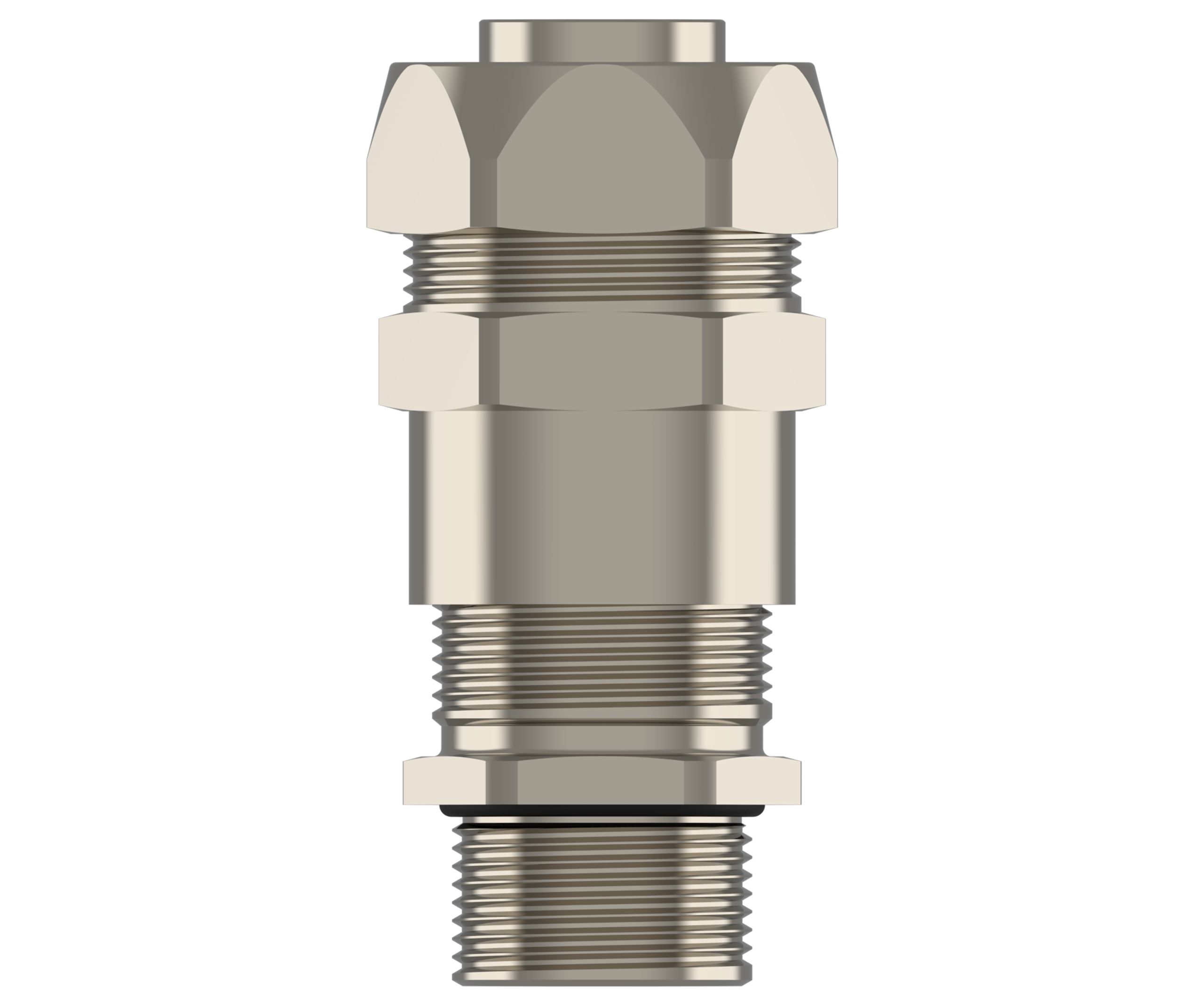

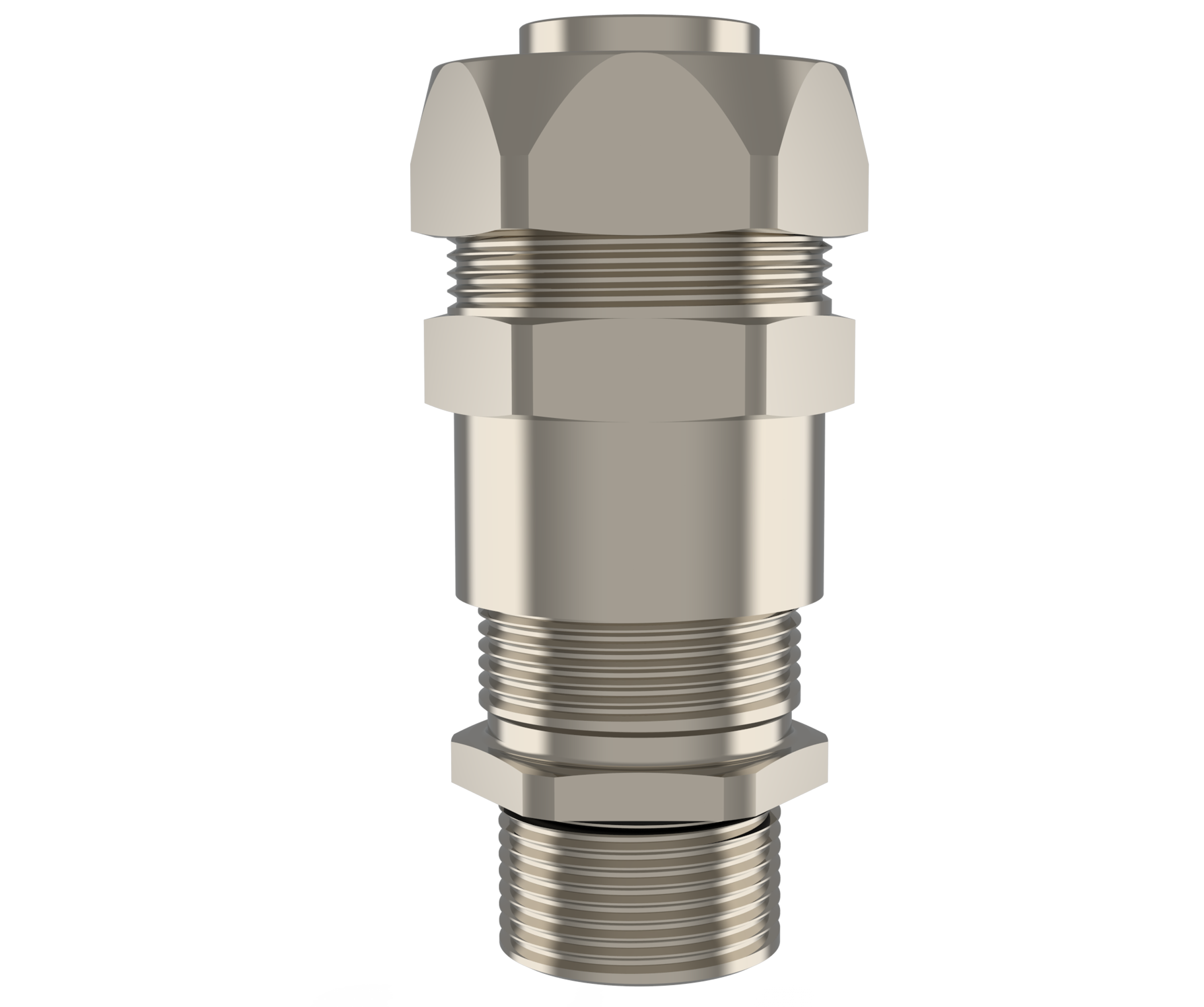

Konduitkobling med integrert kabelnippel
○Konduitkoblinger for Sealtite-rør med integrert kabelnippel for sikker klemming og tetning av kabelen
○Beregnet for metallmaskiner og -kabinetter i krevende industrielle miljøer med høy korrosjonsbeskyttelse.
Spesifikasjoner

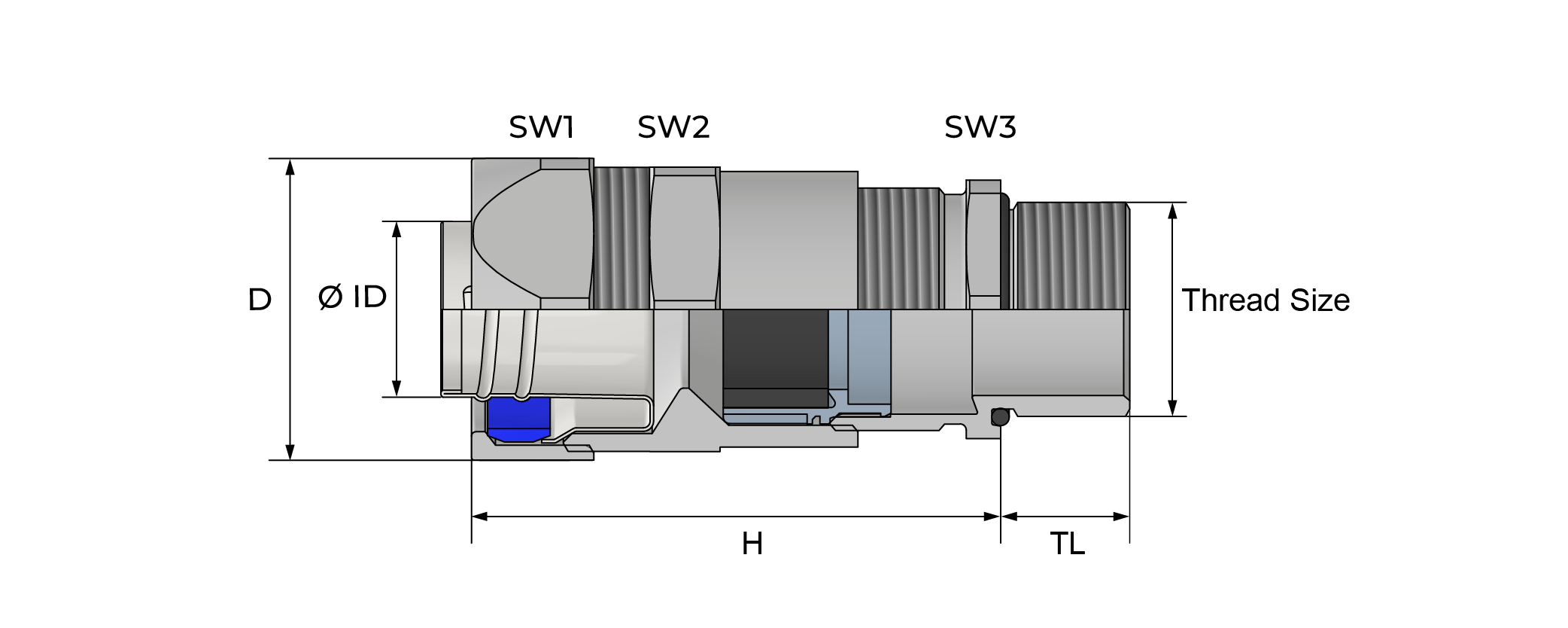

| Gjengestørrelse | Klemområdet | Gjengelengde | Nøkkelvidde | Diameter | Maks høyde 'H' | Conduit Size | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|---|---|
| PG 9 | 4,0 - 8,0 | 12 | 26/24/17 | 29 | 48.5 | 5/16" | — | BBFB-02(S) CH | — | |
| PG 9 | 4,0 – 8,0 | 12 | 26/24/17 | 29 | 48.5 | 3/8" | — | BBFB-02 CH | — | |
| PG 11 | 5,0 - 10,0 | 15 | 26/24/20 | 29 | 51 | 3/8" | — | BBFB-03 CH | — | |
| PG 13,5 | 6,0 - 10,0 | 15 | 26/24/22 | 29 | 48 | 3/8" | — | BBFB-04 CH | — | |
| PG 13,5 | 6,0 - 12,0 | 15 | 29/27/22 | 32.7 | 50.5 | 1/2" | — | BBFB-04(S) CH | — | |
| PG 16 | 10,0 - 13,5 | 15 | 29/27/24 | 32.7 | 53.5 | 1/2" | — | BBFB-05 CH | — | |
| PG 21 | 13,0 - 18,0 | 15 | 35/33/30 | 39 | 59 | 3/4" | — | BBFB-06 CH | — | |
| PG 29 | 18,0 - 23,5 | 15 | 45/43/40 | 50 | 70 | 1" | — | BBFB-07 CH | — |
