Flerhullstetninger
Flerhullstetninger Technical Drawing
Katalogsider

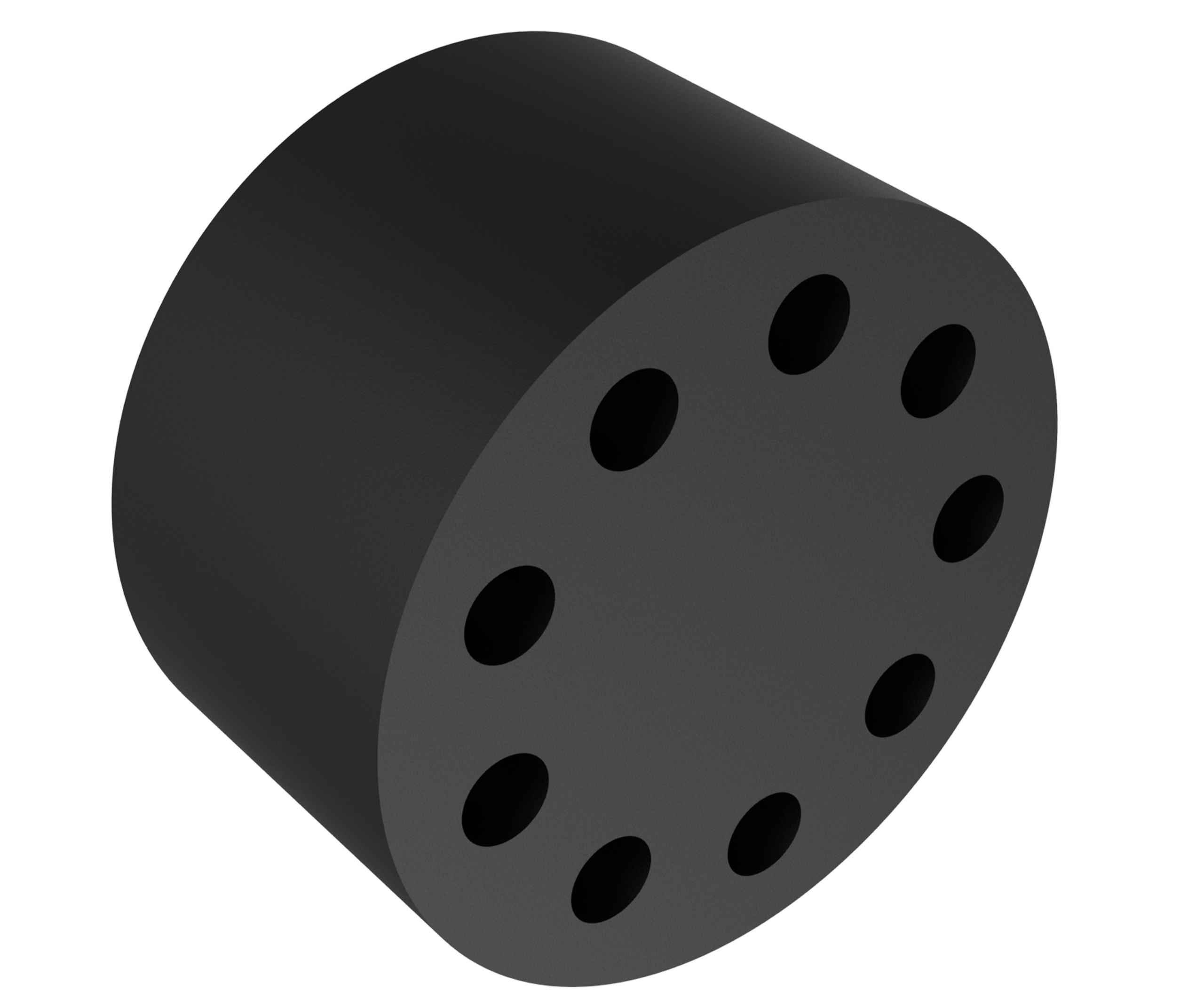

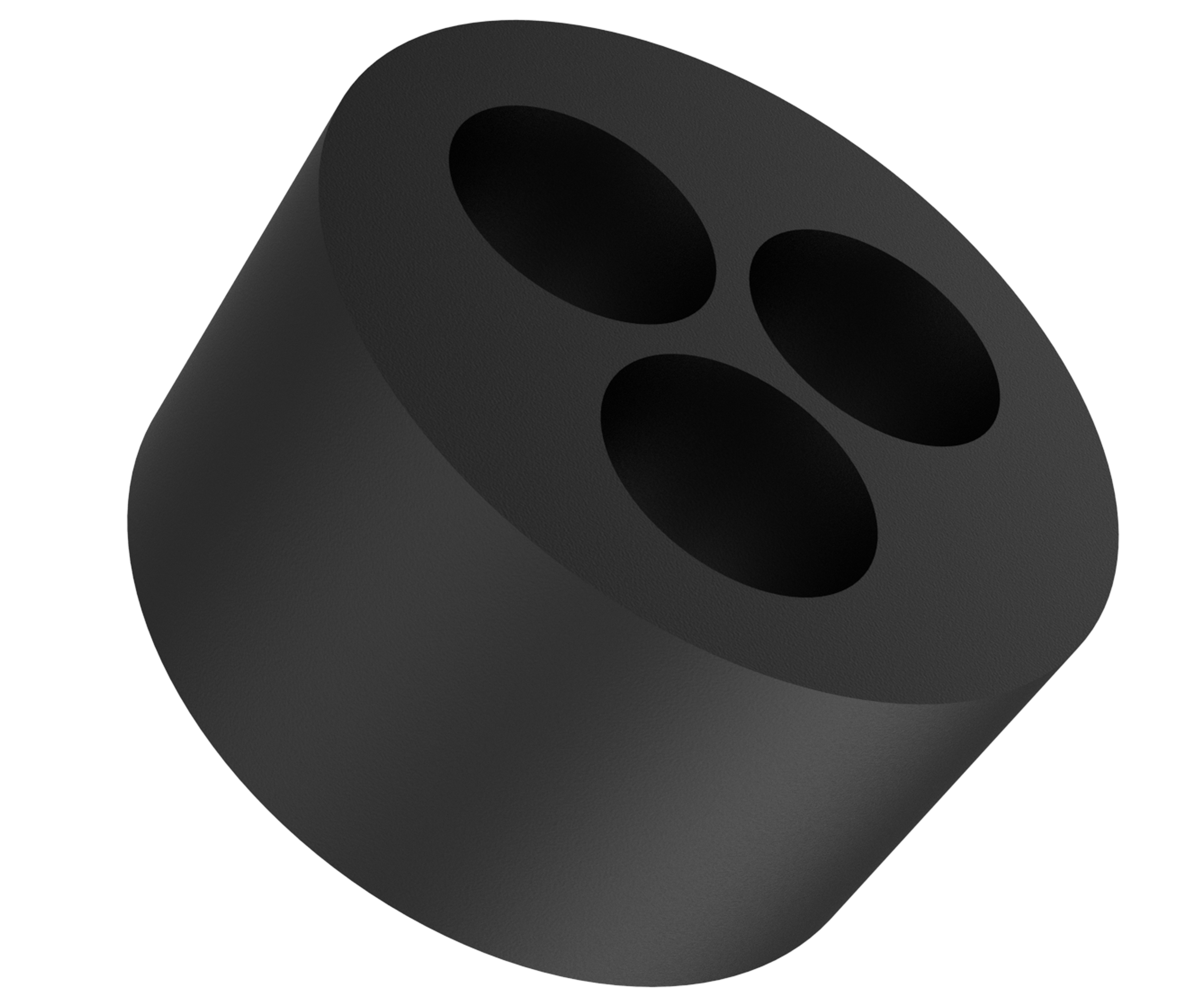

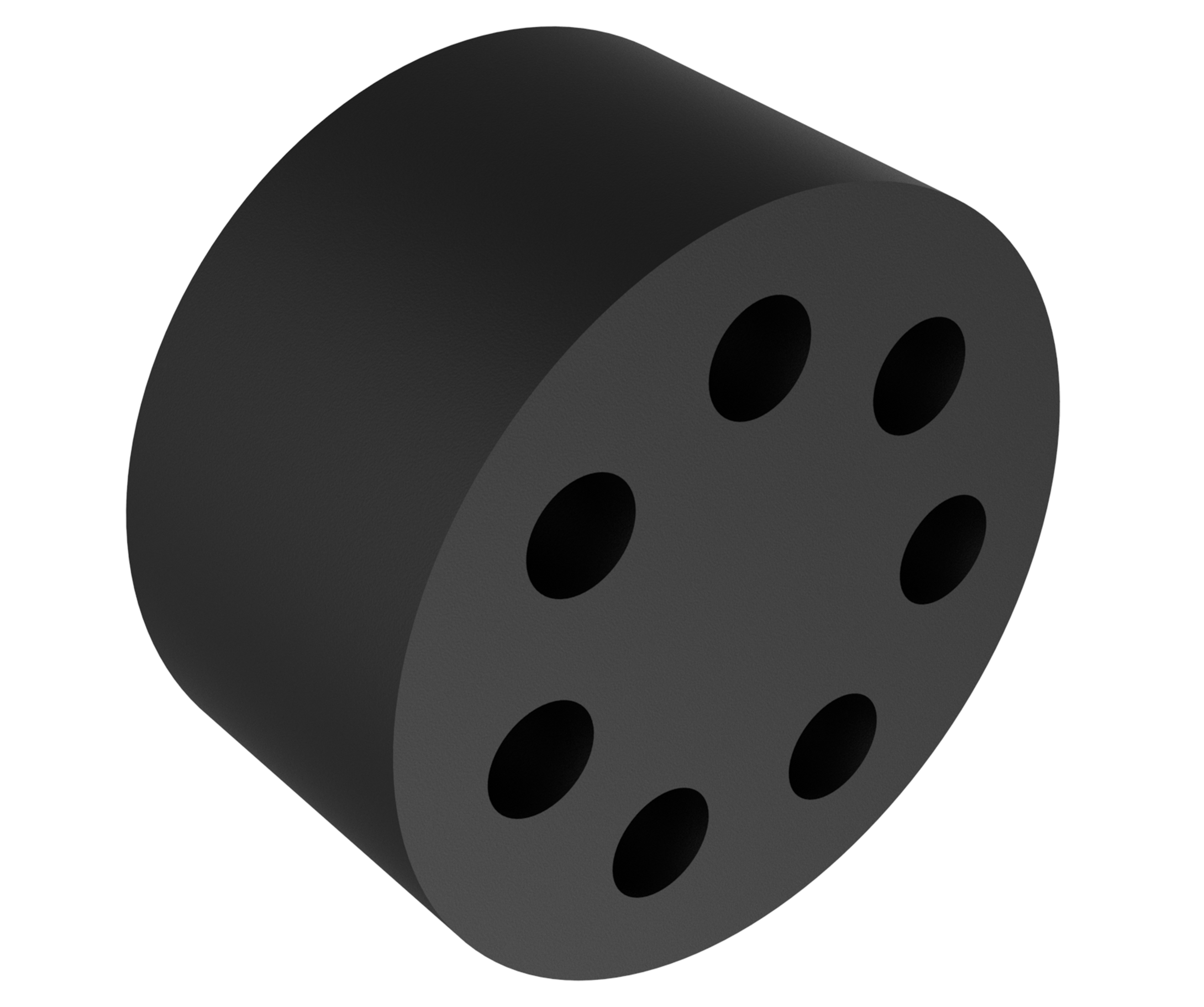

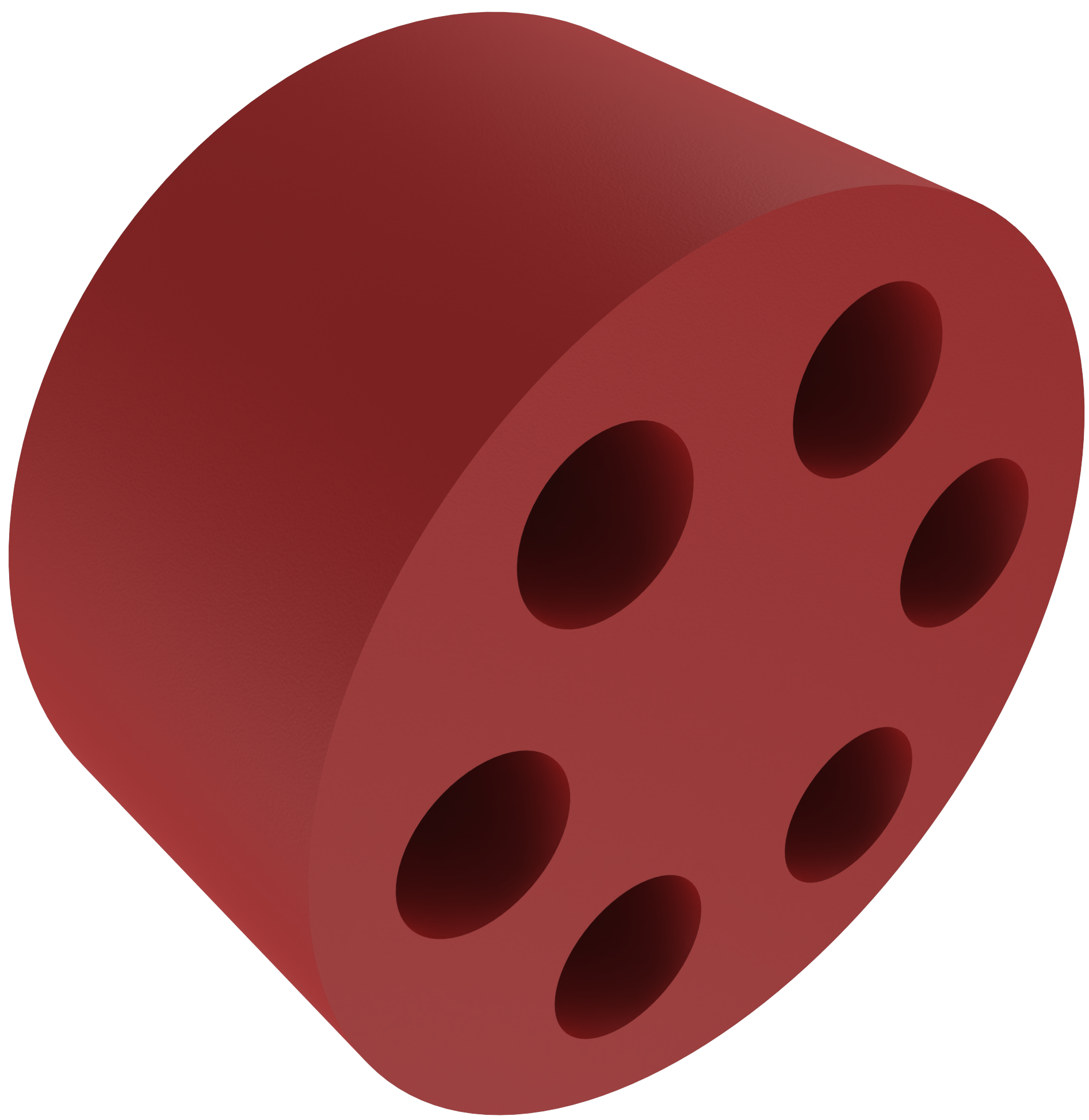

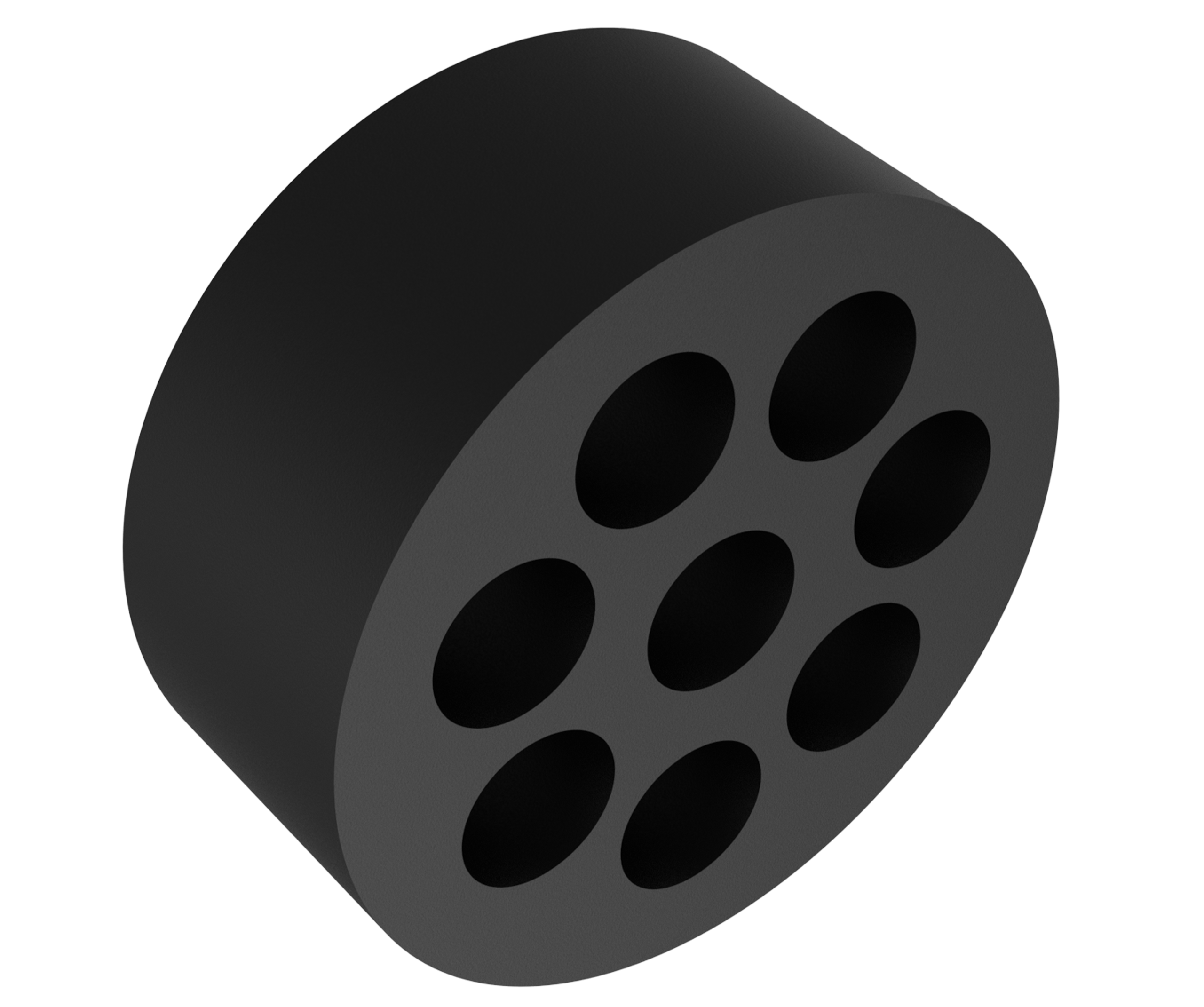

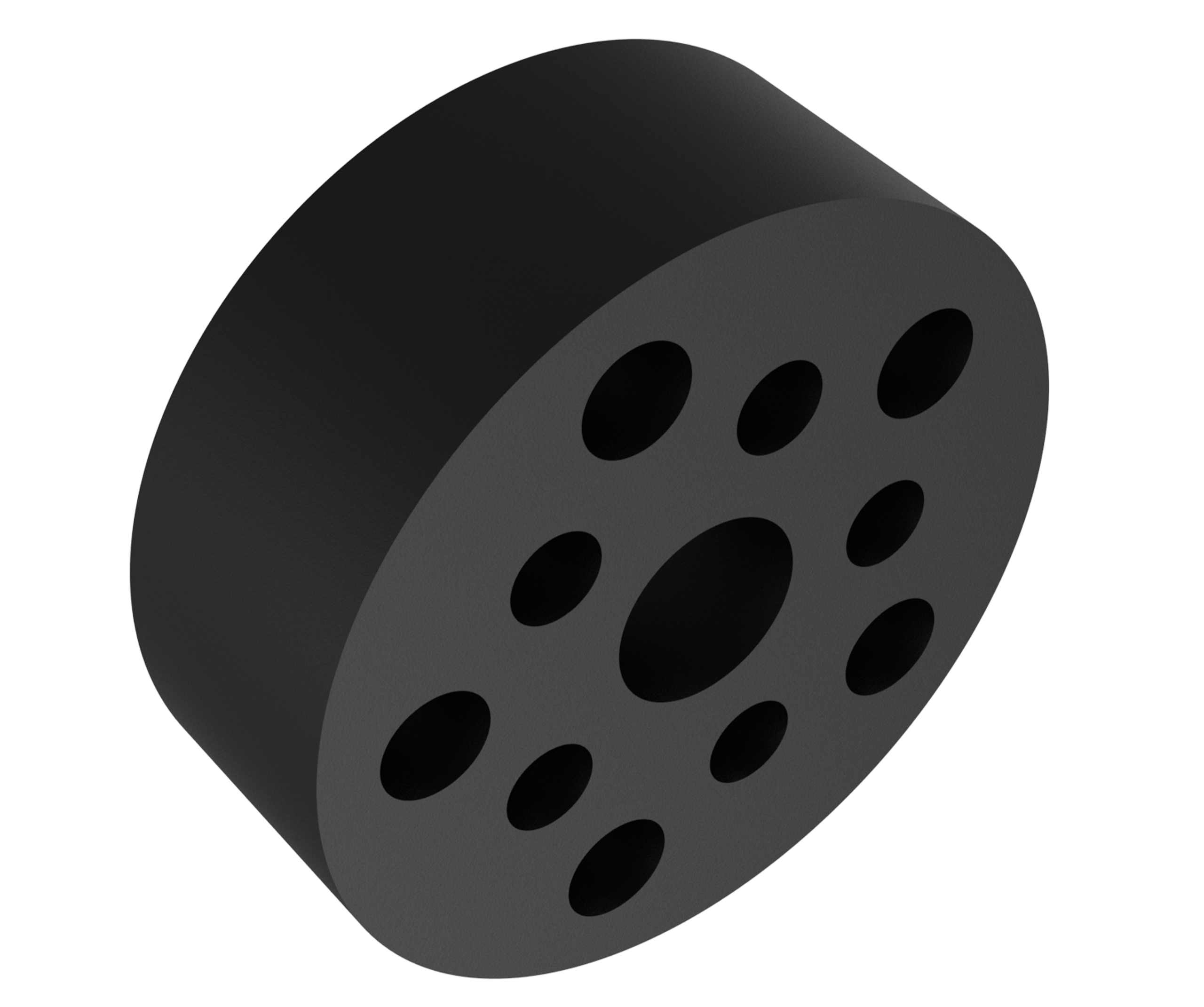

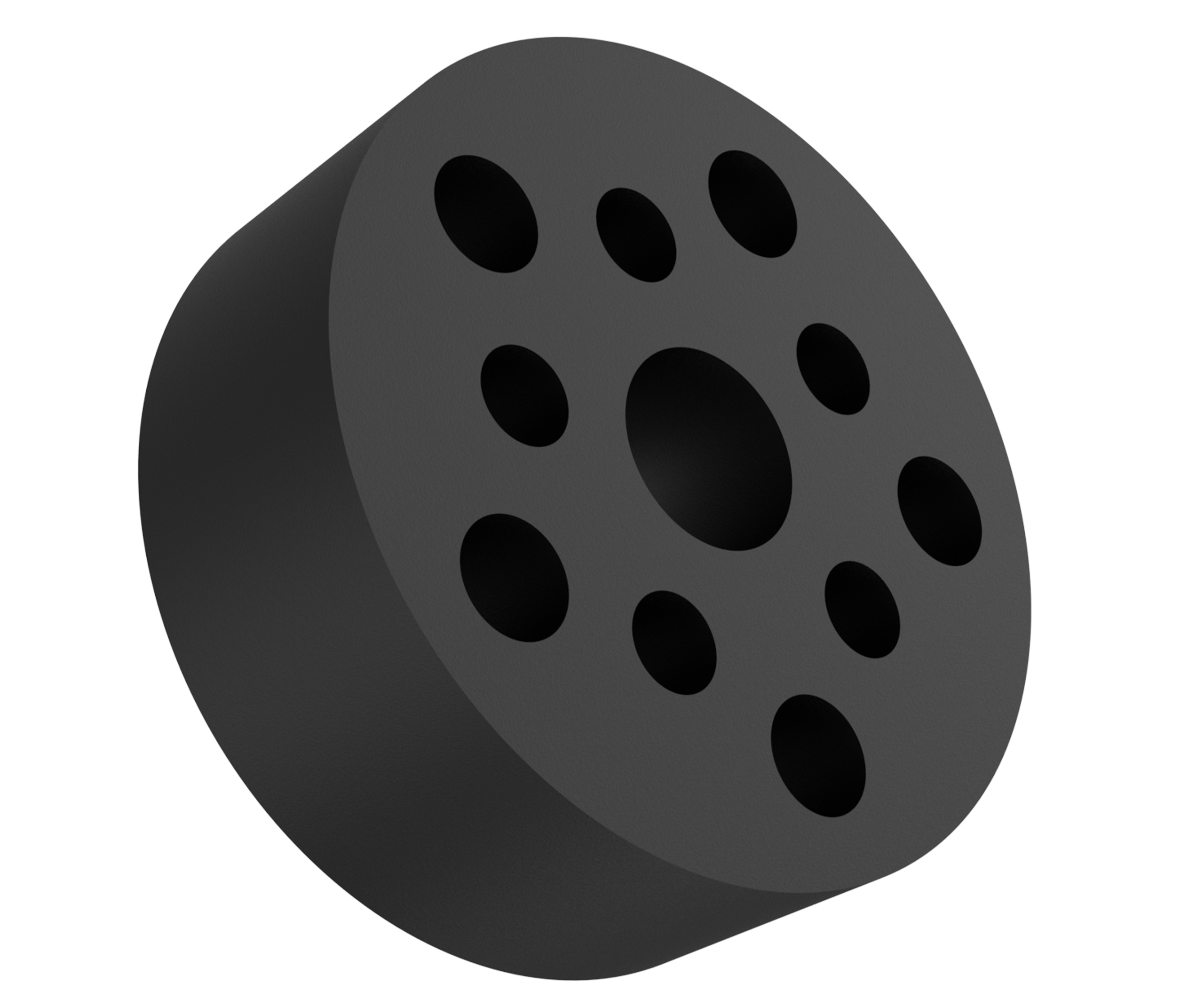

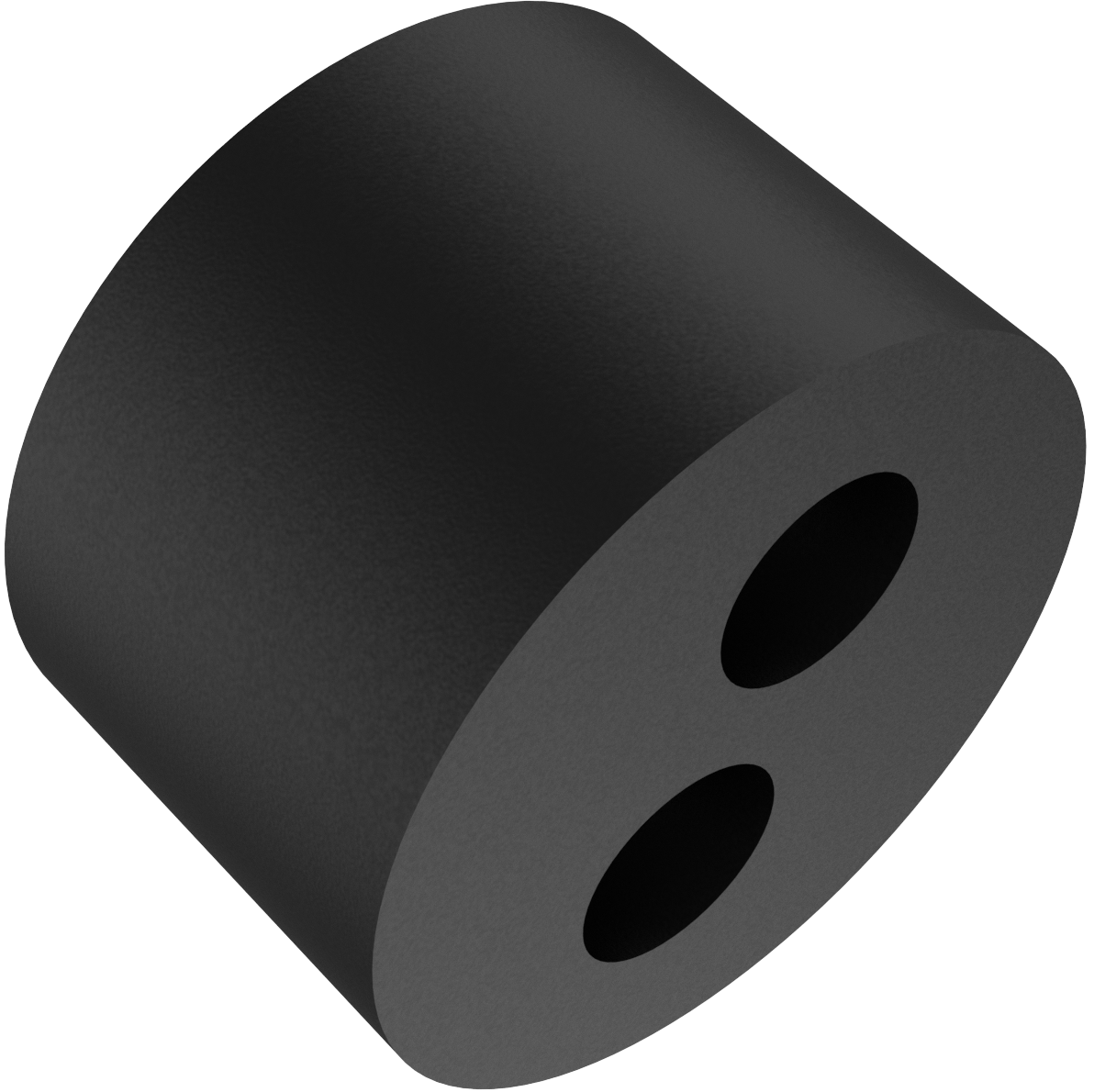

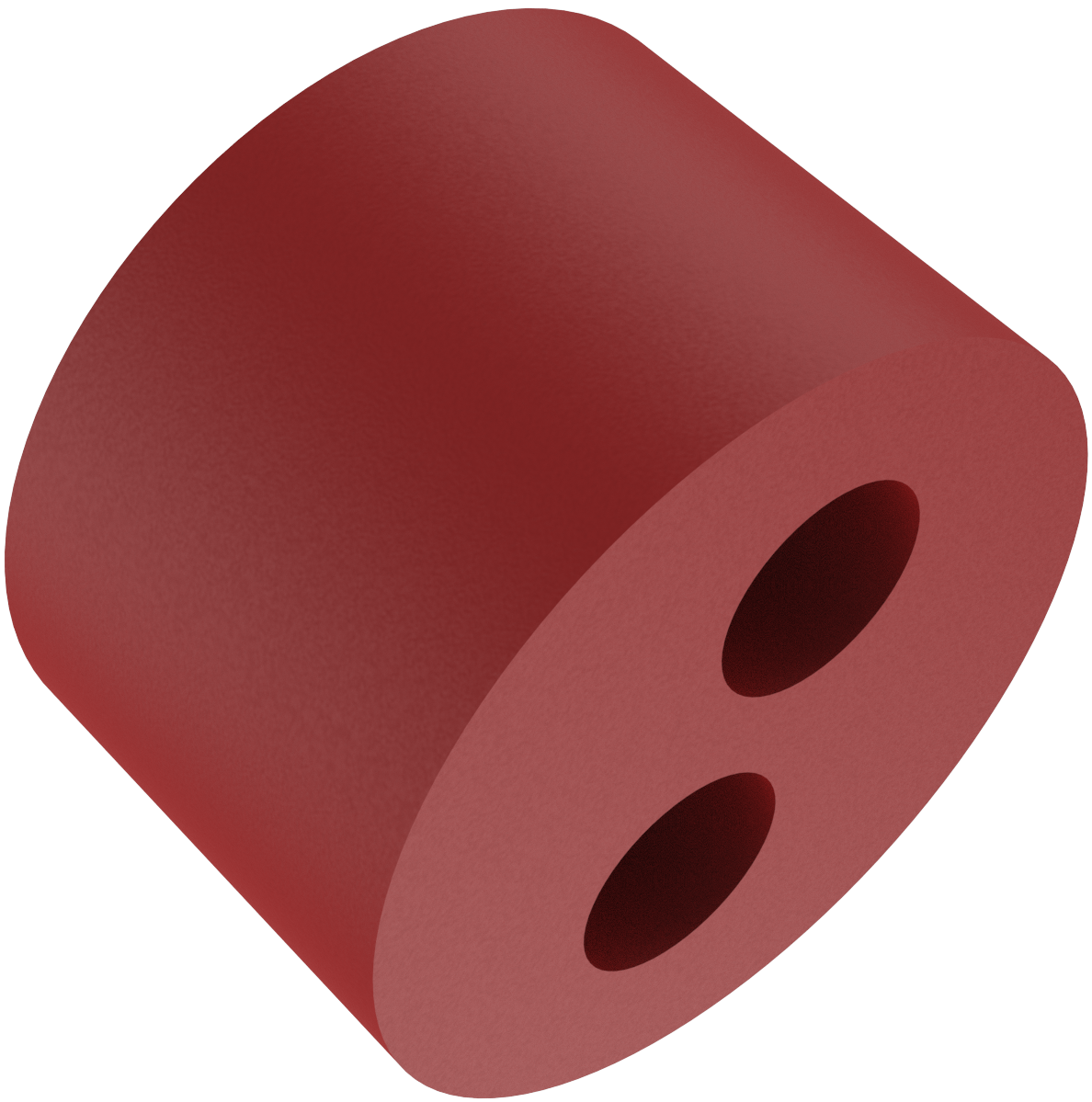

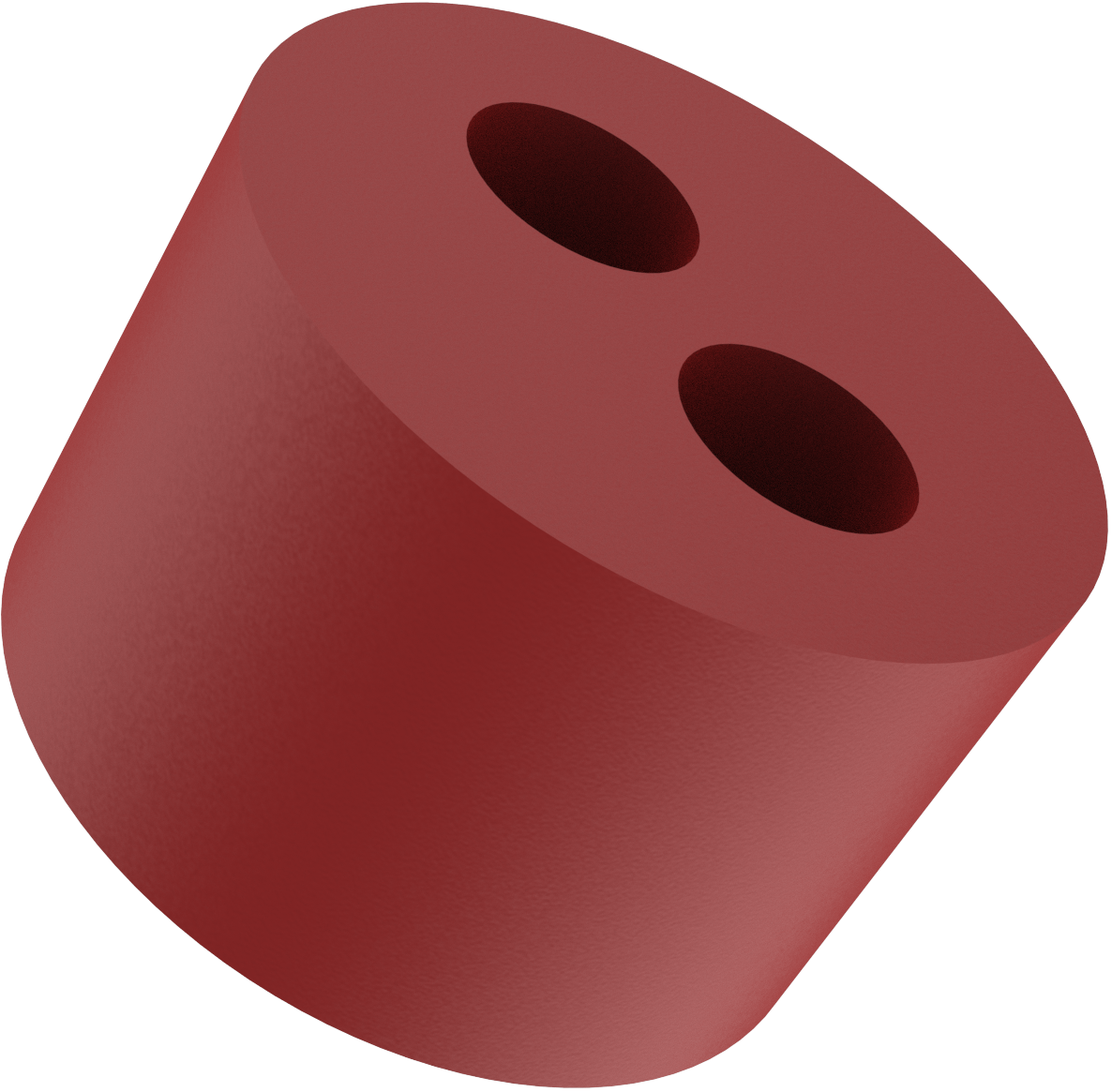

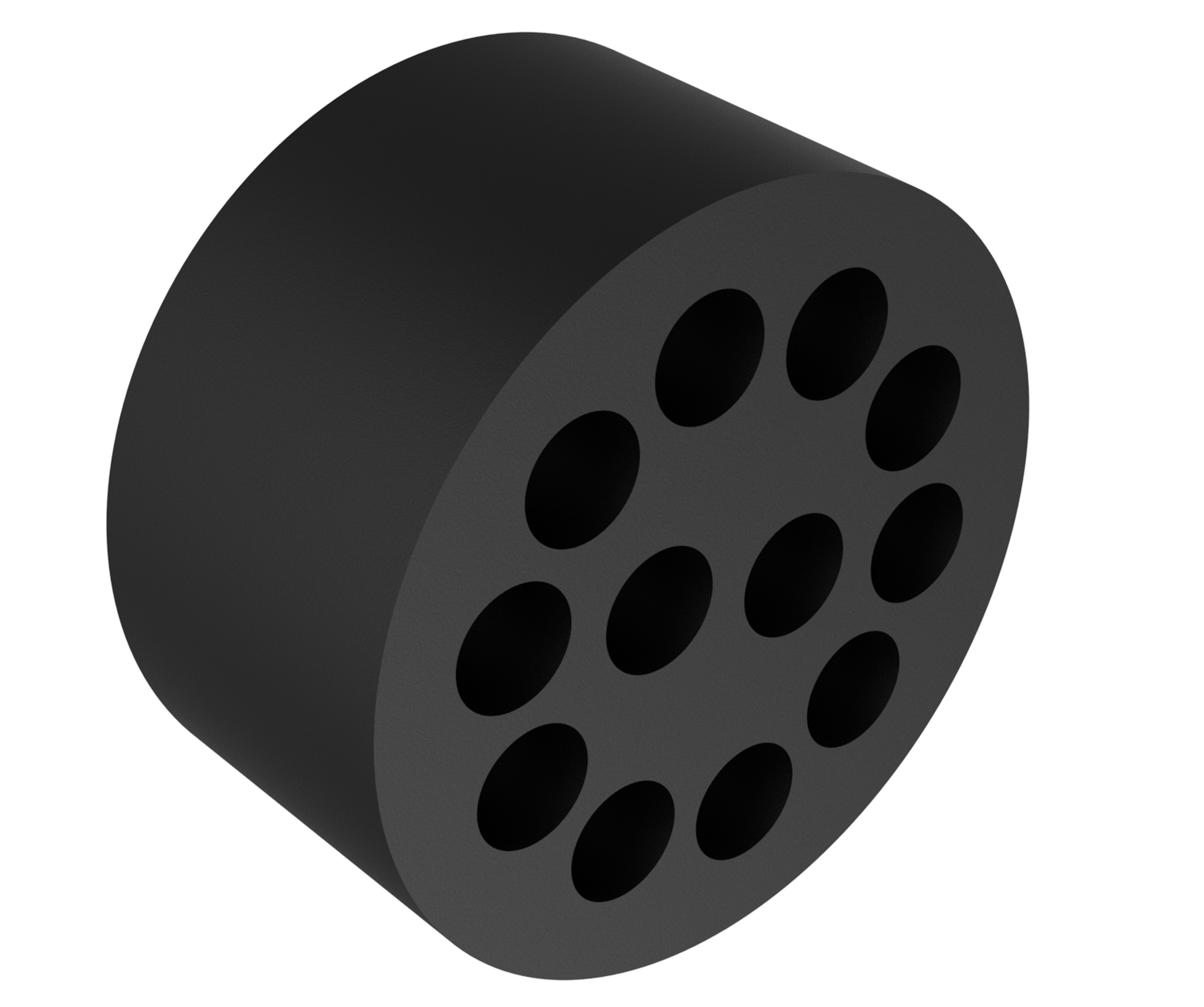

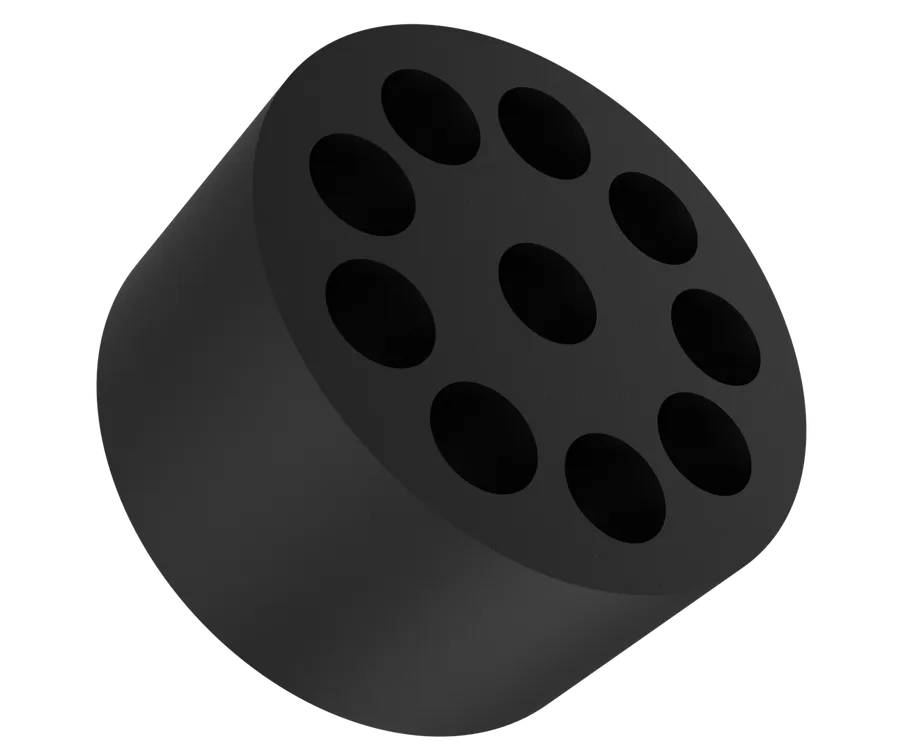

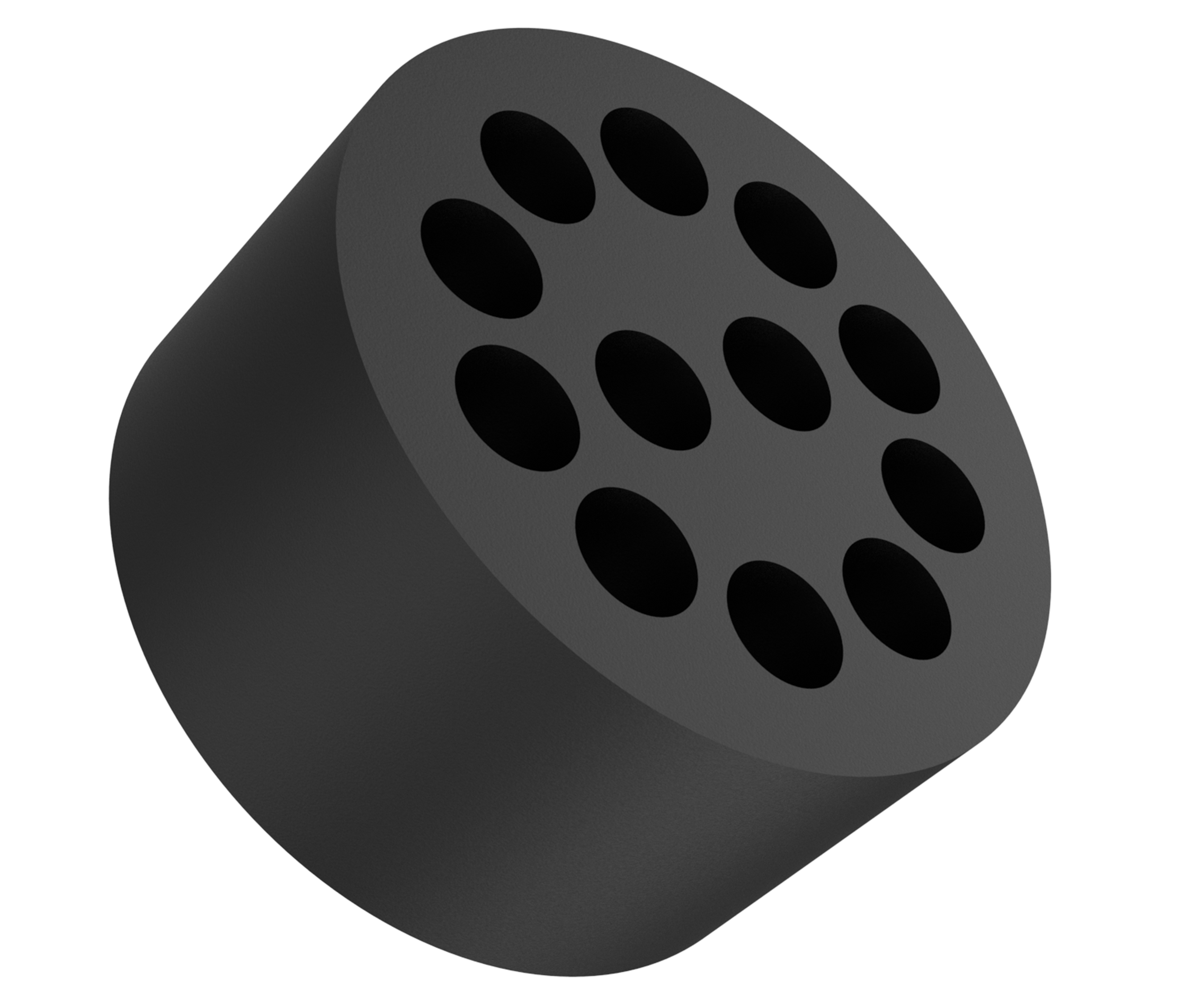

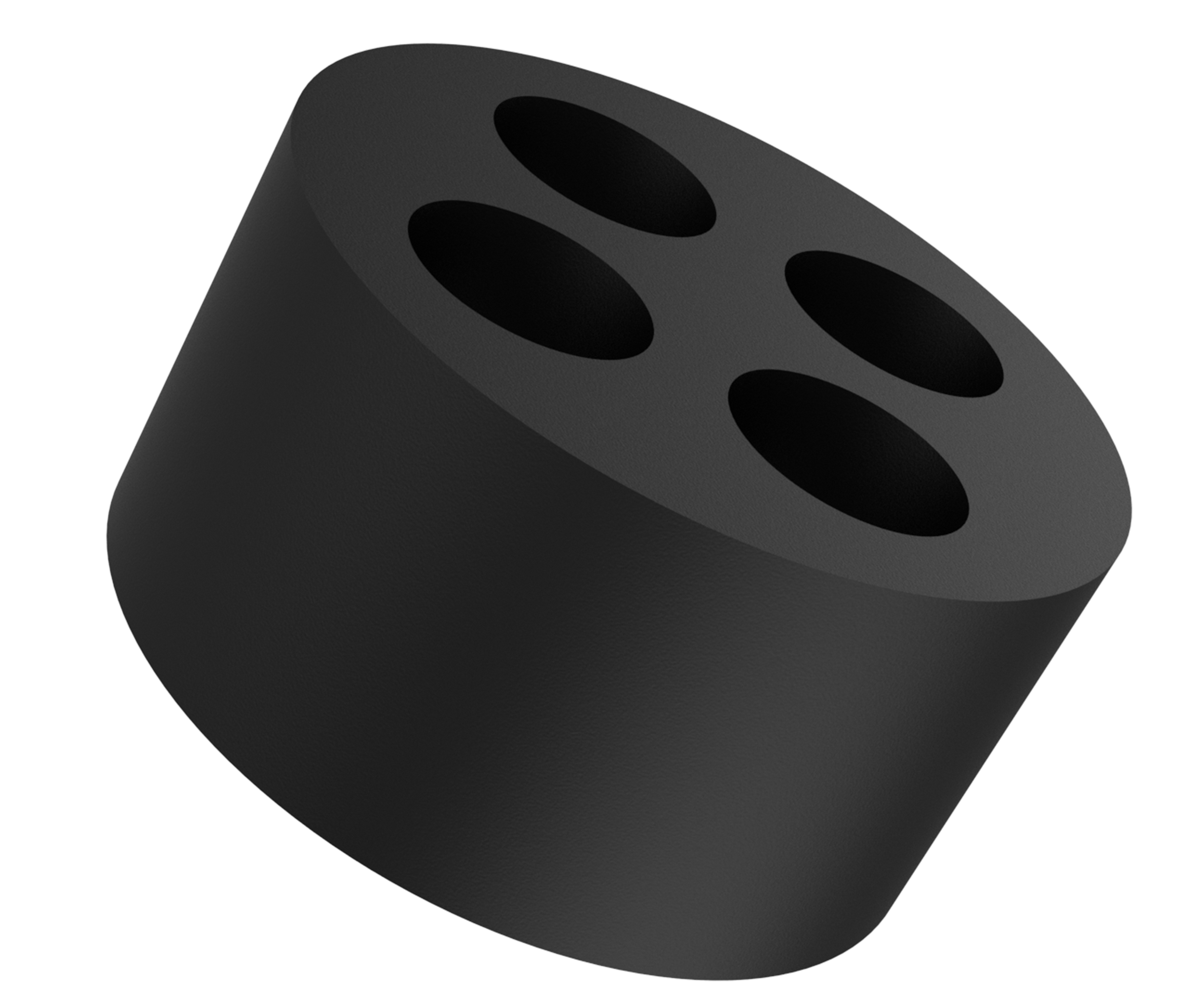

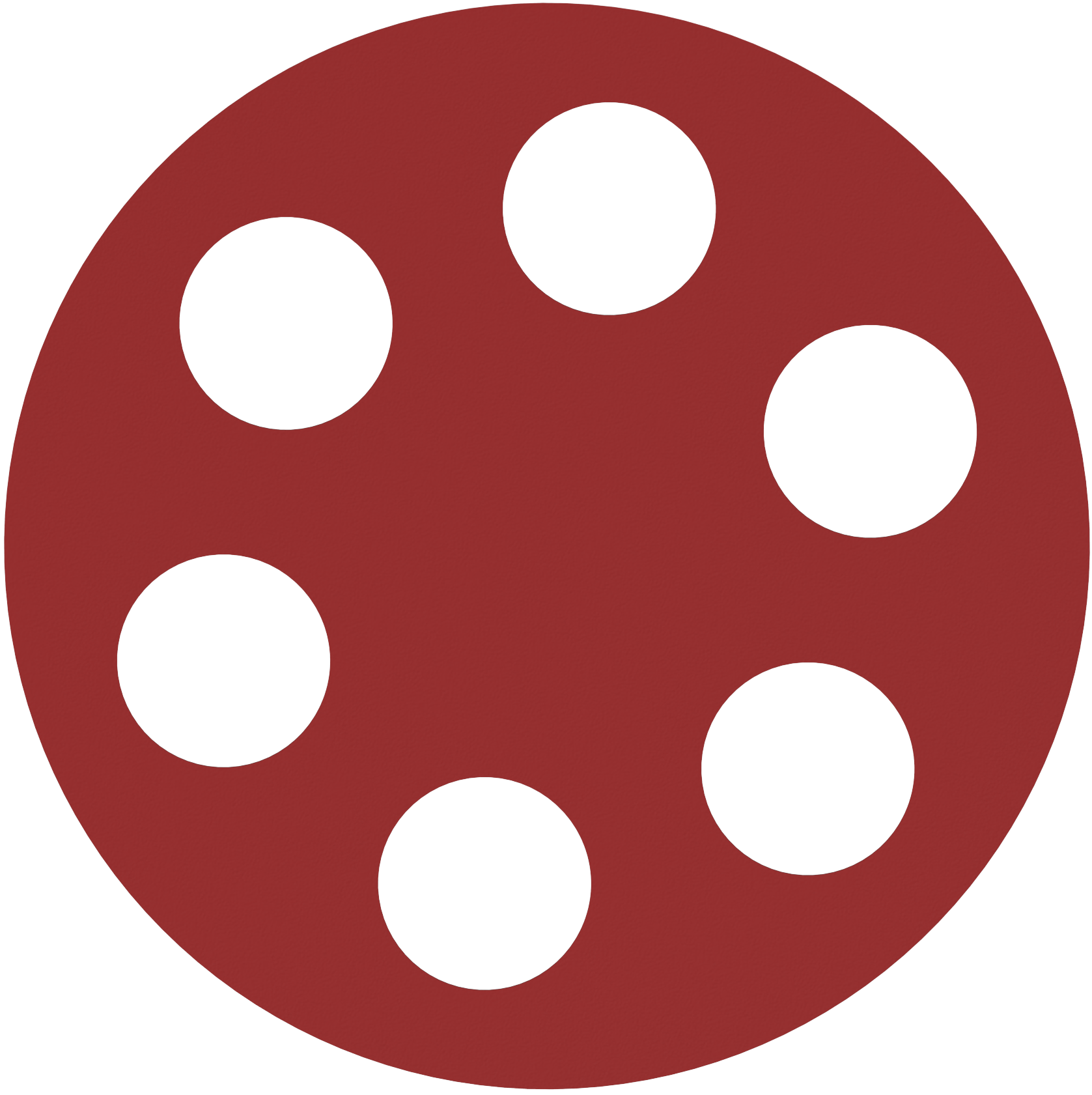

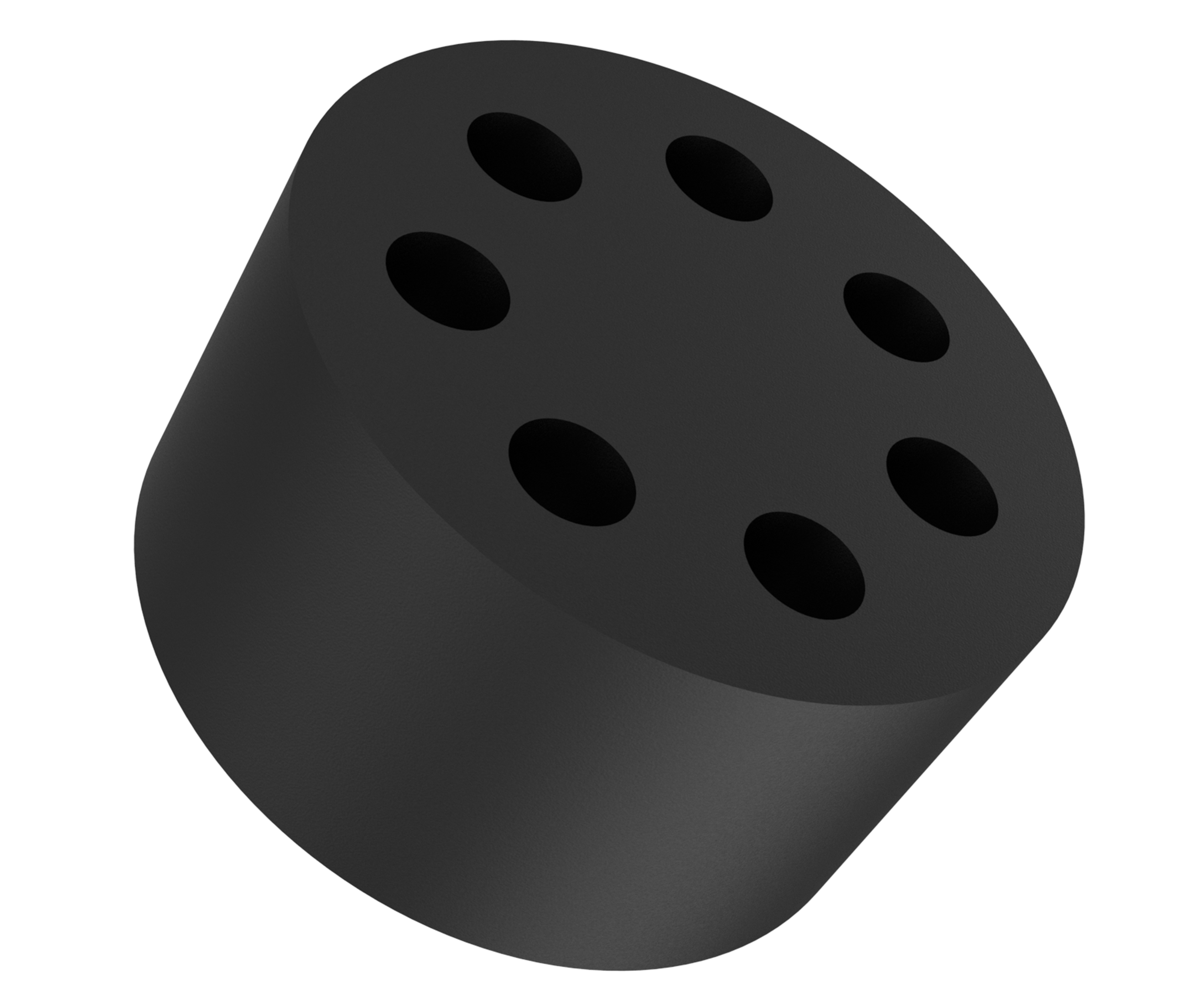

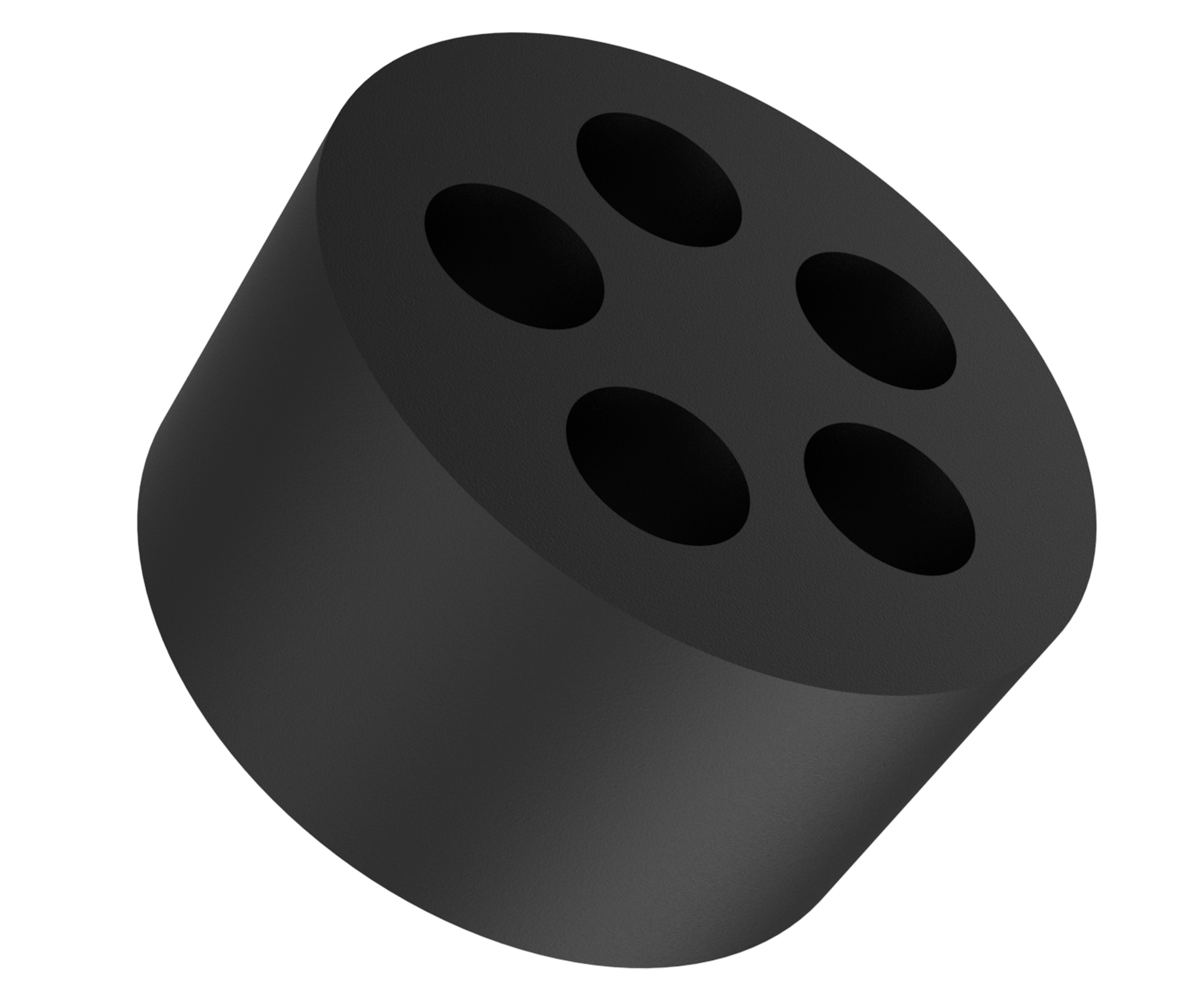

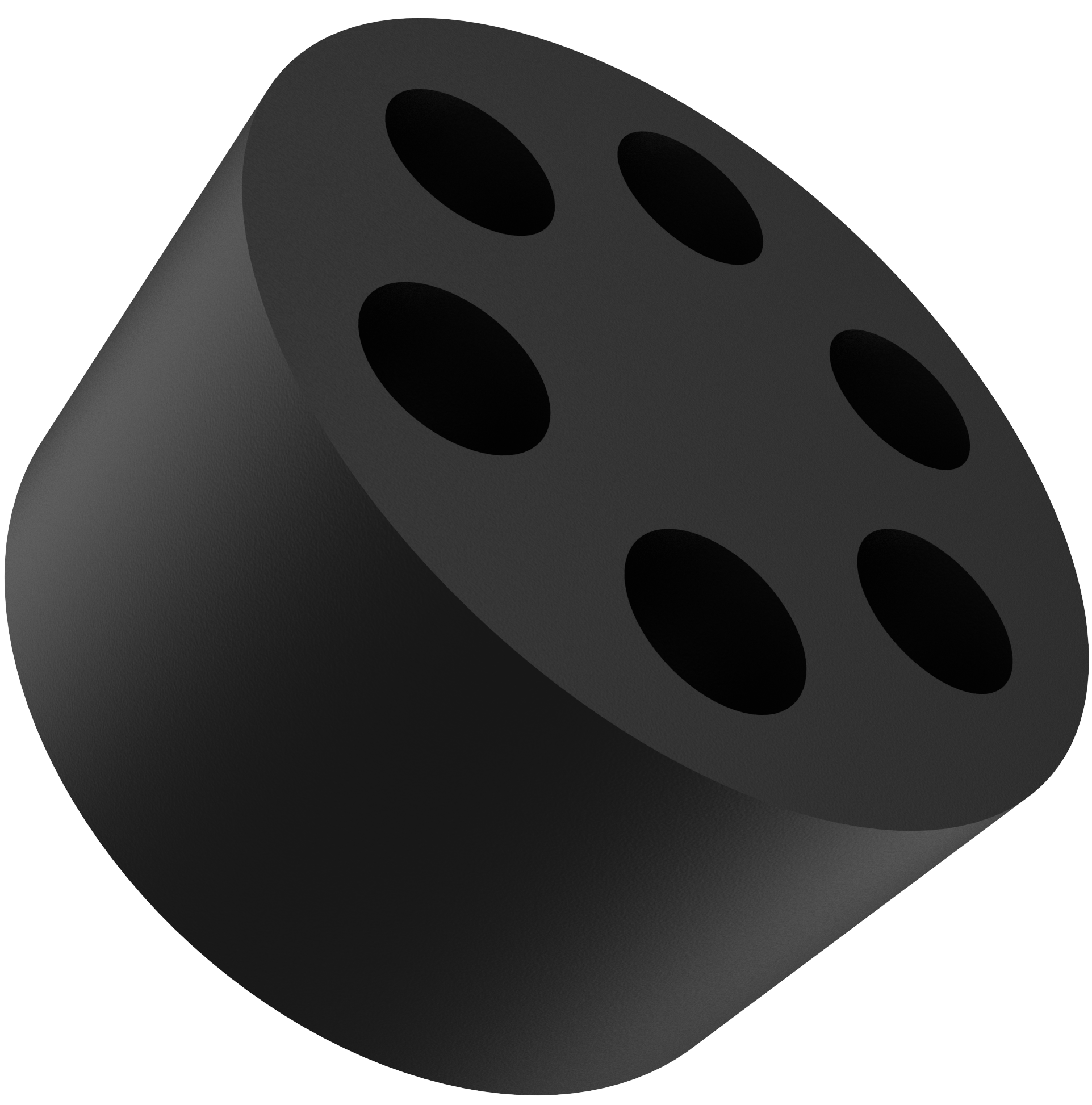

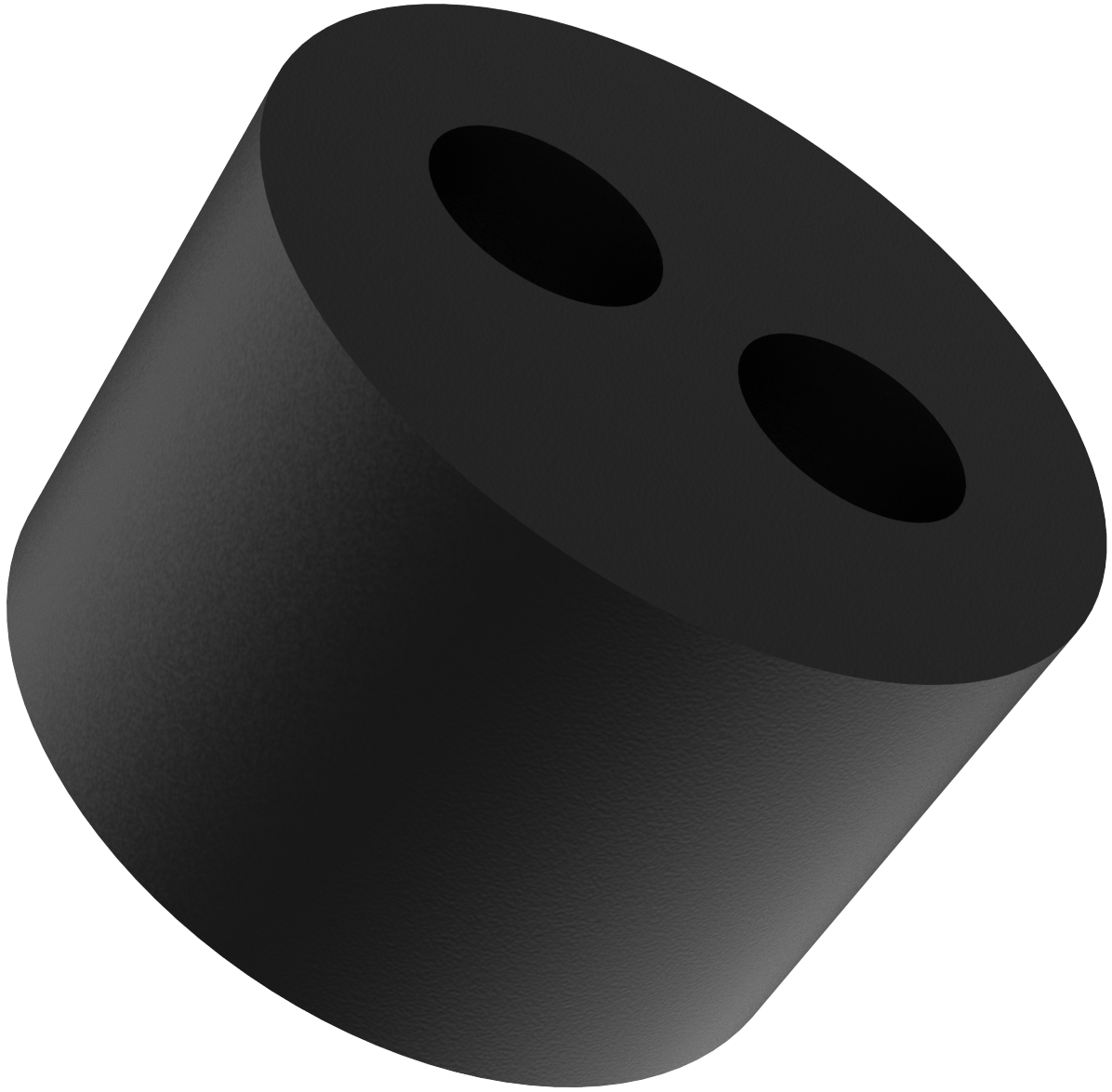

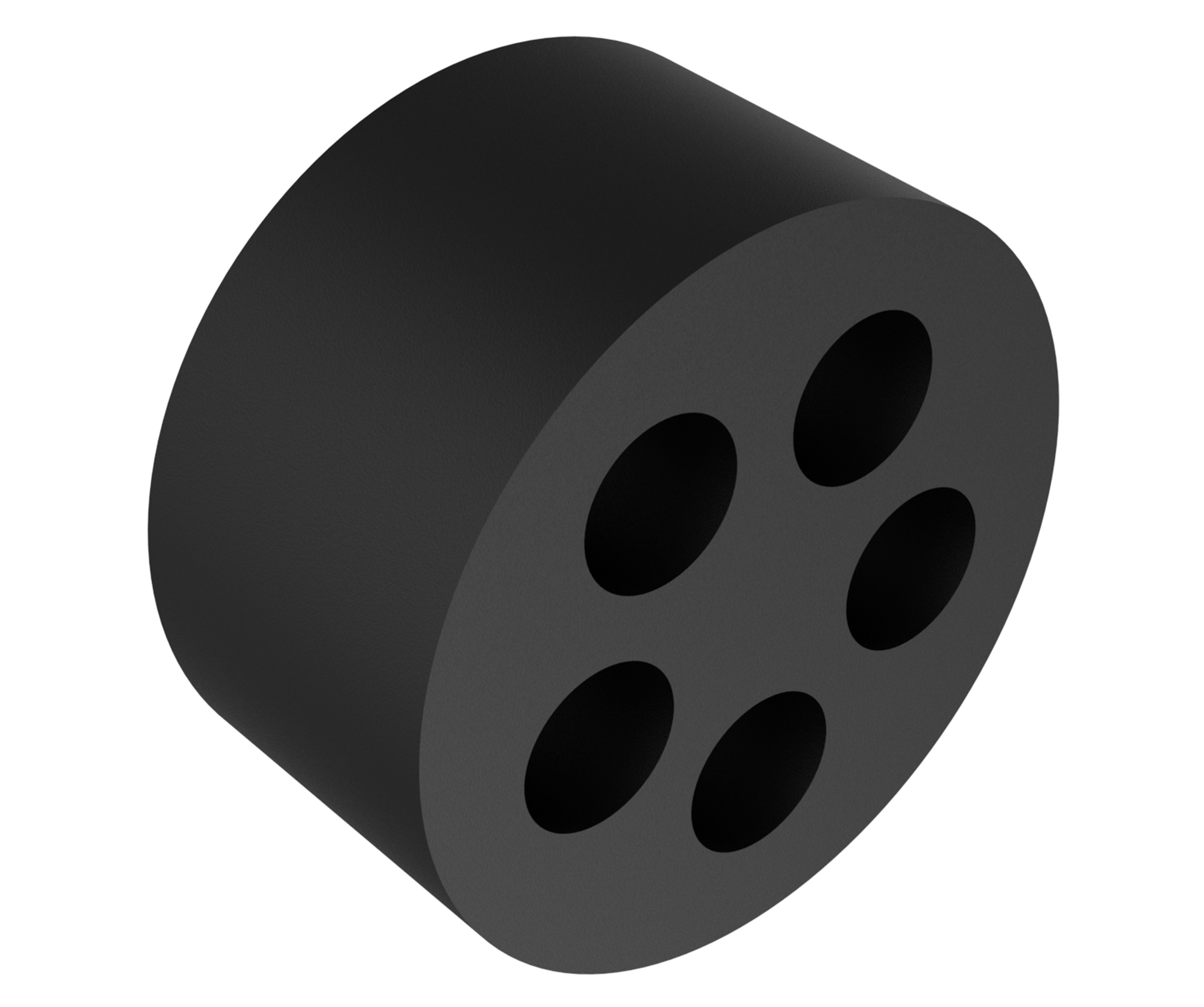

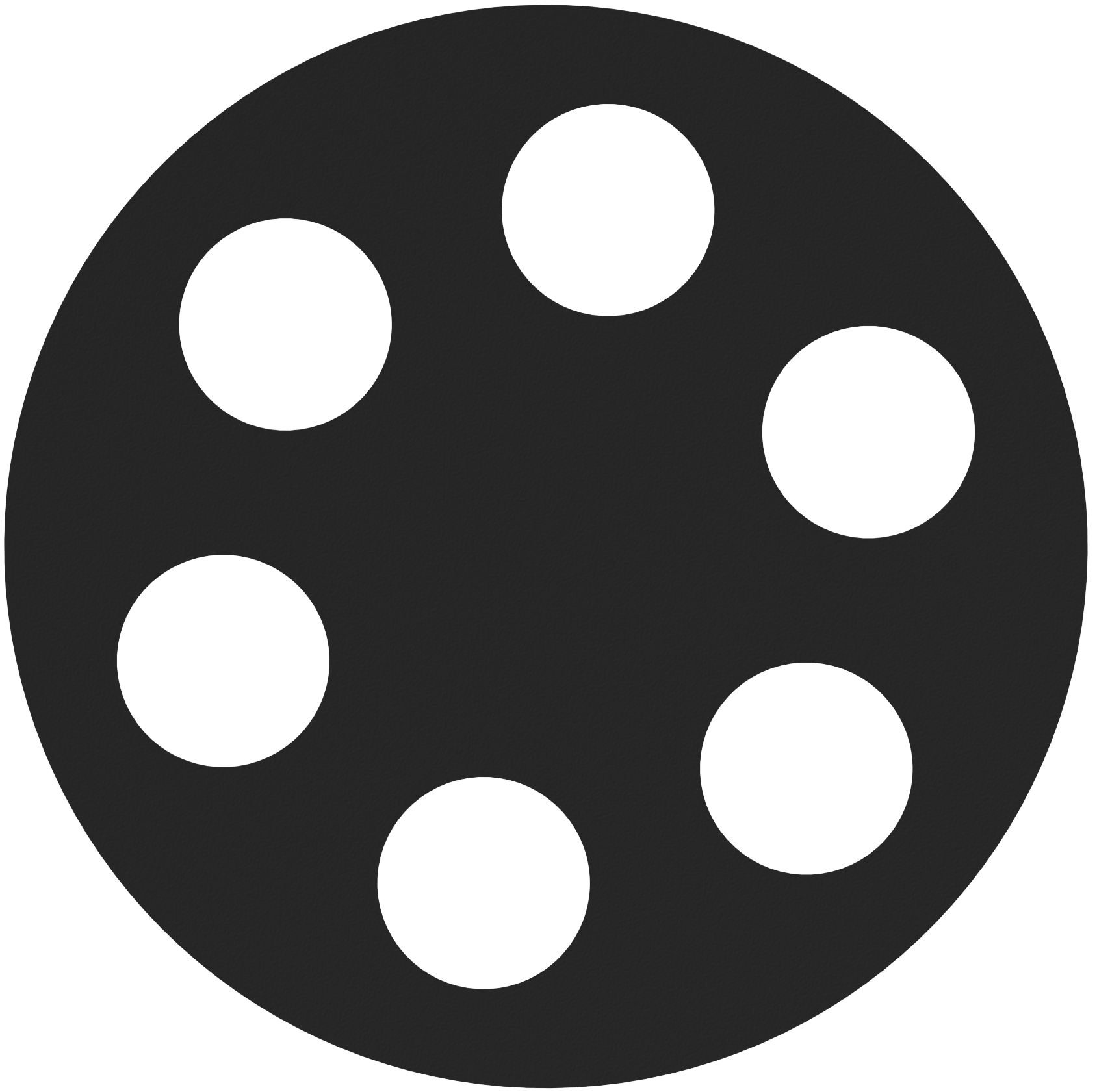

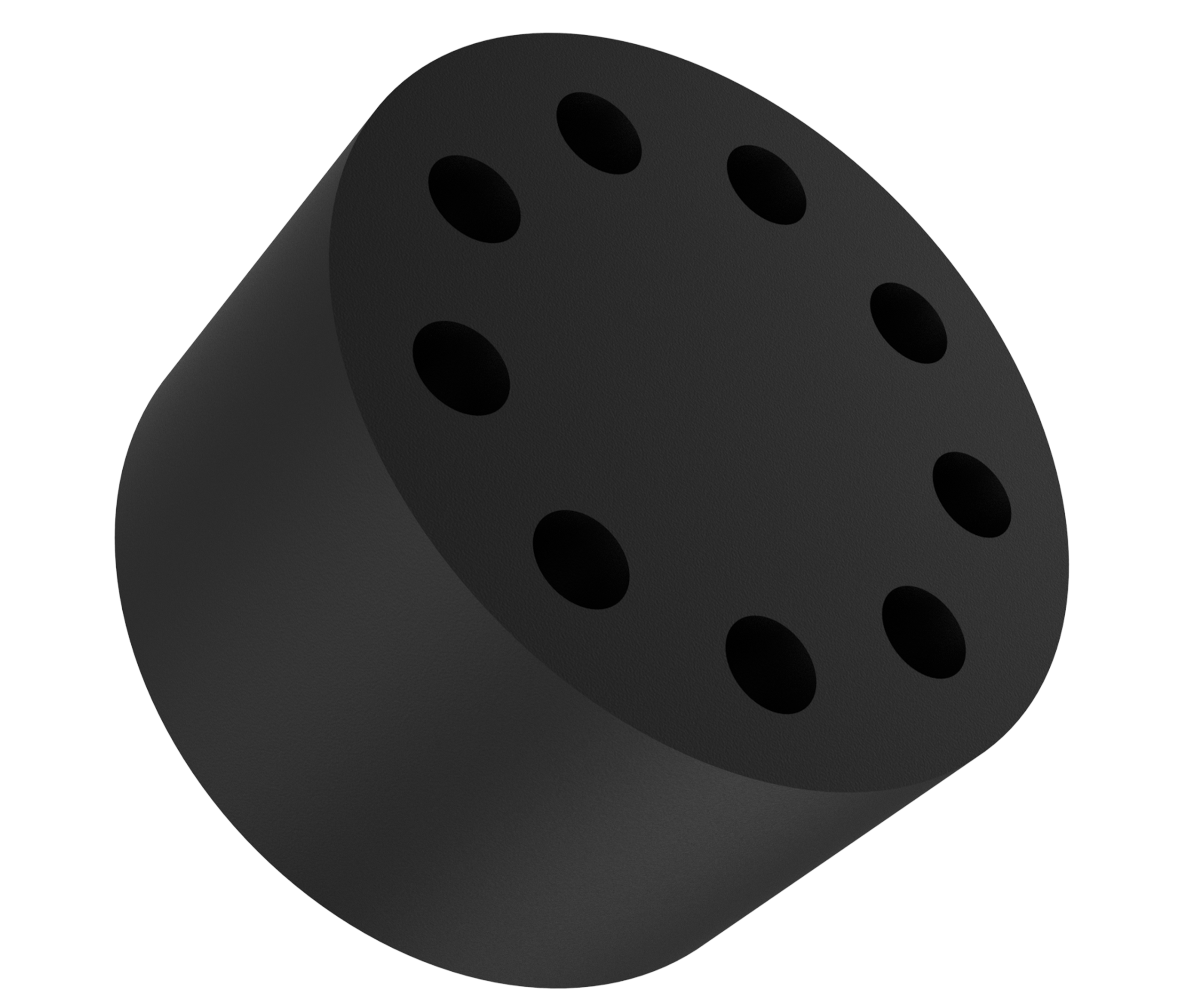

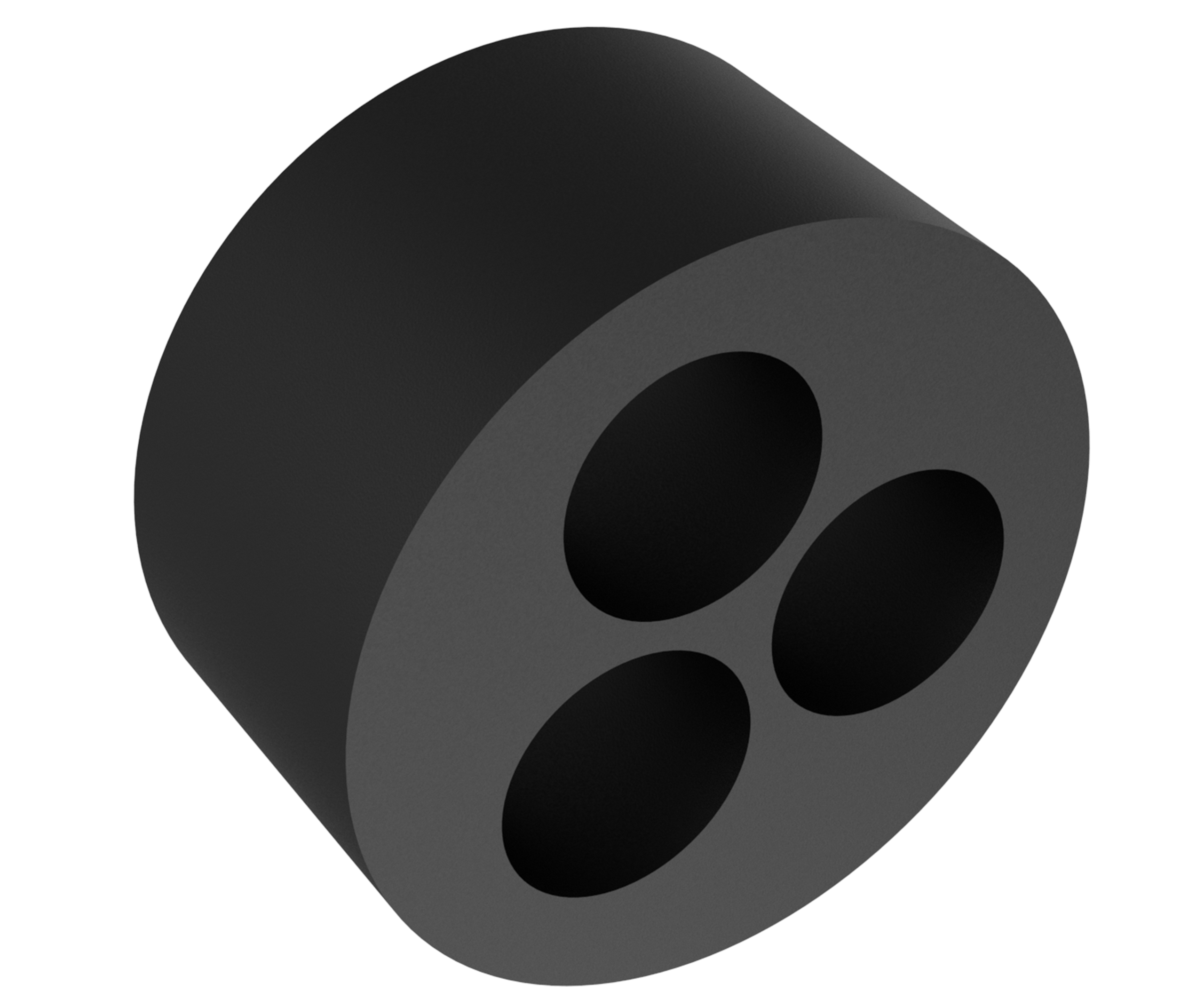

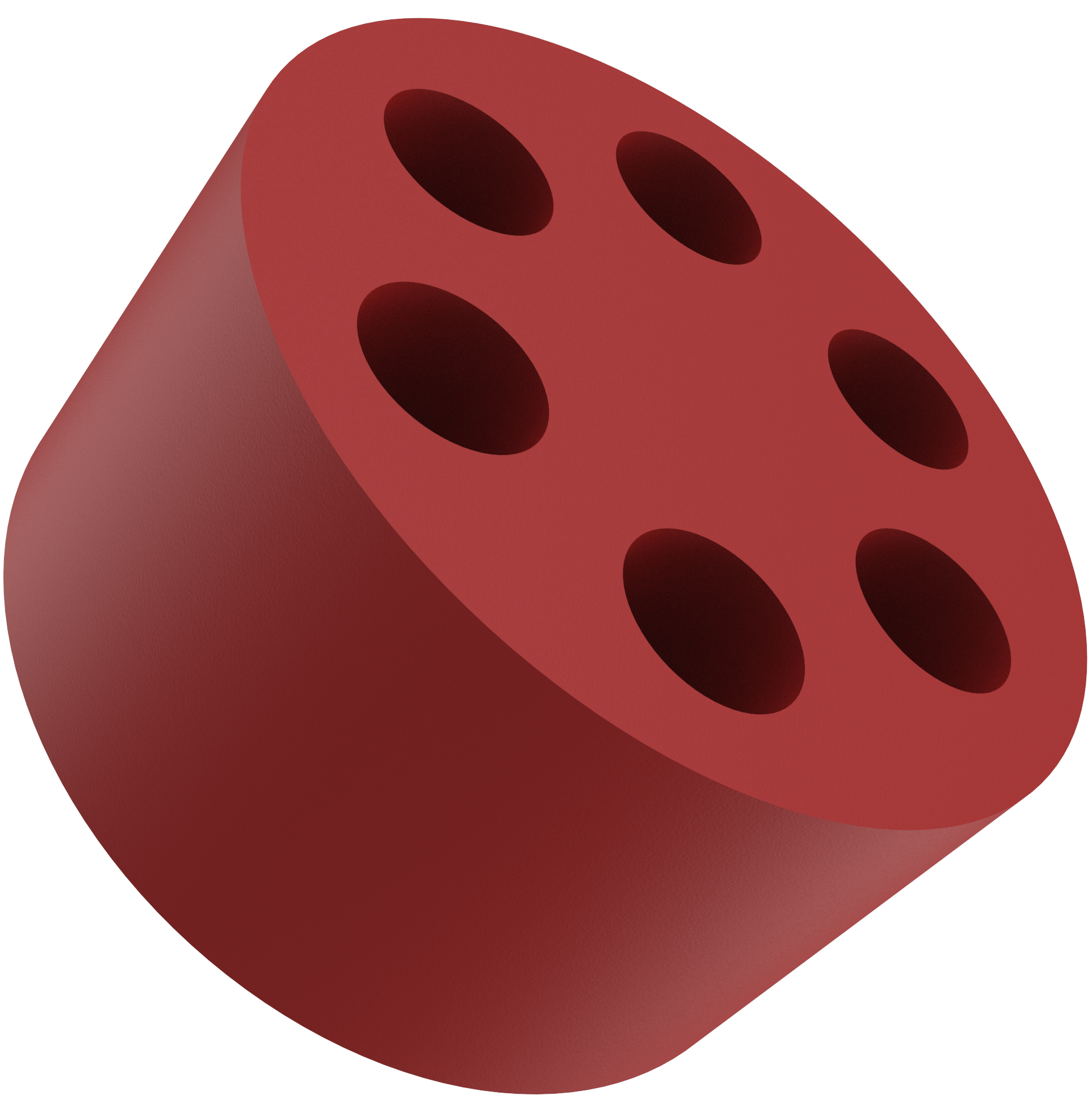

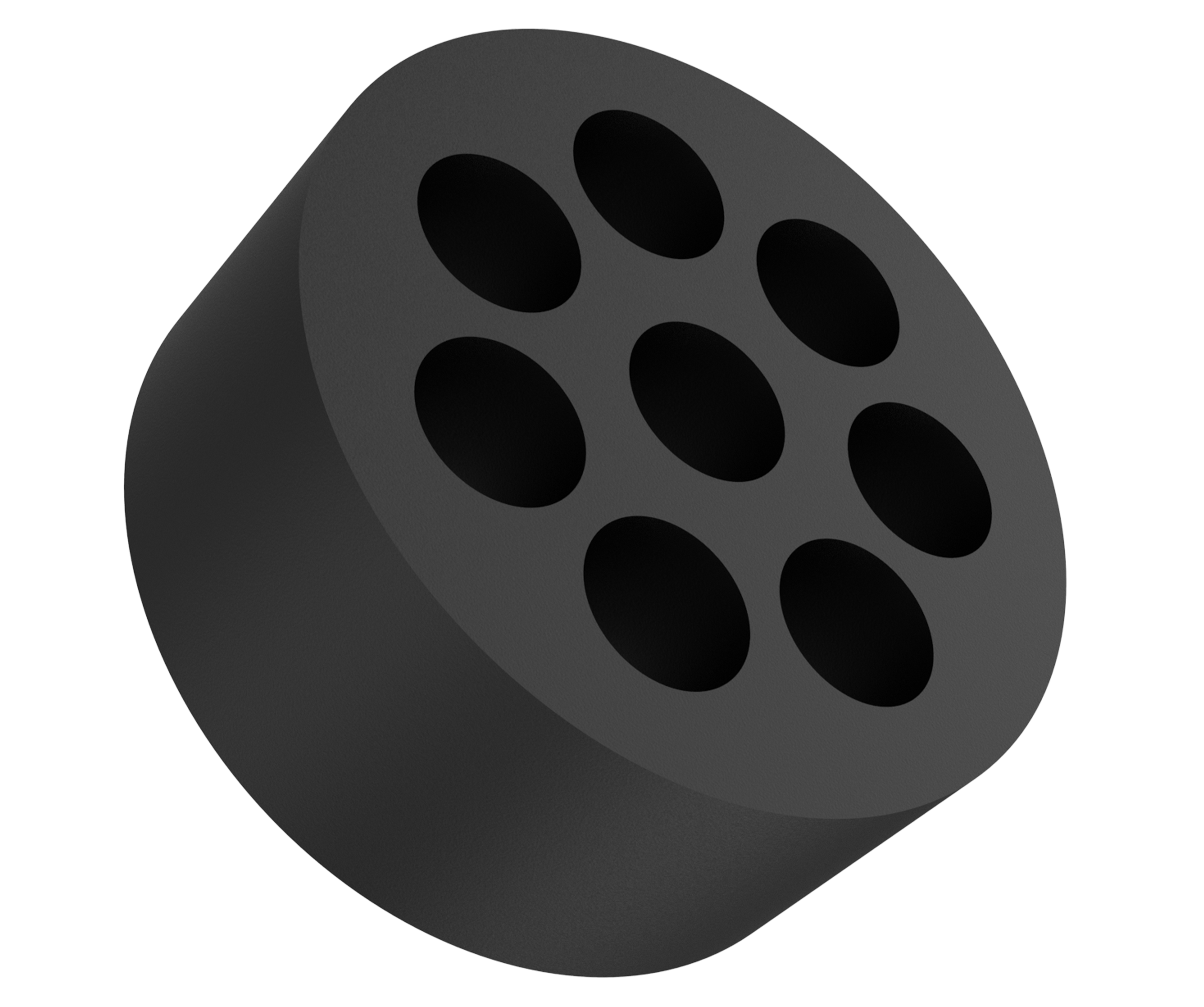

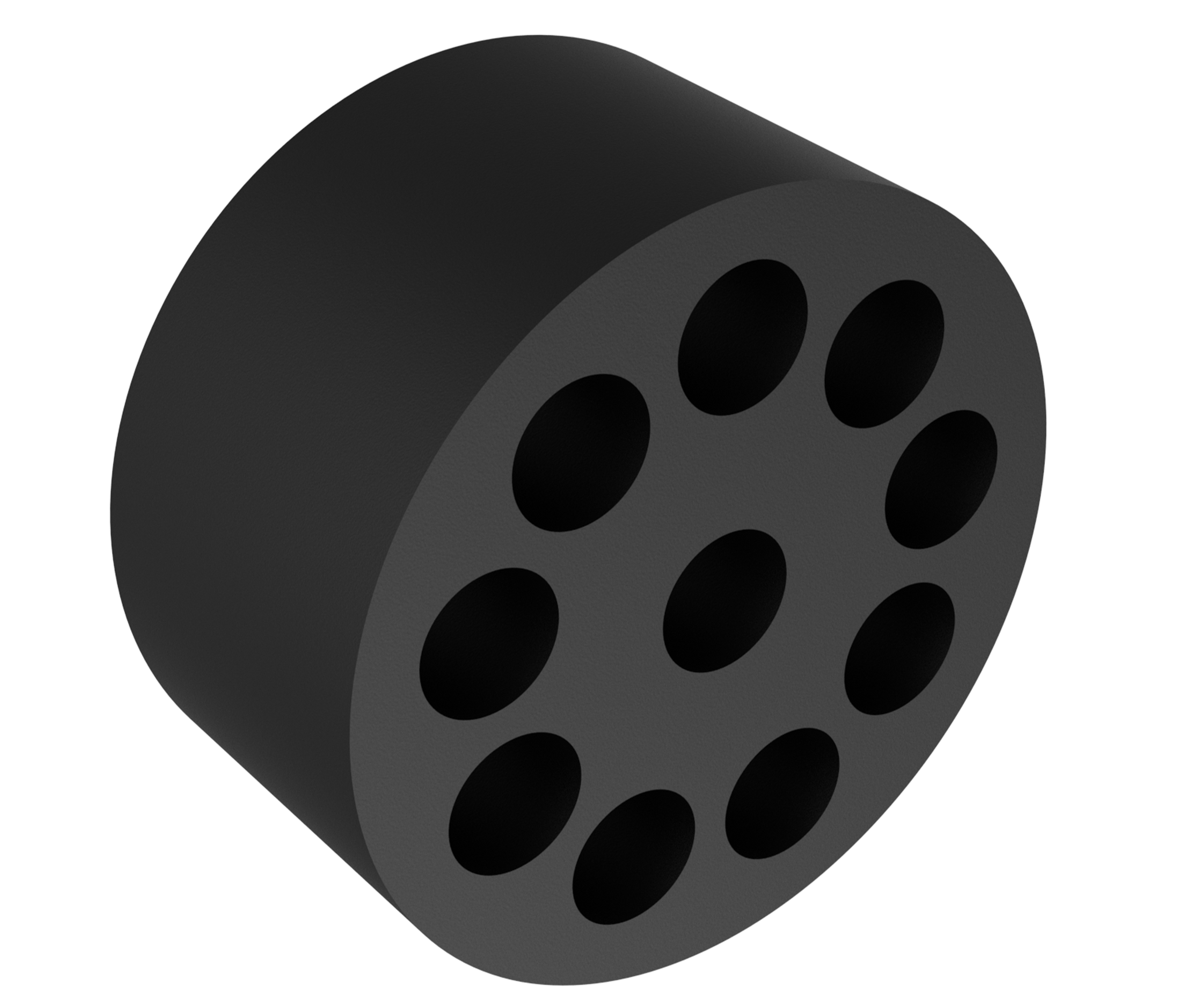

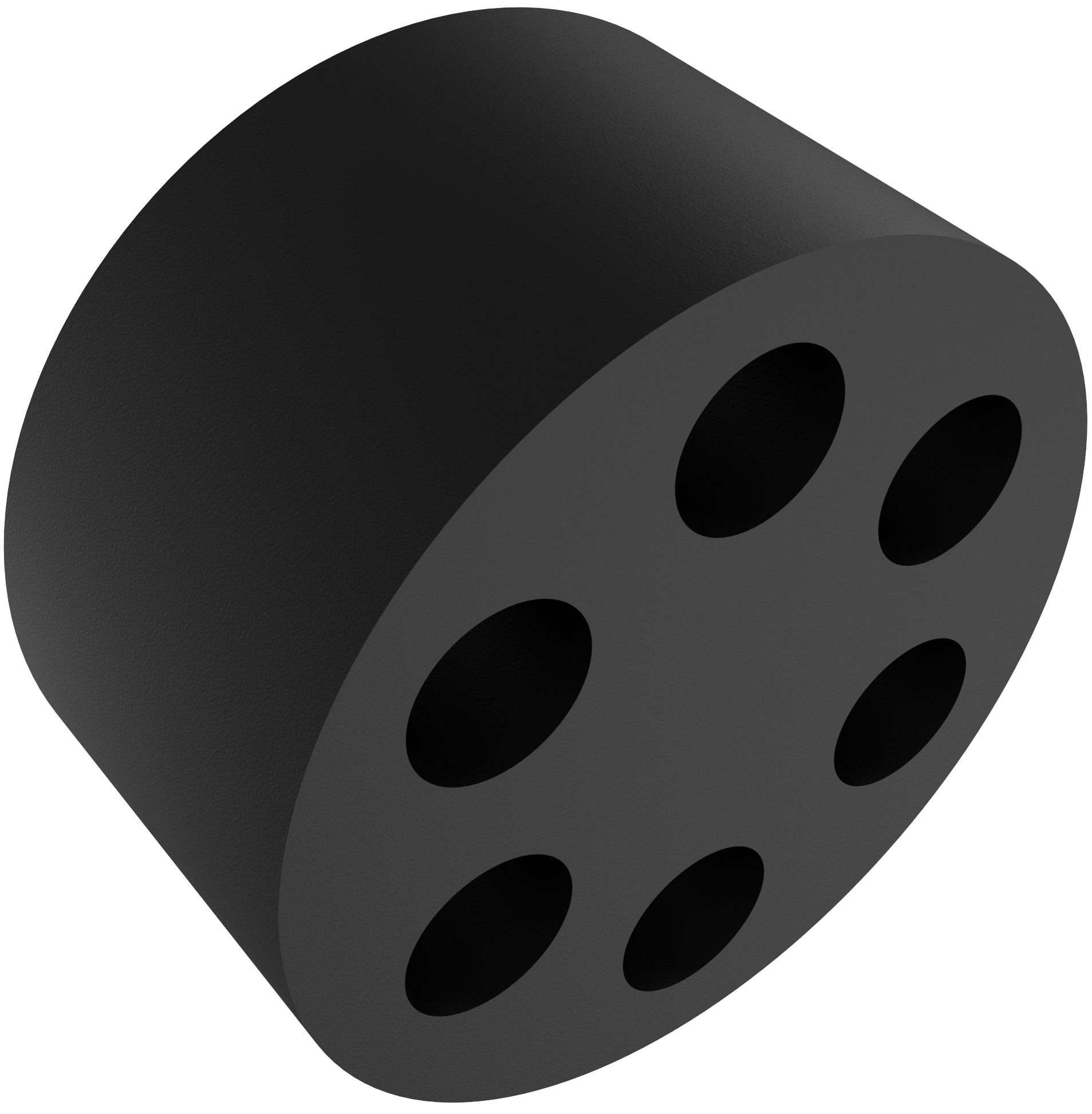

Flerhullstetninger

○Tetning for innføring av flere kabler gjennom én kabelnippel

○Gir pålitelig tetning for hver enkelt kabel og optimal beskyttelsesgrad.

Spesifikasjoner

KlemområdetDiameterReplaced Seal ØHeight 'H'Number of CableVarenummerBIMED Kode3D FileDatablad
1x4,7-1x6,6166,0 - 12,082—MMS-02M1C—PDF
1x6,8-1x7,81810,0 - 14,09.32—MMS-02LC—PDF
1x7,1-4x6,2-5x5,2-1x10,84530,0 - 38,016.511—MMS-083C—PDF
1.522.913,0 - 18,012.28—MMS-03BCGet FilePDF
2x7,0-1x4,01810,0 - 14,09.33—MMS-02HC—PDF
2x9,0-1x6,225.415,0 - 21,014.23—MMS-043AC—PDF
2x10,8-1x7,033.419,0 - 28,0173—MMS-052AC—PDF
310.94,0 - 8,072—MMS-012CGet FilePDF
310.94,0 - 8,074—MMS-013CGet FilePDF
313.75,0 - 10,010.42—MMS-017CGet FilePDF
3166,0 - 12,08.44—MMS-024CGet FilePDF
320.411,0 - 17,010.77—MMS-03JCGet FilePDF
325.415,0 - 21,014.29—MMS-04LCGet FilePDF
3x4,9-2x4,230.418,0 - 25,0145—MMS-046AC—PDF
410.94,0 - 8,072—MMS-011CGet FilePDF
413.75,0 - 10,010.42—MMS-014CGet FilePDF
413.75,0 - 10,010.43—MMS-019CGet FilePDF
4166,0 - 12,09.43—MMS-022CGet FilePDF
4,0166,0 - 12,08.44—MMS-026CGet FilePDF
4,01810,0 - 14,09.32—MMS-02ACGet FilePDF
4,01810,0 - 14,09.33—MMS-029CGet FilePDF
41810,0 - 14,09.35—MMS-02ECGet FilePDF
41810,0 - 14,09.36—MMS-02MC—PDF
420.411,0 - 17,010.75—MMS-03HCGet FilePDF
420.411,0 - 17,010.76—MMS-03ICGet FilePDF
4x2,0-2x4,0-2x6,022.913,0 - 18,012.28—MMS-039DC—PDF
425.415,0 - 21,014.28—MMS-04MCGet FilePDF
425.415,0 - 21,014.29—MMS-040CGet FilePDF
4.513.75,0 - 10,010.42—MMS-015CGet FilePDF
513.75,0 - 10,010.42—MMS-018CGet FilePDF
5166,0 - 12,08.42—MMS-025CGet FilePDF
5,0166,0 - 12,08.43—MMS-023CGet FilePDF
5,01810,0 - 14,09.34—MMS-02BCGet FilePDF
520.411,0 - 17,010.73—MMS-03ECGet FilePDF
520.411,0 - 17,010.74—MMS-03GCGet FilePDF
525.415,0 - 21,014.26—MMS-04JCGet FilePDF
525.415,0 - 21,014.28—MMS-04NCGet FilePDF
530.418,0 - 25,0146—MMS-049CGet FilePDF
5x6,0-5x5,0-1x10,54530,0 - 38,016.511—MMS-083AC—PDF
5.333.419,0 - 28,01712—MMS-060AC—PDF
5,61810,0 - 14,09.33—MMS-02JC—PDF
6166,0 - 12,08.42—MMS-021CGet FilePDF
6,01810,0 - 14,09.32—MMS-02CCGet FilePDF
6,01810,0 - 14,09.33—MMS-02DCGet FilePDF
6,01810,0 - 14,09.34—MMS-02KC—PDF
620.411,0 - 17,010.72—MMS-03CCGet FilePDF
620.411,0 - 17,010.73—MMS-03DCGet FilePDF
625.415,0 - 21,014.24—MMS-04HCGet FilePDF
625.415,0 - 21,014.25—MMS-04FCGet FilePDF
625.415,0 - 21,014.26—MMS-04KCGet FilePDF
630.418,0 - 25,0146—MMS-047C—PDF
633.419,0 - 28,0178—MMS-057CGet FilePDF
633.419,0 - 28,01710—MMS-059BC—PDF
6x3,4-2x6,9-1x8,34530,0 - 38,016.59—MMS-082C—PDF
6x3,6-1x7,9-1x7,2-1x9,24530,0 - 38,016.59—MMS-082AC—PDF
6,51810,0 - 14,09.32—MMS-02GC—PDF
6.622.913,0 - 18,012.22—MMS-032CGet FilePDF
6.622.913,0 - 18,012.23—MMS-036ACGet FilePDF
6.622.913,0 - 18,012.24—MMS-039CGet FilePDF
7,01810,0 - 14,09.32—MMS-028CGet FilePDF
720.411,0 - 17,010.73—MMS-03FCGet FilePDF
722.913,0 - 18,012.22—MMS-033CGet FilePDF
722.913,0 - 18,012.23—MMS-036BC—PDF
722.913,0 - 18,012.24—MMS-039ACGet FilePDF
725.415,0 - 21,014.22—MMS-04CCGet FilePDF
725.415,0 - 21,014.24—MMS-04ICGet FilePDF
733.419,0 - 28,0176—MMS-056CGet FilePDF
733.419,0 - 28,0179—MMS-058CGet FilePDF
7.530.418,0 - 25,0143—MMS-043CGet FilePDF
7.530.418,0 - 25,0146—MMS-048C—PDF
822.913,0 - 18,012.22—MMS-034CGet FilePDF
822.913,0 - 18,012.23—MMS-037CGet FilePDF
825.415,0 - 21,014.22—MMS-04ACGet FilePDF
825.415,0 - 21,014.23—MMS-04BCGet FilePDF
825.415,0 - 21,014.24—MMS-04ECGet FilePDF
830.418,0 - 25,0142—MMS-041C—PDF
830.418,0 - 25,0144—MMS-045C—PDF
833.419,0 - 28,0174—MMS-053CGet FilePDF
833.419,0 - 28,0175—MMS-054CGet FilePDF
84022,0 - 32,016.88—MMS-072CGet FilePDF
8.530.418,0 - 25,0145—MMS-046CGet FilePDF
922.913,0 - 18,012.22—MMS-035CGet FilePDF
925.415,0 - 21,014.22—MMS-04DCGet FilePDF
930.418,0 - 25,0142—MMS-042C—PDF
933.419,0 - 28,0175—MMS-055CGet FilePDF
94022,0 - 32,016.85—MMS-071C—PDF
1033.419,0 - 28,0172—MMS-051CGet FilePDF
1033.419,0 - 28,0173—MMS-052CGet FilePDF
——————CR—PDF
——#1———Black—PDF
