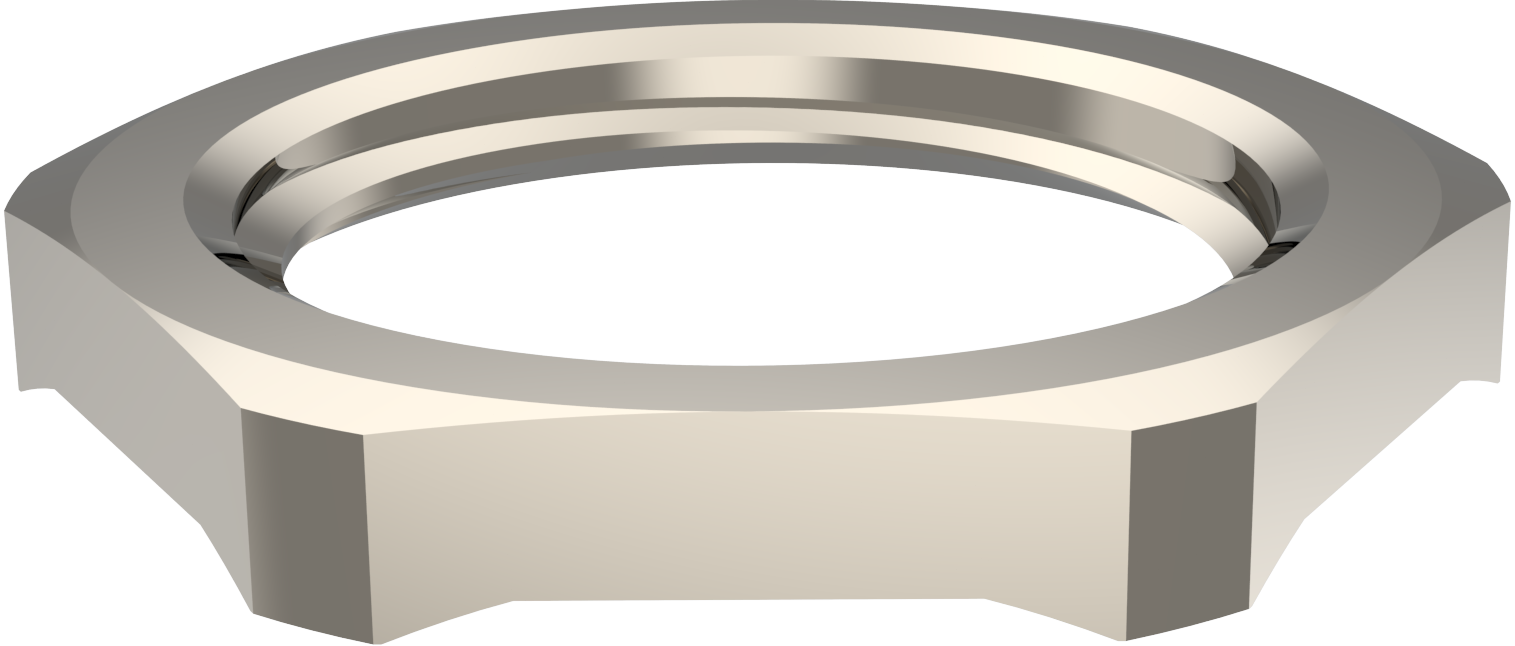

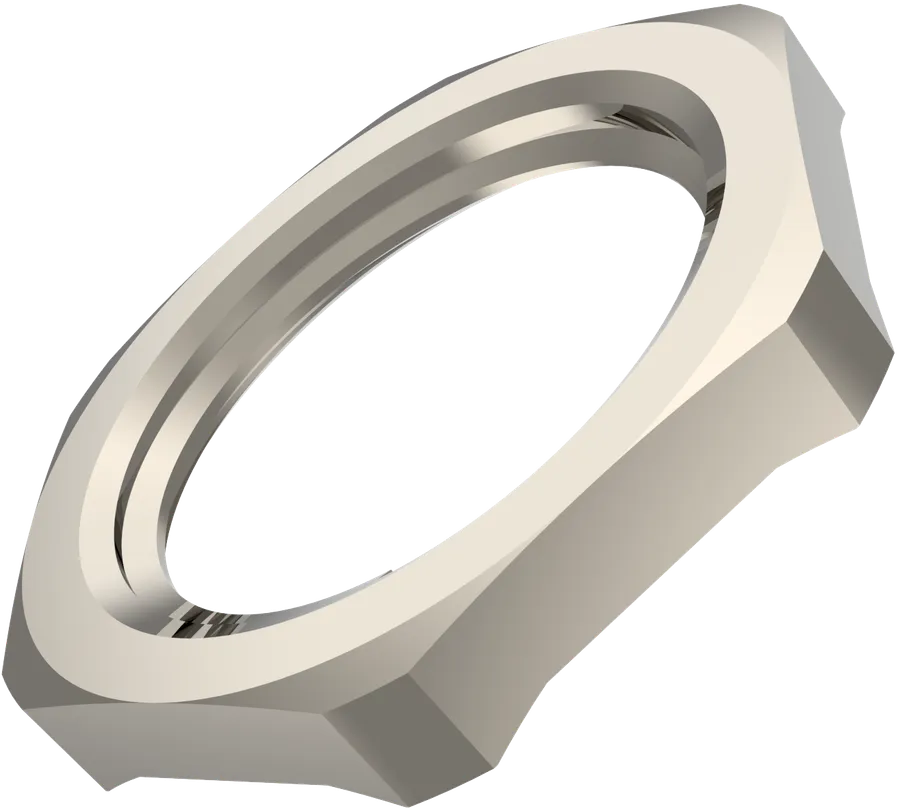

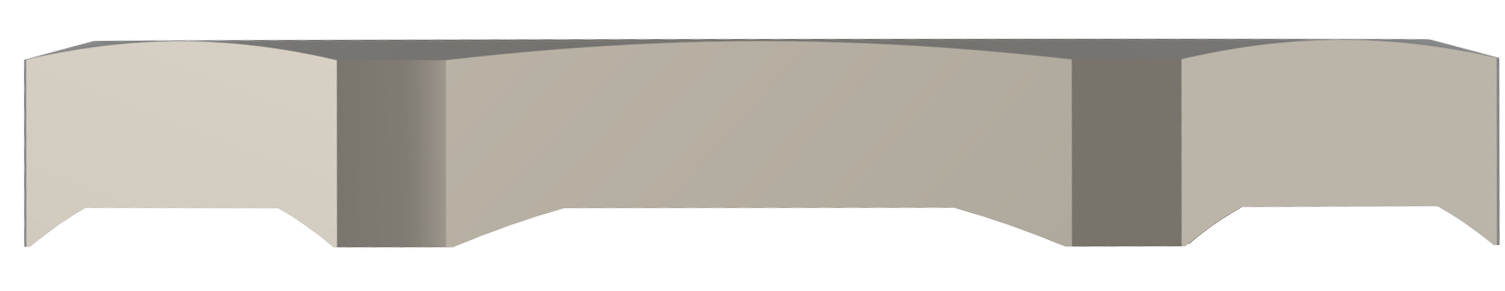

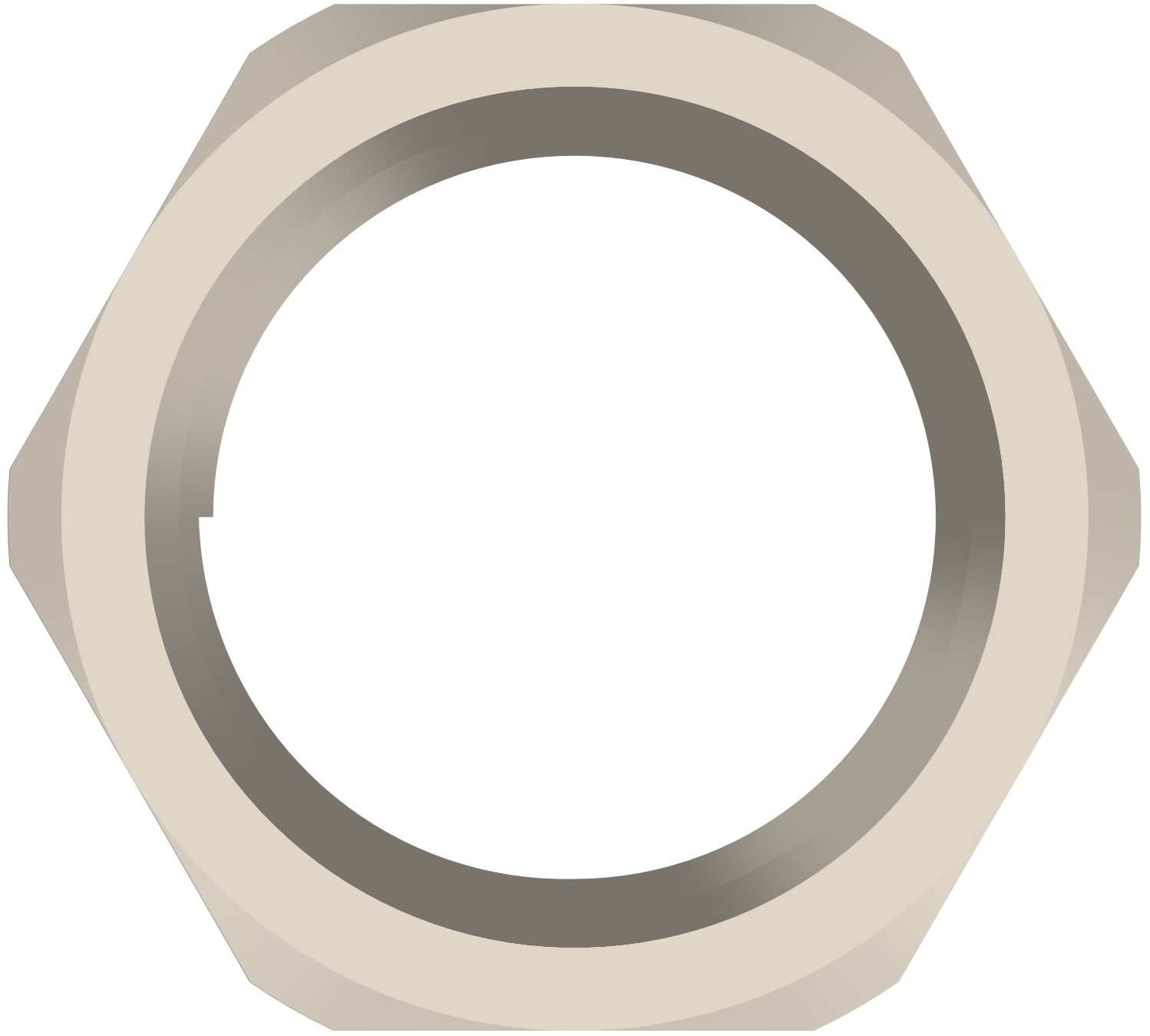

EMC-låsemutter, metall
○Låsemutter i metall for sikker festing av EMC-kabelnippler på metallkabinetter og maskiner
○Egnet for krevende korrosive miljøer.
Spesifikasjoner
| Diameter | Nøkkelvidde | Height 'H' | Thread Size 'F' | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|
| 18.8 | 17 | 5.5 | NPSL 1/4" | — | BNELS-01S | — | |
| 18.8 | 17 | 5.5 | NPSL 1/4" | — | BNEL-01S | Get File | |
| 18.8 | 17 | 5.5 | NPSL 1/4" | — | BNEL-01S | Get File | |
| 18.8 | 17 | 5.5 | NPSL 1/4" | — | BNELS-01S | — | |
| 24 | 22 | 5.7 | NPSL 3/8" | — | BNELS-01 | — | |
| 24 | 22 | 5.7 | NPSL 3/8" | — | BNEL-01 | Get File | |
| 24 | 22 | 5.7 | NPSL 3/8" | — | BNEL-01 | Get File | |
| 24 | 22 | 5.7 | NPSL 3/8" | — | BNELS-01 | — | |
| 26.5 | 24 | 6.7 | NPSL 1/2" | — | BNELS-02 | — | |
| 26.5 | 24 | 6.7 | NPSL 1/2" | — | BNEL-02 | Get File | |
| 26.5 | 24 | 6.7 | NPSL 1/2" | — | BNEL-02 | Get File | |
| 26.5 | 24 | 6.7 | NPSL 1/2" | — | BNELS-02 | — | |
| 33 | 30 | 6.5 | NPSL 3/4" | — | BNELS-03 | — | |
| 33 | 30 | 6.5 | NPSL 3/4" | — | BNEL-03 | Get File | |
| 33 | 30 | 6.5 | NPSL 3/4" | — | BNEL-03 | Get File | |
| 33 | 30 | 6.5 | NPSL 3/4" | — | BNELS-03 | — | |
| 44.5 | 40 | 7.6 | NPSL 1" | — | BNELS-04 | — | |
| 44.5 | 40 | 7.6 | NPSL 1" | — | BNEL-04 | Get File | |
| 44.5 | 40 | 7.6 | NPSL 1" | — | BNEL-04 | Get File | |
| 44.5 | 40 | 7.6 | NPSL 1" | — | BNELS-04 | — | |
| 55.5 | 50 | 7.6 | NPSL 1 1/4" | — | BNELS-05 | — | |
| 55.5 | 50 | 7.6 | NPSL 1 1/4" | — | BNEL-05 | Get File | |
| 55.5 | 50 | 7.6 | NPSL 1 1/4" | — | BNEL-05 | Get File | |
| 55.5 | 50 | 7.6 | NPSL 1 1/4" | — | BNELS-05 | — | |
| 64 | 58 | 8.7 | NPSL 1 1/2" | — | BNELS-06 | — | |
| 64 | 58 | 8.7 | NPSL 1 1/2" | — | BNEL-06 | Get File | |
| 64 | 58 | 8.7 | NPSL 1 1/2" | — | BNEL-06 | Get File | |
| 64 | 58 | 8.7 | NPSL 1 1/2" | — | BNELS-06 | — | |
| 78 | 70 | 10.8 | NPSL 2" | — | BNEL-07 | Get File | |
| 78 | 70 | 10.8 | NPSL 2" | — | BNELS-07 | — | |
| 78 | 70 | 10.8 | NPSL 2" | — | BNELS-07 | — | |
| 78 | 70 | 10.8 | NPSL 2" | — | BNEL-07 | Get File | |
| 89 | 80 | 10.8 | NPSL 2 1/2" | — | BNEL-08 | — | |
| 89 | 80 | 10.8 | NPSL 2 1/2" | — | BNELS-08 | — | |
| 89 | 80 | 10.8 | NPSL 2 1/2" | — | BNELS-08 | — | |
| 89 | 80 | 10.8 | NPSL 2 1/2" | — | BNEL-08 | — | |
| 105 | 95 | 10.8 | NPSL 3" | — | BNEL-09 | — | |
| 105 | 95 | 10.8 | NPSL 3" | — | BNELS-09 | — | |
| 105 | 95 | 10.8 | NPSL 3" | — | BNELS-09 | — | |
| 105 | 95 | 10.8 | NPSL 3" | — | BNEL-09 | — | |
| 128 | 115 | 10.8 | NPSL 3 1/2" | — | BNEL-10 | — | |
| 128 | 115 | 10.8 | NPSL 3 1/2" | — | BNELS-10 | — | |
| 128 | 115 | 10.8 | NPSL 3 1/2" | — | BNELS-10 | — | |
| 128 | 115 | 10.8 | NPSL 3 1/2" | — | BNEL-10 | — | |
| 145 | 130 | 10.8 | NPSL 4" | — | BNELS-11 | — | |
| 145 | 130 | 10.8 | NPSL 4" | — | BNEL-11 | — | |
| 145 | 130 | 10.8 | NPSL 4" | — | BNELS-11 | — | |
| 145 | 130 | 10.8 | NPSL 4" | — | BNEL-11 | — | |
| 176 | 160 | 13 | NPSL 5" | — | BNELS-12 | — | |
| 176 | 160 | 13 | NPSL 5" | — | BNEL-12 | — | |
| 176 | 160 | 13 | NPSL 5" | — | BNELS-12 | — | |
| 176 | 160 | 13 | NPSL 5" | — | BNEL-12 | — |
