LUPUS

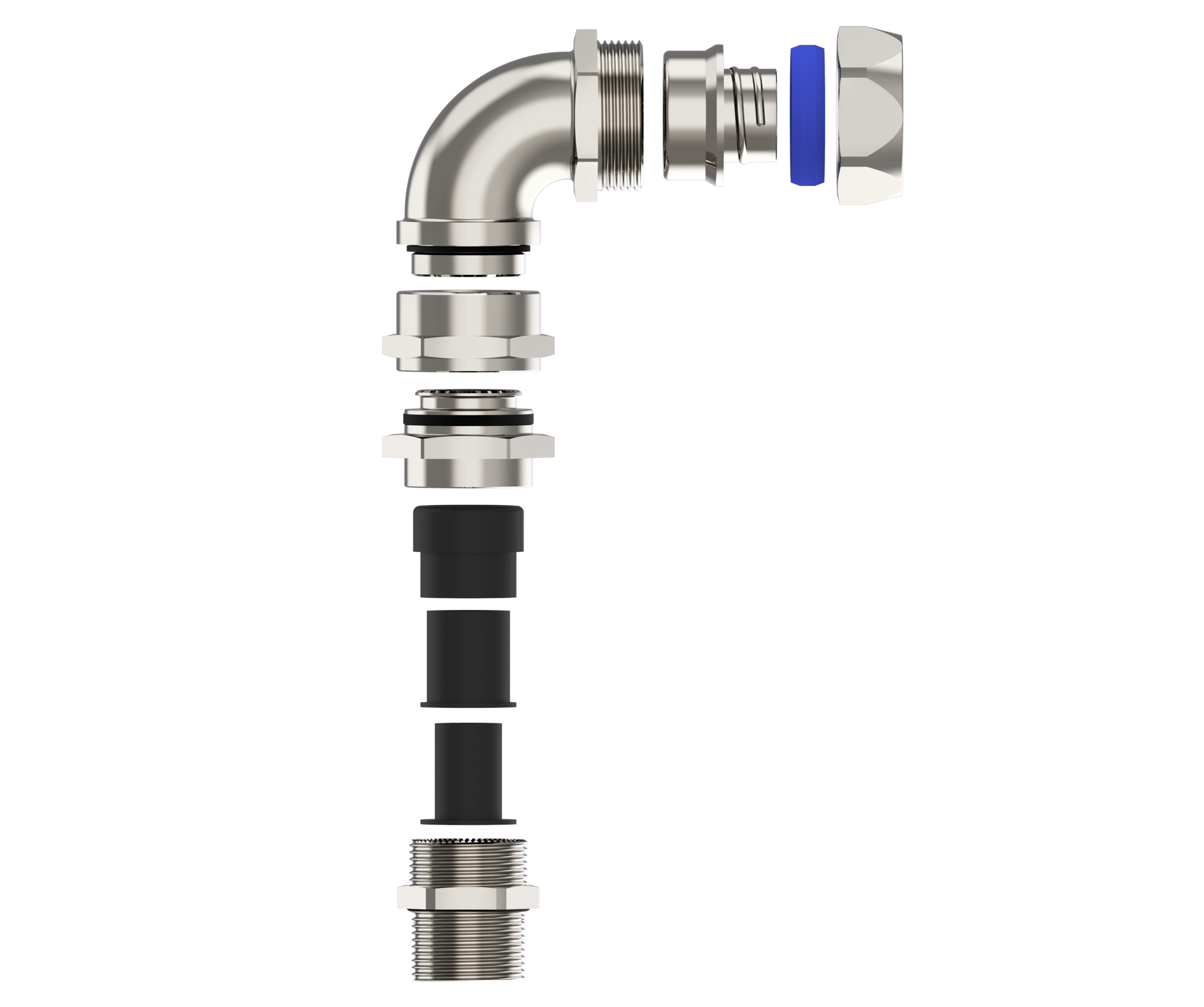

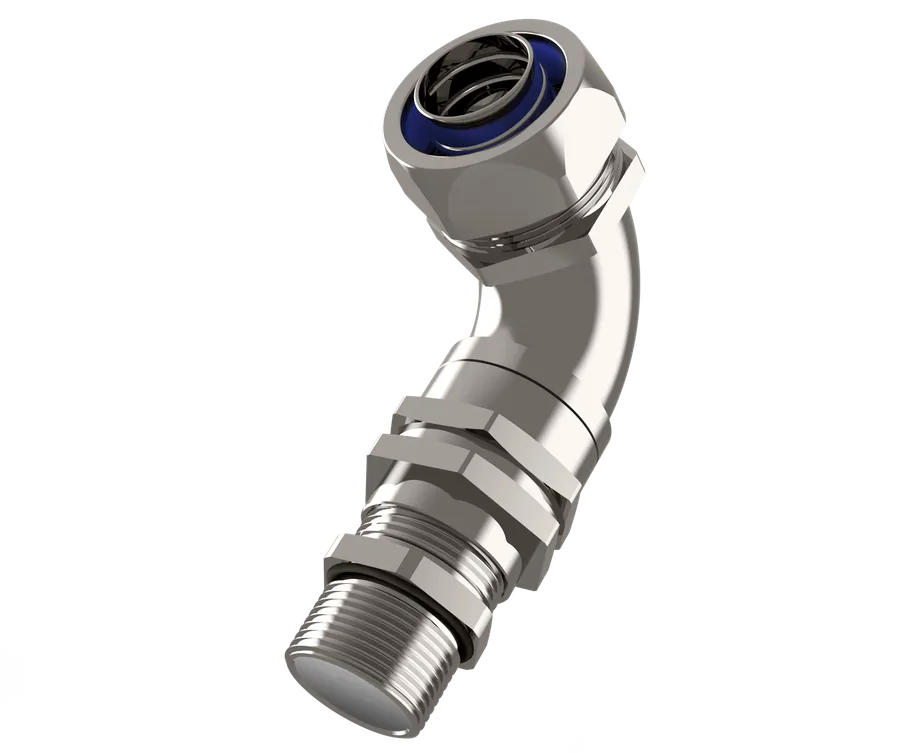

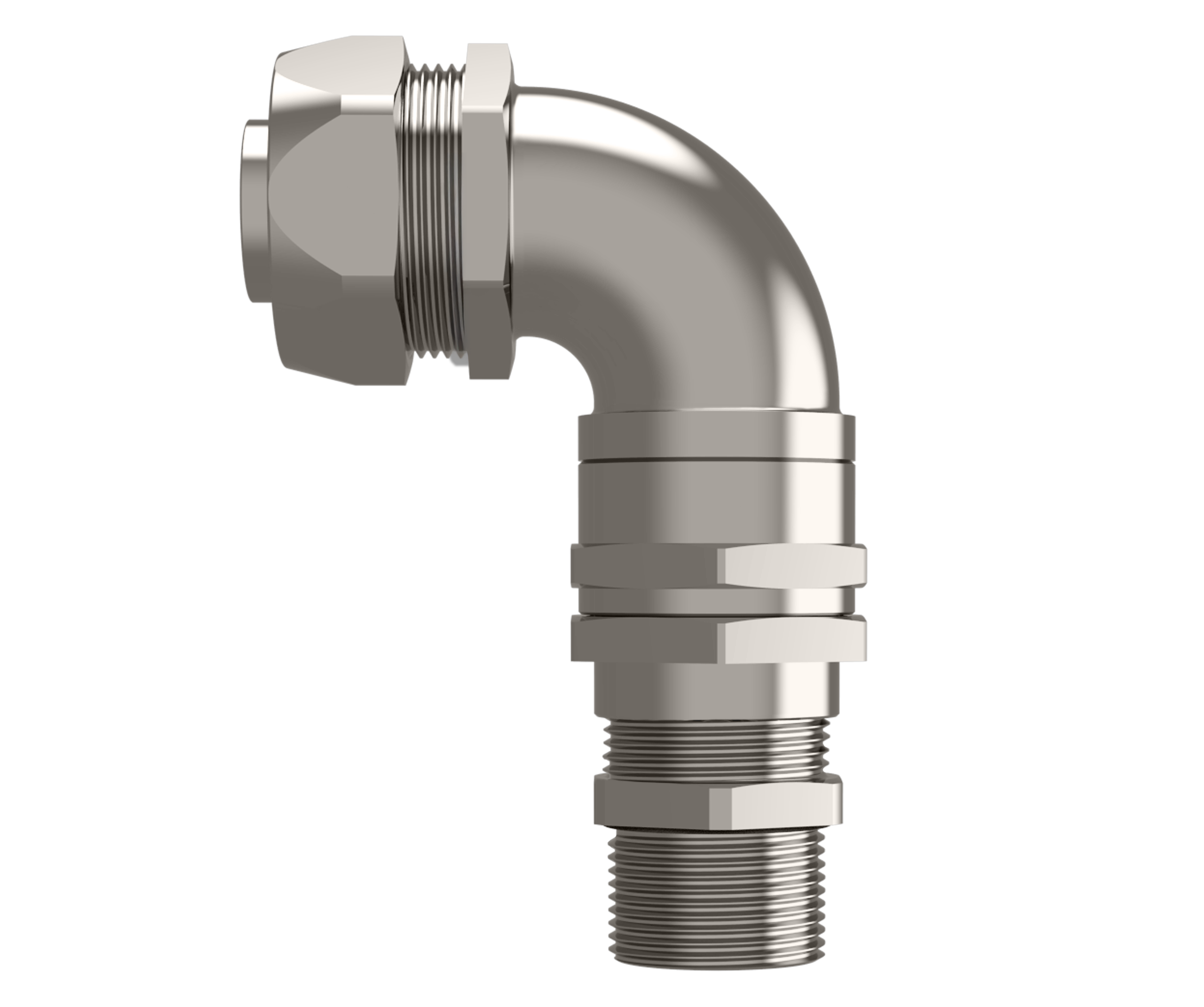

○90° konduitkobling for eksplosjonsfarlige områder (Gruppe II) med eksplosjonssikker tetning rundt kabelkappen i fleksibelt konduit. ATEX- og IECEx-sertifisert i henhold til Ex eb, Ex db og Ex tb.
Spesifikasjoner
| Gjengestørrelse | Klemområdet | Diameter | Maks høyde 'H' | TL Ex-e | Seal Type | TL Ex-d/e | SW 1/2/3/4 | Conduit Size | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M12x1,5 | 4,0 - 8,0 | 32.7 | 83.5 | 9,0/16,0 | Triple | - | 29/27/27/22 | 1/2 " | — | EBLN02M | — | |
| M12x1,5 | 4,0 - 8,0 | 32.7 | 83.5 | 9,0/16,0 | Triple | - | 29/27/27/22 | 1/2 " | — | EBLN02M | — | |
| M12x1,5 | 4,0 - 8,0 | 32.7 | 83.5 | 9,0/16,0 | Triple | - | 29/27/27/22 | 1/2 " | — | EBLN02M | — | |
| M12x1,5 | 4,0 - 8,0 | 32.7 | 83.5 | 9,0/16,0 | Triple | - | 29/27/27/22 | 1/2 " | — | EBLN02M | — | |
| M16x1,5 | 4,0 - 12,0 | 32.7 | 83.5 | 9 | Triple | 16 | 29/27/27/22 | 1/2 " | — | EBLN01M | — | |
| M16x1,5 | 4,0 - 12,0 | 32.7 | 83.5 | 9 | Triple | 16 | 29/27/27/22 | 1/2 " | — | EBLN01M | — | |
| M16x1,5 | 4,0 - 12,0 | 32.7 | 83.5 | 9 | Triple | 16 | 29/27/27/22 | 1/2 " | — | EBLN01M | — | |
| M16x1,5 | 4,0 - 12,0 | 32.7 | 83.5 | 9 | Triple | 16 | 29/27/27/22 | 1/2 " | — | EBLN01M | — | |
| M20x1,5 | 4,0 - 10,0 | 29 | 75 | 9 | Triple | 16 | 26/22/27/22 | 3/8 " | — | EBLN1SM | — | |
| M20x1,5 | 4,0 - 12,0 | 32.7 | 79.5 | 9 | Triple | 16 | 29/27/27/22 | 1/2 " | — | EBLN1M | — | |
| M20x1,5 | 4,0 - 10,0 | 29 | 75 | 9 | Triple | 16 | 26/22/27/22 | 3/8 " | — | EBLN1SM | — | |
| M20x1,5 | 4,0 - 12,0 | 32.7 | 79.5 | 9 | Triple | 16 | 29/27/27/22 | 1/2 " | — | EBLN1M | — | |
| M20x1,5 | 4,0 - 10,0 | 29 | 75 | 9 | Triple | 16 | 26/22/27/22 | 3/8 " | — | EBLN1SM | — | |
| M20x1,5 | 4,0 - 12,0 | 32.7 | 79.5 | 9 | Triple | 16 | 29/27/27/22 | 1/2 " | — | EBLN1M | — | |
| M20x1,5 | 4,0 - 10,0 | 29 | 75 | 9 | Triple | 16 | 26/22/27/22 | 3/8 " | — | EBLN1SM | — | |
| M20x1,5 | 4,0 - 12,0 | 32.7 | 79.5 | 9 | Triple | 16 | 29/27/27/22 | 1/2 " | — | EBLN1M | — | |
| M25x1,5 | 10,0 - 18,0 | 39 | 90.5 | 9 | Triple | 16 | 35/33/33/28 | 3/4 " | — | EBLN2M | Get File | |
| M25x1,5 | 10,0 - 18,0 | 39 | 90.5 | 9 | Triple | 16 | 35/33/33/28 | 3/4 " | — | EBLN2M | Get File | |
| M25x1,5 | 10,0 - 18,0 | 39 | 90.5 | 9 | Triple | 16 | 35/33/33/28 | 3/4 " | — | EBLN2M | Get File | |
| M25x1,5 | 10,0 - 18,0 | 39 | 90.5 | 9 | Triple | 16 | 35/33/33/28 | 3/4 " | — | EBLN2M | Get File | |
| M32x1,5 | 14,0 - 24,0 | 50 | 104 | 9 | Triple | 16 | 45/42/42/35 | 1 " | — | EBLN3M | — | |
| M32x1,5 | 14,0 - 24,0 | 50 | 104 | 9 | Triple | 16 | 45/42/42/35 | 1 " | — | EBLN3M | — | |
| M32x1,5 | 14,0 - 24,0 | 50 | 104 | 9 | Triple | 16 | 45/42/42/35 | 1 " | — | EBLN3M | — | |
| M32x1,5 | 14,0 - 24,0 | 50 | 104 | 9 | Triple | 16 | 45/42/42/35 | 1 " | — | EBLN3M | — | |
| M40x1,5 | 22,0 - 32,0 | 60 | 123 | 9 | Triple | 18 | 54/51/51/45 | 1 1/4 " | — | EBLN4M | — | |
| M40x1,5 | 22,0 - 32,0 | 60 | 123 | 9 | Triple | 18 | 54/51/51/45 | 1 1/4 " | — | EBLN4M | — | |
| M40x1,5 | 22,0 - 32,0 | 60 | 123 | 9 | Triple | 18 | 54/51/51/45 | 1 1/4 " | — | EBLN4M | — | |
| M40x1,5 | 22,0 - 32,0 | 60 | 123 | 9 | Triple | 18 | 54/51/51/45 | 1 1/4 " | — | EBLN4M | — | |
| M50x1,5 | 26,0 - 35,0 | 69.3 | 138 | 9 | Triple | 18 | 63/60/60/55 | 1 1/2 " | — | EBLN5M | — | |
| M50x1,5 | 26,0 - 35,0 | 69.3 | 138 | 9 | Triple | 18 | 63/60/60/55 | 1 1/2 " | — | EBLN5M | — | |
| M50x1,5 | 26,0 - 35,0 | 69.3 | 138 | 9 | Triple | 18 | 63/60/60/55 | 1 1/2 " | — | EBLN5M | — | |
| M50x1,5 | 26,0 - 35,0 | 69.3 | 138 | 9 | Triple | 18 | 63/60/60/55 | 1 1/2 " | — | EBLN5M | — |
