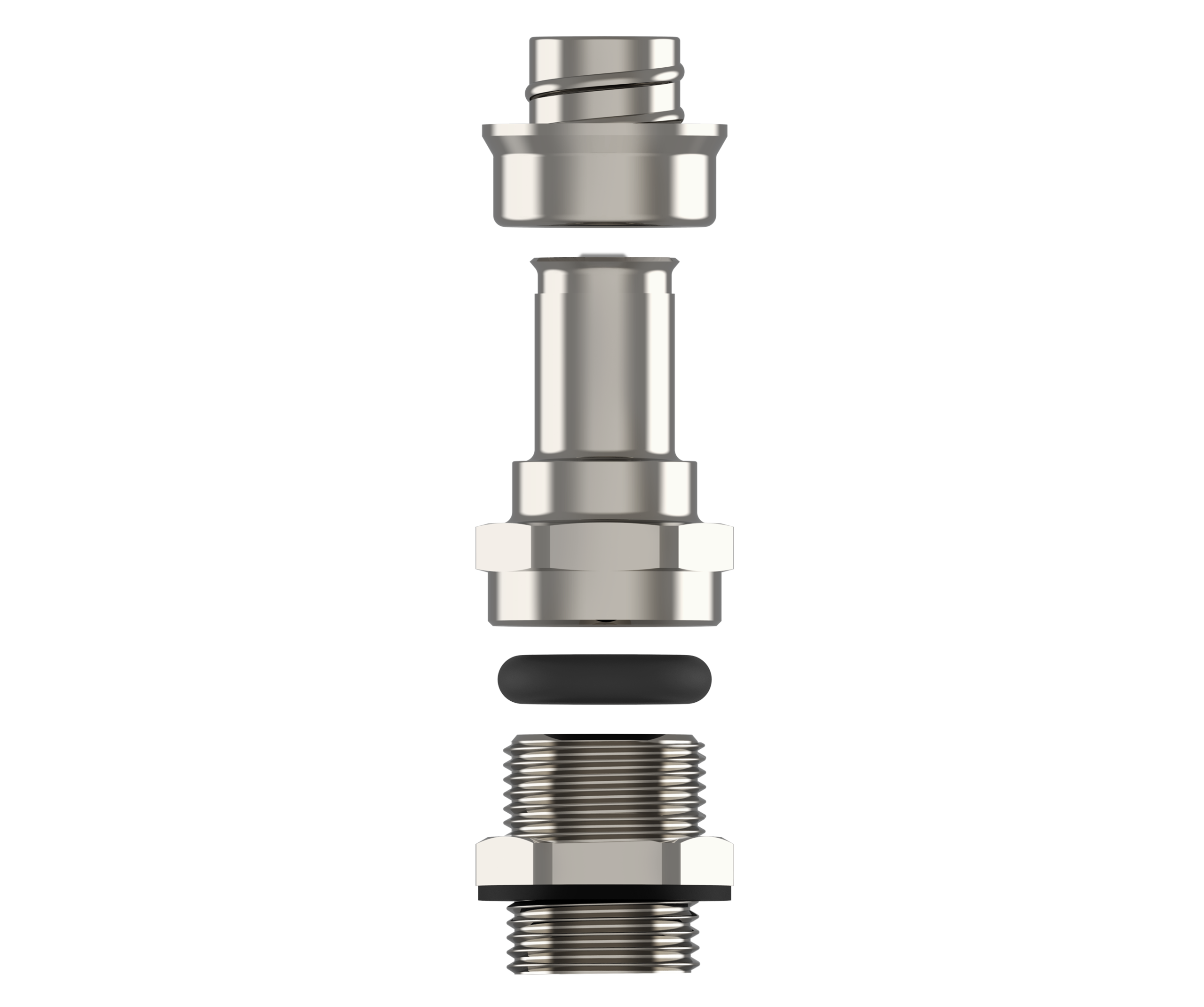

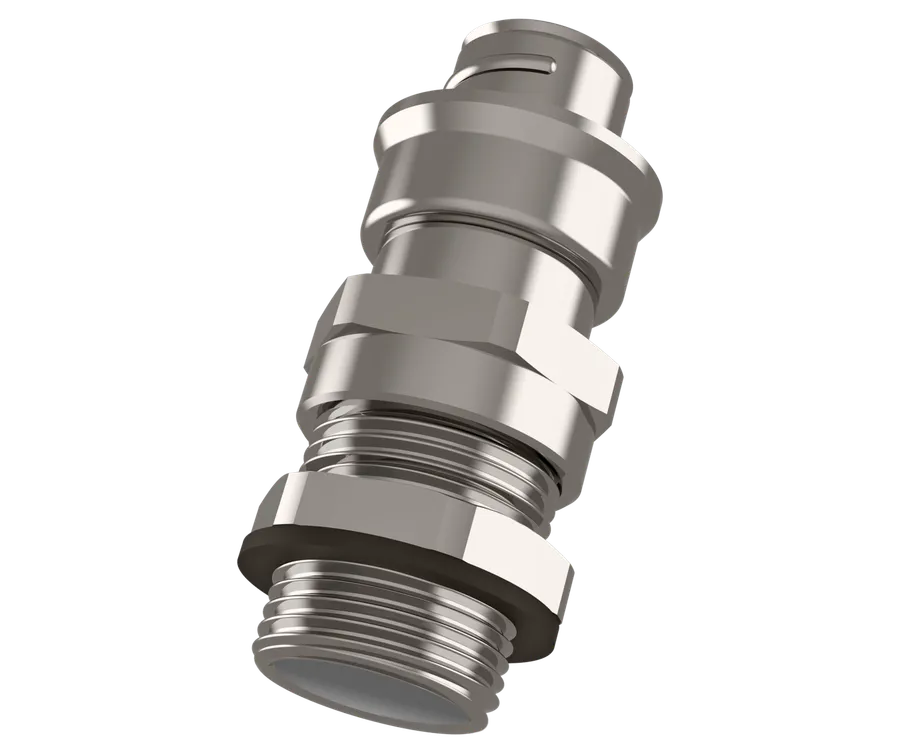

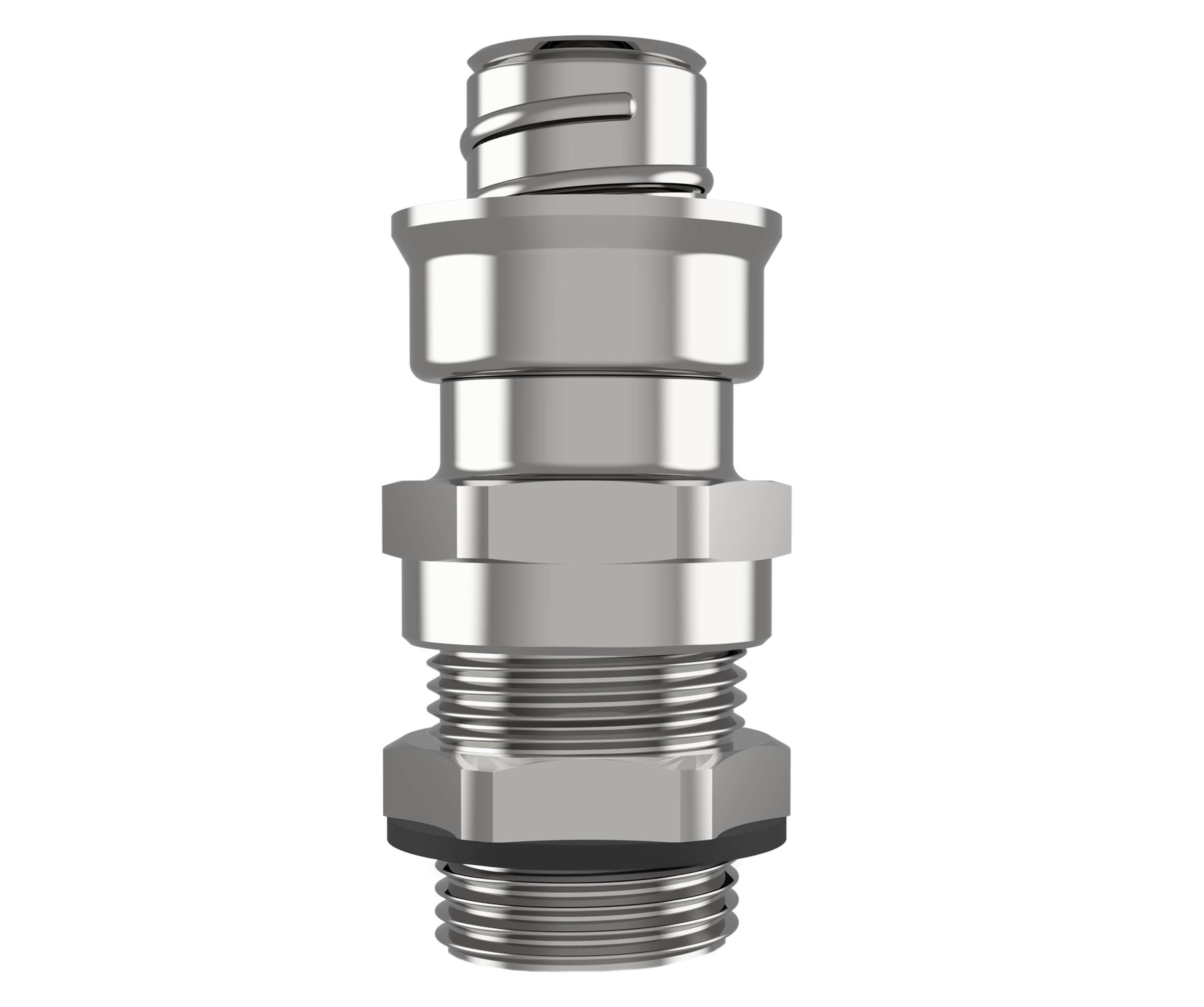

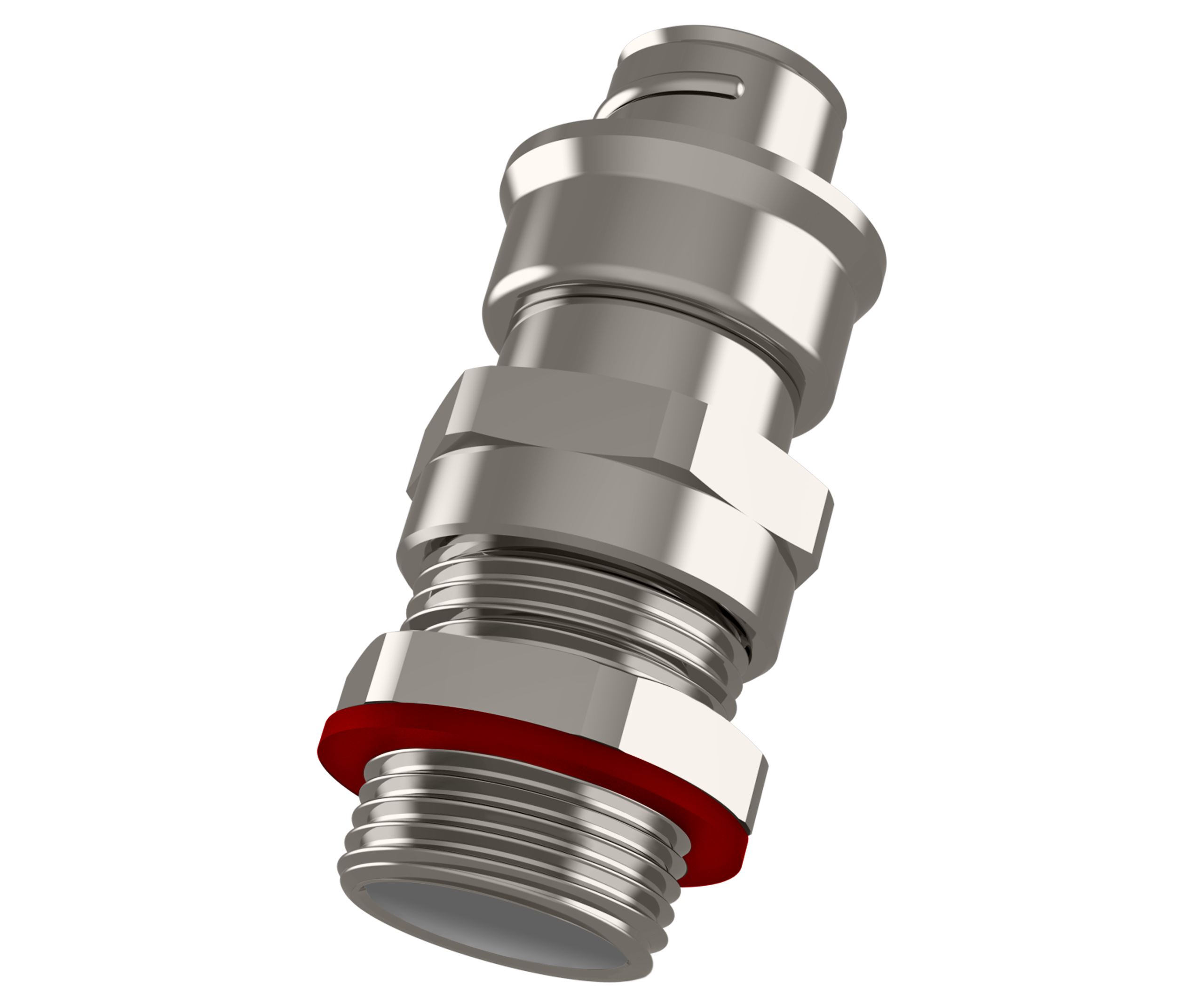

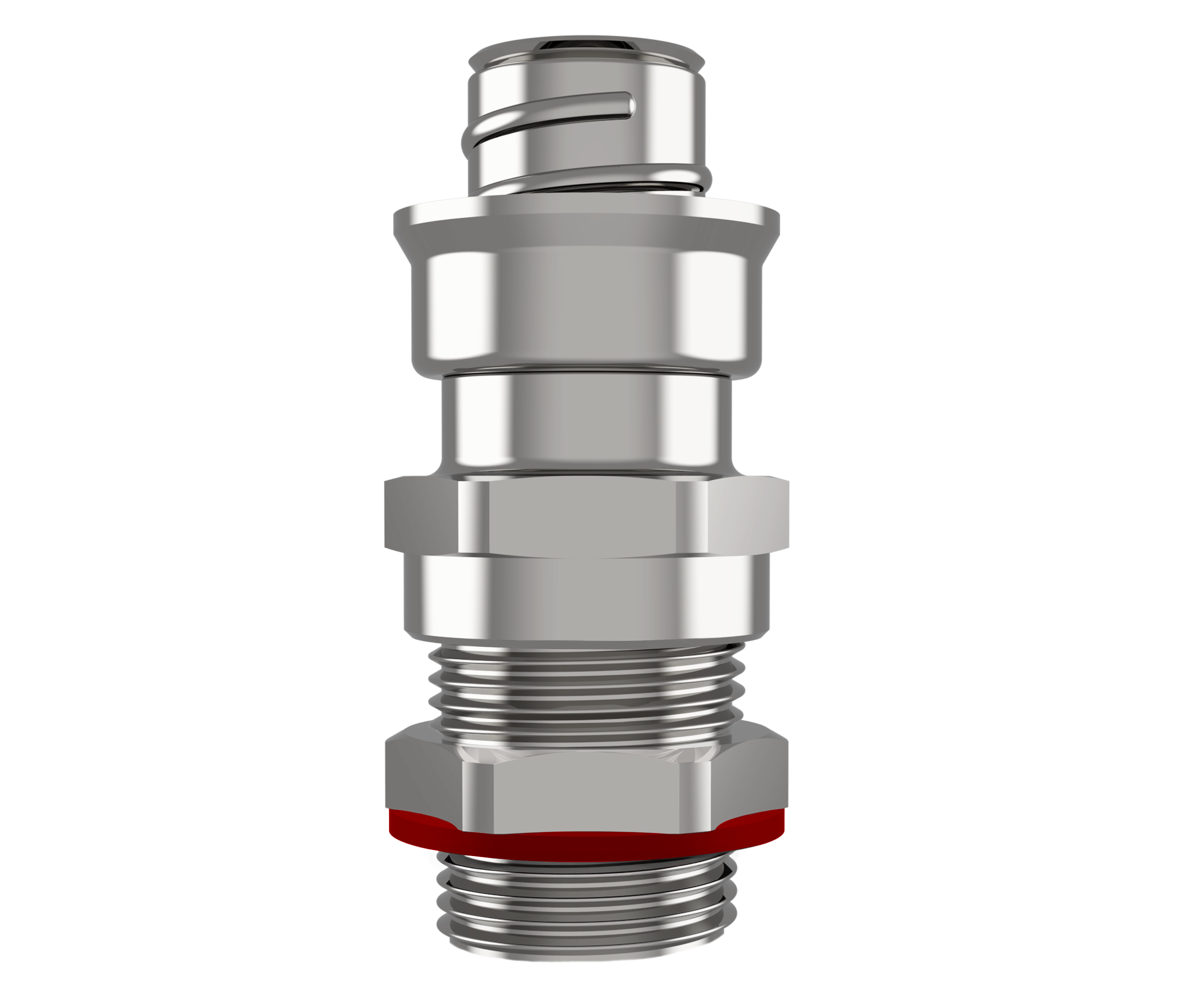

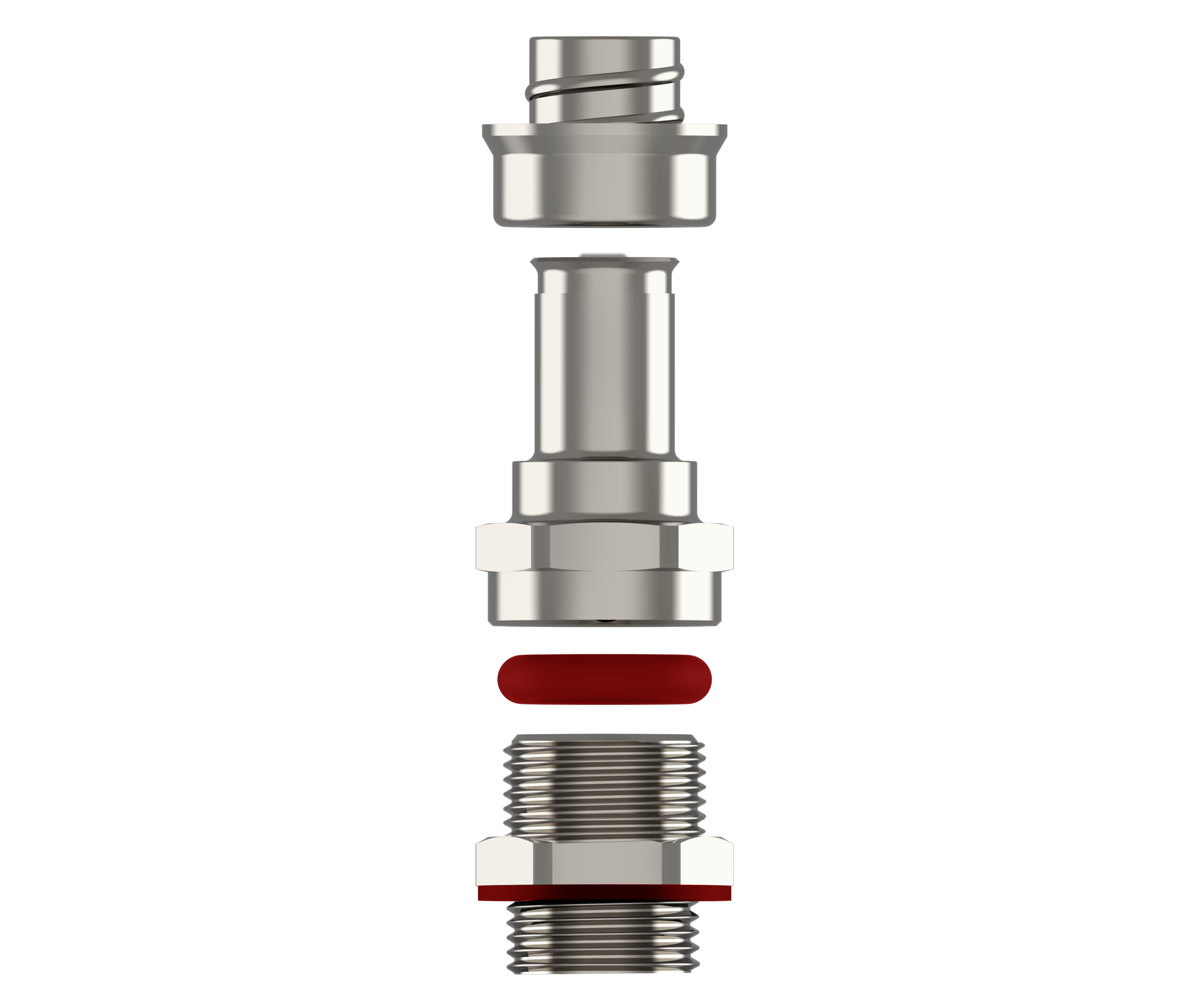

CRUX Fleksibelt konduit
○CRUX fleksibel konduitkobling for krevende miljøer med ekstremt høye og lave driftstemperaturer og høy slagfasthet
○Svært høy beskyttelse mot støv, fukt og vann for innendørs og utendørs bruk.
Spesifikasjoner
| Gjengestørrelse | Klemområdet | Gjengelengde | Nøkkelvidde | Diameter | Maks høyde 'H' | L | XL | Standard | Ferrule Type | Varenummer | BIMED Kode | 3D File |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M12x1,5 | 3,0-8,0 | 9,0 | 16/16 | 18 | 75 | 1/2" | 3/4" | 3/8" | 5/16" | — | CRXC0SM | — |
| M16x1,5 | 3,0-8,0 | 9,0 | 20/20 | 22 | 75 | 1/2" | 3/4" | 3/8" | 5/16" | — | CRXC01SM | — |
| M16x1,5 | 5,5-12,0 | 9,0 | 20/20 | 22 | 80 | 3/4" | 1" | 1/2" | — | — | CRXC01M | — |
| M20x1,5 | 3,0-8,0 | 9,0 | 24/16 | 26,5 | 75 | 1/2" | 3/4" | 3/8" | 5/16" | — | CRXC1XSM | — |
| M20x1,5 | 5,5-12,0 | 9,0 | 24/20 | 26,5 | 80 | 3/4" | 1" | 1/2" | — | — | CRXC1SM | Get File |
| M20x1,5 | 9,0-16,0 | 9,0 | 24/24 | 26,5 | 85 | 1" | 1 1/4" | 3/4" | — | — | CRXC1M | — |
| M25x1,5 | 9,0-16,0 | 9,0 | 30/24 | 33 | 85 | 1" | 1 1/4" | 3/4" | — | — | CRXC2SM | — |
| M25x1,5 | 12,0-20,0 | 9,0 | 30/30 | 33 | 98 | 1 1/4" | 1 1/2" | 1" | — | — | CRXC2M | — |
| M32x1,5 | 12,0-20,0 | 9,0 | 36/30 | 39,8 | 98 | 1 1/4" | 1 1/2" | 1" | — | — | CRXC3SM | — |
| M32x1,5 | 16,0-26,0 | 9,0 | 36/36 | 39,8 | 105 | 1 1/2" | — | 1 1/4" | — | — | CRXC3M | — |
| M40x1,5 | 16,0-26,0 | 9,0 | 46/36 | 51 | 105 | 1 1/2" | — | 1 1/4" | — | — | CRXC4SM | — |
| M40x1,5 | 20,0-33,0 | 9,0 | 46/46 | 51 | 115 | 2" | — | 1 1/2" | — | — | CRXC4M | — |
| M50x1,5 | 20,0-33,0 | 9,0 | 55/46 | 61 | 115 | 2" | — | 1 1/2" | — | — | CRXC5SM | — |
| M50x1,5 | 29,0-41,0 | 9,0 | 55/55 | 61 | 130 | 2 1/2" | — | 2" | — | — | CRXC5M | — |
| M63x1,5 | 29,0-41,0 | 9,0 | 67/55 | 75 | 130 | 2 1/2" | — | 2" | — | — | CRXC6SM | — |
| M63x1,5 | 36,0-52,0 | 9,0 | 67/65 | 75 | 140 | 3" | — | 2 1/2" | — | — | CRXC6M | — |
| M75x1,5 | 36,0-52,0 | 9,0 | 80/65 | 89 | 140 | 3" | — | 2 1/2" | — | — | CRXC7SM | — |
| M75x1,5 | 50,0-65,0 | 9,0 | 80/80 | 89 | 150 | 4" | — | 3" | — | — | CRXC7M | — |
