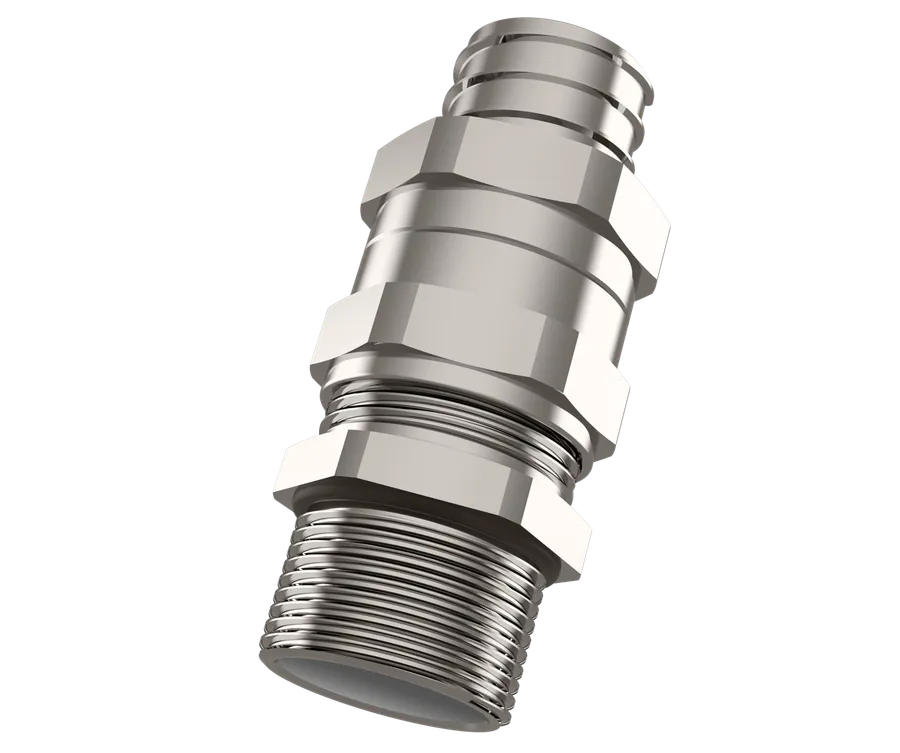

CORVUS
○Konduitkobling for eksplosjonsfarlige områder (Gruppe II) med eksplosjonssikker tetning rundt kabelkappen i fleksibelt konduit. ATEX- og IECEx-sertifisert i henhold til Ex eb, Ex db og Ex tb.

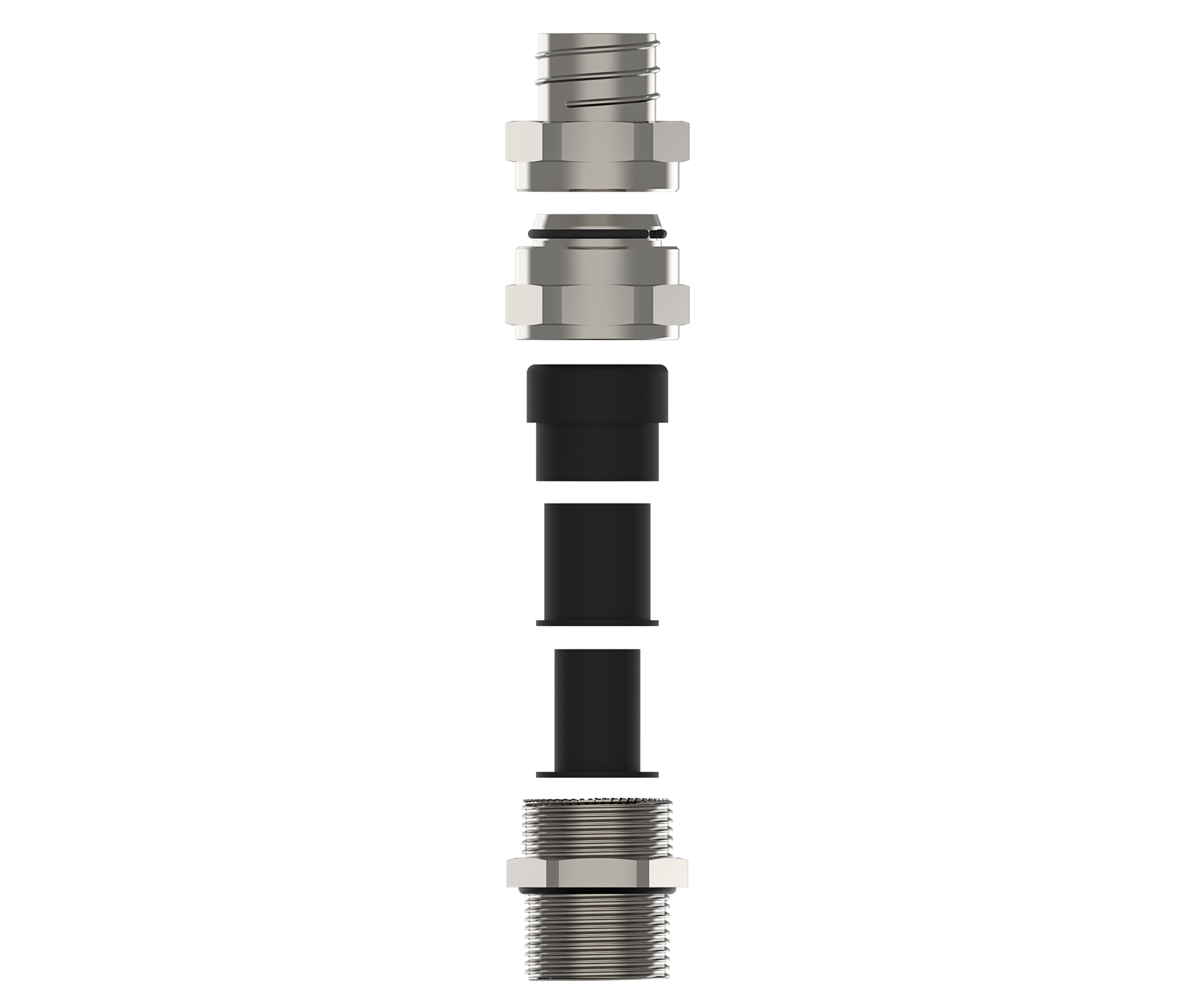

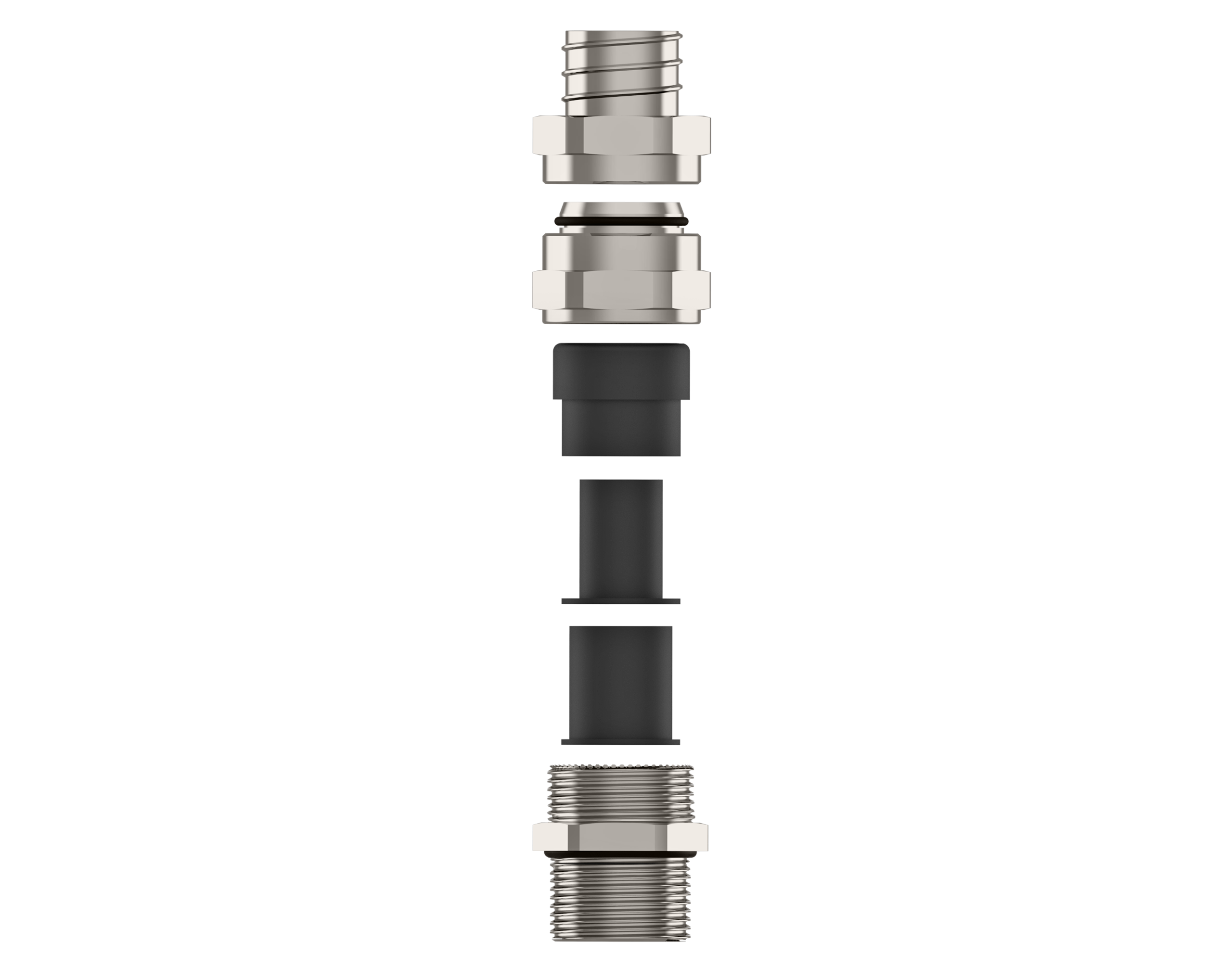

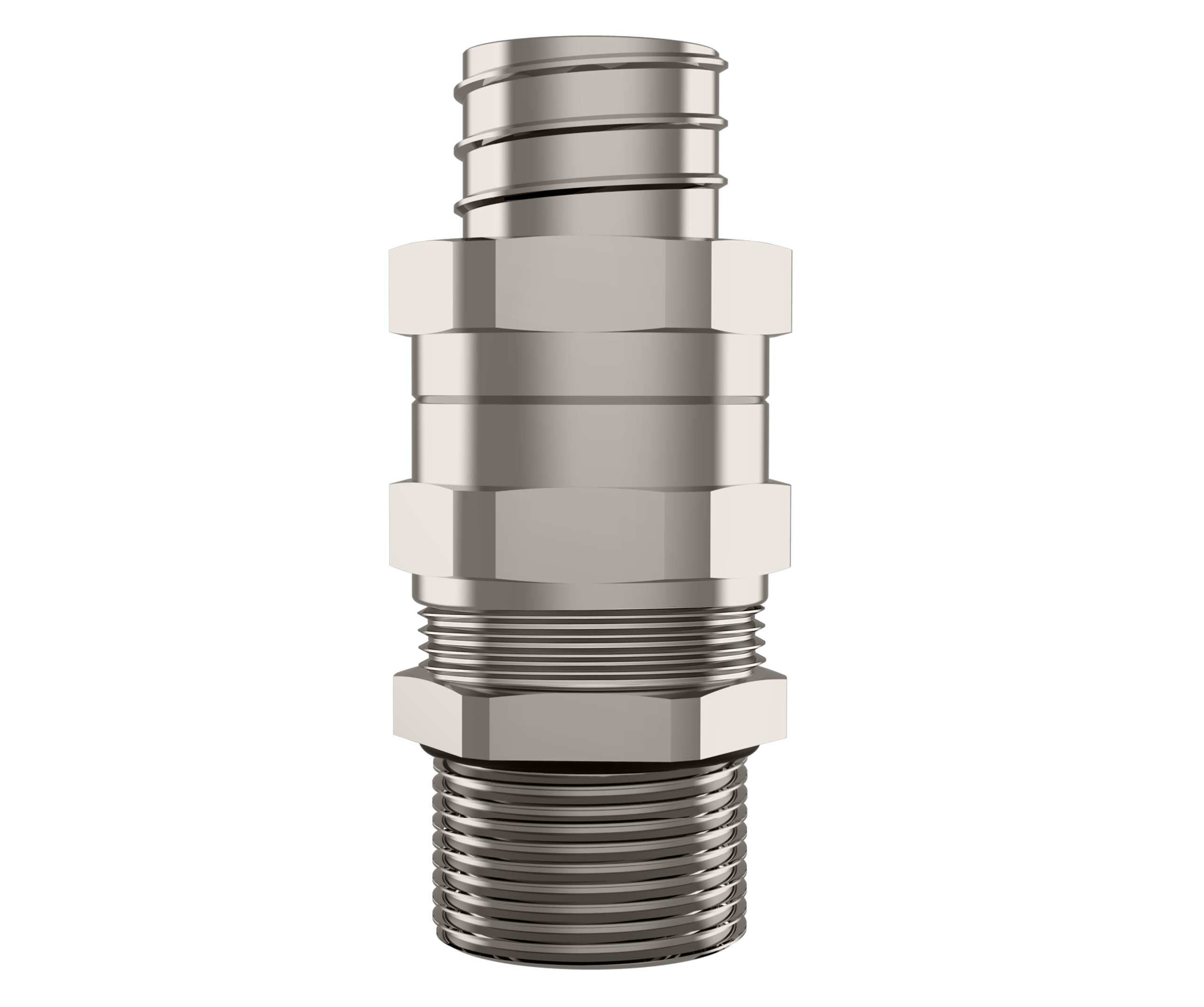

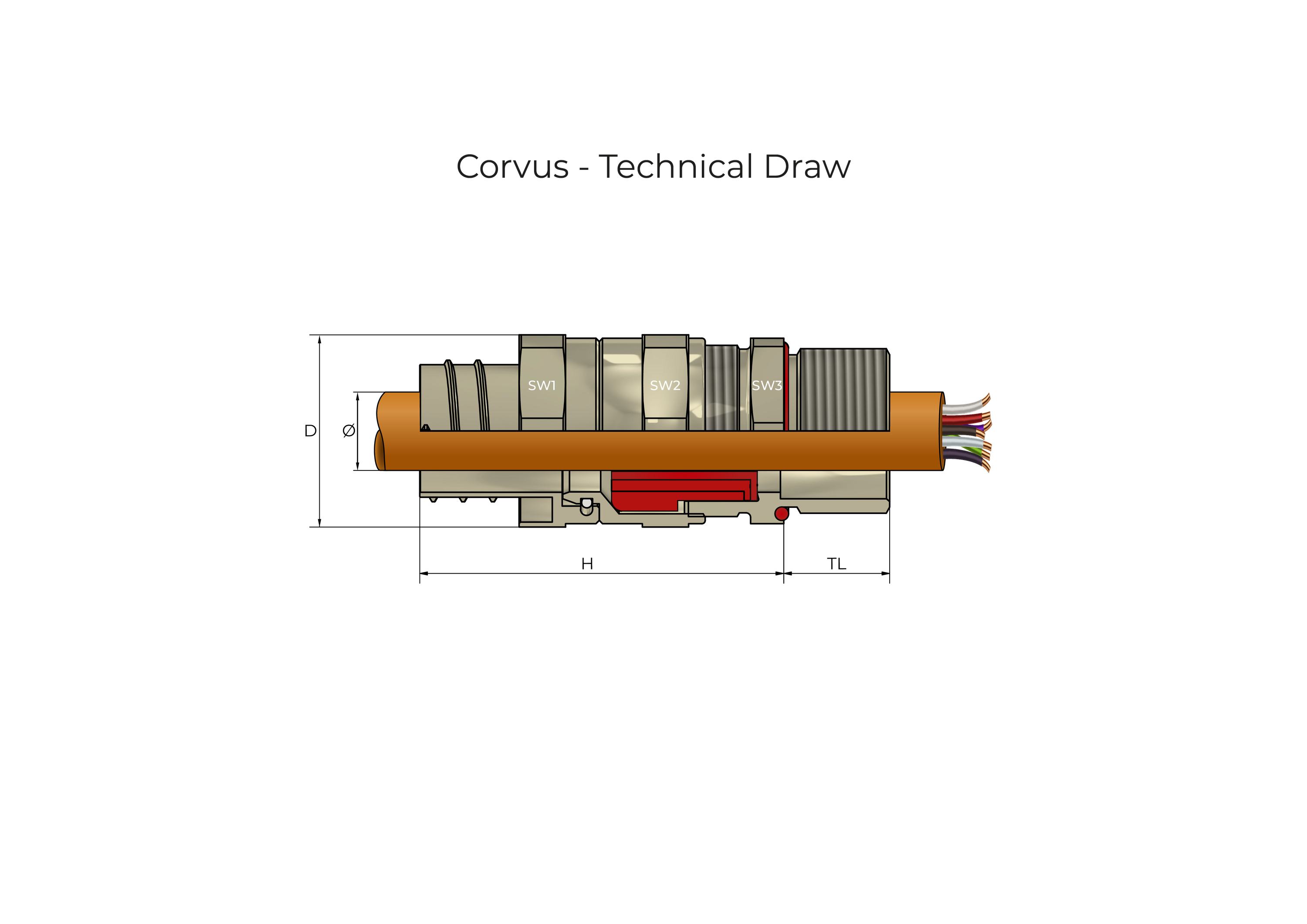

Spesifikasjoner
| Gjengestørrelse | Klemområdet | Nøkkelvidde | Diameter | Maks høyde 'H' | TL Ex-e | Seal Type | TL Ex-d/e | Conduit Size | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M12x1,5 | 4,0 - 8,0 | 24/24/22 | 26.5 | 43 | 9 | Triple | 16 | 0.5 | — | EBMC0SM | — | |
| M12x1,5 | 4,0 - 8,0 | 24/24/22 | 26.5 | 43 | 9 | Triple | 16 | 0.5 | — | EBMC0SM | — | |
| M12x1,5 | 4,0 - 8,0 | 24/24/22 | 26.5 | 43 | 9 | Triple | 16 | 0.5 | — | EBMC0SM | — | |
| M12x1,5 | 4,0 - 8,0 | 24/24/22 | 26.5 | 43 | 9 | Triple | 16 | 0.5 | — | EBMC0SM | — | |
| M16x1,5 | 3,0 - 9,0 | 20/20/20 | 22 | 39 | 9 | Double | 16 | 0.375 | — | EBMC01SM | — | |
| M16x1,5 | 4,0 - 12,0 | 24/24/22 | 26.5 | 43 | 9 | Triple | 16 | 0.5 | — | EBMC01M | — | |
| M16x1,5 | 3,0 - 9,0 | 20/20/20 | 22 | 39 | 9 | Double | 16 | 0.375 | — | EBMC01SM | — | |
| M16x1,5 | 4,0 - 12,0 | 24/24/22 | 26.5 | 43 | 9 | Triple | 16 | 0.5 | — | EBMC01M | — | |
| M16x1,5 | 3,0 - 9,0 | 20/20/20 | 22 | 39 | 9 | Double | 16 | 0.375 | — | EBMC01SM | — | |
| M16x1,5 | 4,0 - 12,0 | 24/24/22 | 26.5 | 43 | 9 | Triple | 16 | 0.5 | — | EBMC01M | — | |
| M16x1,5 | 3,0 - 9,0 | 20/20/20 | 22 | 39 | 9 | Double | 16 | 0.375 | — | EBMC01SM | — | |
| M16x1,5 | 4,0 - 12,0 | 24/24/22 | 26.5 | 43 | 9 | Triple | 16 | 0.5 | — | EBMC01M | — | |
| M20x1,5 | 3,0 - 9,0 | 20/20/22 | 24.5 | 39 | 9 | Double | 16 | 0.375 | — | EBMC1SM | — | |
| M20x1,5 | 4,0 - 12,0 | 24/24/22 | 26.5 | 39 | 9 | Triple | 16 | 0.5 | — | EBMC1M | — | |
| M20x1,5 | 10,0 - 16,0 | 29/29/28 | 31.5 | 41.5 | 9 | Triple | 16 | 0.75 | — | EBMC12M | — | |
| M20x1,5 | 3,0 - 9,0 | 20/20/22 | 24.5 | 39 | 9 | Double | 16 | 0.375 | — | EBMC1SM | — | |
| M20x1,5 | 4,0 - 12,0 | 24/24/22 | 26.5 | 39 | 9 | Triple | 16 | 0.5 | — | EBMC1M | — | |
| M20x1,5 | 10,0 - 16,0 | 29/29/28 | 31.5 | 41.5 | 9 | Triple | 16 | 0.75 | — | EBMC12M | — | |
| M20x1,5 | 3,0 - 9,0 | 20/20/22 | 24.5 | 39 | 9 | Double | 16 | 0.375 | — | EBMC1SM | — | |
| M20x1,5 | 4,0 - 12,0 | 24/24/22 | 26.5 | 39 | 9 | Triple | 16 | 0.5 | — | EBMC1M | — | |
| M20x1,5 | 10,0 - 16,0 | 29/29/28 | 31.5 | 41.5 | 9 | Triple | 16 | 0.75 | — | EBMC12M | — | |
| M20x1,5 | 3,0 - 9,0 | 20/20/22 | 24.5 | 39 | 9 | Double | 16 | 0.375 | — | EBMC1SM | — | |
| M20x1,5 | 4,0 - 12,0 | 24/24/22 | 26.5 | 39 | 9 | Triple | 16 | 0.5 | — | EBMC1M | — | |
| M20x1,5 | 10,0 - 16,0 | 29/29/28 | 31.5 | 41.5 | 9 | Triple | 16 | 0.75 | — | EBMC12M | — | |
| M25x1,5 | 10,0 - 18,0 | 29/29/28 | 31.5 | 42 | 9 | Triple | 16 | 0.75 | — | EBMC2M | Get File | |
| M25x1,5 | 14,0 - 20,0 | 36/36/35 | 39.8 | 47 | 9 | Triple | 16 | 1 | — | EBMC23M | — | |
| M25x1,5 | 10,0 - 18,0 | 29/29/28 | 31.5 | 42 | 9 | Triple | 16 | 0.75 | — | EBMC2M | Get File | |
| M25x1,5 | 14,0 - 20,0 | 36/36/35 | 39.8 | 47 | 9 | Triple | 16 | 1 | — | EBMC23M | — | |
| M25x1,5 | 10,0 - 18,0 | 29/29/28 | 31.5 | 42 | 9 | Triple | 16 | 0.75 | — | EBMC2M | Get File | |
| M25x1,5 | 14,0 - 20,0 | 36/36/35 | 39.8 | 47 | 9 | Triple | 16 | 1 | — | EBMC23M | — | |
| M25x1,5 | 10,0 - 18,0 | 29/29/28 | 31.5 | 42 | 9 | Triple | 16 | 0.75 | — | EBMC2M | Get File | |
| M25x1,5 | 14,0 - 20,0 | 36/36/35 | 39.8 | 47 | 9 | Triple | 16 | 1 | — | EBMC23M | — | |
| M32x1,5 | 14,0 - 24,0 | 36/36/35 | 39.8 | 46 | 9 | Triple | 16 | 1 | — | EBMC3M | — | |
| M32x1,5 | 22,0 - 28,0 | 45/45/45 | 50 | 54 | 9 | Triple | 16 | 1.25 | — | EBMC34M | — | |
| M32x1,5 | 14,0 - 24,0 | 36/36/35 | 39.8 | 46 | 9 | Triple | 16 | 1 | — | EBMC3M | — | |
| M32x1,5 | 22,0 - 28,0 | 45/45/45 | 50 | 54 | 9 | Triple | 16 | 1.25 | — | EBMC34M | — | |
| M32x1,5 | 14,0 - 24,0 | 36/36/35 | 39.8 | 46 | 9 | Triple | 16 | 1 | — | EBMC3M | — | |
| M32x1,5 | 22,0 - 28,0 | 45/45/45 | 50 | 54 | 9 | Triple | 16 | 1.25 | — | EBMC34M | — | |
| M32x1,5 | 14,0 - 24,0 | 36/36/35 | 39.8 | 46 | 9 | Triple | 16 | 1 | — | EBMC3M | — | |
| M32x1,5 | 22,0 - 28,0 | 45/45/45 | 50 | 54 | 9 | Triple | 16 | 1.25 | — | EBMC34M | — | |
| M40x1,5 | 22,0 - 32,0 | 45/45/45 | 50 | 54 | 9 | Triple | 18 | 1.25 | — | EBMC4M | — | |
| M40x1,5 | 26,0 - 34,0 | 52/52/50 | 59 | 59.5 | 9 | Triple | 18 | 1.5 | — | EBMC45M | — | |
| M40x1,5 | 22,0 - 32,0 | 45/45/45 | 50 | 54 | 9 | Triple | 18 | 1.25 | — | EBMC4M | — | |
| M40x1,5 | 26,0 - 34,0 | 52/52/50 | 59 | 59.5 | 9 | Triple | 18 | 1.5 | — | EBMC45M | — | |
| M40x1,5 | 22,0 - 32,0 | 45/45/45 | 50 | 54 | 9 | Triple | 18 | 1.25 | — | EBMC4M | — | |
| M40x1,5 | 26,0 - 34,0 | 52/52/50 | 59 | 59.5 | 9 | Triple | 18 | 1.5 | — | EBMC45M | — | |
| M40x1,5 | 22,0 - 32,0 | 45/45/45 | 50 | 54 | 9 | Triple | 18 | 1.25 | — | EBMC4M | — | |
| M40x1,5 | 26,0 - 34,0 | 52/52/50 | 59 | 59.5 | 9 | Triple | 18 | 1.5 | — | EBMC45M | — | |
| M50x1,5 | 26,0 - 35,0 | 52/52/55 | 61 | 59.5 | 9 | Triple | 18 | 1.5 | — | EBMC5M | — | |
| M50x1,5 | 35,0 - 44,0 | 65/65/64 | 72 | 58.5 | 9 | Triple | 18 | 2 | — | EBMC56M | — | |
| M50x1,5 | 26,0 - 35,0 | 52/52/55 | 61 | 59.5 | 9 | Triple | 18 | 1.5 | — | EBMC5M | — | |
| M50x1,5 | 35,0 - 44,0 | 65/65/64 | 72 | 58.5 | 9 | Triple | 18 | 2 | — | EBMC56M | — | |
| M50x1,5 | 26,0 - 35,0 | 52/52/55 | 61 | 59.5 | 9 | Triple | 18 | 1.5 | — | EBMC5M | — | |
| M50x1,5 | 35,0 - 44,0 | 65/65/64 | 72 | 58.5 | 9 | Triple | 18 | 2 | — | EBMC56M | — | |
| M50x1,5 | 26,0 - 35,0 | 52/52/55 | 61 | 59.5 | 9 | Triple | 18 | 1.5 | — | EBMC5M | — | |
| M50x1,5 | 35,0 - 44,0 | 65/65/64 | 72 | 58.5 | 9 | Triple | 18 | 2 | — | EBMC56M | — | |
| M63x1,5 | 35,0 - 45,0 | 65/65/68 | 75 | 58.5 | 9 | Triple | 18 | 2 | — | EBMC6M | — | |
| M63x1,5 | 35,0 - 45,0 | 65/65/68 | 75 | 58.5 | 9 | Triple | 18 | 2 | — | EBMC6M | — | |
| M63x1,5 | 35,0 - 45,0 | 65/65/68 | 75 | 58.5 | 9 | Triple | 18 | 2 | — | EBMC6M | — | |
| M63x1,5 | 35,0 - 45,0 | 65/65/68 | 75 | 58.5 | 9 | Triple | 18 | 2 | — | EBMC6M | — | |
| M75x1,5 | 46,0 - 59,0 | 80/80/80 | 89 | 69 | 9 | Triple | 20 | 2.5 | — | EBMC7M | — | |
| M75x1,5 | 46,0 - 59,0 | 80/80/80 | 89 | 69 | 9 | Triple | 20 | 2.5 | — | EBMC7M | — | |
| M75x1,5 | 46,0 - 59,0 | 80/80/80 | 89 | 69 | 9 | Triple | 20 | 2.5 | — | EBMC7M | — | |
| M75x1,5 | 46,0 - 59,0 | 80/80/80 | 89 | 69 | 9 | Triple | 20 | 2.5 | — | EBMC7M | — |
