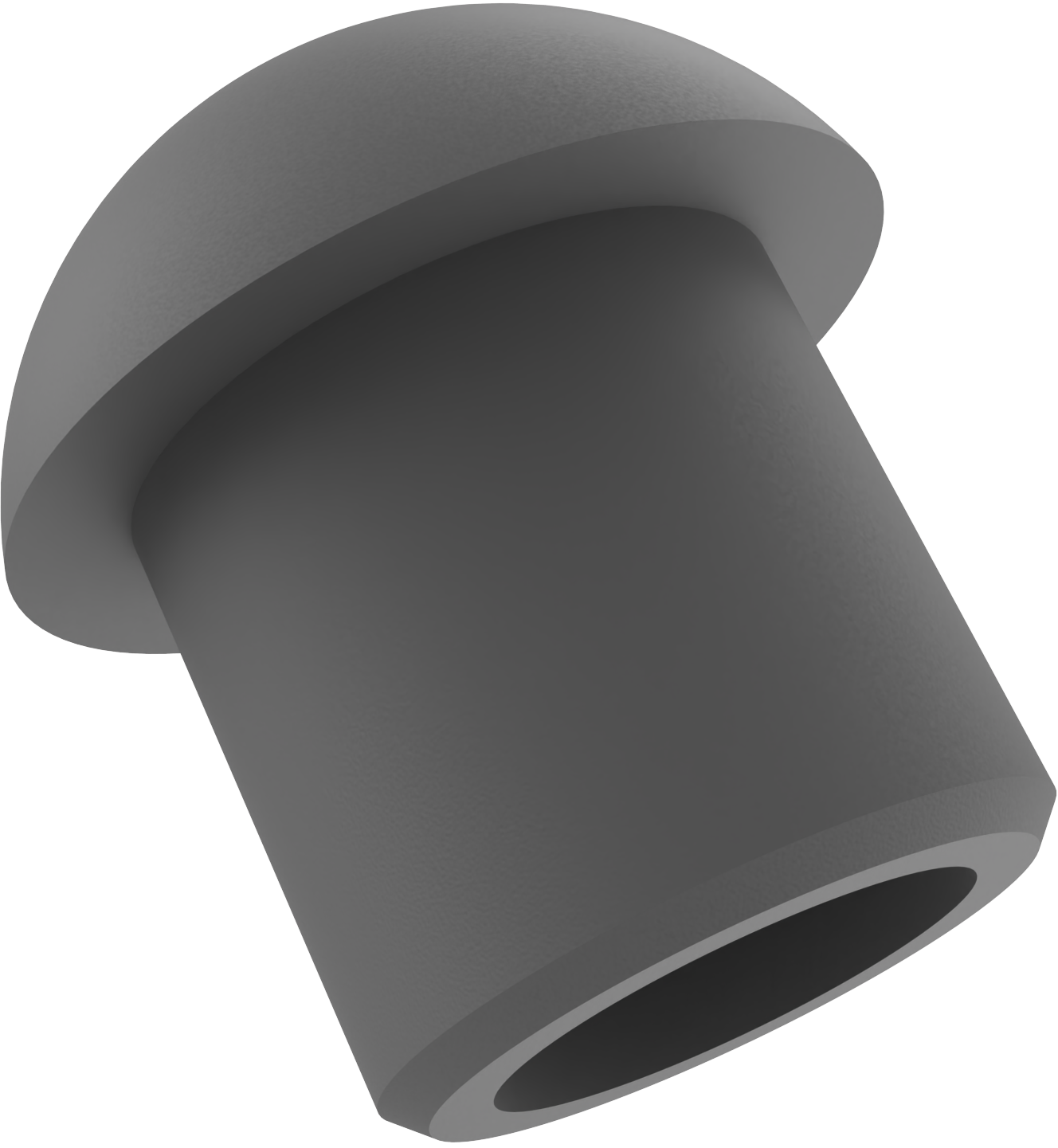

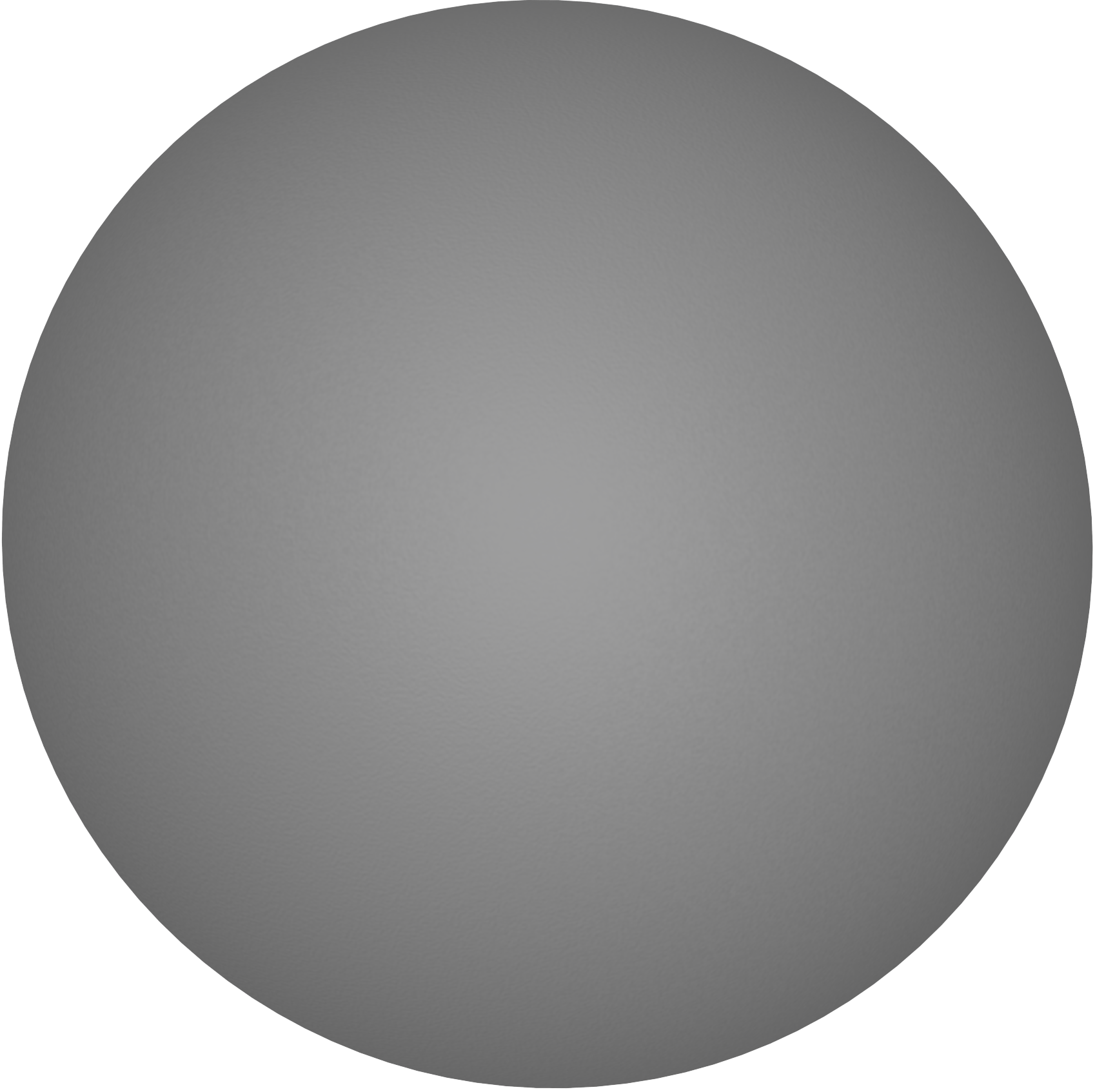

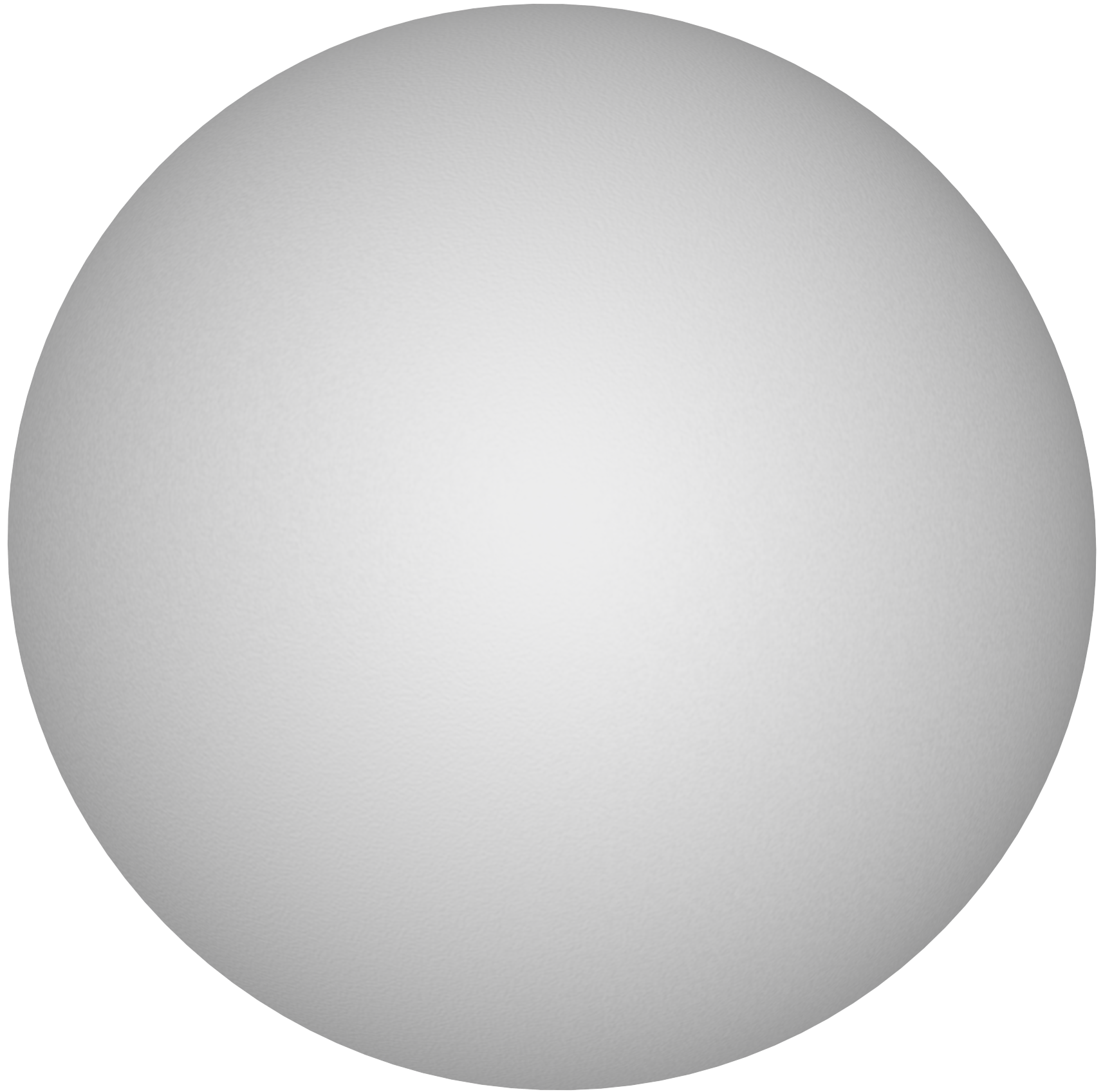

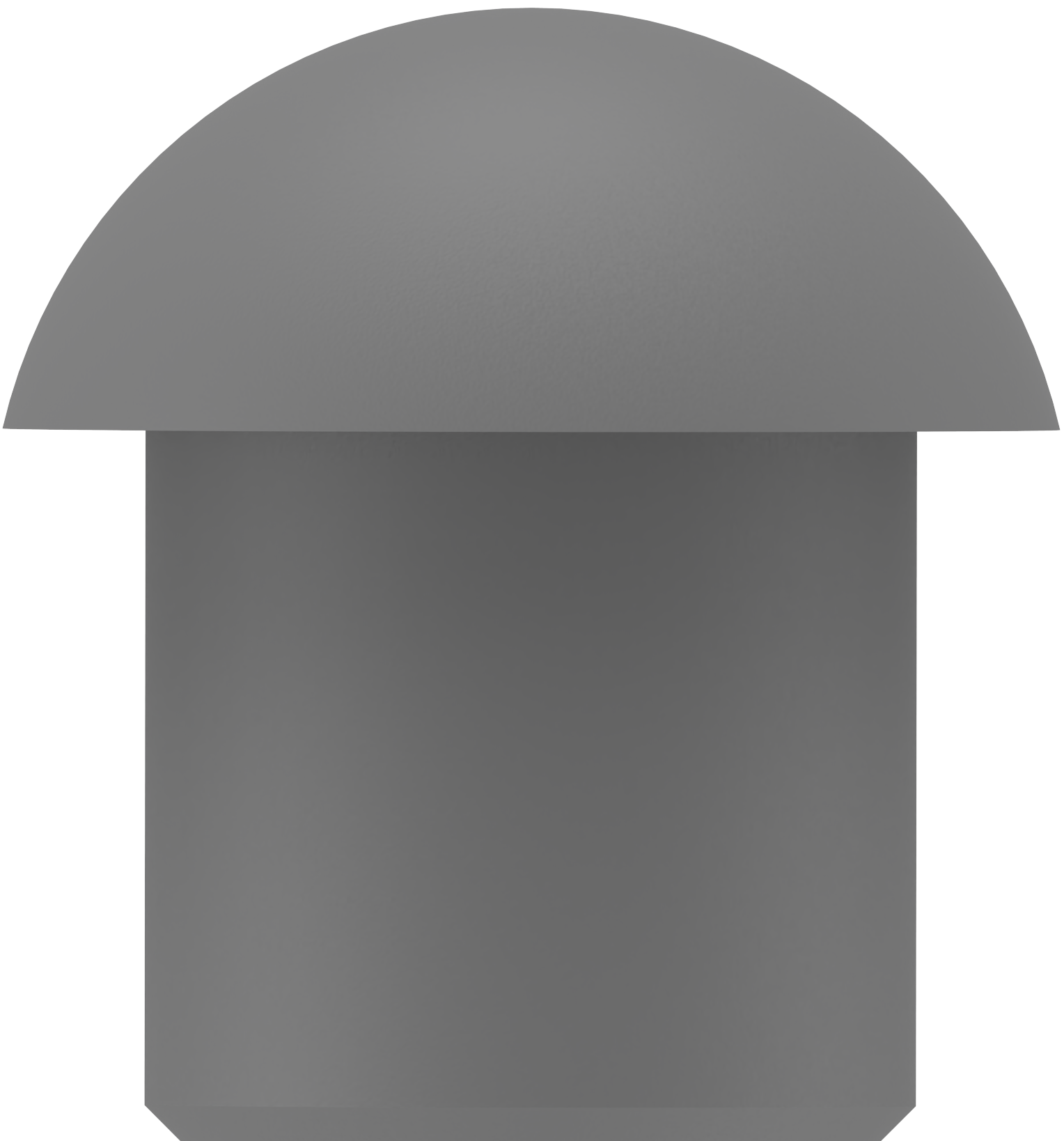

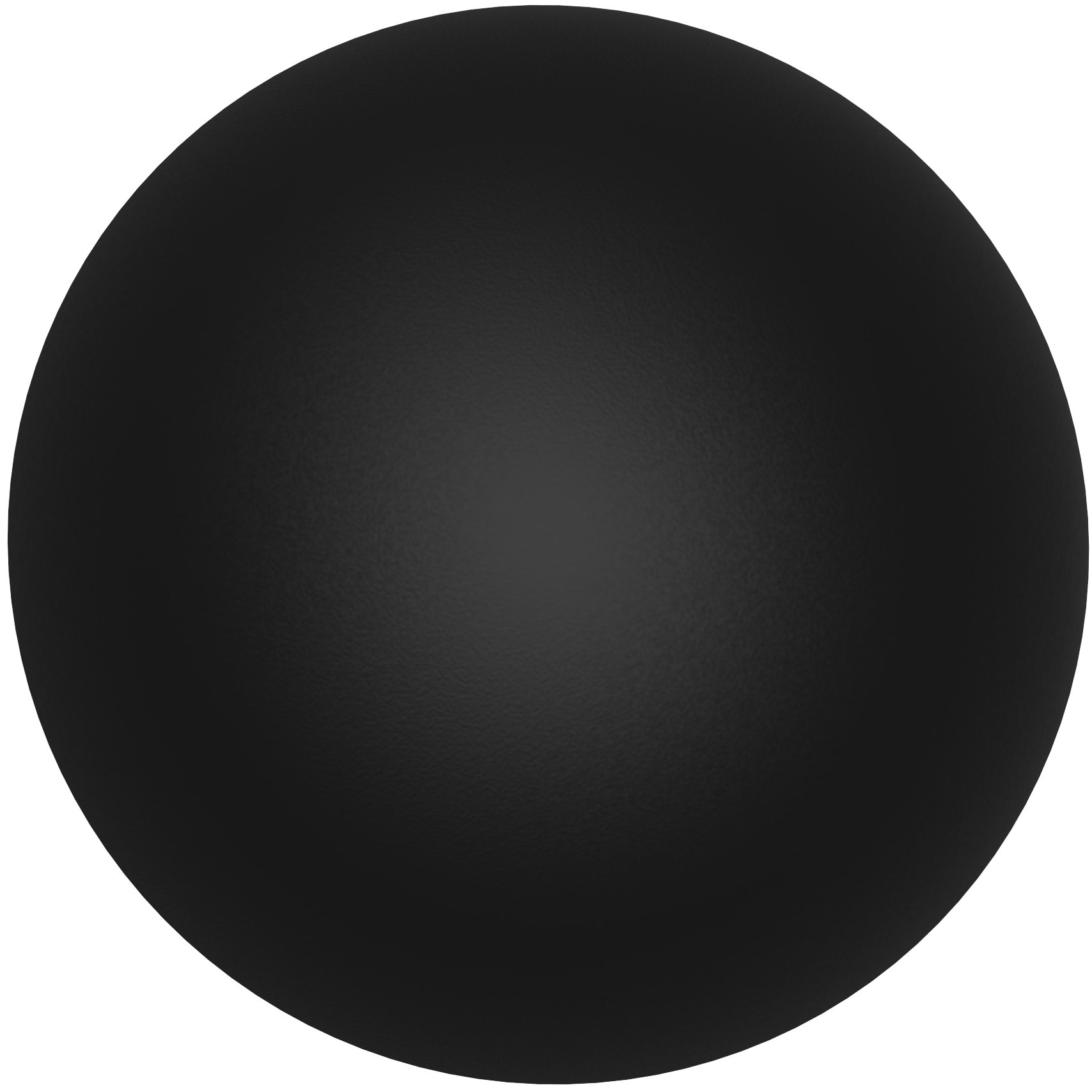

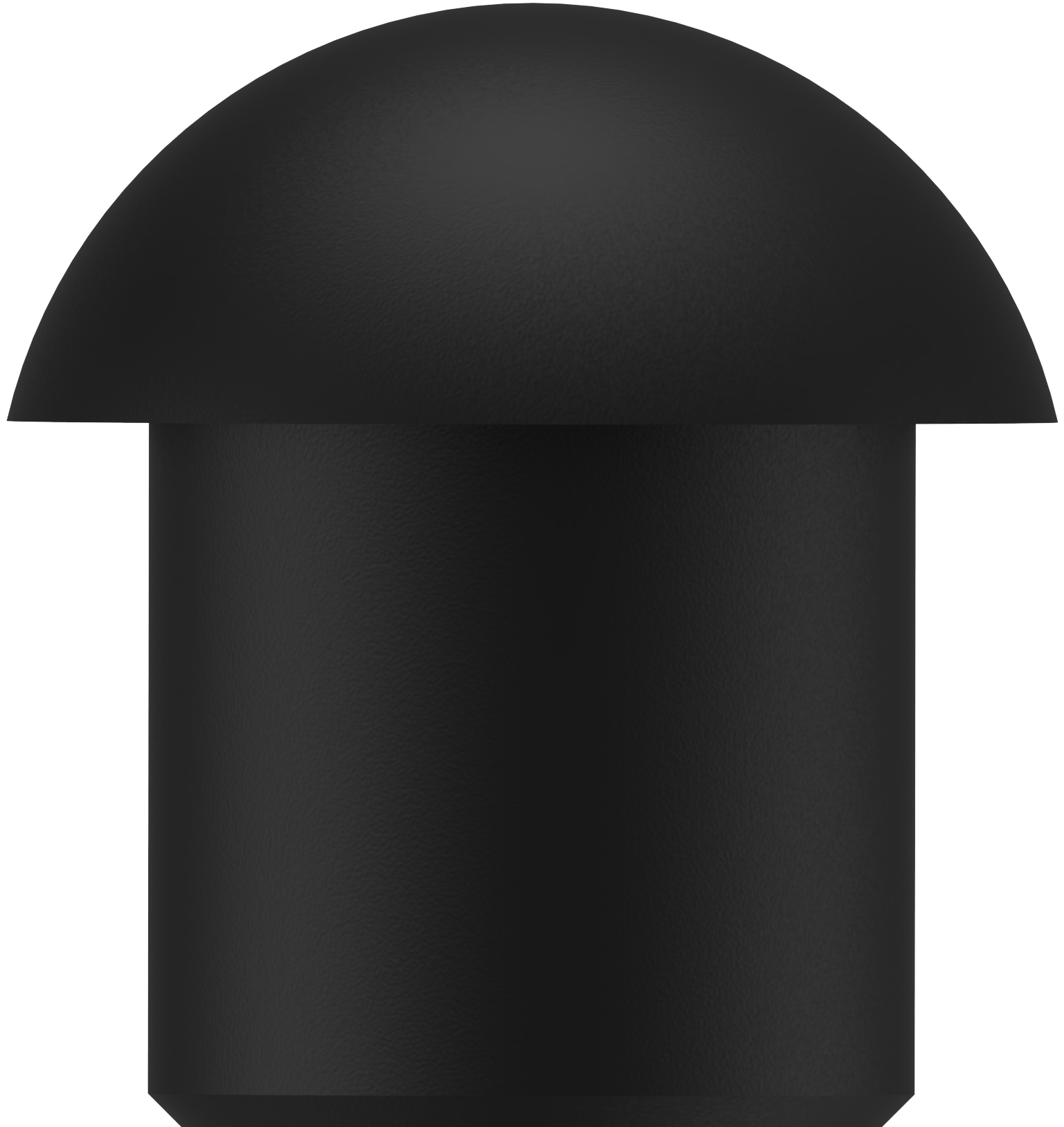

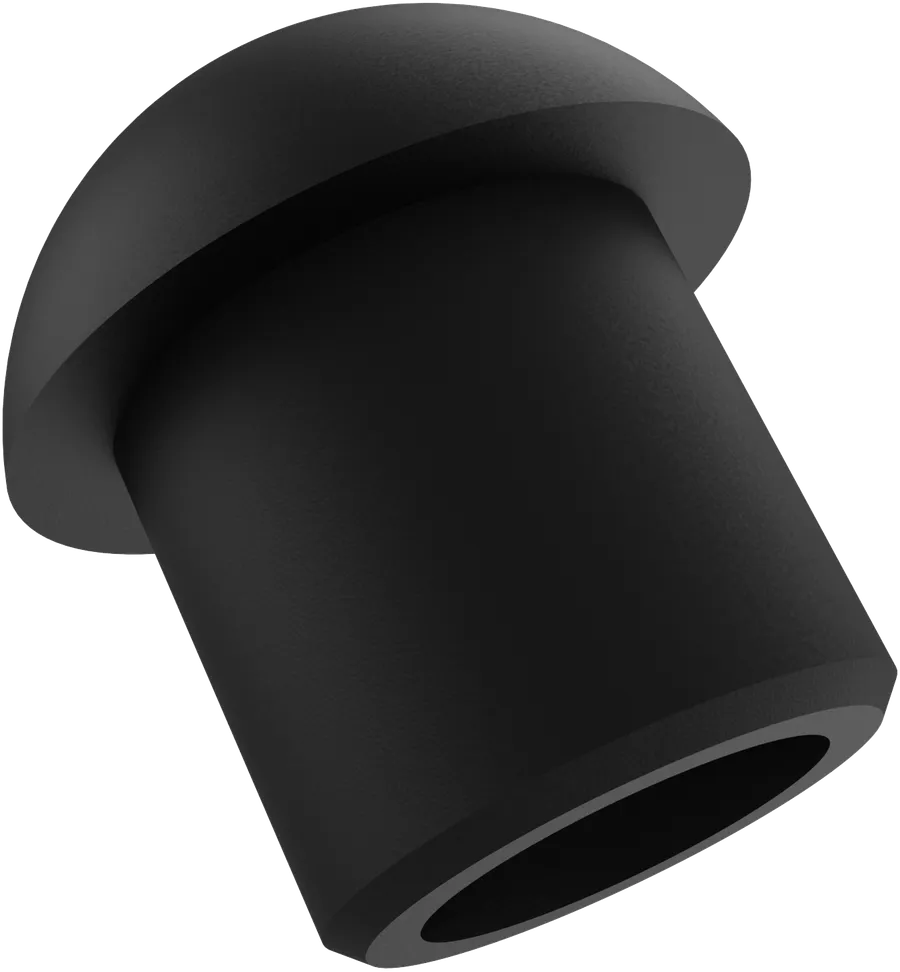

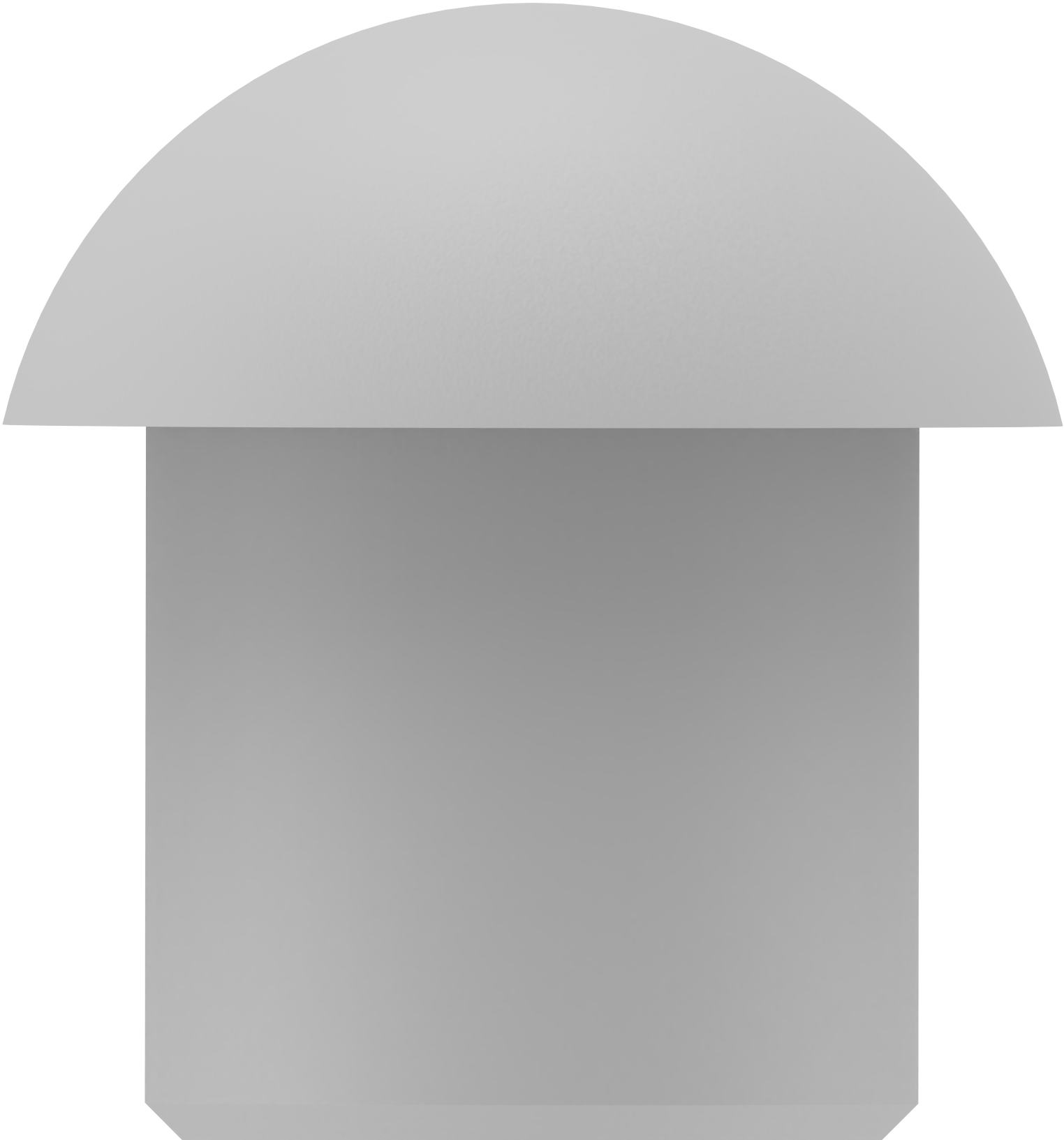

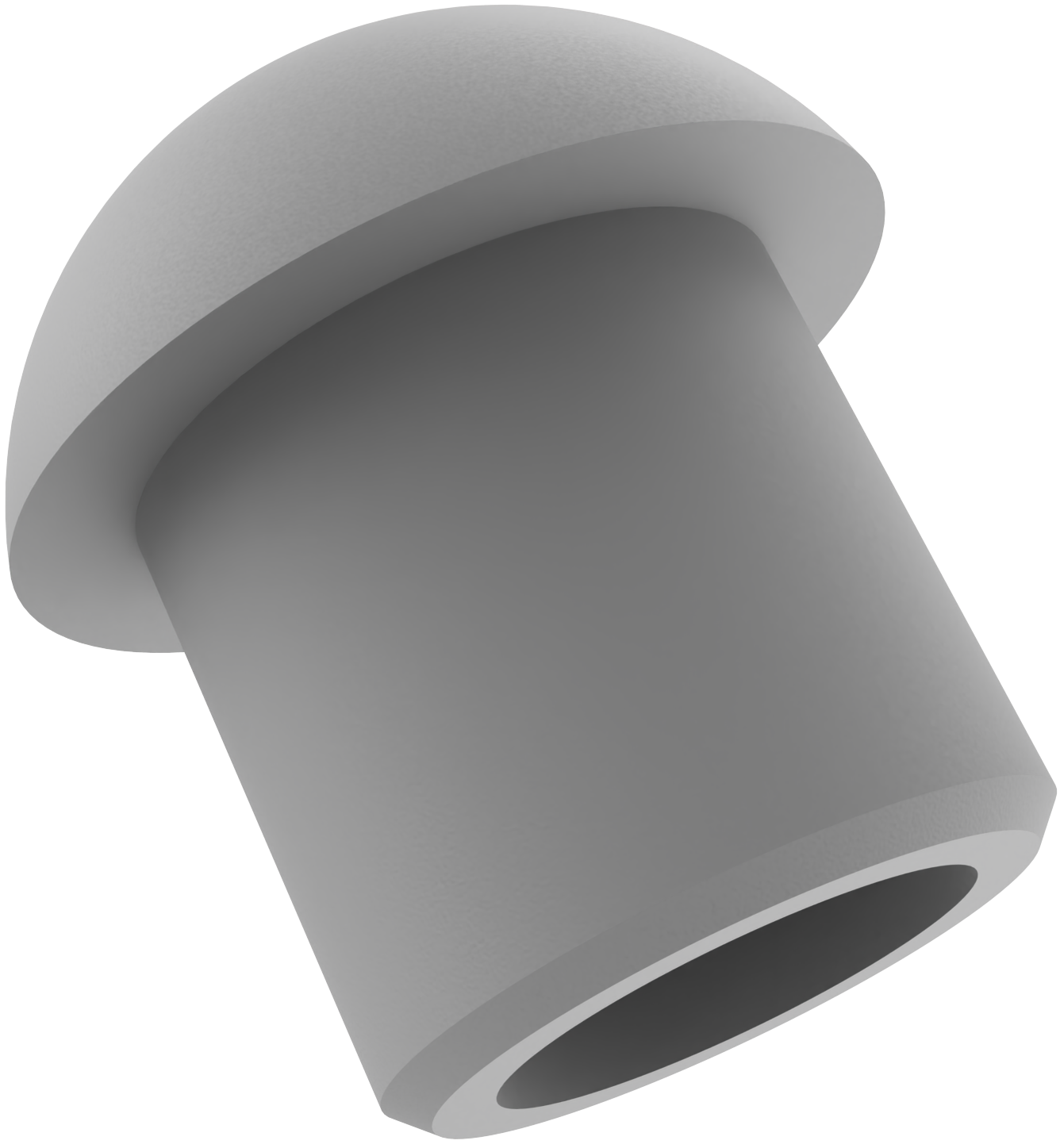

Industriell kuppelplugg

○Hindrer inntrenging av støv og fukt i kabelnippelen inntil kabel er installert.

Spesifikasjoner

Gjengestørrelse	Klemområdet	PL	P Ø	Height 'H'	Outer Seal	Double Seal	Outer 'D' Ø	Reducing Seal	Varenummer	BIMED Kode	3D File	Datablad
9	-	12	4	4	-	2,0 - 6,5	9.2	2,0 - 5,0	—	BDP-09-11	—	PDF
9	-	12	4	4	-	2,0 - 6,5	9.2	2,0 - 5,0	—	BDP-09-01	—	PDF
9	-	12	4	4	-	2,0 - 6,5	9.2	2,0 - 5,0	—	BDP-09-21	Get File	PDF
9	3,0 - 6,5	12	6.4	4	3,0 - 6,5	-	9.2	-	—	BDP-09-12	—	PDF
9	3,0 - 6,5	12	6.4	4	3,0 - 6,5	-	9.2	-	—	BDP-09-02	—	PDF
9	3,0 - 6,5	12	6.4	4	3,0 - 6,5	-	9.2	-	—	BDP-09-22	—	PDF
11	4,0 - 8,0	13.7	8	4.7	4,0 - 8,0	-	10.5	-	—	BDP-11-22	—	PDF
11	-	14	5	5	-	3,0 - 8,0	10.5	2,0 - 6,0	—	BDP-11-11	—	PDF
11	-	14	5	5	-	3,0 - 8,0	10.5	2,0 - 6,0	—	BDP-11-01	—	PDF
11	-	14	5	5	-	3,0 - 8,0	10.5	2,0 - 6,0	—	BDP-11-21	—	PDF
11	4,0 - 8,0	13.7	8	4.7	4,0 - 8,0	-	10.5	-	—	BDP-11-12	—	PDF
11	4,0 - 8,0	13.7	8	4.7	4,0 - 8,0	-	10.5	-	—	BDP-11-02	—	PDF
13	-	15	7	5.7	-	3,0 - 10,0	13.3	3,0 - 7,0	—	BDP-13-11	—	PDF
13	-	15	7	5.7	-	3,0 - 10,0	13.3	3,0 - 7,0	—	BDP-13-01	—	PDF
13	-	15	7	5.7	-	3,0 - 10,0	13.3	3,0 - 7,0	—	BDP-13-21	—	PDF
13	5,0 - 10,0	9	9.7	5.3	5,0 - 10,0	-	13.3	-	—	BDP-13-12	—	PDF
13	5,0 - 10,0	9	9.7	5.3	5,0 - 10,0	-	13.3	-	—	BDP-13-02	—	PDF
13	5,0 - 10,0	9	9.7	5.3	5,0 - 10,0	-	13.3	-	—	BDP-13-22	—	PDF
13	5,0 - 10,0	15	9.7	5.7	5,0 - 10,0	-	13.3	-	—	BDP-13-12S	—	PDF
13	5,0 - 10,0	15	9.7	5.7	5,0 - 10,0	-	13.3	-	—	BDP-13-02S	—	PDF
13	5,0 - 10,0	15	9.7	5.7	5,0 - 10,0	-	13.3	-	—	BDP-13-22S	—	PDF
16	-	14	7	7.5	-	3,0 - 13,0	15.8	-	—	BDP-16-10	—	PDF
16	-	14	7	7.5	-	3,0 - 13,0	15.8	-	—	BDP-16-00	—	PDF
16	-	14	7	7.5	-	3,0 - 13,0	15.8	-	—	BDP-16-20	—	PDF
16	-	13	8.5	7.7	-	5,0 - 12,0	15.8	5,0-9,0	—	BDP-16-11	—	PDF
16	-	13	8.5	7.7	-	5,0 - 12,0	15.8	5,0-9,0	—	BDP-16-01	—	PDF
16	-	13	8.5	7.7	-	5,0 - 12,0	15.8	5,0-9,0	—	BDP-16-21	—	PDF
16	6,0 - 12,0	13	12	8	6,0 - 12,0	-	15.8	-	—	BDP-16-12	—	PDF
16	6,0 - 12,0	13	12	8	6,0 - 12,0	-	15.8	-	—	BDP-16-02	—	PDF
16	6,0 - 12,0	13	12	8	6,0 - 12,0	-	15.8	-	—	BDP-16-22	Get File	PDF
16	7,0 - 13,0	14	13	7.5	7,0 - 13,0	-	15.8	-	—	BDP-16-13	Get File	PDF
16	7,0 - 13,0	14	13	7.5	7,0 - 13,0	-	15.8	-	—	BDP-16-03	—	PDF
16	7,0 - 13,0	14	13	7.5	7,0 - 13,0	-	15.8	-	—	BDP-16-23	—	PDF
18	-	13.5	11	8.5	-	7,0 - 14,0	18	7,0 - 12,0	—	BDP-18-11	—	PDF
18	-	13.5	11	8.5	-	7,0 - 14,0	18	7,0 - 12,0	—	BDP-18-01	—	PDF
18	-	13.5	11	8.5	-	7,0 - 14,0	18	7,0 - 12,0	—	BDP-18-21	—	PDF
18	10,0 - 14,0	13.5	13.6	8.7	10,0 - 14,0	-	18	-	—	BDP-18-12	—	PDF
18	10,0 - 14,0	13.5	13.6	8.7	10,0 - 14,0	-	18	-	—	BDP-18-02	—	PDF
18	10,0 - 14,0	13.5	13.6	8.7	10,0 - 14,0	-	18	-	—	BDP-18-22	—	PDF
20	-	14.5	13	7	-	8,0 - 17,0	20	9,0 - 13,0	—	BDP-20-11	—	PDF
20	-	14.5	13	7	-	8,0 - 17,0	20	9,0 - 13,0	—	BDP-20-01	—	PDF
20	-	14.5	13	7	-	8,0 - 17,0	20	9,0 - 13,0	—	BDP-20-21	—	PDF
20	11,0 - 17,0	14.5	16.4	7.3	11,0 - 17,0	-	19.9	-	—	BDP-20-12	—	PDF
20	11,0 - 17,0	14.5	16.4	7.3	11,0 - 17,0	-	19.9	-	—	BDP-20-02	—	PDF
20	11,0 - 17,0	14.5	16.4	7.3	11,0 - 17,0	-	19.9	-	—	BDP-20-22	—	PDF
22	-	14	14	9.5	-	9,0 - 18,0	22	11,0 - 15,0	—	BDP-22-11	—	PDF
22	-	14	14	9.5	-	9,0 - 18,0	22	11,0 - 15,0	—	BDP-22-01	—	PDF
22	-	14	14	9.5	-	9,0 - 18,0	22	11,0 - 15,0	—	BDP-22-21	—	PDF
22	13,0 - 18,0	14	17.8	10	13,0 - 18,0	-	22	-	—	BDP-22-12	—	PDF
22	13,0 - 18,0	14	17.8	10	13,0 - 18,0	-	22	-	—	BDP-22-02	—	PDF
22	13,0 - 18,0	14	17.8	10	13,0 - 18,0	-	22	-	—	BDP-22-22	Get File	PDF
24	-	15.5	16.1	9	-	11,0 - 21,0	24	9,0 - 16,0	—	BDP-24-11	—	PDF
24	-	15.5	16.1	9	-	11,0 - 21,0	24	9,0 - 16,0	—	BDP-24-01	—	PDF
24	-	15.5	16.1	9	-	11,0 - 21,0	24	9,0 - 16,0	—	BDP-24-21	—	PDF
24	15,0 - 21,0	15.5	20.4	9.2	15,0 - 21,0	-	24.1	-	—	BDP-24-12	—	PDF
24	15,0 - 21,0	15.5	20.4	9.2	15,0 - 21,0	-	24.1	-	—	BDP-24-02	—	PDF
24	15,0 - 21,0	15.5	20.4	9.2	15,0 - 21,0	-	24.1	-	—	BDP-24-22	—	PDF
29	-	15	19.7	9.7	-	13,0 - 25,0	28.5	12,0 - 20,0	—	BDP-29-11	—	PDF
29	-	15	19.7	9.7	-	13,0 - 25,0	28.5	12,0 - 20,0	—	BDP-29-01	—	PDF
29	-	15	19.7	9.7	-	13,0 - 25,0	28.5	12,0 - 20,0	—	BDP-29-21	—	PDF
29	18,0 - 25,0	15	25	9.7	18,0 - 25,0	-	28.5	-	—	BDP-29-12	—	PDF
29	18,0 - 25,0	15	25	9.7	18,0 - 25,0	-	28.5	-	—	BDP-29-02	—	PDF
29	18,0 - 25,0	15	25	9.7	18,0 - 25,0	-	28.5	-	—	BDP-29-22	Get File	PDF
32	-	15.8	20.5	9.2	-	16,0 - 28,0	31.5	16,0 - 23,0	—	BDP-32-11	—	PDF
32	-	15.8	20.5	9.2	-	16,0 - 28,0	31.5	16,0 - 23,0	—	BDP-32-01	—	PDF
32	-	15.8	20.5	9.2	-	16,0 - 28,0	31.5	16,0 - 23,0	—	BDP-32-21	—	PDF
32	19,0 - 28,0	15.8	27.3	9.2	19,0 - 28,0	-	31.5	-	—	BDP-32-12	—	PDF
32	19,0 - 28,0	15.8	27.3	9.2	19,0 - 28,0	-	31.5	-	—	BDP-32-02	—	PDF
32	19,0 - 28,0	15.8	27.3	9.2	19,0 - 28,0	-	31.5	-	—	BDP-32-22	—	PDF
37	-	17	25.7	10.7	-	20,0 - 32,0	36.8	20,0 - 26,0	—	BDP-37-11	—	PDF
37	-	17	25.7	10.7	-	20,0 - 32,0	36.8	20,0 - 26,0	—	BDP-37-01	—	PDF
37	-	17	25.7	10.7	-	20,0 - 32,0	36.8	20,0 - 26,0	—	BDP-37-21	—	PDF
37	22,0 - 32,0	17	31.8	10.7	22,0 - 32,0	—	36.8	-	—	BDP-37-12	—	PDF
37	22,0 - 32,0	17	31.8	10.7	22,0 - 32,0	—	36.8	-	—	BDP-37-02	—	PDF
37	22,0 - 32,0	17	31.8	10.7	22,0 - 32,0	—	36.8	-	—	BDP-37-22	—	PDF
45	-	20.2	30.6	11.9	-	21,0 - 38,0	43.3	25,0 - 31,0	—	BDP-45-11	—	PDF
45	-	20.2	30.6	11.9	-	21,0 - 38,0	43.3	25,0 - 31,0	—	BDP-45-01	—	PDF
45	-	20.2	30.6	11.9	-	21,0 - 38,0	43.3	25,0 - 31,0	—	BDP-45-21	Get File	PDF
45	30,0 - 38,0	20.2	38	11.9	30,0 - 38,0	-	43.3	-	—	BDP-45-12	—	PDF
45	30,0 - 38,0	20.2	38	11.9	30,0 - 38,0	-	43.3	-	—	BDP-45-02	—	PDF
45	30,0 - 38,0	20.2	38	11.9	30,0 - 38,0	-	43.3	-	—	BDP-45-22	—	PDF
52	-	22.5	34.6	16	-	27,0 - 44,0	51	29,0 - 35,0	—	BDP-52-11	—	PDF
52	-	22.5	34.6	16	-	27,0 - 44,0	51	29,0 - 35,0	—	BDP-52-01	—	PDF
52	-	22.5	34.6	16	-	27,0 - 44,0	51	29,0 - 35,0	—	BDP-52-21	—	PDF
52	34,0 - 44,0	22.5	44.2	16	34,0 - 44,0	-	51	-	—	BDP-52-12	—	PDF
52	34,0 - 44,0	22.5	44.2	16	34,0 - 44,0	-	51	-	—	BDP-52-02	—	PDF
52	34,0 - 44,0	22.5	44.2	16	34,0 - 44,0	-	51	-	—	BDP-52-22	—	PDF
