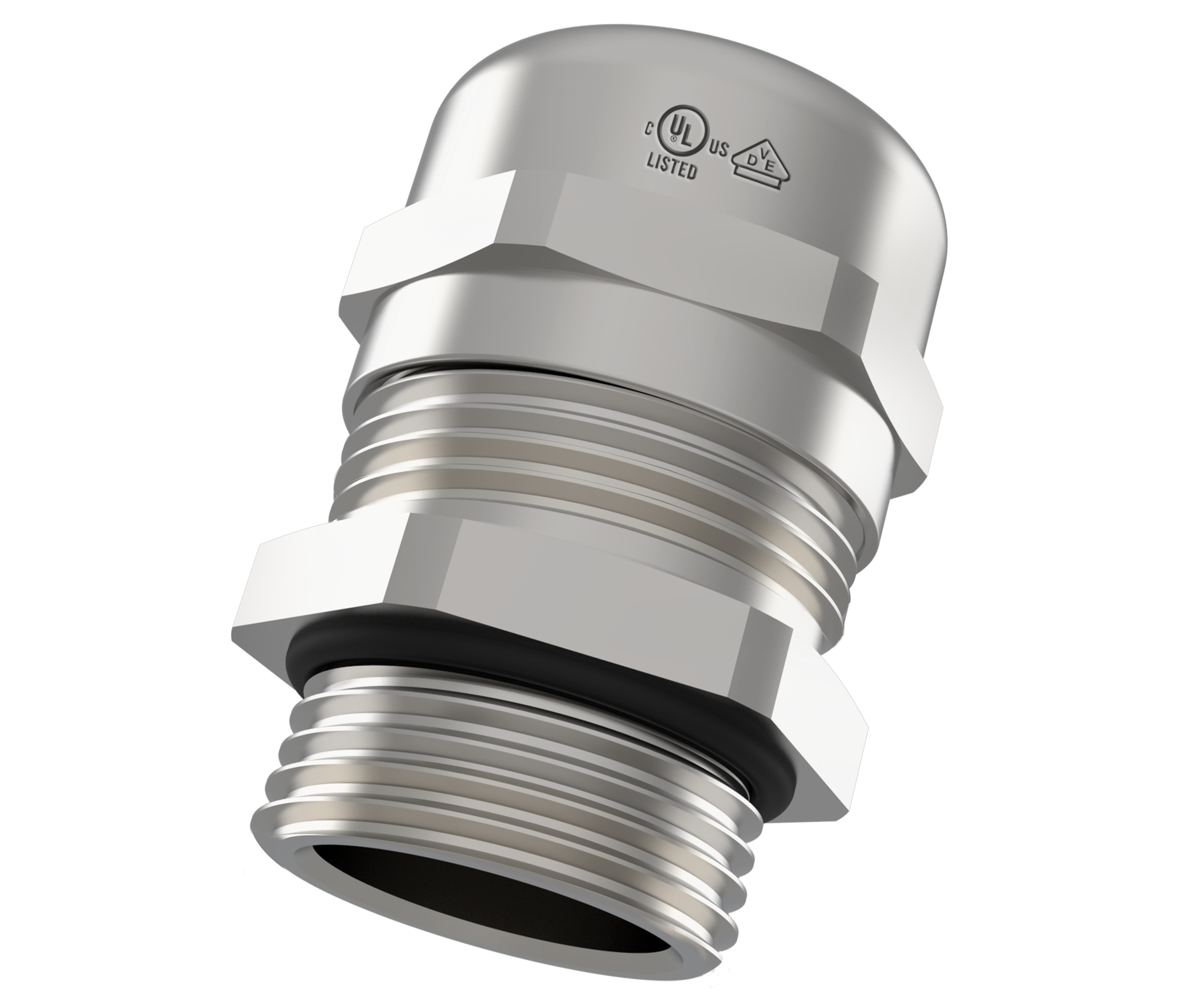

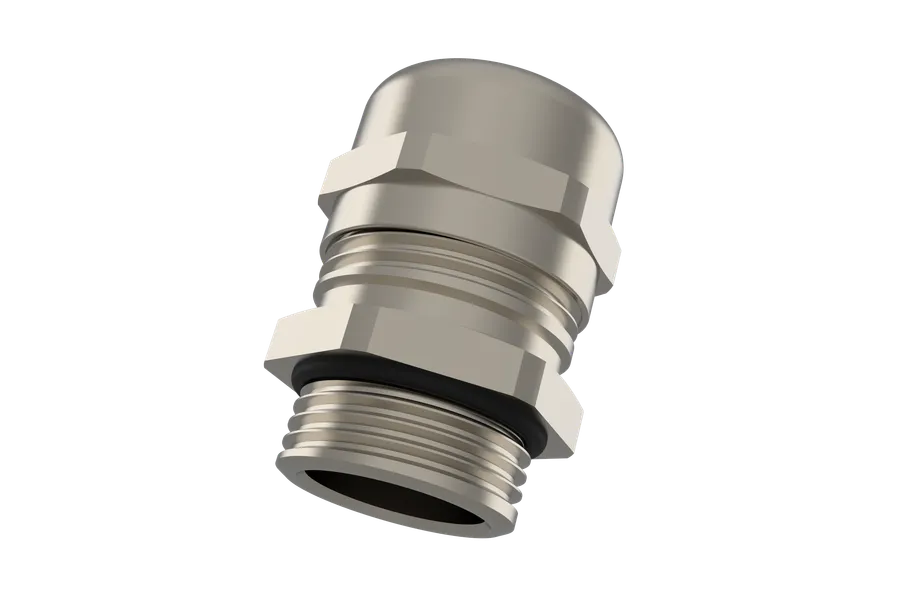

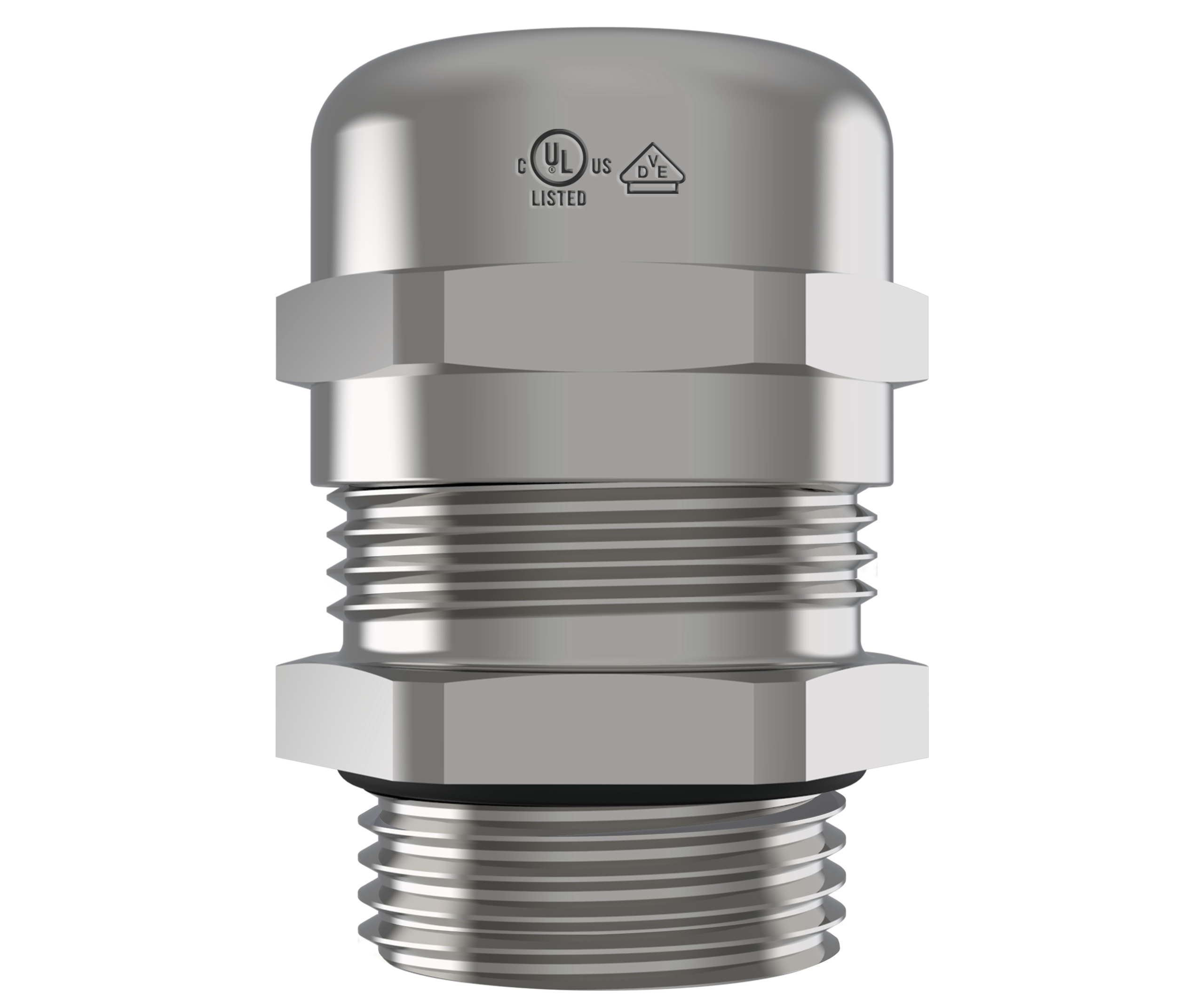

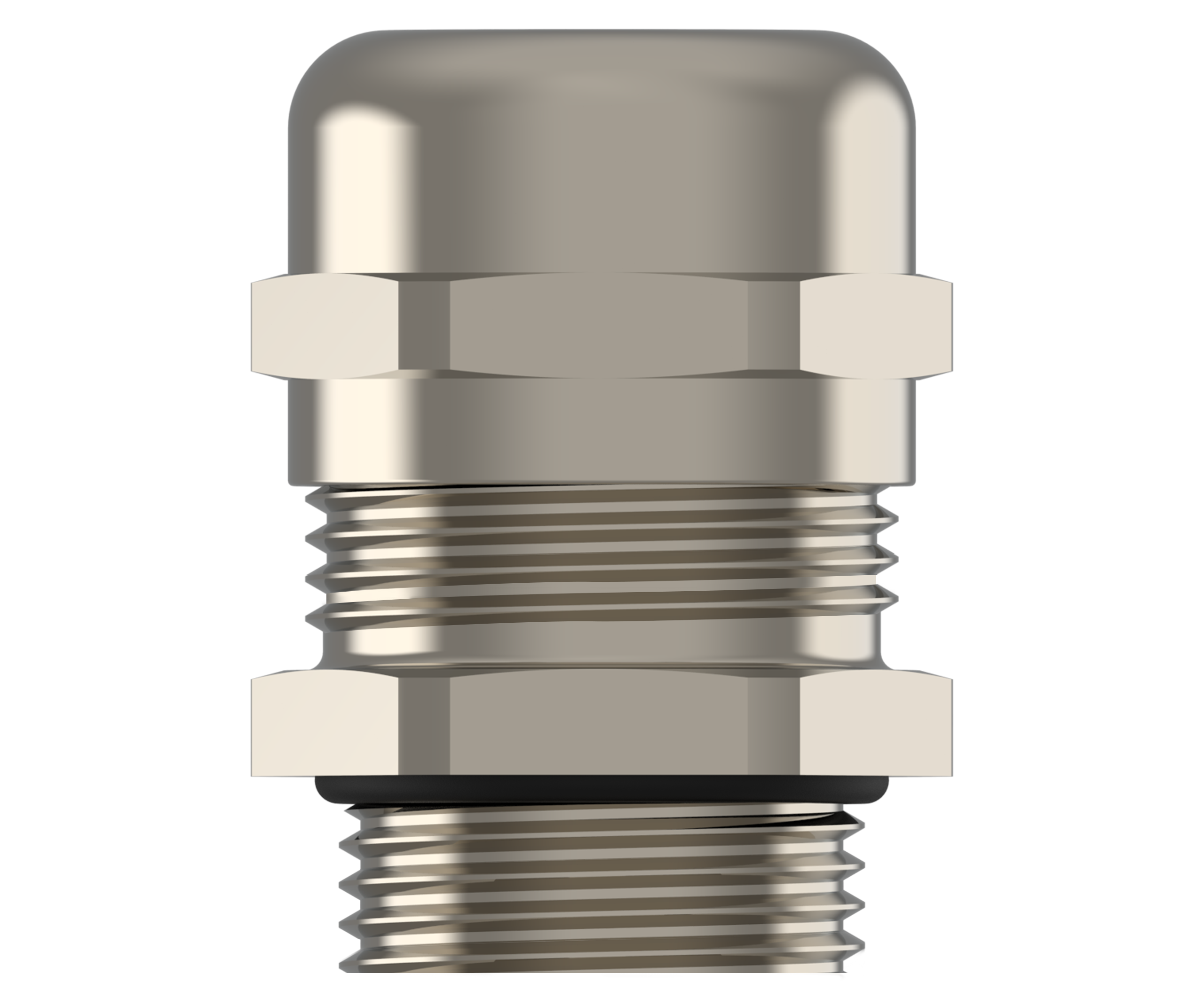

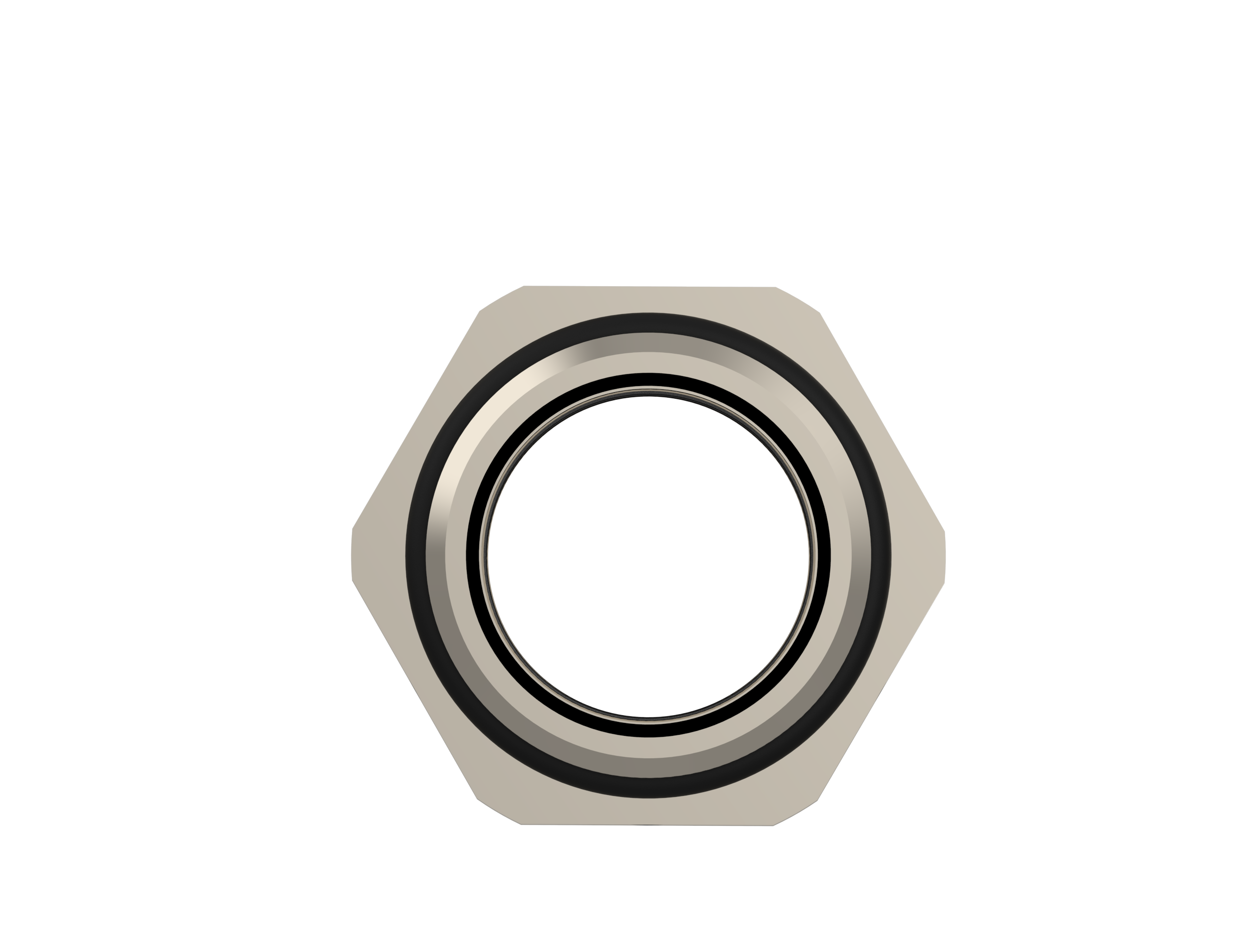

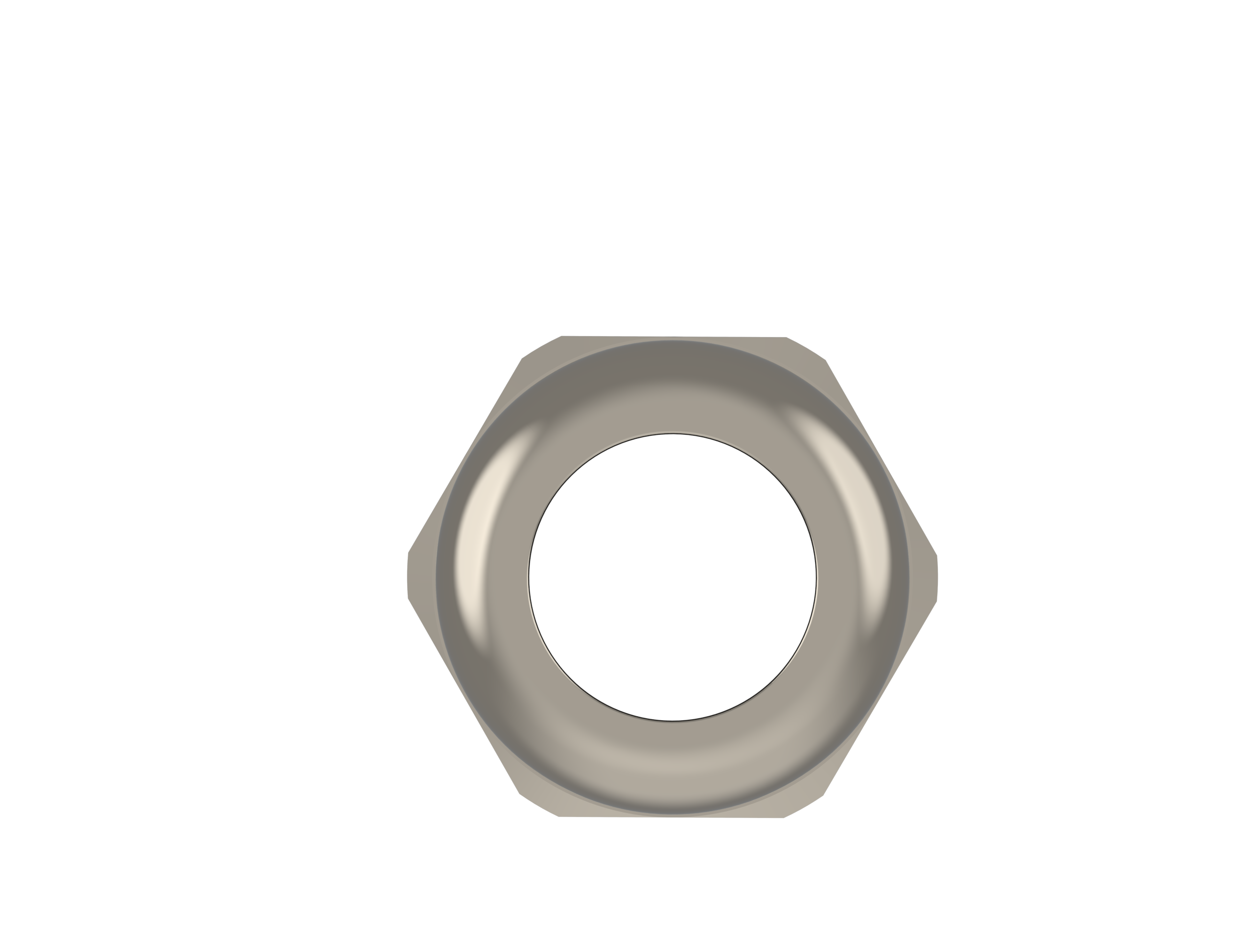

Tungbruk EMC-kabelnippel
○Spesialdesignet EMC-kabelnippel for krevende applikasjoner med langvarig kontakt via høykvalitets kontaktfjær

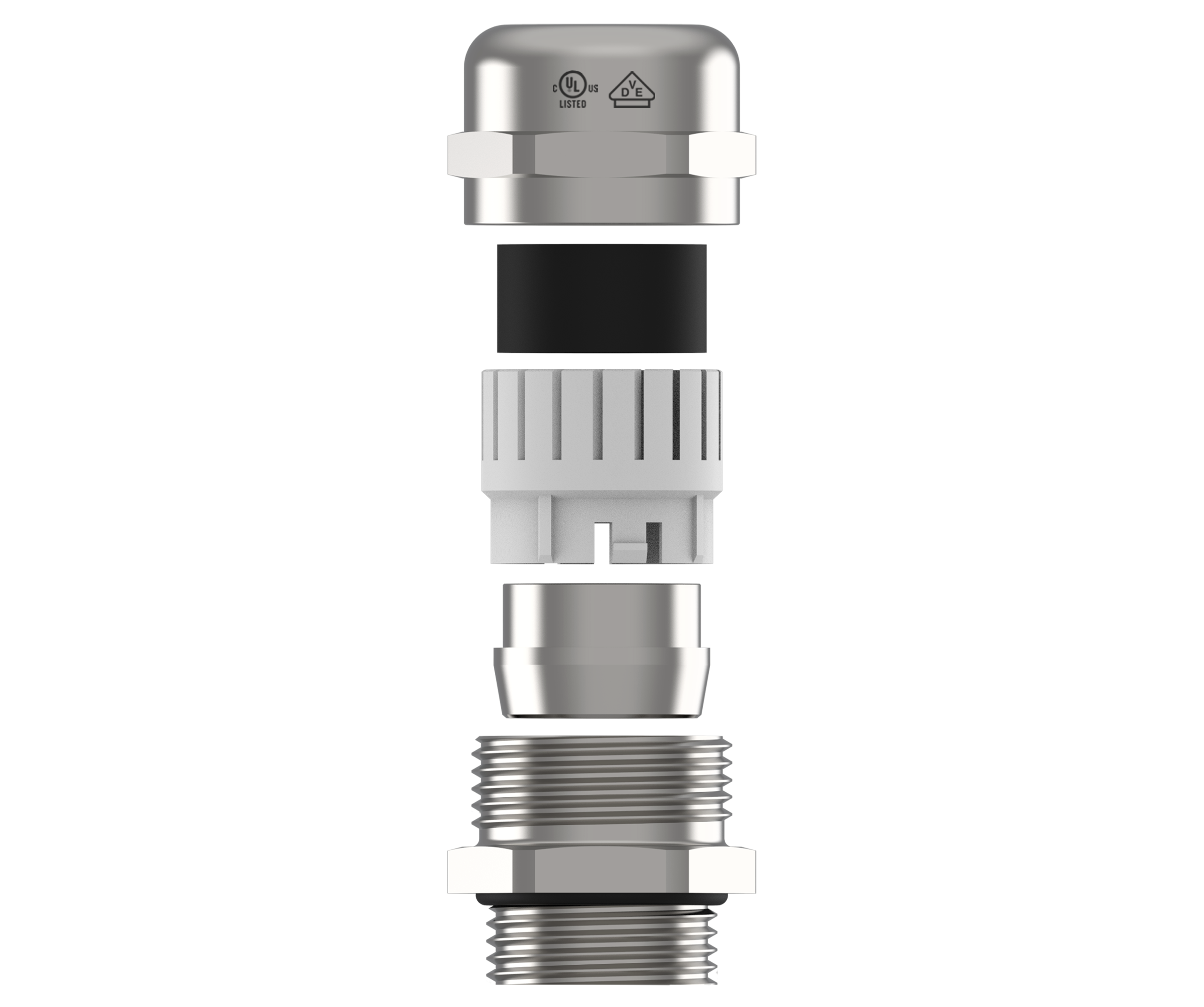

○Enkel montering: installer kabelnippel – forbered kabelkappe – før inn kabel – stram kappe.
Spesifikasjoner
| Gjengestørrelse | Nøkkelvidde | Outer Ø D (mm) | Max. Height H (mm) | Outer Thread Length TL (mm) | Clamping Range Ø min-max (mm) | Varenummer | BIMED Kode | 3D File |
|---|---|---|---|---|---|---|---|---|
| M12x1,5 | 14/14 | 15.5 | 24.2 | 6 | 3,0 - 6,5 | — | BEMH-0S | — |
| M16x1,5 | 17/18 | 20 | 25.3 | 7 | 4,0 - 8,0 | — | BEMH-01 | — |
| M16x1,5 | 20/20 | 22 | 31.4 | 6.5 | 5,0 - 10,0 | — | BEMH-01S | — |
| M20x1,5 | 22/22 | 24.5 | 26.5 | 8 | 6,0 - 12,0 | — | BEMH-02 | — |
| M20x1,5 | 24/24 | 26.5 | 30.2 | 8 | 10,0 - 14,0 | — | BEMH-02S | — |
| M25x1,5 | 24/27 | 30 | 30 | 8 | 10,0 - 14,0 | — | BEMH-03 | — |
| M25x1,5 | 27/27 | 30 | 32.6 | 8 | 11,0 - 17,0 | — | BEMH-E3 | — |
| M25x1,5 | 30/30 | 33 | 39.8 | 8 | 13,0 - 18,0 | — | BEMH-03S | — |
| M32x1,5 | 30/34 | 37.5 | 39.8 | 9 | 13,0 - 18,0 | — | BEMH-04 | — |
| M32x1,5 | 40/40 | 44.5 | 46.1 | 9 | 18,0 - 25,0 | — | BEMH-04S | — |
| M40x1,5 | 40/43 | 48.5 | 46.1 | 9 | 18,0 - 25,0 | — | BEMH-05 | — |
| M40x1,5 | 50/50 | 55.5 | 54.5 | 9 | 22,0 - 32,0 | — | BEMH-05S | — |
| M50x1,5 | 50/55 | 61 | 54.5 | 9 | 22,0 - 32,0 | — | BEMH-06 | — |
| M50x1,5 | 58/58 | 64 | 54.4 | 9 | 27,0 - 38,0 | — | BEMH-E6 | — |
| M50x1,5 | 64/64 | 70 | 54.8 | 9 | 34,0 - 44,0 | — | BEMH-06S | — |
| M63x1,5 | 64/68 | 75 | 54.8 | 14 | 34,0 - 44,0 | — | BEMH-07 | — |
| M63x1,5 | 75/75 | 83 | 56.6 | 10 | 37,0 - 53,0 | — | BEMH-07S | — |
