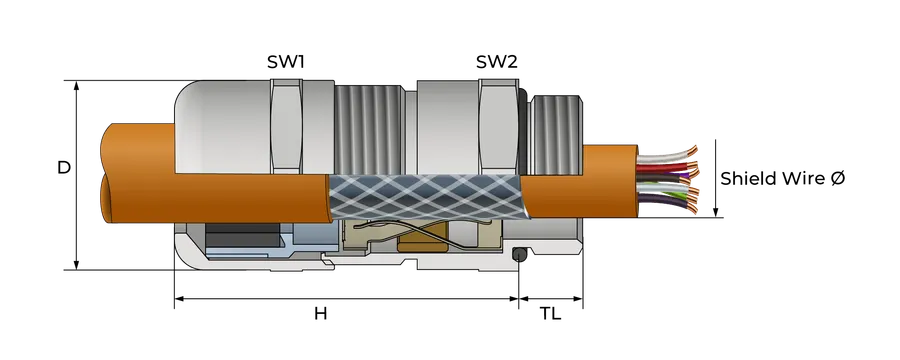

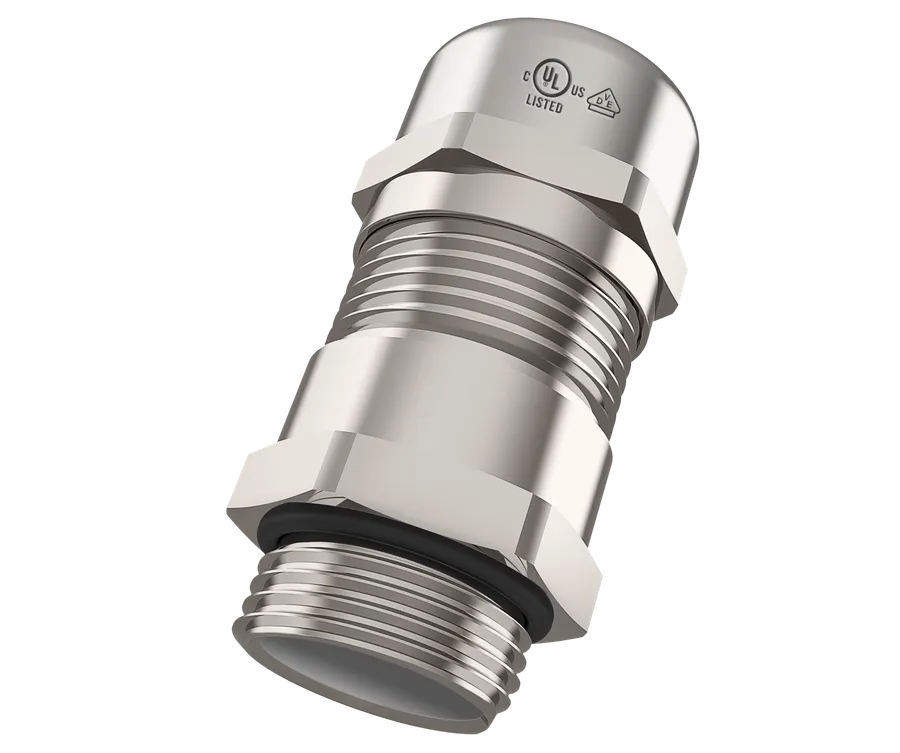

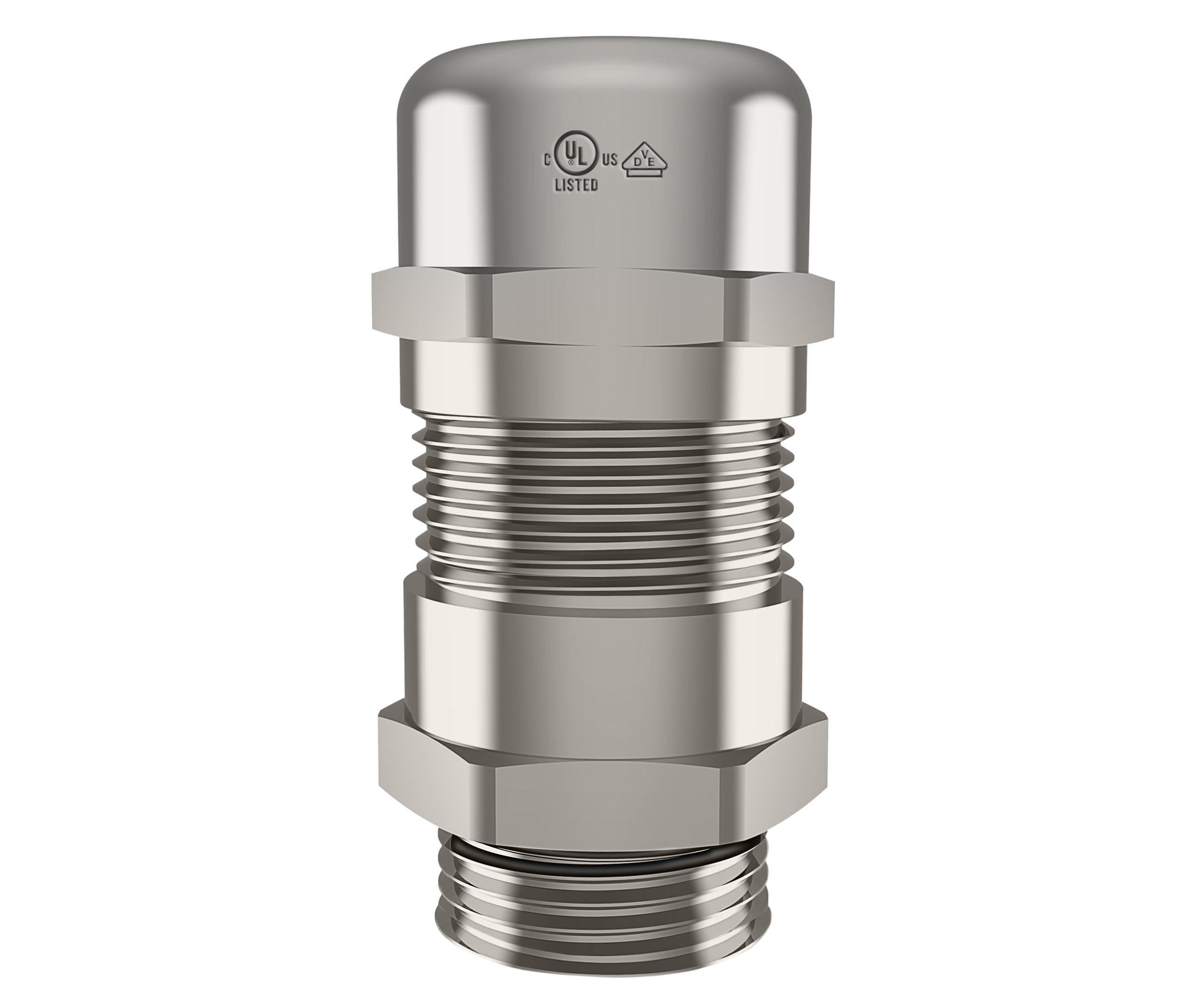

EMC Servo Ampacity-kabelnippel

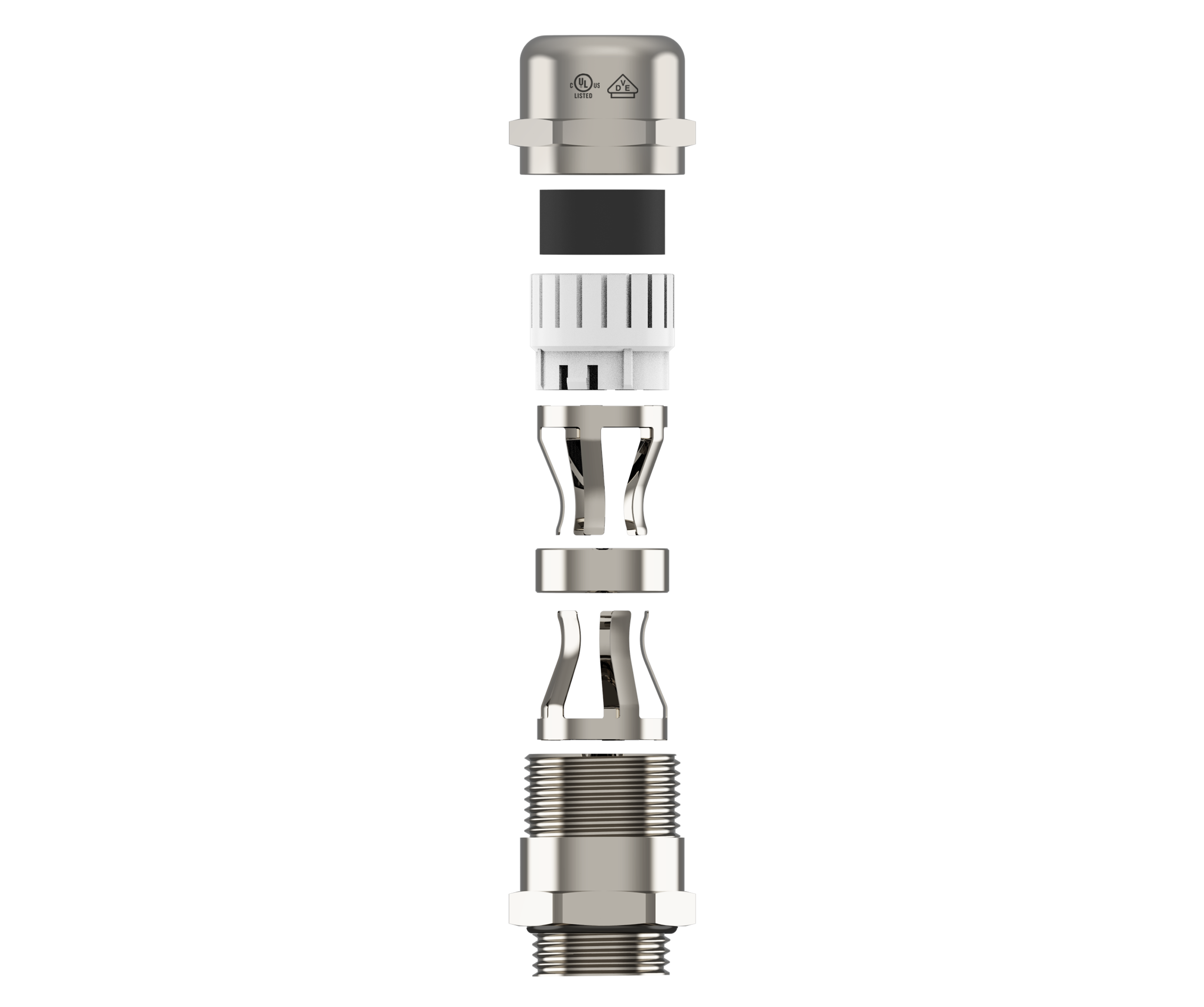

○Vibrasjonssikker EMC-kabelnippel med doble EMC-fjærer for høystrømsapplikasjoner
○Leder høye elektriske strømmer i kabelskjermen via økt antall kontaktpunkter og gir langvarig lav kontaktmotstand.
Spesifikasjoner

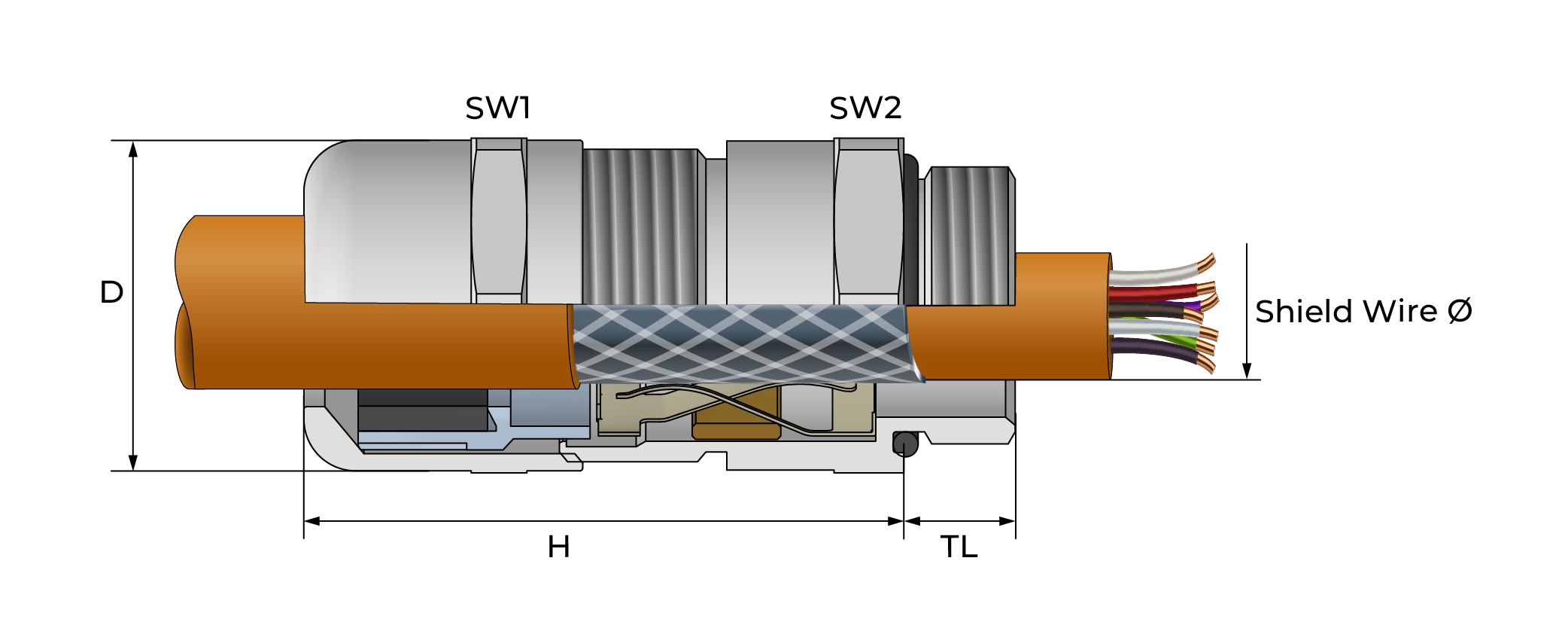

| Gjengestørrelse | Klemområdet | Gjengelengde | Nøkkelvidde | Skjermdiameter | Diameter | Maks høyde 'H' | Varenummer | BIMED Kode | 3D File |
|---|---|---|---|---|---|---|---|---|---|
| M20x1,5 | 6,0 – 12,0 | 8 | 22/22 | 4,5 – 10,0 | 24.5 | 42.5 | — | BMEM-52S | — |
| M20x1,5 | 7,5 – 14,0 | 8 | 24/24 | 5,5 – 11,0 | 26.8 | 45.5 | — | BMEM-52 | Get File |
| M20x1,5 | 6,0 – 12,0 | 8 | 22/22 | 4,5 – 10,0 | 24.5 | 42.5 | — | BMEM-52S (LF) | — |
| M20x1,5 | 7,5 – 14,0 | 8 | 24/24 | 5,5 – 11,0 | 26.8 | 45.5 | — | BMEM-52 (LF) | — |
| M25x1,5 | 10,0 – 18,0 | 8 | 30/30 | 7,0 – 14,0 | 33 | 54 | — | BMEM-53 | — |
| M25x1,5 | 10,0 – 18,0 | 8 | 30/30 | 7,0 – 14,0 | 33 | 54 | — | BMEM-53 (LF) | — |
| M32x1,5 | 16,0 – 25,0 | 9 | 40/40 | 12,0 – 20,0 | 44.5 | 62.5 | — | BMEM-54 | — |
| M32x1,5 | 16,0 – 25,0 | 9 | 40/40 | 12,0 – 20,0 | 44.5 | 62.5 | — | BMEM-54 (LF) | — |
| M40x1,5 | 22,0 – 32,0 | 9 | 50/50 | 18,0 – 27,0 | 55.5 | 68.5 | — | BMEM-55 | — |
| M40x1,5 | 22,0 – 32,0 | 9 | 50/50 | 18,0 – 27,0 | 55.5 | 68.5 | — | BMEM-55 (LF) | — |
| M50x1,5 | 30,0 – 38,0 | 9 | 58/58 | 26,0 – 34,0 | 64 | 66 | — | BMEM-56 | — |
| M50x1,5 | 30,0 – 38,0 | 9 | 58/58 | 26,0 – 34,0 | 64 | 66 | — | BMEM-56 (LF) | — |
| M63x1,5 | 34,0 – 44,0 | 14 | 64/68 | 30,0 – 40,0 | 75 | 67.5 | — | BMEM-57 | — |
| M63x1,5 | 34,0 – 44,0 | 14 | 64/68 | 30,0 – 40,0 | 75 | 67.5 | — | BMEM-57 (LF) | — |
