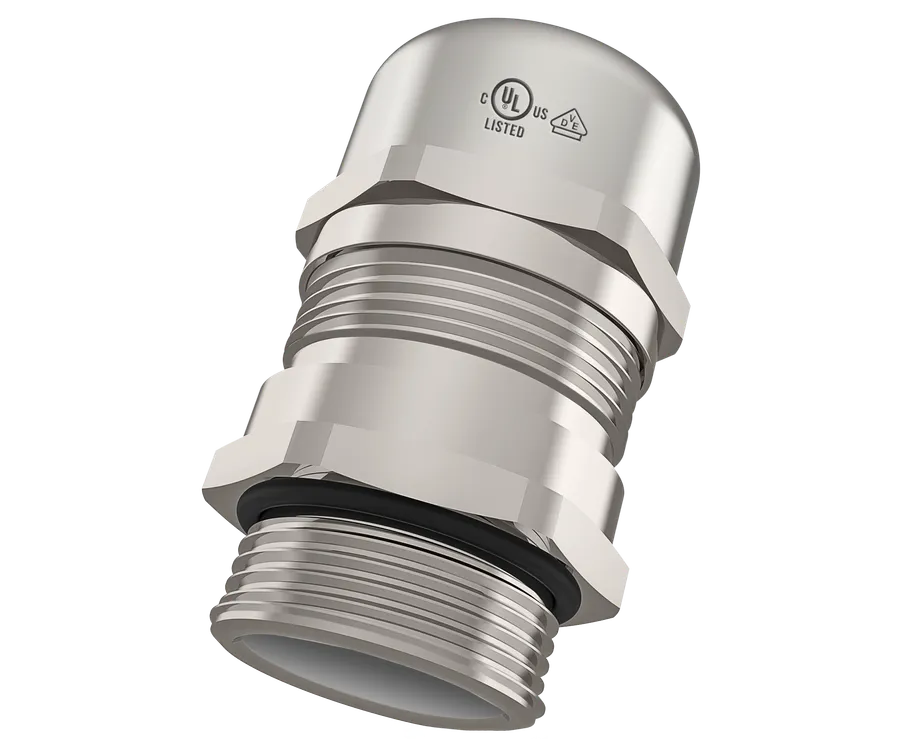

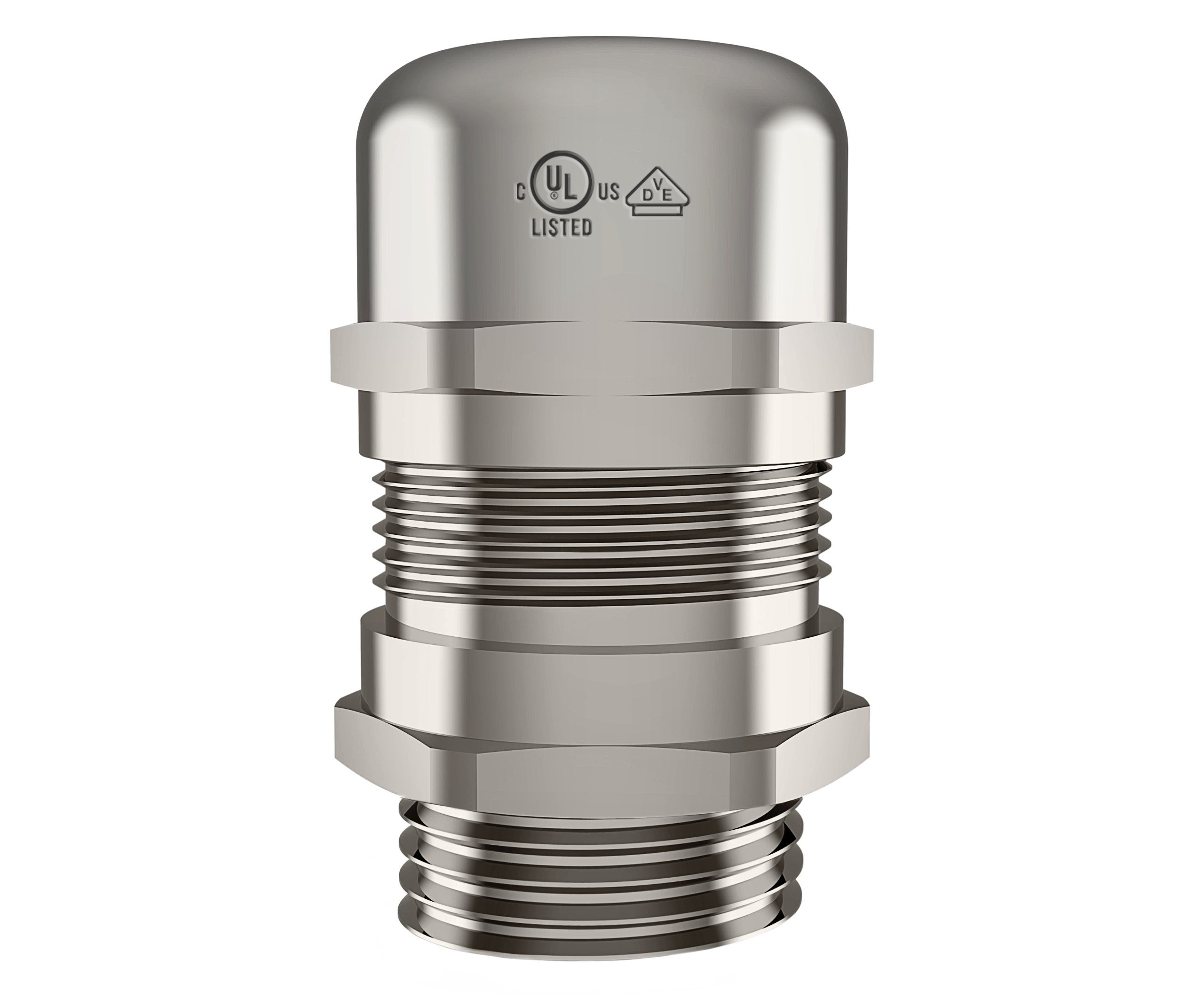

EMC-kabelnippel 4
○Vibrasjonssikker EMC-ytelse med langvarig kontakt og lav kontaktmotstand

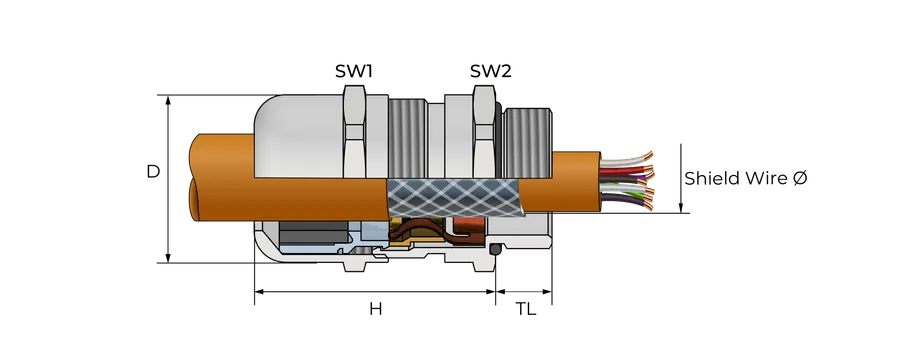

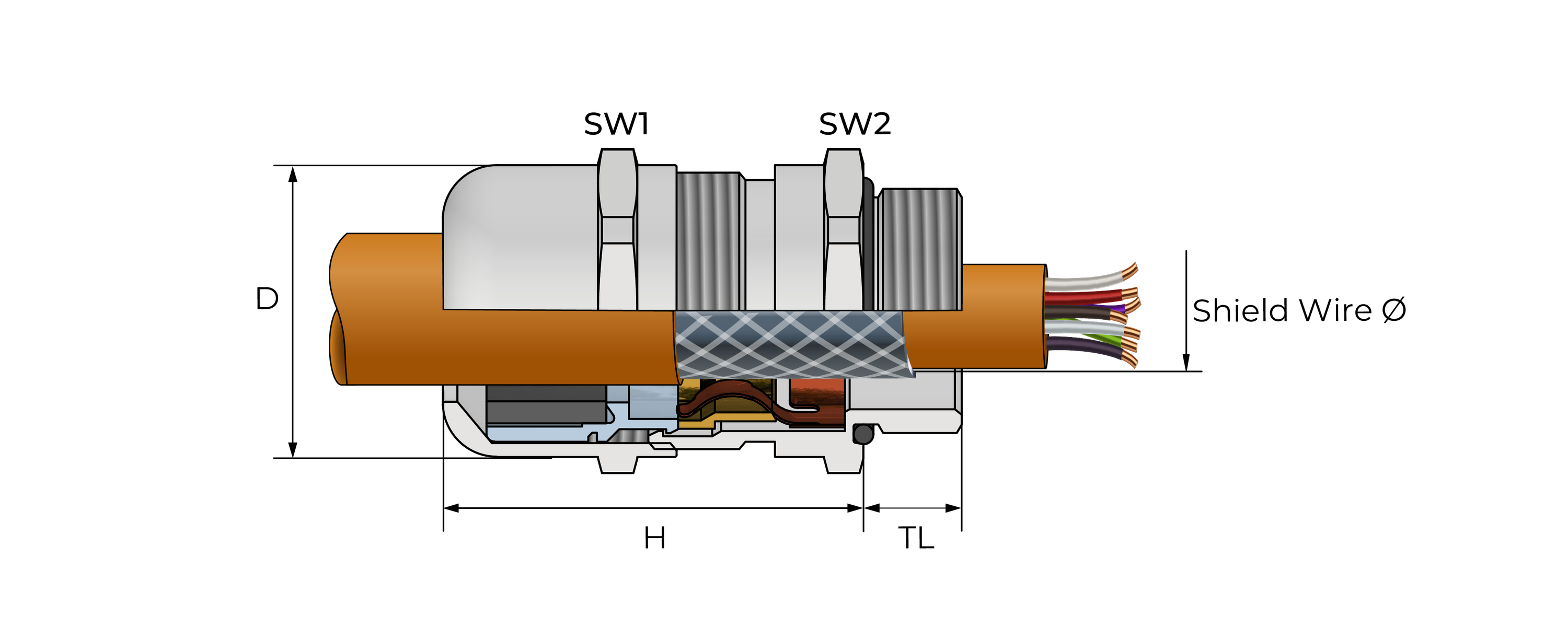

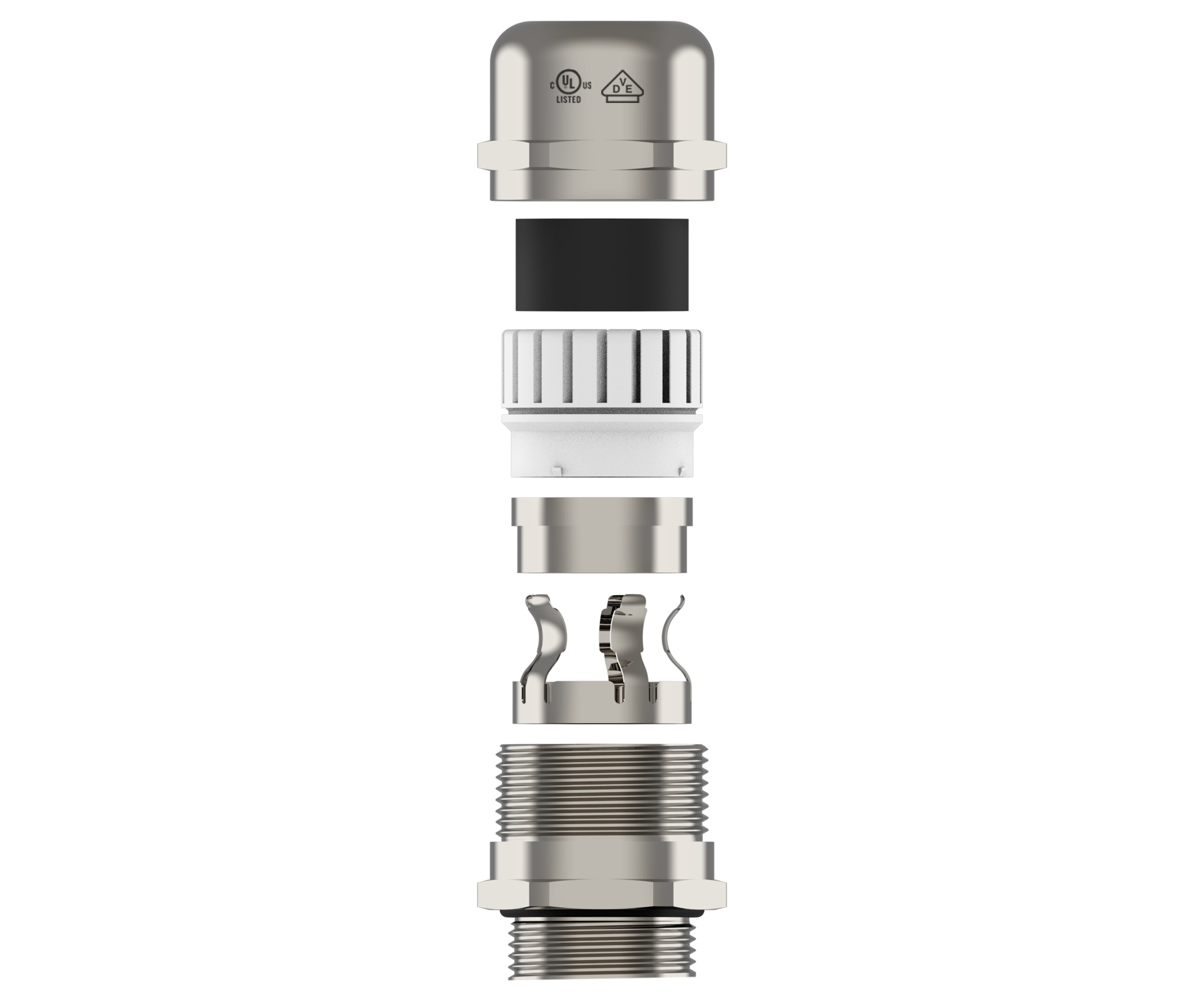

○Bevegelig fjærkontakt reduserer risiko for skade på kabelkappen; enkel montering og demontering for EMC-applikasjoner.
Spesifikasjoner
| Gjengestørrelse | Klemområdet | Gjengelengde | Nøkkelvidde | Skjermdiameter | Diameter | Maks høyde 'H' | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|---|---|
| M12x1,5 | 3,0 - 6,5 | 6 | 14/14 | 2,0 - 5,0 | 15.5 | 30 | — | BMEM-ES(M12T) | — | |
| M16x1,5 | 5,0 - 10,0 | 6 | 20/20 | 3,5 - 8,0 | 22 | 35 | — | BMEM-E1(M16T) | — | |
| M20x1,5 | 6,0 - 12,0 | 6 | 22/22 | 4,5 - 10,0 | 24.5 | 33.5 | — | BMEM-E2S(M20T) | — | |
| M20x1,5 | 7,5 - 14,0 | 8 | 24/24 | 5,5 - 11,5 | 26.8 | 41.5 | — | BMEM-E2(M20T) | — | |
| M25x1,5 | 10,0 - 18,0 | 8 | 30/30 | 7,0 - 14,0 | 33 | 45 | — | BMEM-E3(M25T) | Get File | |
| M32x1,5 | 16,0 - 25,0 | 9 | 40/40 | 12,0 - 20,0 | 43.5 | 55 | — | BMEM-E4(M32T) | — | |
| M40x1,5 | 22,0 - 32,0 | 9 | 50/50 | 18,0 - 27,0 | 55.5 | 62.5 | — | BMEM-E5(M40T) | — | |
| M50x1,5 | 30,0 - 38,0 | 9 | 58/58 | 26,0 - 34,0 | 64 | 74 | — | BMEM-E6(M50T) | — | |
| M63x1,5 | 34,0 - 44,0 | 14 | 64/68 | 30,0 - 40,0 | 75 | 60 | — | BMEM-E7(M63T) | — | |
| M63x1,5 | 37,0 - 53,0 | 10 | 75/75 | 33,0 - 49,0 | 83 | 75 | — | BMEM-E7L(M63T) | — |
