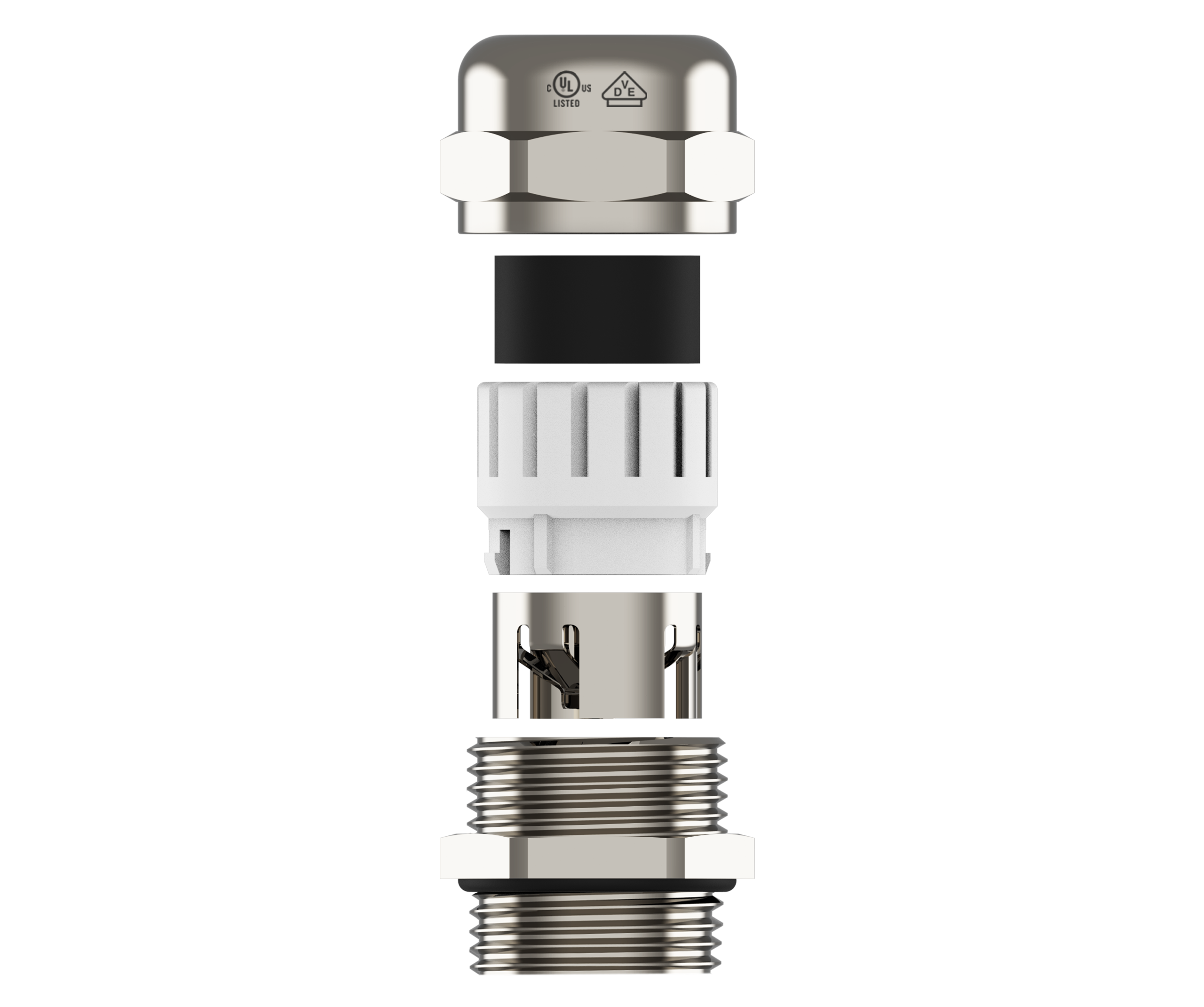

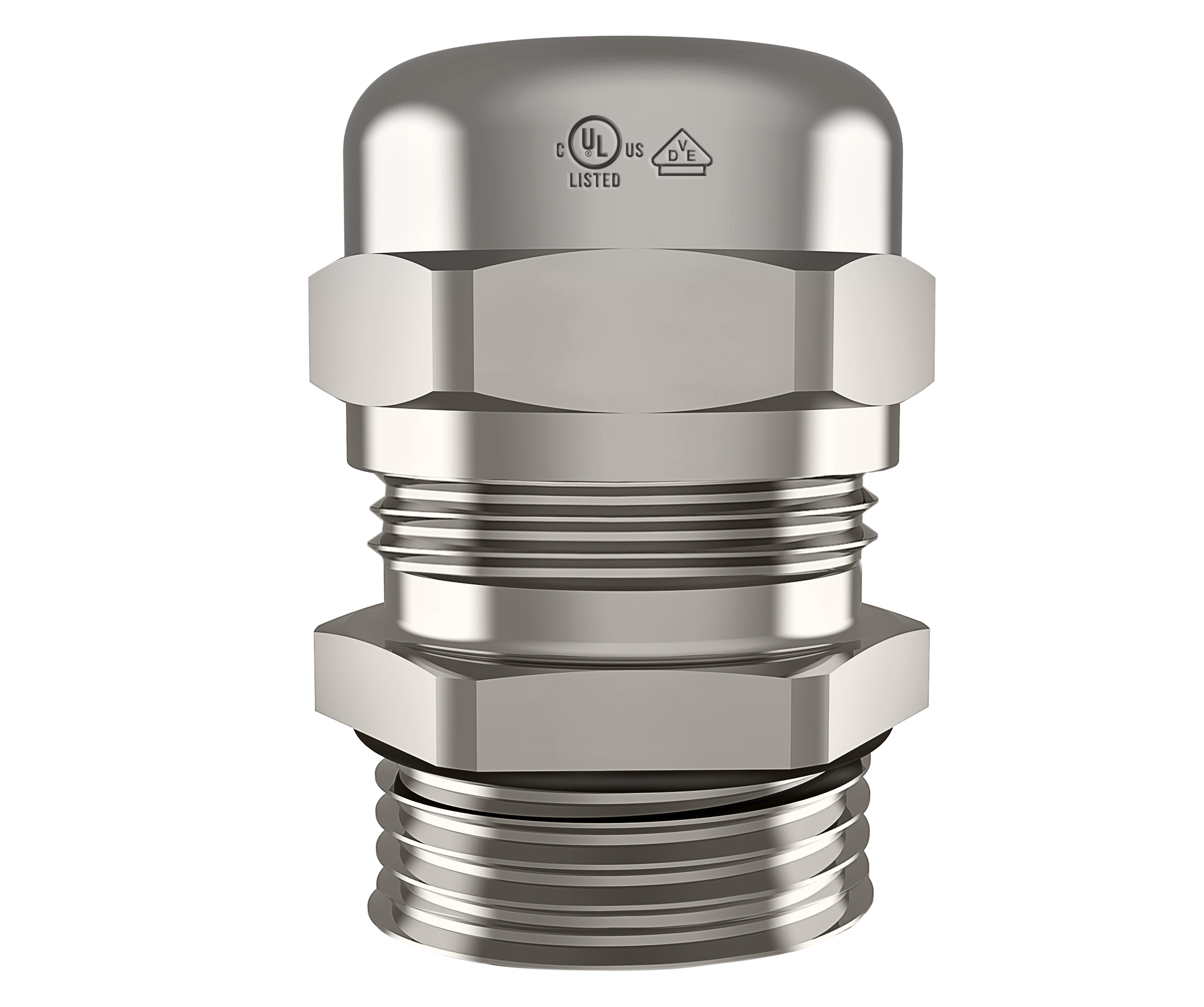

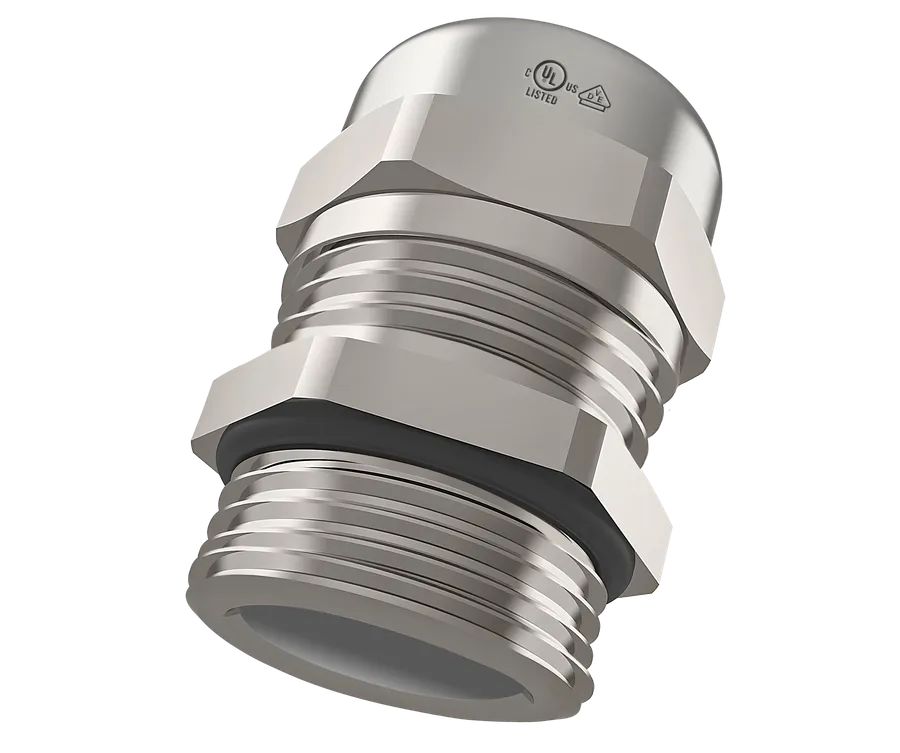

EMC-kabelnippel 2
○Spesialdesignet EMC-kabelnippel med langvarig kontakt via høykvalitets kontaktfjær
○Enkel montering: installer kabelnippel – forbered kabelkappe – før inn kabel – stram kappe.
Spesifikasjoner

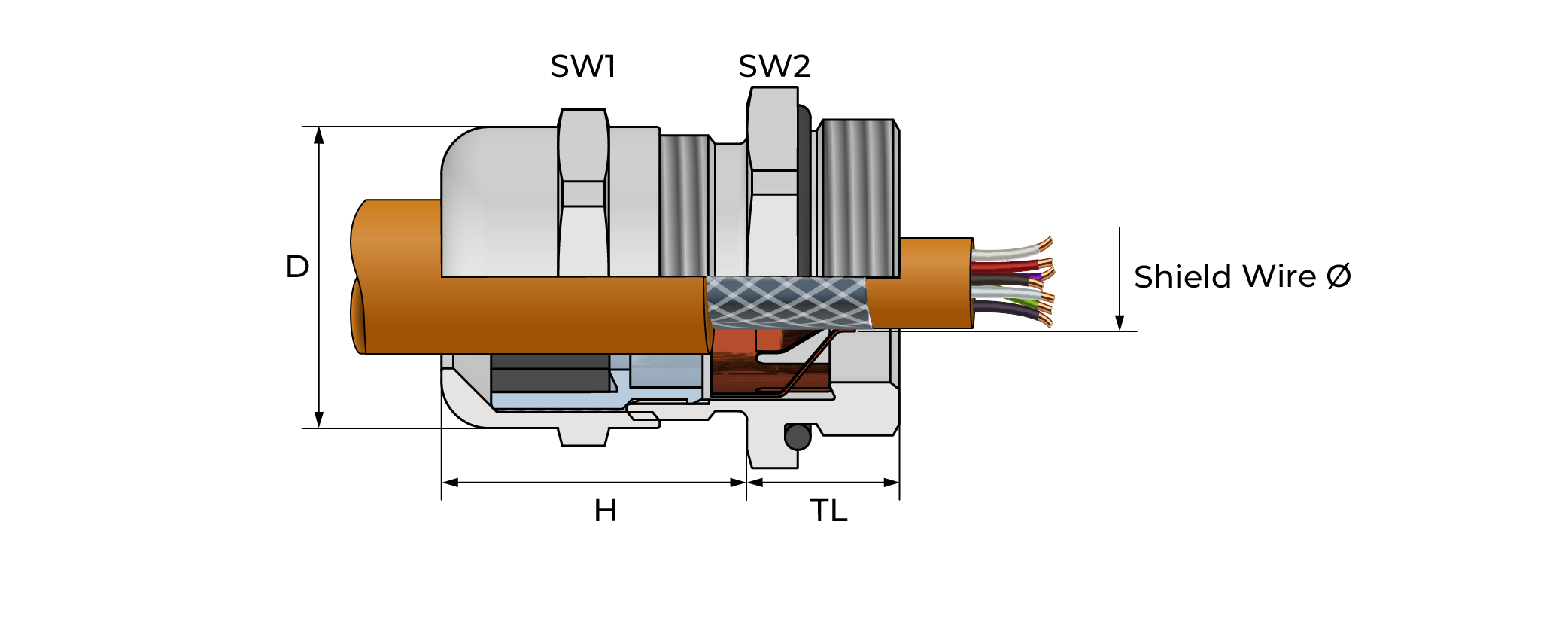

| Gjengestørrelse | Klemområdet | Gjengelengde | Nøkkelvidde | Skjermdiameter | Diameter | Maks høyde 'H' | Varenummer | BIMED Kode | 3D File |
|---|---|---|---|---|---|---|---|---|---|
| M12x1,5 | 3,0 - 6,5 | 6 | 14/14 | 2,5 - 4,5 | 15.5 | 24 | — | BMEM-0S | Get File |
| M12x1,5 | 3,0 - 6,5 | 12 | 14/14 | 2,5 - 4,5 | 15.5 | 24 | — | BMEN-0S | Get File |
| M16x1,5 | 4,0 - 8,0 | 7 | 17/18 | 3,5 - 6,0 | 20 | 25.5 | — | BMEM-01 | Get File |
| M16x1,5 | 4,0 - 8,0 | 12 | 17/18 | 3,5 - 6,0 | 20 | 25.5 | — | BMEN-01 | Get File |
| M16x1,5 | 5,0 - 10,0 | 6.5 | 20/20 | 4,0 - 8,0 | 22 | 31.5 | — | BMEM-01S | Get File |
| M20x1,5 | 6,0 - 12,0 | 8 | 22/22 | 5,0 - 10,0 | 24.5 | 26.5 | — | BMEM-02 | Get File |
| M20x1,5 | 6,0 - 12,0 | 12 | 22/22 | 5,0 - 10,0 | 24.5 | 26.5 | — | BMEN-02 | — |
| M25x1,5 | 10,0 - 14,0 | 8 | 24/27 | 8,5 - 11,5 | 30 | 30 | — | BMEM-03 | Get File |
| M25x1,5 | 10,0 - 14,0 | 12 | 24/27 | 8,5 - 11,5 | 30 | 30 | — | BMEN-03 | Get File |
| M25x1,5 | 13,0 - 18,0 | 8 | 30/30 | 11,0 - 14,0 | 33 | 40 | — | BMEM-03S | Get File |
| M32x1,5 | 13,0 - 18,0 | 9 | 30/34 | 11,0 - 14,0 | 37.5 | 35 | — | BMEM-04 | Get File |
| M32x1,5 | 13,0 - 18,0 | 15 | 30/34 | 11,0 - 14,0 | 37.5 | 35 | — | BMEN-04 | Get File |
| M32x1,5 | 18,0 - 25,0 | 9 | 40/40 | 16,0 - 20,0 | 44.5 | 46 | — | BMEM-04S | Get File |
| M40x1,5 | 18,0 - 25,0 | 9 | 40/43 | 16,0 - 20,0 | 48.5 | 40.5 | — | BMEM-05 | Get File |
| M40x1,5 | 18,0 - 25,0 | 15 | 40/43 | 16,0 - 20,0 | 48.5 | 40.5 | — | BMEN-05 | Get File |
| M40x1,5 | 22,0 - 32,0 | 9 | 50/50 | 20,0 - 27,0 | 55.5 | 54.5 | — | BMEM-05S | Get File |
| M50x1,5 | 22,0 - 32,0 | 9 | 50/55 | 20,0 - 27,0 | 61 | 50 | — | BMEM-06 | Get File |
| M50x1,5 | 22,0 - 32,0 | 15 | 50/55 | 20,0 - 27,0 | 61 | 50 | — | BMEN-06 | Get File |
| M63x1,5 | 34,0 - 44,0 | 14 | 64/68 | 31,0 - 40,0 | 75 | 55 | — | BMEM-07 | Get File |
| M63x1,5 | 34,0 - 44,0 | 18 | 64/68 | 31,0 - 40,0 | 75 | 55 | — | BMEN-07 | Get File |
