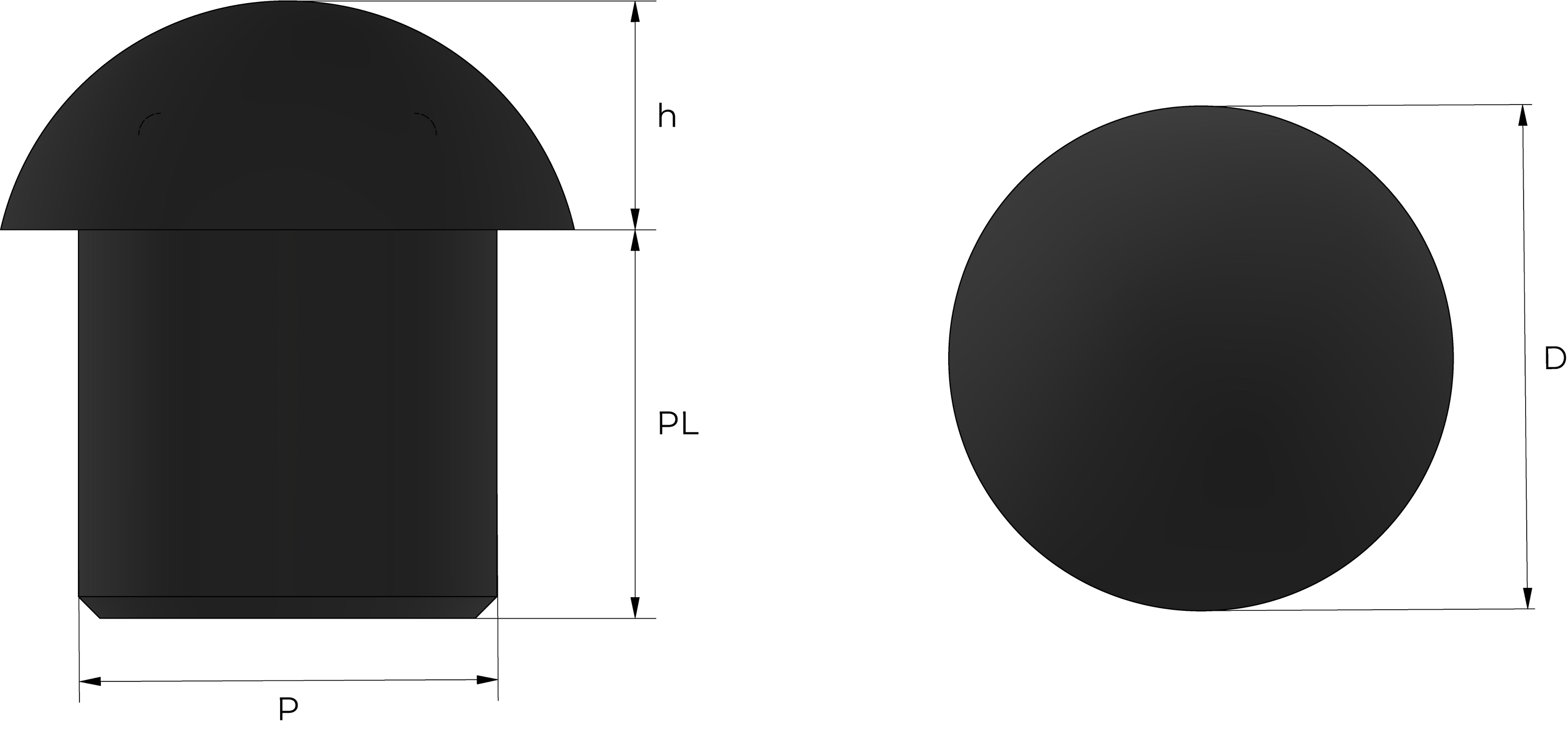

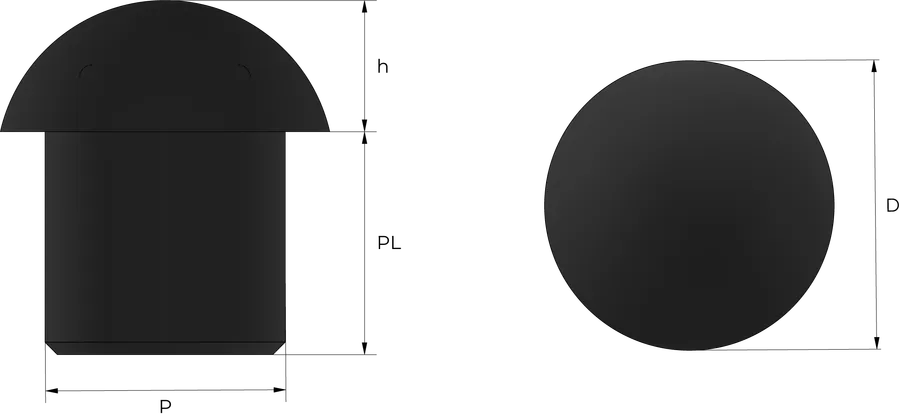

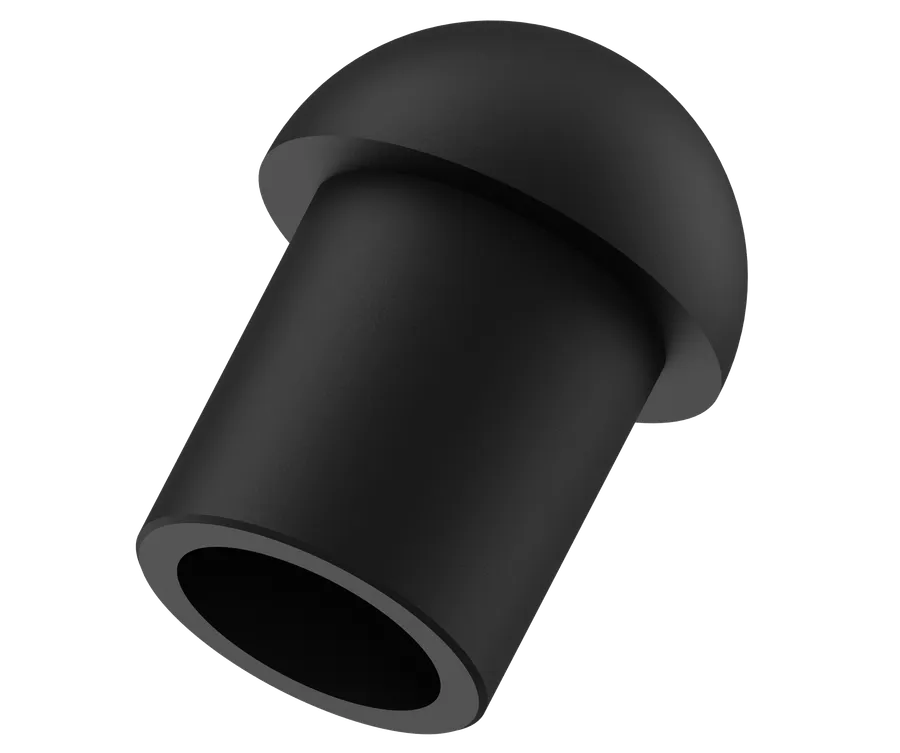

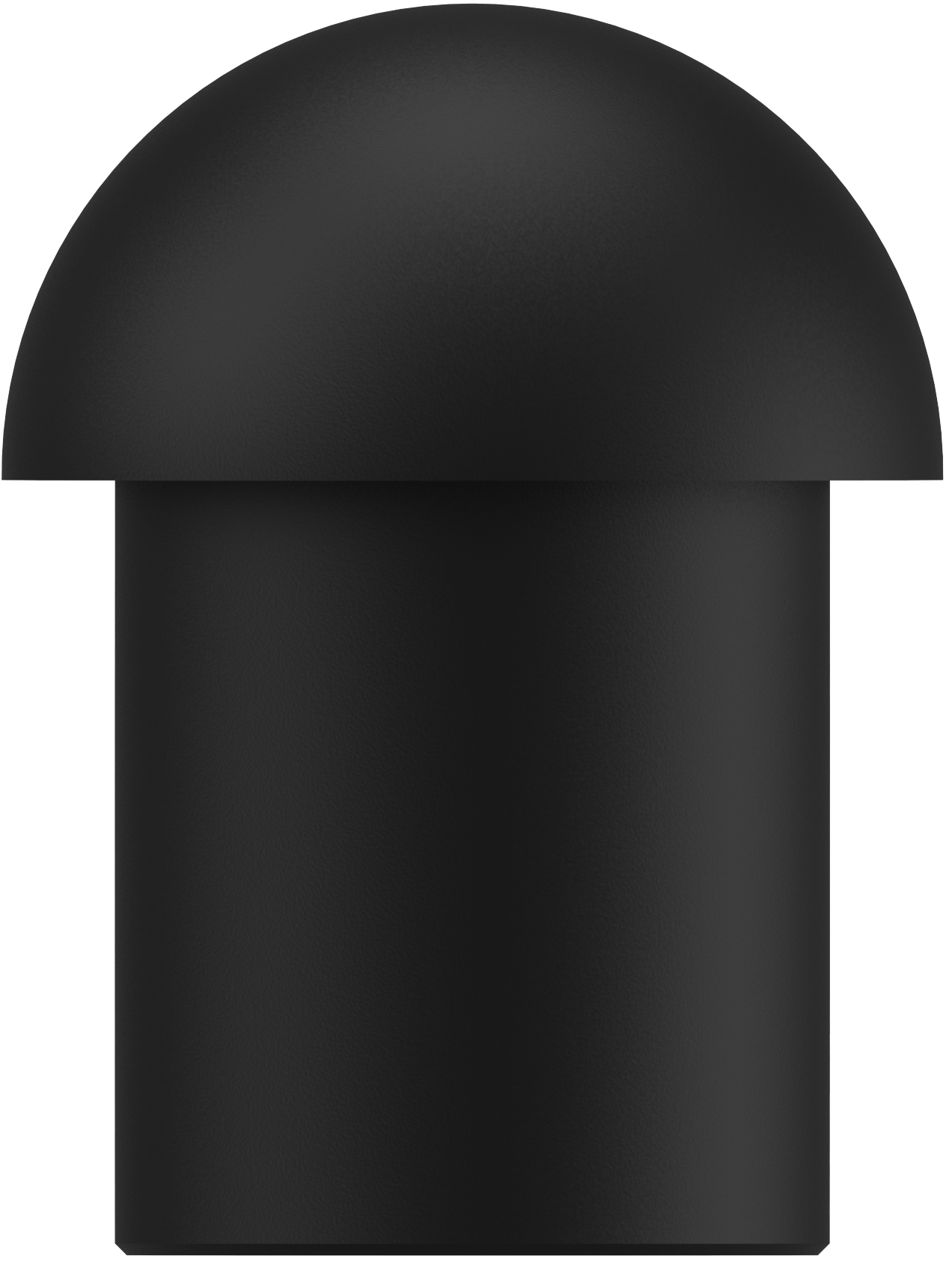

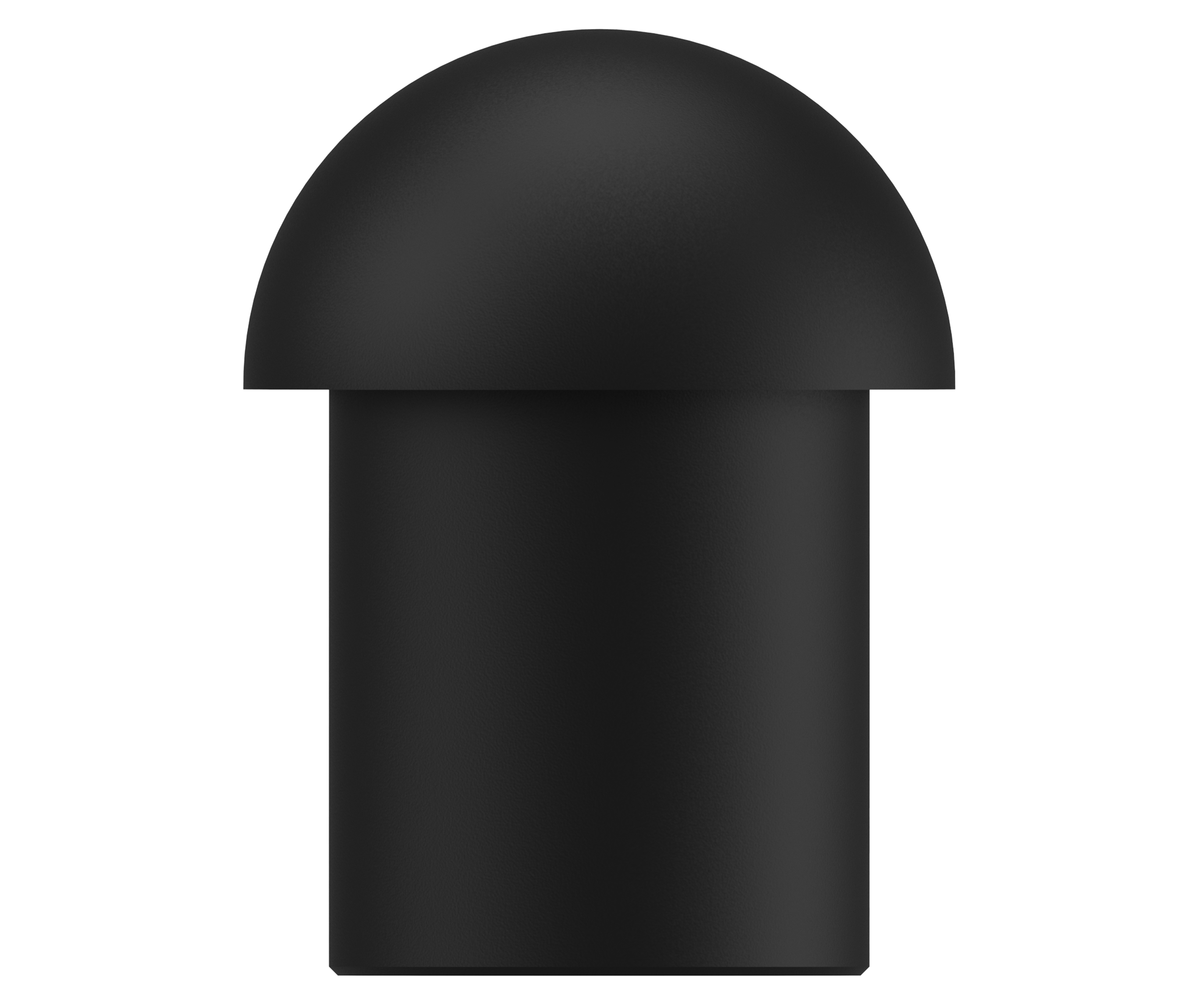

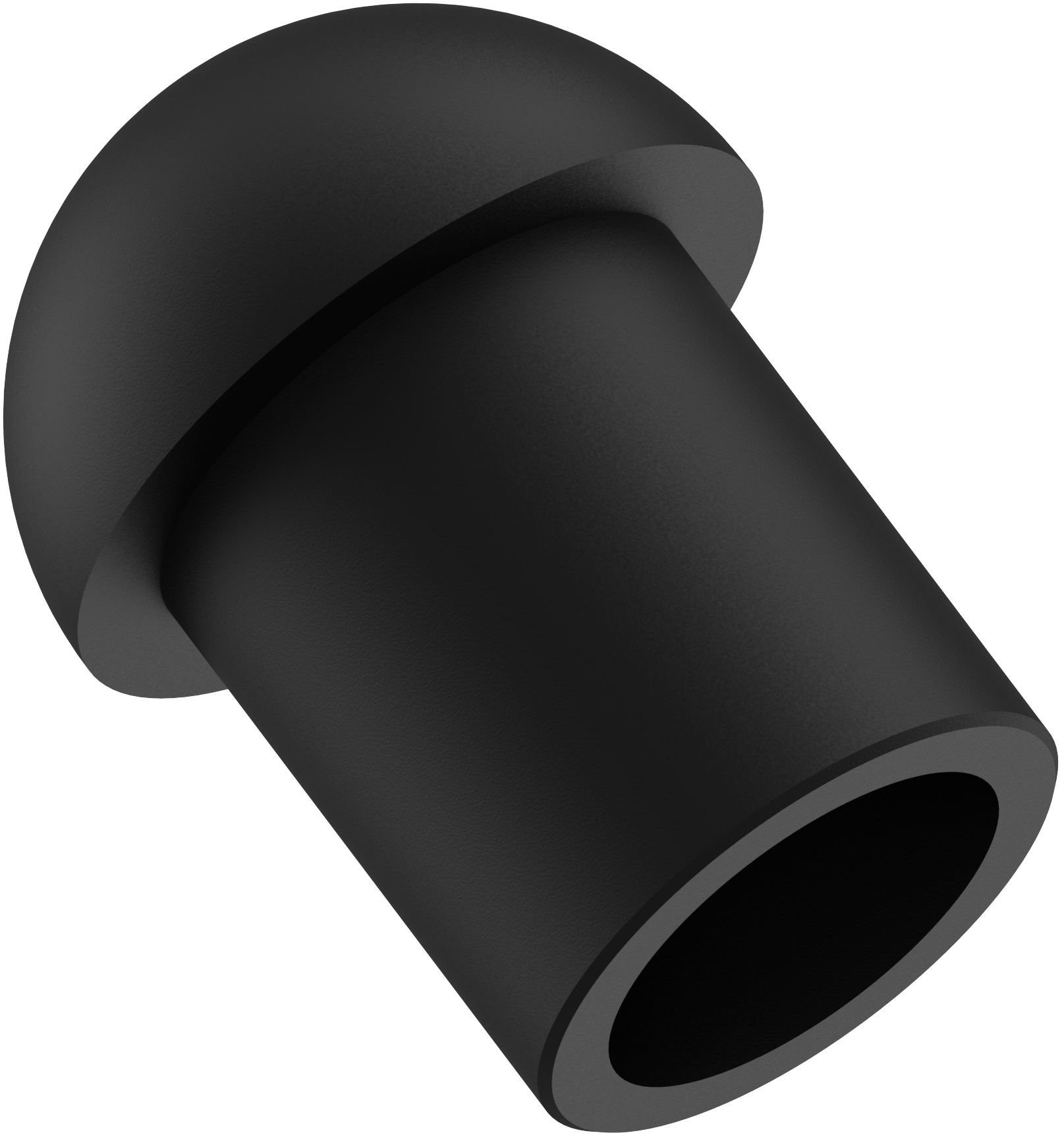

Ex-kuppelplugg

Name: Ex-kuppelplugg
Brand: Bimed Teknik

○Hindrer inntrenging av støv og fukt i kabelnippelen inntil kabel er installert

○Beregnet for Ex-godkjente kabelnippler i eksplosjonsfarlige områder.

Spesifikasjoner

Gjengestørrelse	Klemområdet	PL	D Ø	P Ø	Height 'H'	Hi-Lyra & Vega Ø	Vega (DS) Double Ø	Hi-Lyra (DS) Outer Ø	Lyra Ø	Varenummer	BIMED Kode	3D File	Datablad
9	-	12	9.2	4	4	-	3,0 - 6,5	-	—	—	BDPX-09-21	—	PDF
9	-	12	9.2	6.4	4	4,0 - 6,5	-	4,0 - 6,5	—	—	BDPX-09-22	—	PDF
9	—	12	9.2	4	4	-	3,0 - 6,5	-	-	—	BDPX-09-21	—	PDF
9	—	12	9.2	6.4	4	4,0 - 6,5	-	4,0 - 6,5	-	—	BDPX-09-22	—	PDF
11	-	14	10.5	5	5	-	4,0 - 8,0	-	—	—	BDPX-11-21	—	PDF
11	-	13.7	10.5	8	4.7	5,0 - 8,0	-	5,0 - 8,0	—	—	BDPX-11-22	—	PDF
11	—	14	10.5	5	5	-	4,0 - 8,0	-	-	—	BDPX-11-21	—	PDF
11	—	13.7	10.5	8	4.7	5,0 - 8,0	-	5,0 - 8,0	-	—	BDPX-11-22	—	PDF
13	-	15	13.3	7	5.7	-	4,0 - 10,0	-	—	—	BDPX-13-21	—	PDF
13	5,0 - 10,0	9	13.3	9.7	5.3	6,0 - 10,0	-	6,0 - 10,0	—	—	BDPX-13-22*	—	PDF
13	5,0 - 10,0	15	13.3	9.7	5.7	6,0 - 10,0	-	6,0 - 10,0	—	—	BDPX-13-22S	—	PDF
13	—	15	13.3	7	5.7	-	4,0 - 10,0	-	-	—	BDPX-13-21	—	PDF
13	—	9	13.3	9.7	5.3	6,0 - 10,0	-	6,0 - 10,0	5,0 - 10,0	—	BDPX-13-22*	—	PDF
13	—	15	13.3	9.7	5.7	6,0 - 10,0	-	6,0 - 10,0	5,0 - 10,0	—	BDPX-13-22S	—	PDF
16	-	14	15.8	7	7.5	-	4,0 - 13,0	-	—	—	BDPX-16-20	—	PDF
16	- 6,0 - 12,0	13,0 13,0	15,8 15,8	8,5 12,0	7,7 8,0	- 7,0 - 12,0	6,0 - 12,0 -	- 7,5 - 12,0	—	—	BDPX-16-21 BDPX-16-22	—	PDF
16	-	14	15.8	13	7.5	7,0 - 13,0	-	7,0 - 13,0	—	—	BDPX-16-23	—	PDF
16	—	14	15.8	7	7.5	-	4,0 - 13,0	-	-	—	BDPX-16-20	—	PDF
16	—	13	15.8	8.5	7.7	-	6,0 - 12,0	-	-	—	BDPX-16-21	—	PDF
16	—	13	15.8	12	8	7,0 - 12,0	-	7,5 - 12,0	6,0 - 12,0	—	BDPX-16-22	Get File	PDF
16	—	14	15.8	13	7.5	7,0 - 13,0	-	7,0 - 13,0	-	—	BDPX-16-23	—	PDF
18	-	13.5	18	11	8.5	-	8,0 - 14,0	-	—	—	BDPX-18-21	—	PDF
18	10,0 - 14,0	13.5	18	13.6	8.7	11,0 - 14,0	-	11,0 - 14,0	—	—	BDPX-18-22	—	PDF
18	—	13.5	18	11	8.5	-	8,0 - 14,0	-	-	—	BDPX-18-21	—	PDF
18	—	13.5	18	13.6	8.7	11,0 - 14,0	-	11,0 - 14,0	10,0 - 14,0	—	BDPX-18-22	—	PDF
20	-	14.5	20	13	7	-	9,0 - 17,0	-	—	—	BDPX-20-21	—	PDF
20	11,0 - 17,0	14.5	19.9	16.4	7.3	12,0 - 17,0	-	13,0 - 17,0	—	—	BDPX-20-22	—	PDF
20	—	14.5	20	13	7	-	9,0 - 17,0	-	-	—	BDPX-20-21	—	PDF
20	—	14.5	19.9	16.4	7.3	12,0 - 17,0	-	13,0 - 17,0	11,0 - 17,0	—	BDPX-20-22	—	PDF
22	-	14	22	14	9.5	-	10,0 - 18,0	-	—	—	BDPX-22-21	—	PDF
22	13,0 - 18,0	14	22	17.8	10	14,0 - 18,0	-	13,0 - 18,0	—	—	BDPX-22-22	—	PDF
22	—	14	22	14	9.5	-	10,0 - 18,0	-	-	—	BDPX-22-21	—	PDF
22	—	14	22	17.8	10	14,0 - 18,0	-	13,0 - 18,0	13,0 - 18,0	—	BDPX-22-22	—	PDF
24	-	15.5	24	16.1	9	-	12,0 - 21,0	-	—	—	BDPX-24-21	—	PDF
24	15,0 - 21,0	15.5	24.1	20.4	9.2	16,0 - 21,0	-	16,0 - 21,0	—	—	BDPX-24-22	—	PDF
24	—	15.5	24	16.1	9	-	12,0 - 21,0	-	-	—	BDPX-24-21	—	PDF
24	—	15.5	24.1	20.4	9.2	16,0 - 21,0	-	16,0 - 21,0	15,0 - 21,0	—	BDPX-24-22	—	PDF
29	-	15	28.5	19.7	9.7	-	14,0 - 25,0	-	—	—	BDPX-29-21	—	PDF
29	18,0 - 25,0	15	28.5	25	9.7	19,0 - 25,0	-	20,0 - 25,0	—	—	BDPX-29-22	—	PDF
29	—	15	28.5	19.7	9.7	-	14,0 - 25,0	-	-	—	BDPX-29-21	—	PDF
29	—	15	28.5	25	9.7	19,0 - 25,0	-	20,0 - 25,0	18,0 - 25,0	—	BDPX-29-22	—	PDF
32	-	15.8	31.5	20.5	9.2	-	17,0 - 28,0	-	—	—	BDPX-32-21	—	PDF
32	19,0 - 28,0	15.8	31.5	27.3	9.2	20,0 - 28,0	-	21,0 - 28,0	—	—	BDPX-32-22	—	PDF
32	—	15.8	31.5	20.5	9.2	-	17,0 - 28,0	-	-	—	BDPX-32-21	—	PDF
32	—	15.8	31.5	27.3	9.2	20,0 - 28,0	-	21,0 - 28,0	19,0 - 28,0	—	BDPX-32-22	—	PDF
37	-	17	36.8	25.7	10.7	-	21,0 - 32,0	-	—	—	BDPX-37-21	—	PDF
37	22,0 - 32,0	17	36.8	31.8	10.7	23,0 - 32,0	-	25,0 - 32,0	—	—	BDPX-37-22	—	PDF
37	—	17	36.8	25.7	10.7	-	21,0 - 32,0	-	-	—	BDPX-37-21	—	PDF
37	—	17	36.8	31.8	10.7	23,0 - 32,0	-	25,0 - 32,0	22,0 - 32,0	—	BDPX-37-22	—	PDF
45	-	20.2	43.3	30.6	11.9	-	22,0 - 38,0	-	—	—	BDPX-45-21	—	PDF
45	30,0 - 38,0	20.2	43.3	38	11.9	31,0 - 38,0	-	31,0 - 38,0	—	—	BDPX-45-22	—	PDF
45	—	20.2	43.3	30.6	11.9	-	22,0 - 38,0	-	-	—	BDPX-45-21	—	PDF
45	—	20.2	43.3	38	11.9	31,0 - 38,0	-	31,0 - 38,0	30,0 - 38,0	—	BDPX-45-22	—	PDF
52	-	22.5	51	34.6	16	-	28,0 - 44,0	-	—	—	BDPX-52-21	—	PDF
52	34,0 - 44,0	22.5	51	44.2	16	35,0 - 44,0	-	35,0 - 44,0	—	—	BDPX-52-22	—	PDF
52	—	22.5	51	34.6	16	-	28,0 - 44,0	-	-	—	BDPX-52-21	—	PDF
52	—	22.5	51	44.2	16	35,0 - 44,0	-	35,0 - 44,0	34,0 - 44,0	—	BDPX-52-22	—	PDF
