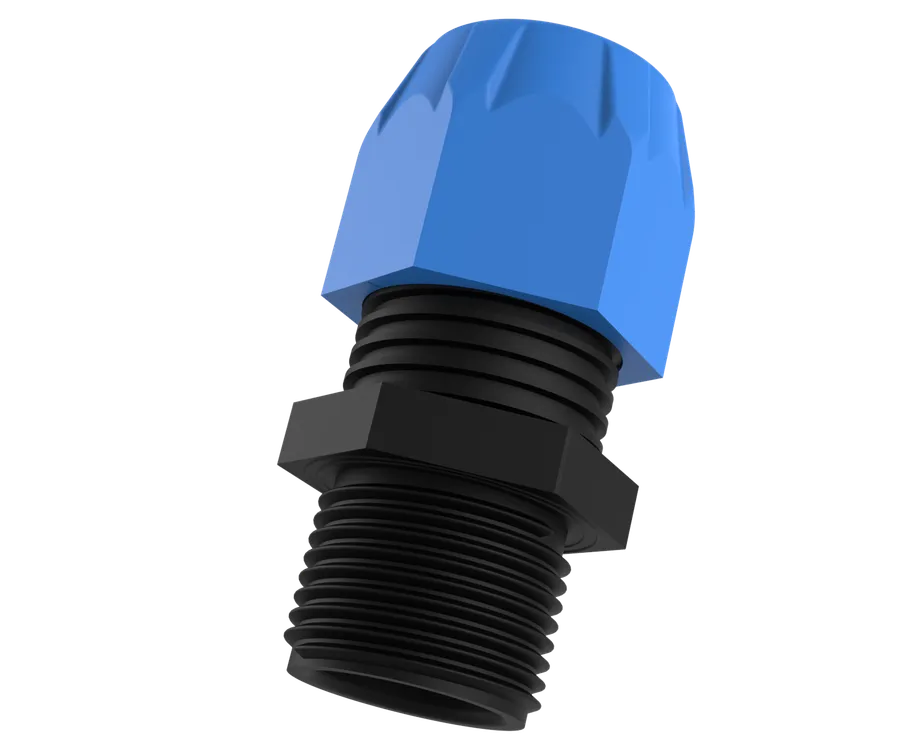

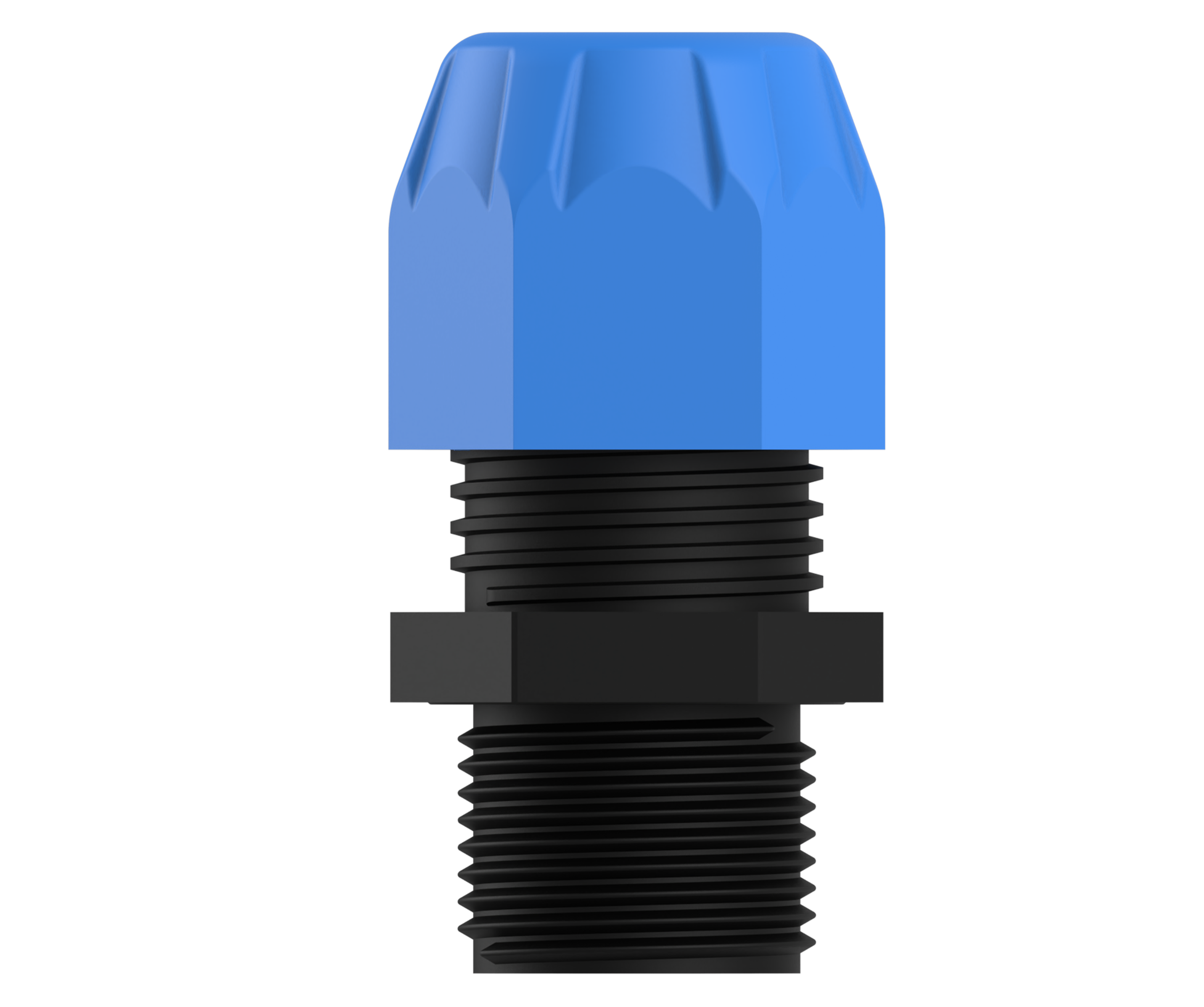

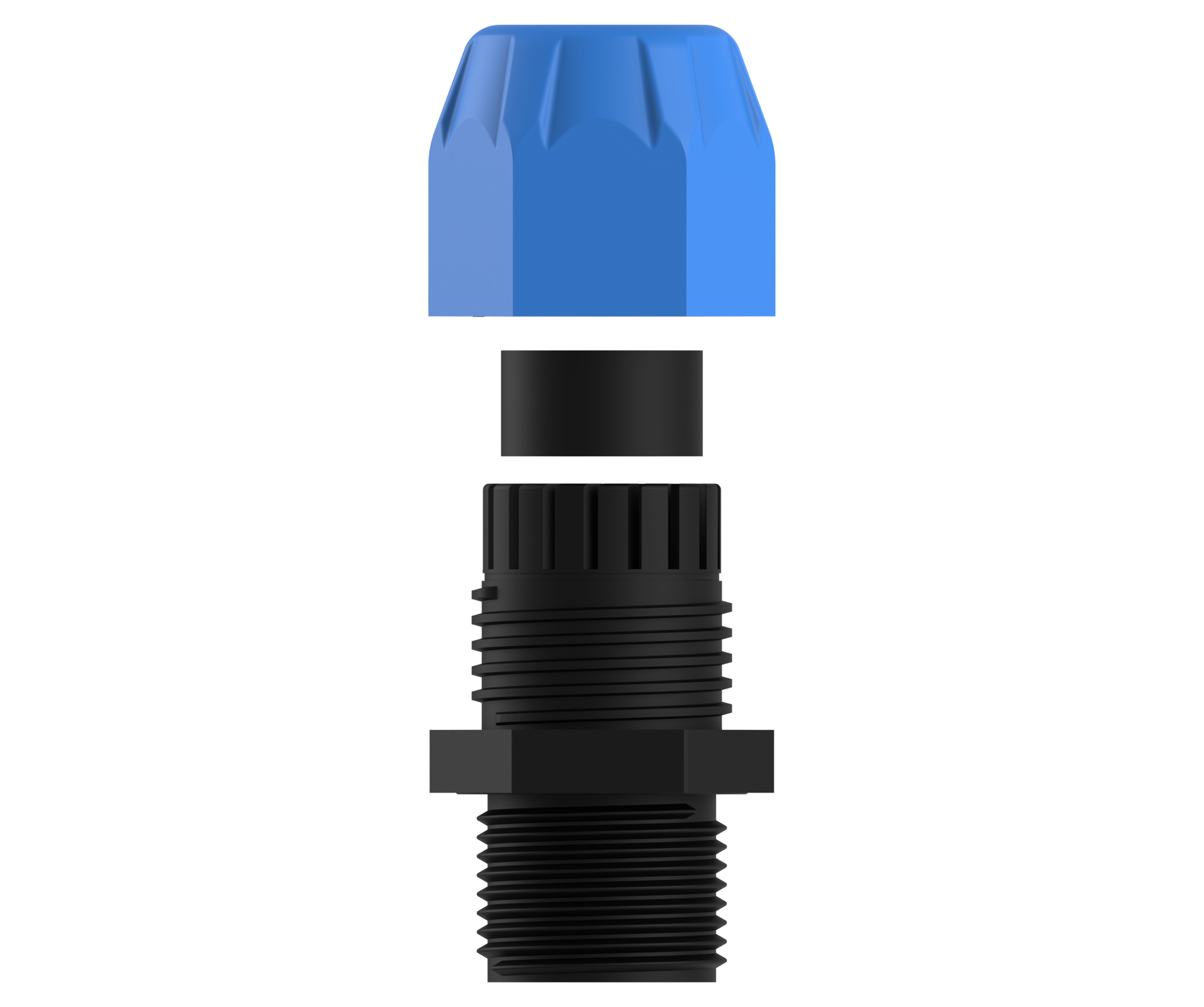

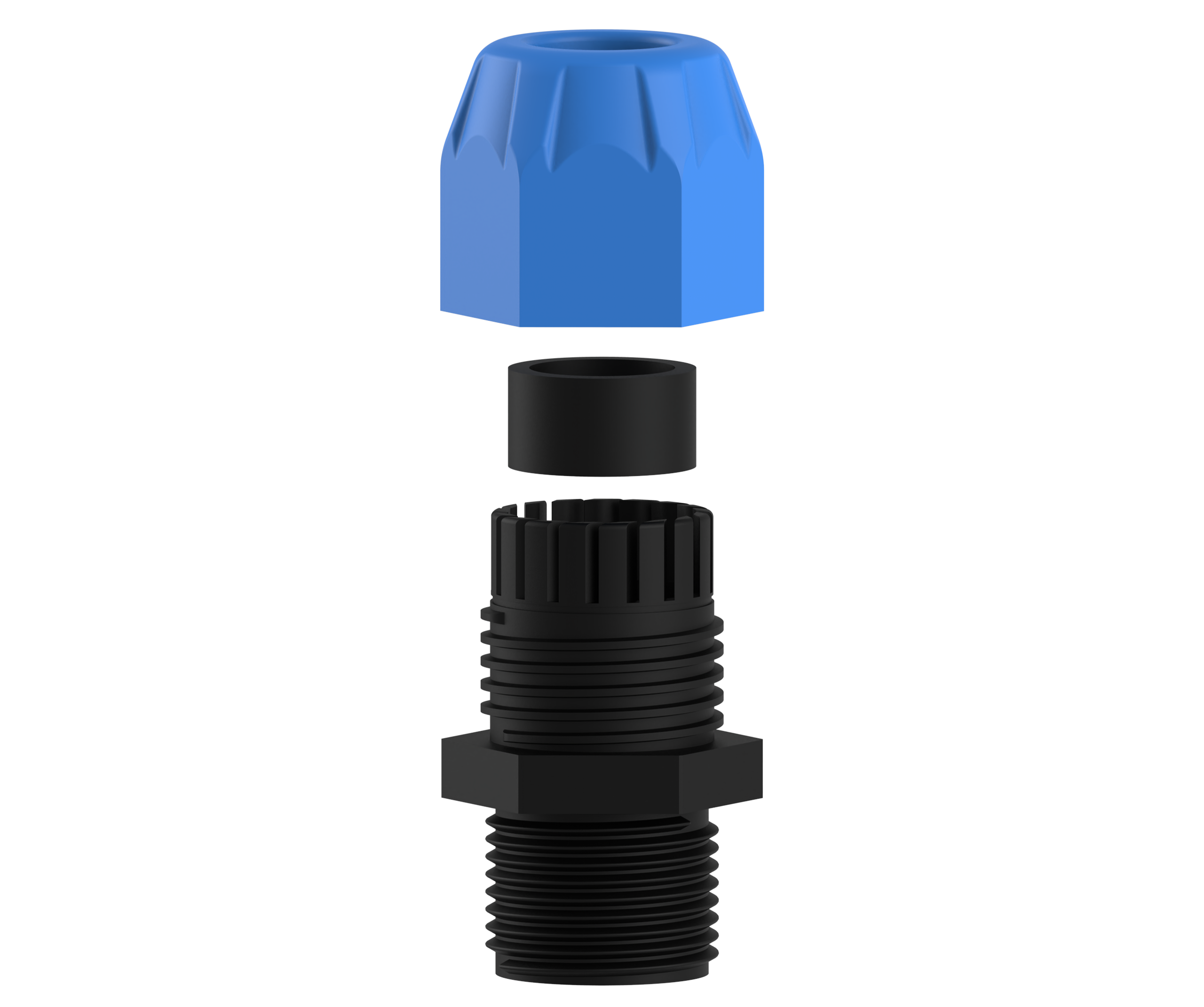

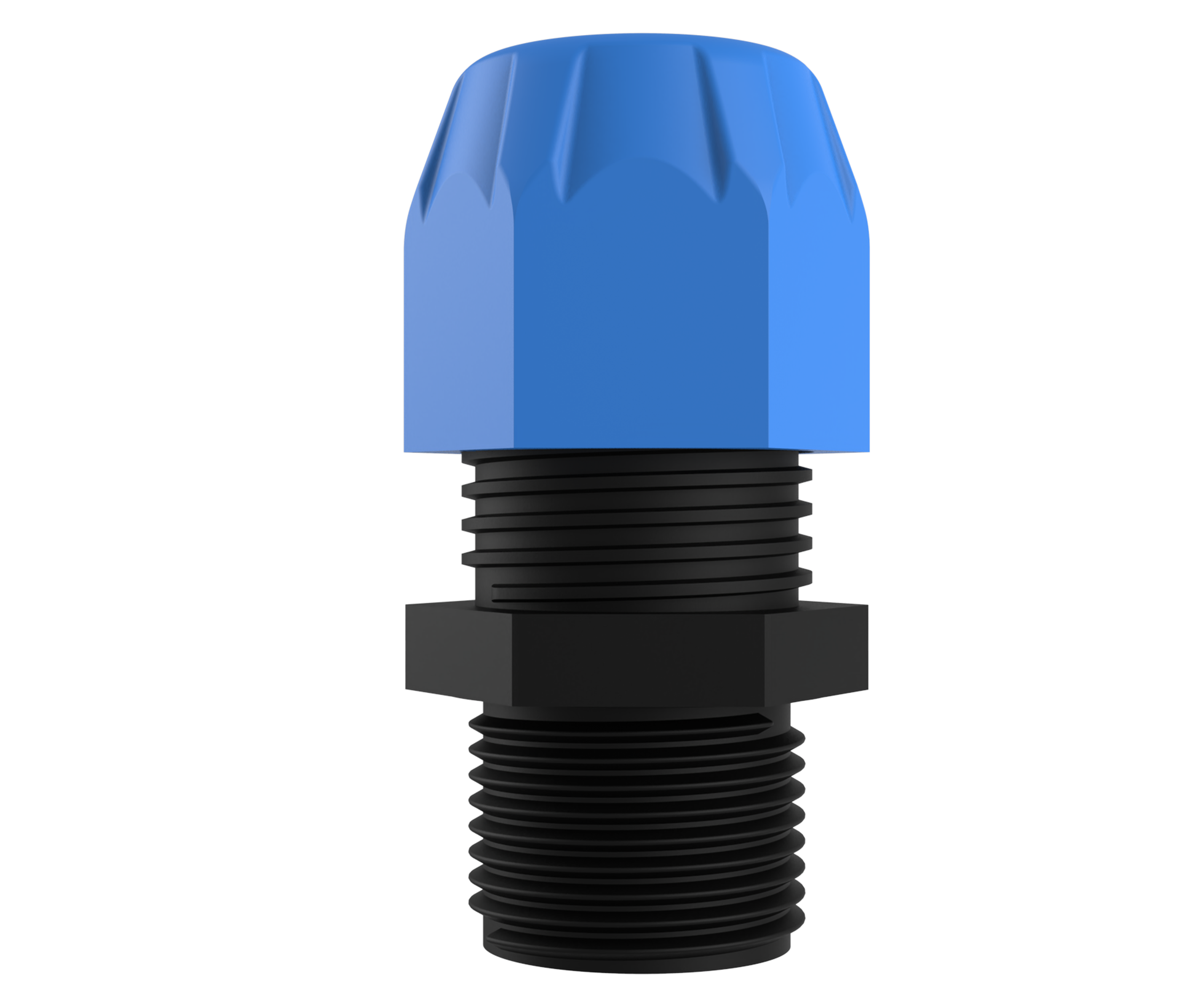

VEGA BLUE
○Ex-kabelnippel for eksplosjonsfarlige omgivelser med enkel og dobbel tetningsmulighet over bredt kabelklemmeområde, godkjent for 7J høyslagsapplikasjoner. ATEX- og IECEx-sertifisert i henhold til Ex eb og Ex tb.
Spesifikasjoner
| Gjengestørrelse | Klemområdet | Gjengelengde | Nøkkelvidde | Diameter | Maks høyde 'H' | Seal Type | Varenummer | BIMED Kode | 3D File |
|---|---|---|---|---|---|---|---|---|---|
| M12x1,5 | 3,0 - 6,5 | 10 | 15/15 | 17 | 30.3 | Double | — | EHIBMI-0XS(DS) | — |
| M12x1,5 | 3,0 - 6,5 | 15 | 15/15 | 17 | 30.3 | Double | — | EHIBMI-XS(DS) | — |
| M12x1,5 | 4,0 - 6,5 | 10 | 15/15 | 17 | 30.3 | Single | — | EHIBMI-0XS | — |
| M12x1,5 | 4,0 - 6,5 | 15 | 15/15 | 17 | 30.3 | Single | — | EHIBMI-XS | — |
| M16x1,5 | 4,0 - 8,0 | 10 | 19/19 | 21.3 | 33.6 | Double | — | EHIBMI-SX1(DS) | — |
| M16x1,5 | 4,0 - 8,0 | 15 | 19/19 | 21.3 | 33.6 | Double | — | EHIBMI-SX1L(DS) | — |
| M16x1,5 | 4,0 - 10,0 | 10 | 22/22 | 25 | 37.2 | Double | — | EHIBMI-X1(DS) | — |
| M16x1,5 | 4,0 - 10,0 | 15 | 22/22 | 25 | 37.2 | Double | — | EHIBMI-X1L(DS) | — |
| M16x1,5 | 5,0 - 8,0 | 10 | 19/19 | 21.3 | 33.6 | Single | — | EHIBMI-SX1 | — |
| M16x1,5 | 5,0 - 8,0 | 15 | 19/19 | 21.3 | 33.6 | Single | — | EHIBMI-SX1L | — |
| M16x1,5 | 6,0 - 10,0 | 10 | 22/22 | 25 | 37.2 | Single | — | EHIBMI-X1 | — |
| M16x1,5 | 6,0 - 10,0 | 15 | 22/22 | 25 | 37.2 | Single | — | EHIBMI-X1L | — |
| M20x1,5 | 4,0 - 10,0 | 10 | 22/24 | 27.5 | 37.2 | Double | — | EHIBMI-SX2(DS) | — |
| M20x1,5 | 4,0 - 13,0 | 10 | 25/25 | 27.5 | 38.4 | Double | — | EHIBMI-MX2(DS) | — |
| M20x1,5 | 6,0 - 10,0 | 10 | 22/24 | 27.5 | 37.2 | Single | — | EHIBMI-SX2 | — |
| M20x1,5 | 6,0 - 12,0 | 10 | 24/24 | 27.5 | 37.8 | Double | — | EHIBMI-X2(DS) | — |
| M20x1,5 | 6,0 - 12,0 | 15 | 24/24 | 27.5 | 37.8 | Double | — | EHIBMI-X2L(DS) | — |
| M20x1,5 | 7,0 - 12,0 | 10 | 24/24 | 27.5 | 37.8 | Single | — | EHIBMI-X2 | — |
| M20x1,5 | 7,0 - 12,0 | 15 | 24/24 | 27.5 | 37.8 | Single | — | EHIBMI-X2L | — |
| M20x1,5 | 7,0 - 13,0 | 10 | 25/25 | 27.5 | 38.4 | Single | — | EHIBMI-MX2 | — |
| M20x1,5 | 8,0 - 14,0 | 10 | 27/27 | 31 | 37 | Double | — | EHIBMI-X3(DS) | — |
| M20x1,5 | 8,0 - 14,0 | 15 | 27/27 | 31 | 37 | Double | — | EHIBMI-X4(DS) | — |
| M20x1,5 | 11,0 - 14,0 | 10 | 27/27 | 31 | 37 | Single | — | EHIBMI-X3 | — |
| M20x1,5 | 11,0 - 14,0 | 15 | 27/27 | 31 | 37 | Single | — | EHIBMI-X4 | — |
| M25x1,5 | 8,0 - 14,0 | 10 | 27/27 | 31 | 37.8 | Double | — | EHIBMI-SX5(DS) | — |
| M25x1,5 | 8,0 - 14,0 | 15 | 27/27 | 31 | 37.8 | Double | — | EHIBMI-SX6(DS) | — |
| M25x1,5 | 9,0 - 17,0 | 10 | 29/29 | 32.5 | 42.2 | Double | — | EHIBMI-XEU25(DS) | — |
| M25x1,5 | 9,0 - 17,0 | 15 | 29/29 | 32.5 | 42.2 | Double | — | EHIBMI-XEU25L(DS) | — |
| M25x1,5 | 10,0 - 18,0 | 10 | 33/33 | 37 | 43.6 | Double | — | EHIBMI-X5(DS) | — |
| M25x1,5 | 10,0 - 18,0 | 15 | 33/33 | 37 | 43.6 | Double | — | EHIBMI-X6(DS) | — |
| M25x1,5 | 11,0 - 14,0 | 10 | 27/27 | 31 | 37.8 | Single | — | EHIBMI-SX5 | — |
| M25x1,5 | 11,0 - 14,0 | 15 | 27/27 | 31 | 37.8 | Single | — | EHIBMI-SX6 | — |
| M25x1,5 | 12,0 - 17,0 | 10 | 29/29 | 32.5 | 42.2 | Single | — | EHIBMI-XEU25 | — |
| M25x1,5 | 12,0 - 17,0 | 15 | 29/29 | 32.5 | 42.2 | Single | — | EHIBMI-XEU25L | — |
| M25x1,5 | 14,0 - 18,0 | 10 | 33/33 | 37 | 43.6 | Single | — | EHIBMI-X5 | — |
| M25x1,5 | 14,0 - 18,0 | 15 | 33/33 | 37 | 43.6 | Single | — | EHIBMI-X6 | — |
| M32x1,5 | 10,0 - 18,0 | 10 | 33/36 | 41 | 43.6 | Double | — | EHIBMI-SX7(DS) | — |
| M32x1,5 | 12,0 - 21,0 | 10 | 36/36 | 41 | 47.3 | Double | — | EHIBMI-XEU32(DS) | — |
| M32x1,5 | 12,0 - 21,0 | 15 | 36/36 | 41 | 47.3 | Double | — | EHIBMI-XEU32L(DS) | — |
| M32x1,5 | 14,0 - 18,0 | 10 | 33/36 | 41 | 43.6 | Single | — | EHIBMI-SX7 | — |
| M32x1,5 | 14,0 - 25,0 | 15 | 42/42 | 47.5 | 48.7 | Double | — | EHIBMI-X7(DS) | — |
| M32x1,5 | 16,0 - 21,0 | 10 | 36/36 | 41 | 47.3 | Single | — | EHIBMI-XEU32 | — |
| M32x1,5 | 16,0 - 21,0 | 15 | 36/36 | 41 | 47.3 | Single | — | EHIBMI-XEU32L | — |
| M32x1,5 | 19,0 - 25,0 | 15 | 42/42 | 47.5 | 48.7 | Single | — | EHIBMI-X7 | — |
| M40x1,5 | 17,0 - 28,0 | 10 | 46/46 | 52 | 52.4 | Double | — | EHIBMI-XEU40(DS) | — |
| M40x1,5 | 17,0 - 28,0 | 15 | 46/46 | 52 | 52.4 | Double | — | EHIBMI-XEU40L(DS) | — |
| M40x1,5 | 20,0 - 28,0 | 10 | 46/46 | 52 | 52.4 | Single | — | EHIBMI-XEU40 | — |
| M40x1,5 | 20,0 - 28,0 | 15 | 46/46 | 52 | 52.4 | Single | — | EHIBMI-XEU40L | — |
| M40x1,5 | 21,0 - 32,0 | 18 | 53/53 | 60 | 57.9 | Double | — | EHIBMI-X8(DS) | — |
| M40x1,5 | 23,0 - 32,0 | 18 | 53/53 | 60 | 57.9 | Single | — | EHIBMI-X8 | — |
| M50x1,5 | 22,0 - 38,0 | 18 | 60/60 | 67.5 | 60.1 | Double | — | EHIBMI-X9(DS) | — |
| M50x1,5 | 31,0 - 38,0 | 18 | 60/60 | 67.5 | 60.1 | Single | — | EHIBMI-X9 | — |
| M63x1,5 | 28,0 - 44,0 | 18 | 65/65 | 72 | 60.4 | Double | — | EHIBMI-X10(DS) | — |
| M63x1,5 | 35,0 - 44,0 | 18 | 65/65 | 72 | 60.4 | Single | — | EHIBMI-X10 | — |
