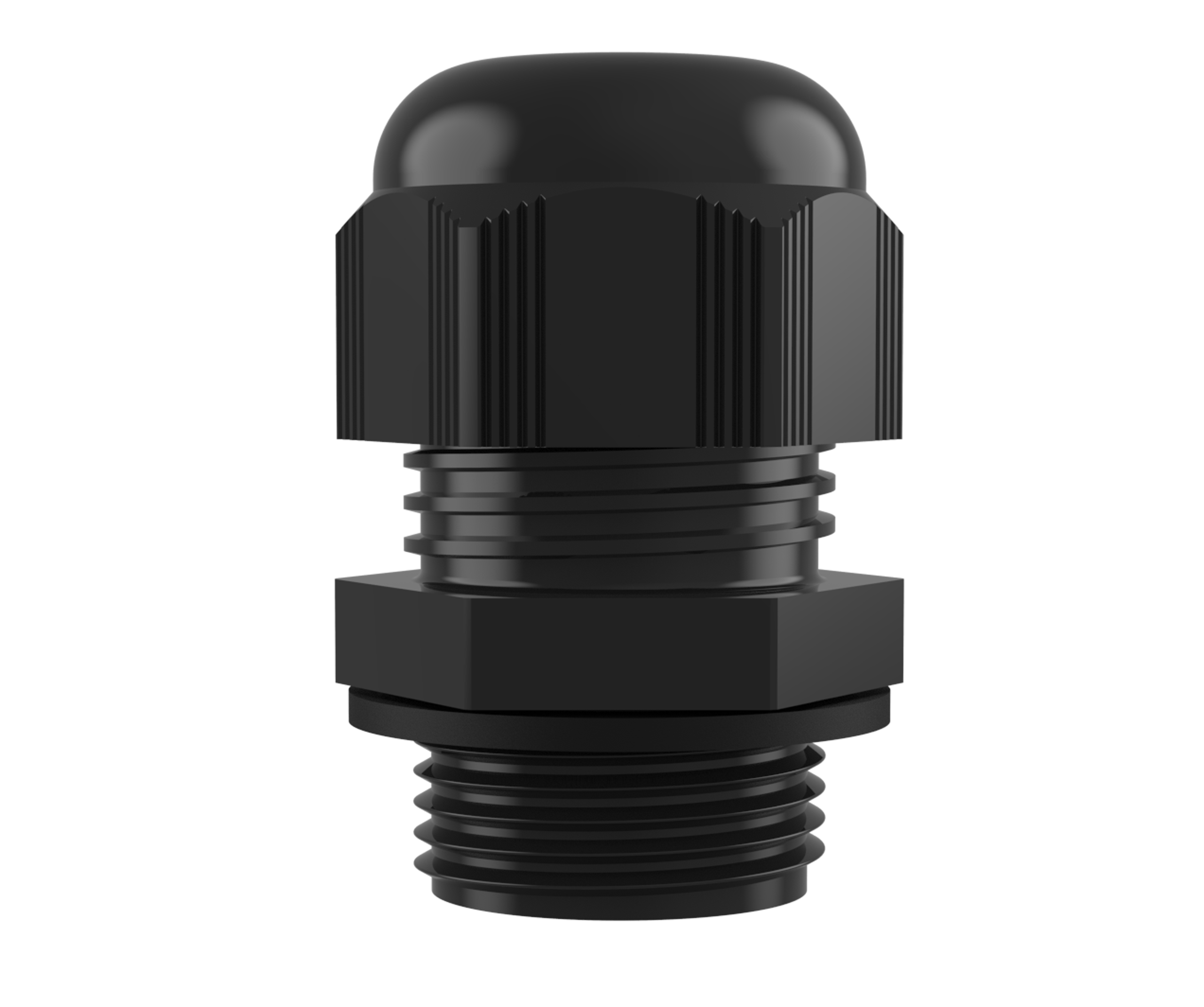

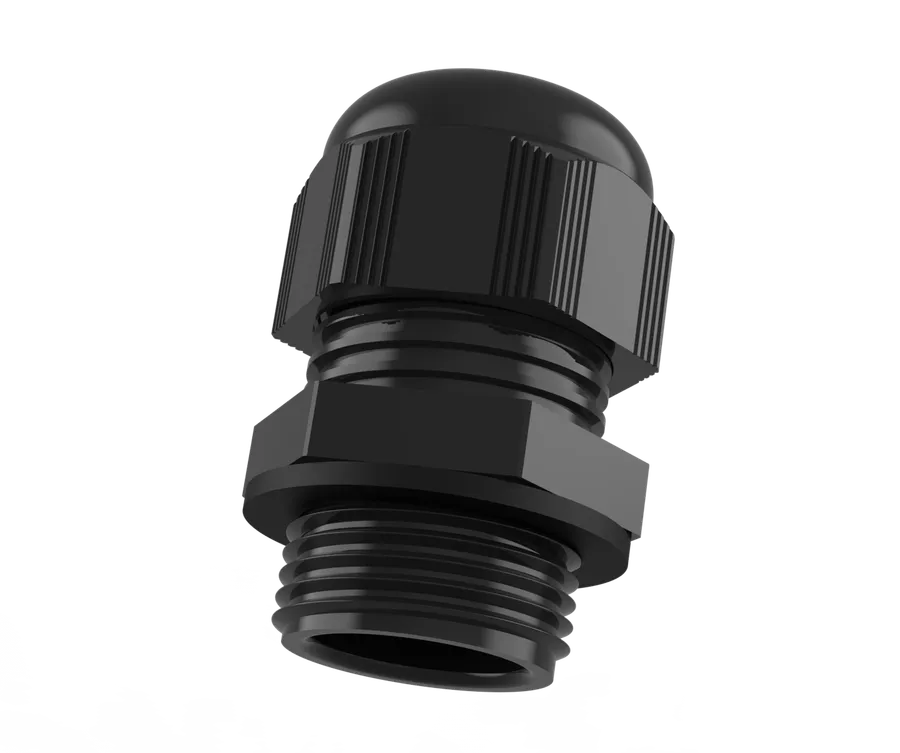

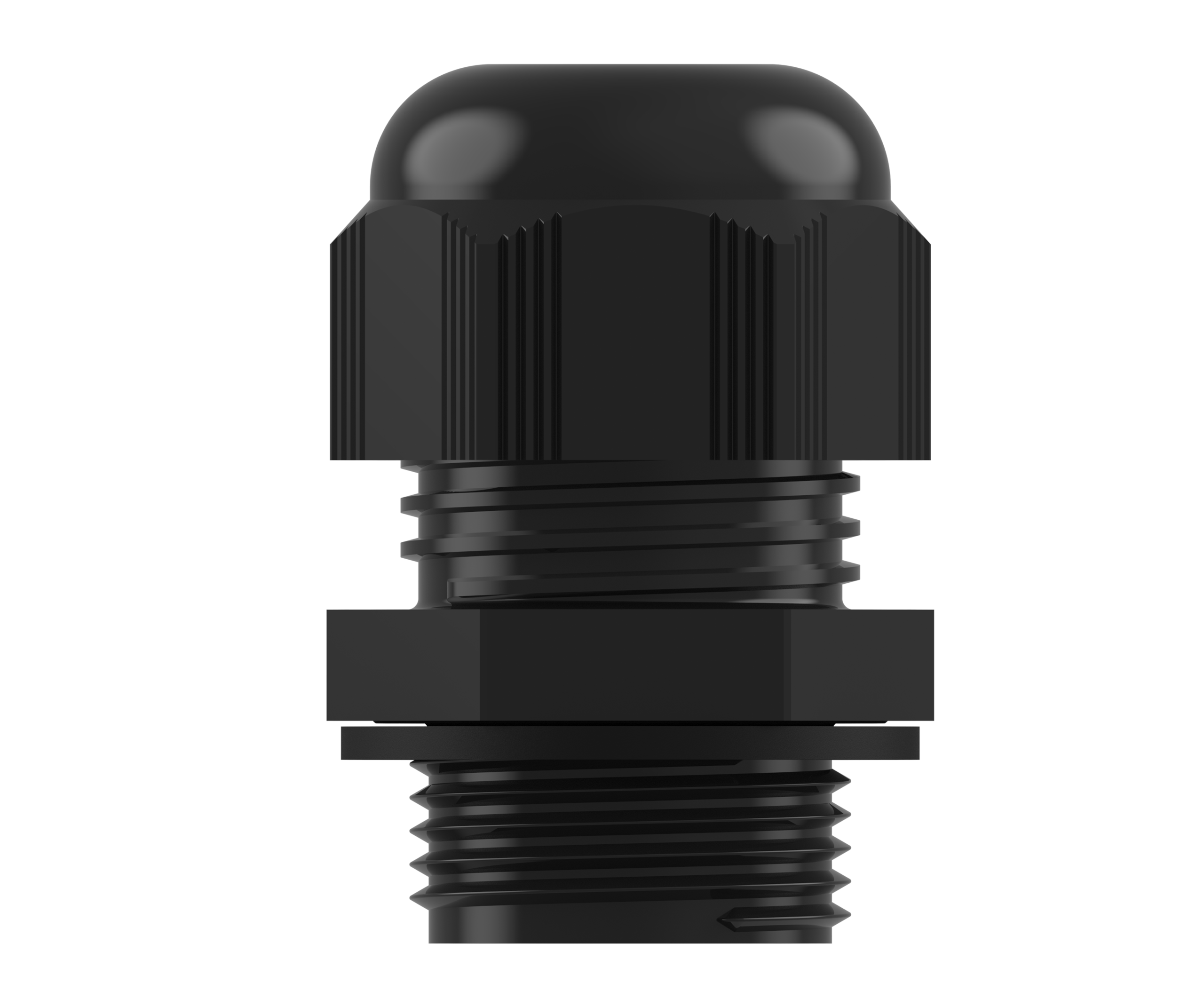

LYRA

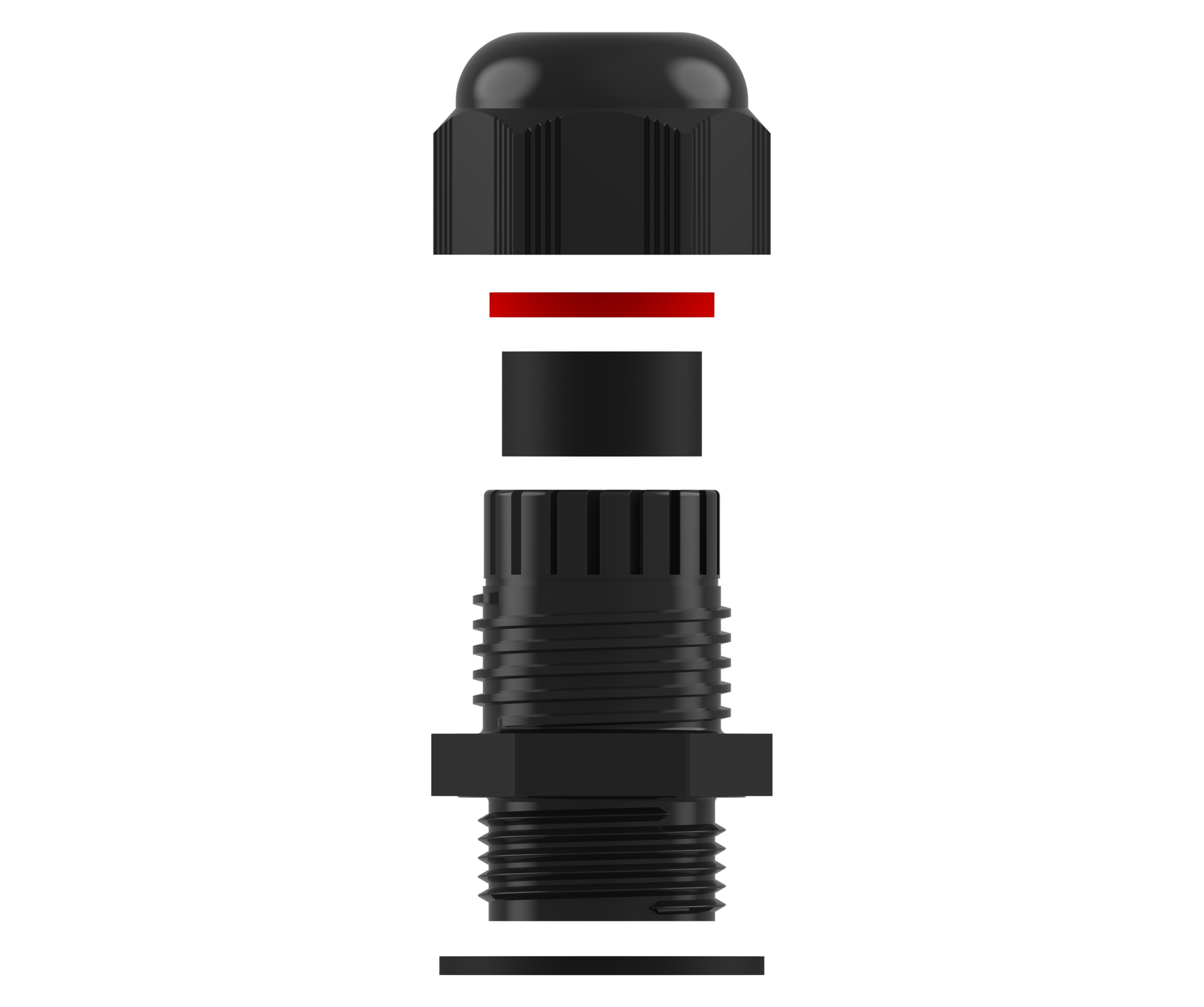

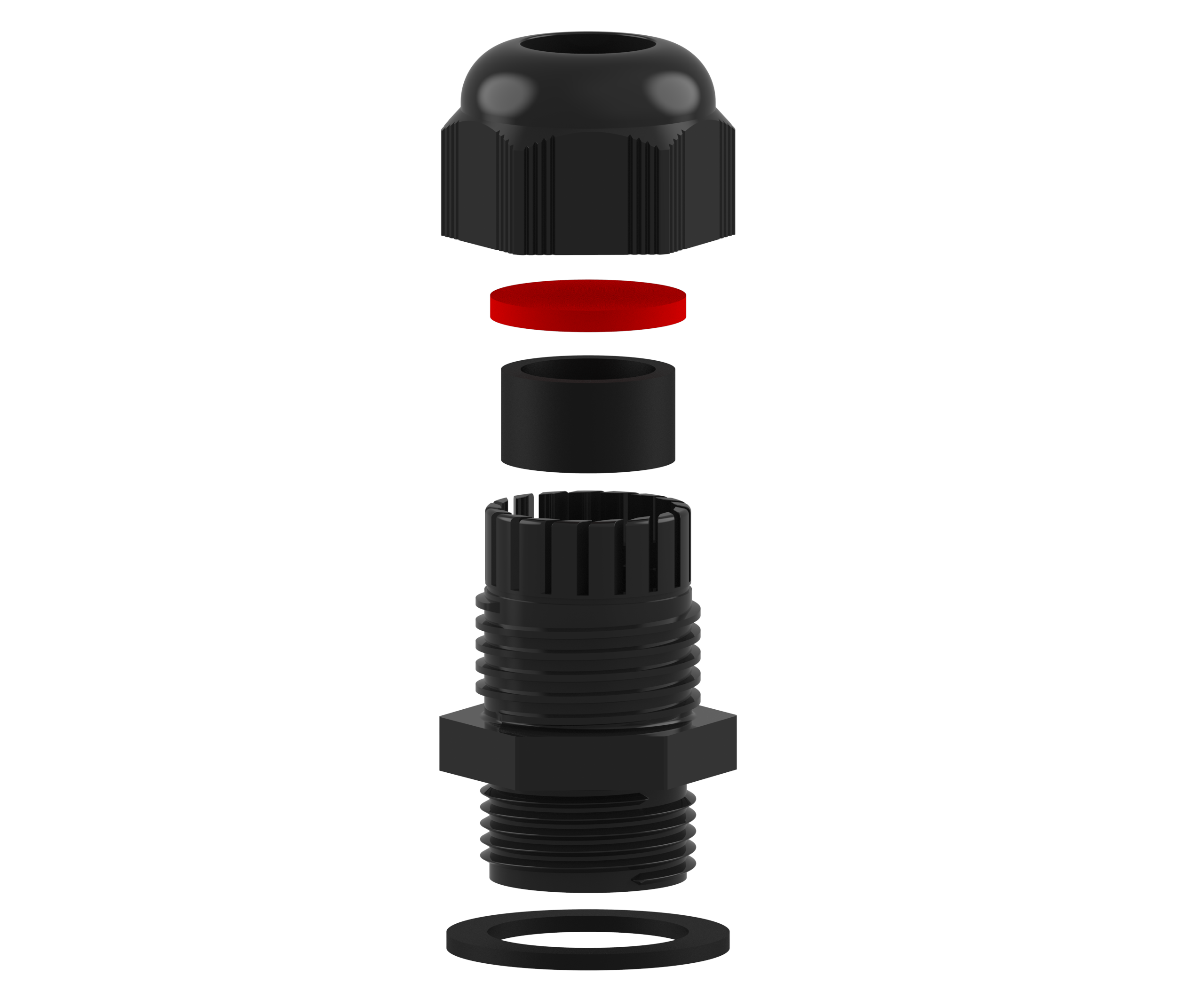

○Ex-kabelnippel for eksplosjonsfarlige omgivelser med enkel og dobbel tetningsmulighet over bredt kabelklemmeområde, godkjent for 4J lavslagsapplikasjoner. ATEX- og IECEx-sertifisert i henhold til Ex eb og Ex tb.
Spesifikasjoner
| Gjengestørrelse | Klemområdet | Gjengelengde | Nøkkelvidde | Diameter | Maks høyde 'H' | Varenummer | BIMED Kode | 3D File |
|---|---|---|---|---|---|---|---|---|
| M20x1,5 | 5,0 - 10,0 | 10 | 22/24 | 27 | 32.2 | — | BM-SX2 | — |
| M20x1,5 | 6,0 - 12,0 | 10 | 24/24 | 27 | 32.4 | — | BM-X2 | Get File |
| M20x1,5 | 6,0 - 12,0 | 15 | 24/24 | 27 | 32.4 | — | BM-X2L | — |
| M20x1,5 | 10,0 - 14,0 | 10 | 27/27 | 30.9 | 31.9 | — | BM-X3 | — |
| M20x1,5 | 10,0 - 14,0 | 15 | 27/27 | 30.9 | 31.9 | — | BM-X4 | — |
| M25x1,5 | 10,0 - 14,0 | 10 | 27/27 | 30.9 | 31.9 | — | BM-SX5 | — |
| M25x1,5 | 10,0 - 14,0 | 15 | 27/27 | 30.9 | 31.9 | — | BM-SX6 | — |
| M25x1,5 | 11,0 - 17,0 | 10 | 29/29 | 32.5 | 37.7 | — | BM-XEU25 | — |
| M25x1,5 | 13,0 - 18,0 | 15 | 33/33 | 37.2 | 38.4 | — | BM-X6 | — |
| M25x1,5 | 13,0 - 18,0 | 10 | 33/33 | 37.2 | 38.4 | — | BM-X5 | — |
| M32x1,5 | 13,0 - 18,0 | 10 | 33/36 | 41 | 38.4 | — | BM-SX7 | — |
| M32x1,5 | 15,0 - 21,0 | 10 | 36/36 | 41 | 42.3 | — | BM-XEU32 | — |
| M32x1,5 | 18,0 - 25,0 | 15 | 42/42 | 47.1 | 43.3 | — | BM-X7 | — |
| M40x1,5 | 19,0 - 28,0 | 10 | 46/46 | 52.4 | 47.4 | — | BM-XEU40 | — |
| M40x1,5 | 19,0 - 28,0 | 15 | 46/46 | 52.4 | 47.4 | — | BM-XEU40L | — |
| M40x1,5 | 22,0 - 32,0 | 18 | 53/53 | 59.6 | 52.4 | — | BM-X8 | — |
| M50x1,5 | 30,0 - 38,0 | 18 | 60/60 | 67.8 | 54.8 | — | BM-X9 | — |
| M63x1,5 | 34,0 - 44,0 | 18 | 65/65 | 72.4 | 54.9 | — | BM-X10 | — |
