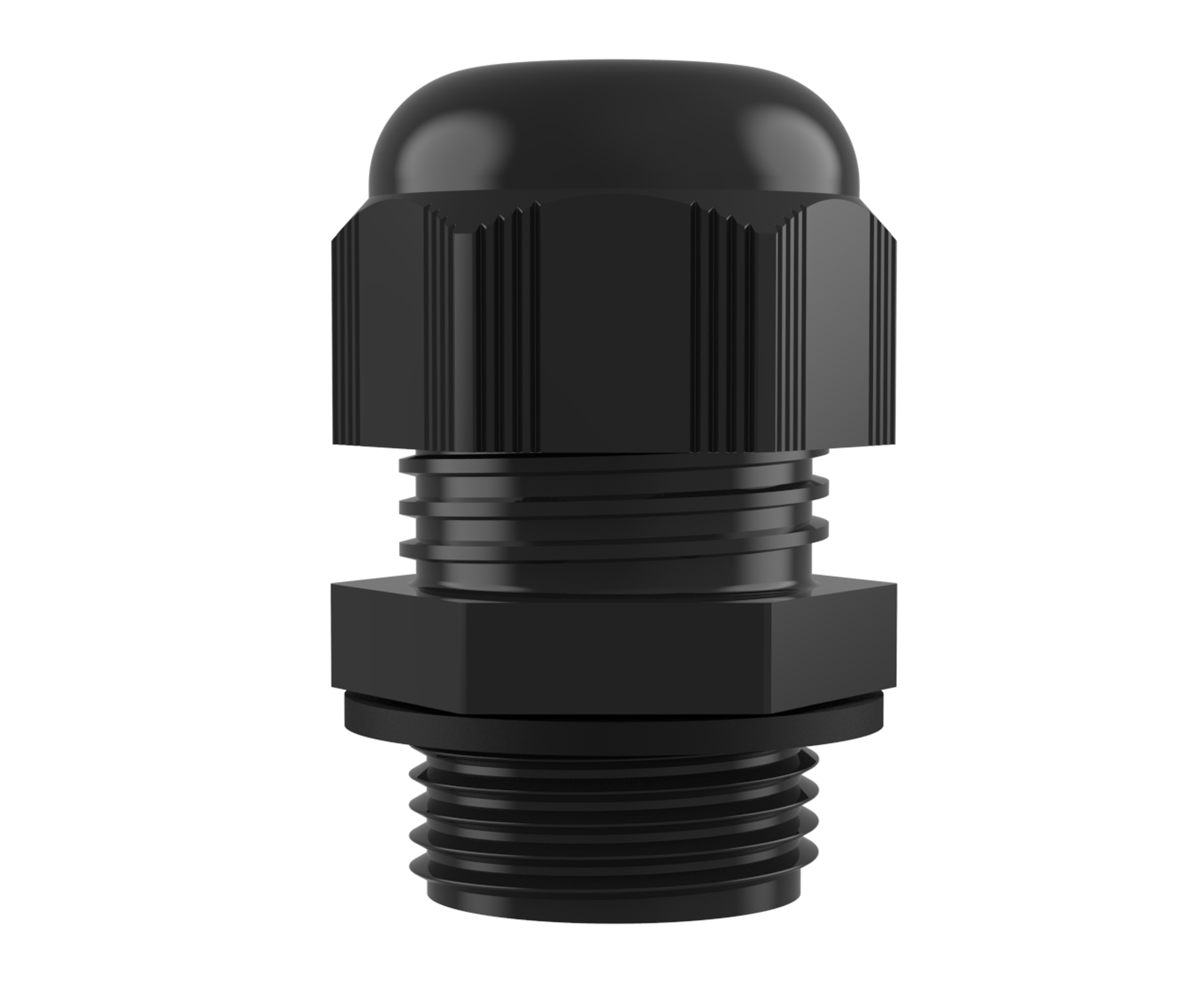

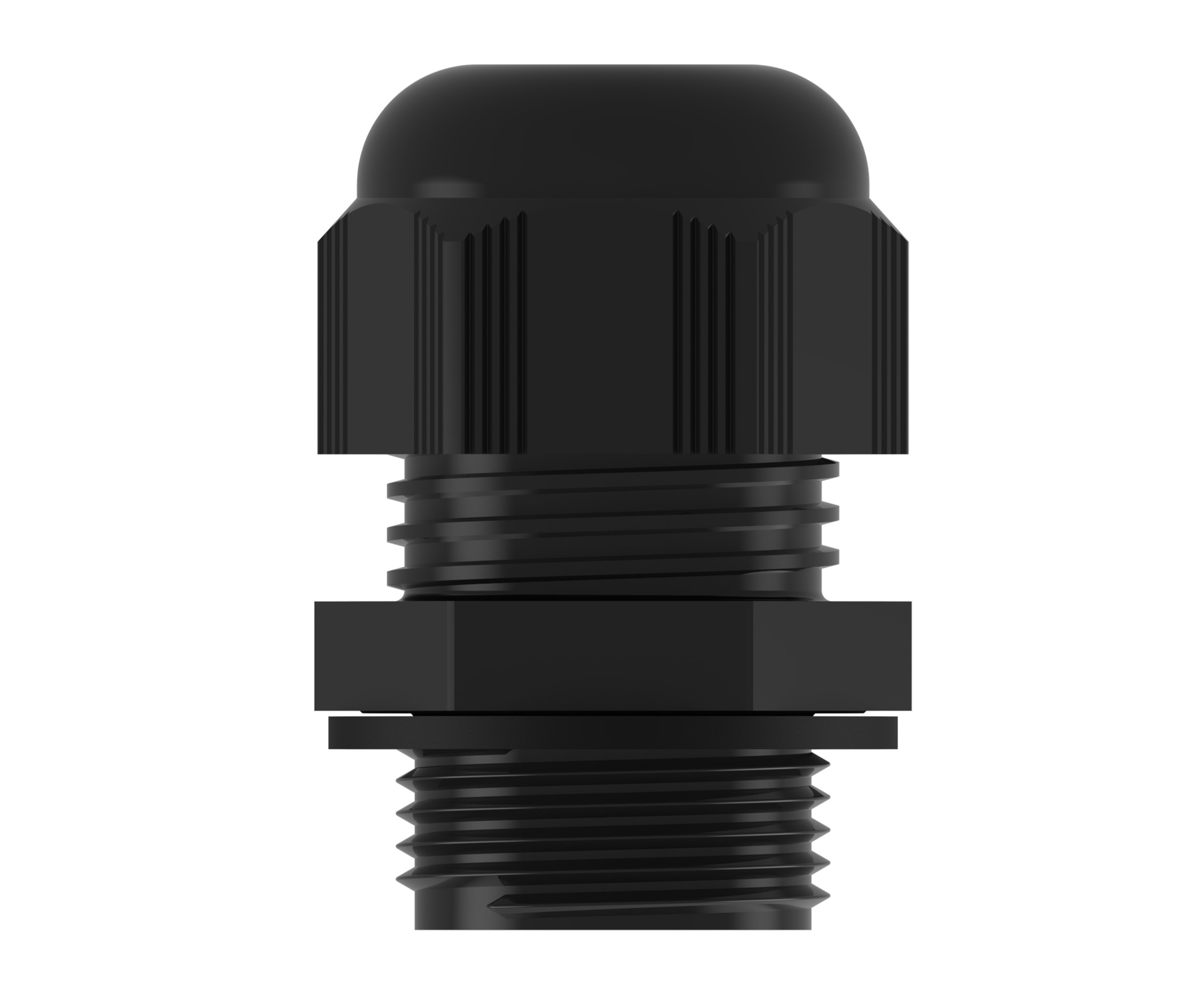

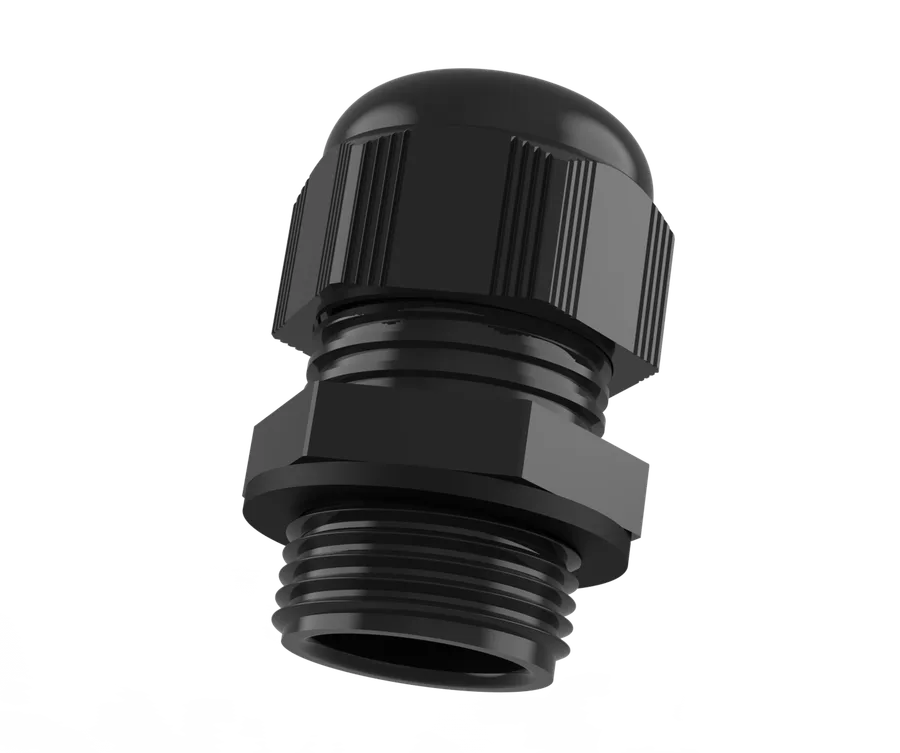

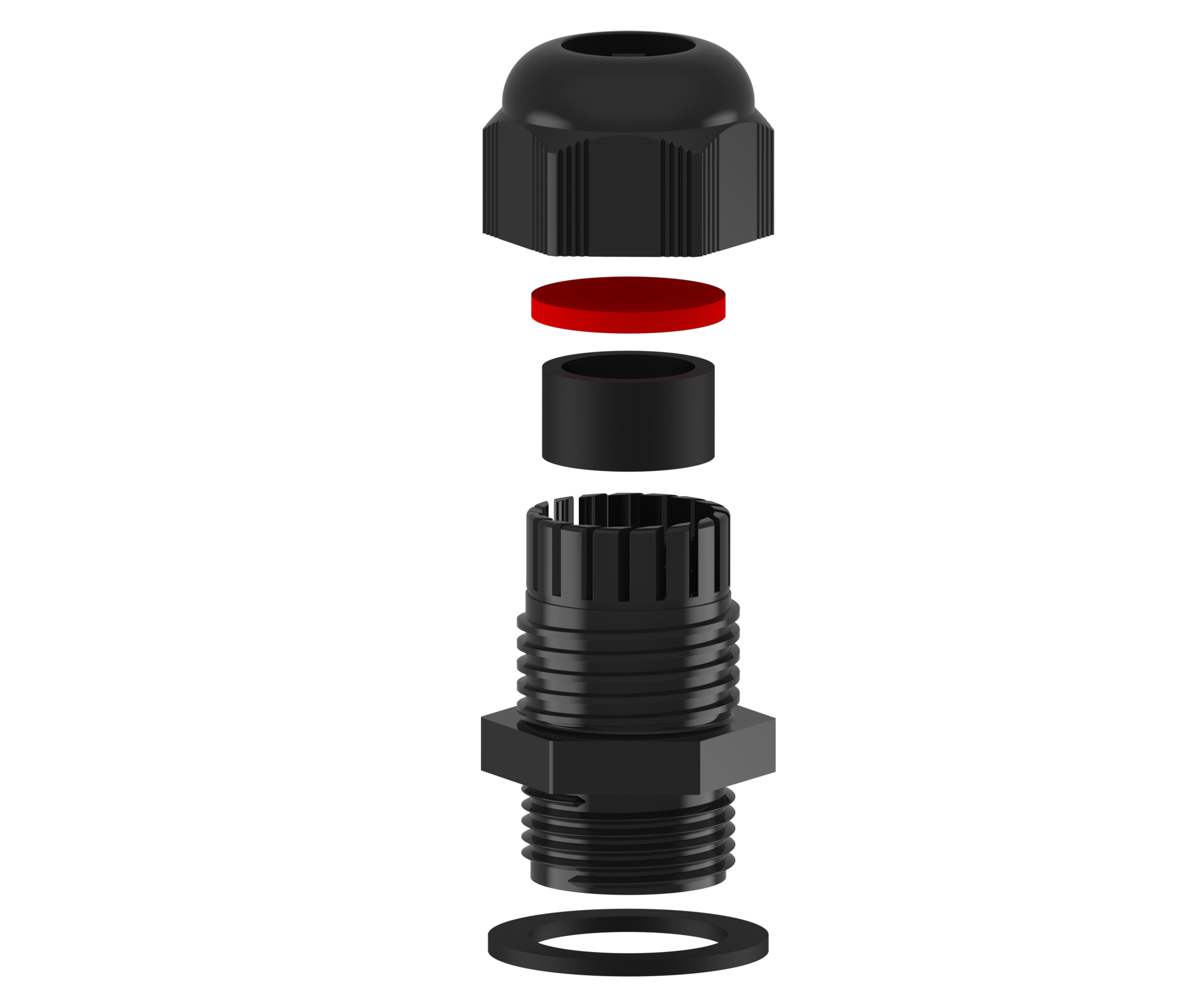

GEMINI
○Ex-kabelnippel spesialdesignet for varmekabelsporing og flate kabler, godkjent for 4J lavslagsapplikasjoner og bruk med iboende sikre kretser. ATEX- og IECEx-sertifisert i henhold til Ex eb og Ex tb.
Spesifikasjoner
| Gjengestørrelse | Gjengelengde | Nøkkelvidde | Diameter | Maks høyde 'H' | Flat Hole "A" | Flat Hole "B" | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|---|---|
| M20x1,5 | 10 | 24/24 | 27 | 32.4 | 11 | 6.5 | — | BM-X2 (11,0x6,5) | — | |
| M20x1,5 | 10 | 24/24 | 27 | 32.4 | 10 | 4 | — | BM-X2 (10,0x4,0) | — | |
| M20x1,5 | 15 | 24/24 | 27 | 32.4 | 10 | 4 | — | BM-X2L (10,0x4,0) | — | |
| M20x1,5 | 10 | 27/27 | 30.9 | 31.9 | 12.8 | 5 | — | BM-X3 (12,8x5,0) | — | |
| M20x1,5 | 15 | 27/27 | 30.9 | 31.9 | 12.8 | 5 | — | BM-X4 (12,8x5,0) | — | |
| M20x1,5 | 10 | 24/24 | 27 | 32.4 | 10.8 | 6 | — | BM-X2 (10,8x6,0) | — | |
| M20x1,5 | 10 | 27/27 | 30.9 | 31.9 | 10.8 | 6 | — | BM-X3 (10,8x6,0) | — | |
| M20x1,5 | 15 | 24/24 | 27 | 32.4 | 10.8 | 6 | — | BM-X2L (10,8x6,0) | — | |
| M20x1,5 | 15 | 27/27 | 30.9 | 31.9 | 10.8 | 6 | — | BM-X4 (10,8x6,0) | — | |
| M20x1,5 | 15 | 24/24 | 27 | 32.4 | 11 | 6.5 | — | BM-X2L (11,0x6,5) | — | |
| M20x1,5 | 10 | 27/27 | 30.9 | 31.9 | 12.4 | 6.5 | — | BM-X3 (12,4x6,5) | — | |
| M20x1,5 | 15 | 27/27 | 30.9 | 31.9 | 12.4 | 6.5 | — | BM-X4 (12,4x6,5) | — | |
| M25x1,5 | 10 | 24/27 | 30.9 | 32.4 | 10 | 4 | — | BM-XSX5 (10,0x4,0) | — | |
| M25x1,5 | 15 | 24/27 | 30.9 | 32.4 | 10 | 4 | — | BM-XSX6 (10,0x4,0) | — | |
| M25x1,5 | 10 | 27/27 | 30.9 | 31.9 | 12.8 | 5 | — | BM-SX5 (12,8x5,0) | — | |
| M25x1,5 | 15 | 27/27 | 30.9 | 31.9 | 12.8 | 5 | — | BM-SX6 (12,8x5,0) | — | |
| M25x1,5 | 10 | 33/33 | 37.2 | 38.4 | 15 | 5 | — | BM-X5 (15,0x5,0) | — | |
| M25x1,5 | 15 | 33/33 | 37.2 | 38.4 | 15 | 5 | — | BM-X6 (15,0x5,0) | — | |
| M25x1,5 | 10 | 24/27 | 30.9 | 32.4 | 10.8 | 6 | — | BM-XSX5 (10,8x6,0) | — | |
| M25x1,5 | 10 | 27/27 | 30.9 | 31.9 | 10.8 | 6 | — | BM-SX5 (10,8x6,0) | — | |
| M25x1,5 | 15 | 24/27 | 30.9 | 32.4 | 10.8 | 6 | — | BM-XSX6 (10,8x6,0) | — | |
| M25x1,5 | 15 | 27/27 | 30.9 | 31.9 | 10.8 | 6 | — | BM-SX6 (10,8x6,0) | — | |
| M25x1,5 | 15 | 33/33 | 37.2 | 38.4 | 12 | 6 | — | BM-X6 (12,0x6,0) | — | |
| M25x1,5 | 10 | 33/33 | 37.2 | 38.4 | 12 | 6 | — | BM-X5 (12,0x6,0) | — | |
| M25x1,5 | 10 | 24/27 | 30.9 | 32.4 | 11 | 6.5 | — | BM-XSX5 (11,0x6,5) | — | |
| M25x1,5 | 15 | 24/27 | 30.9 | 32.4 | 11 | 6.5 | — | BM-XSX6 (11,0x6,5) | — | |
| M25x1,5 | 10 | 27/27 | 30.9 | 31.9 | 12.4 | 6.5 | — | BM-SX5 (12,4x6,5) | — | |
| M25x1,5 | 15 | 27/27 | 30.9 | 31.9 | 12.4 | 6.5 | — | BM-SX6 (12,4x6,5) | — | |
| M32x1,5 | 10 | 33/36 | 41 | 38.4 | 15 | 5 | — | BM-SX7 (15,0x5,0) | — | |
| M32x1,5 | 10 | 33/36 | 41 | 38.4 | 12 | 6 | — | BM-SX7 (12,0x6,0) | — |
