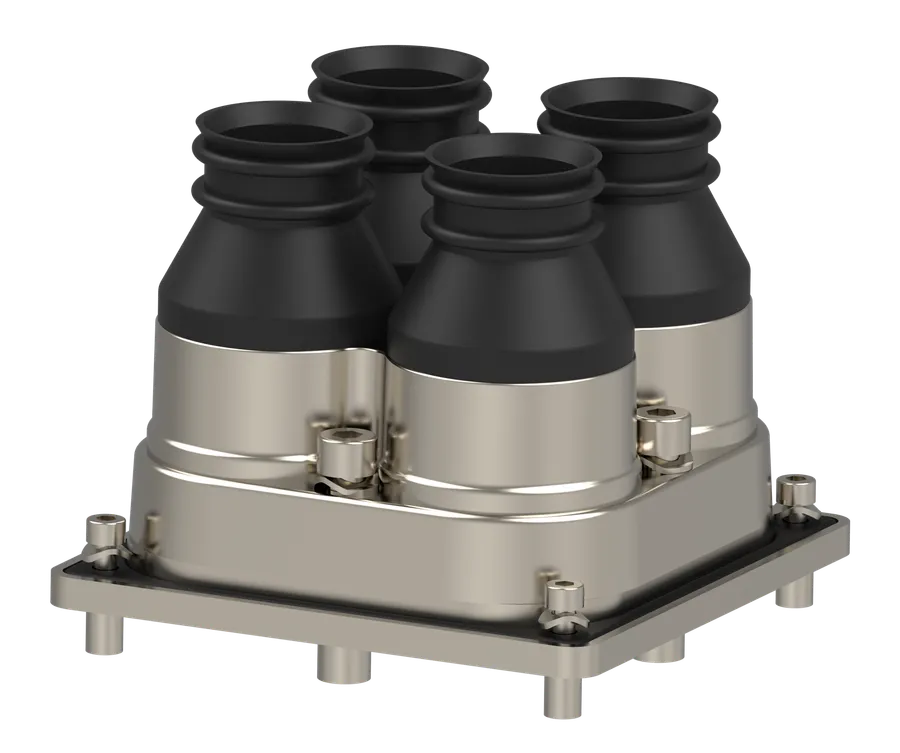

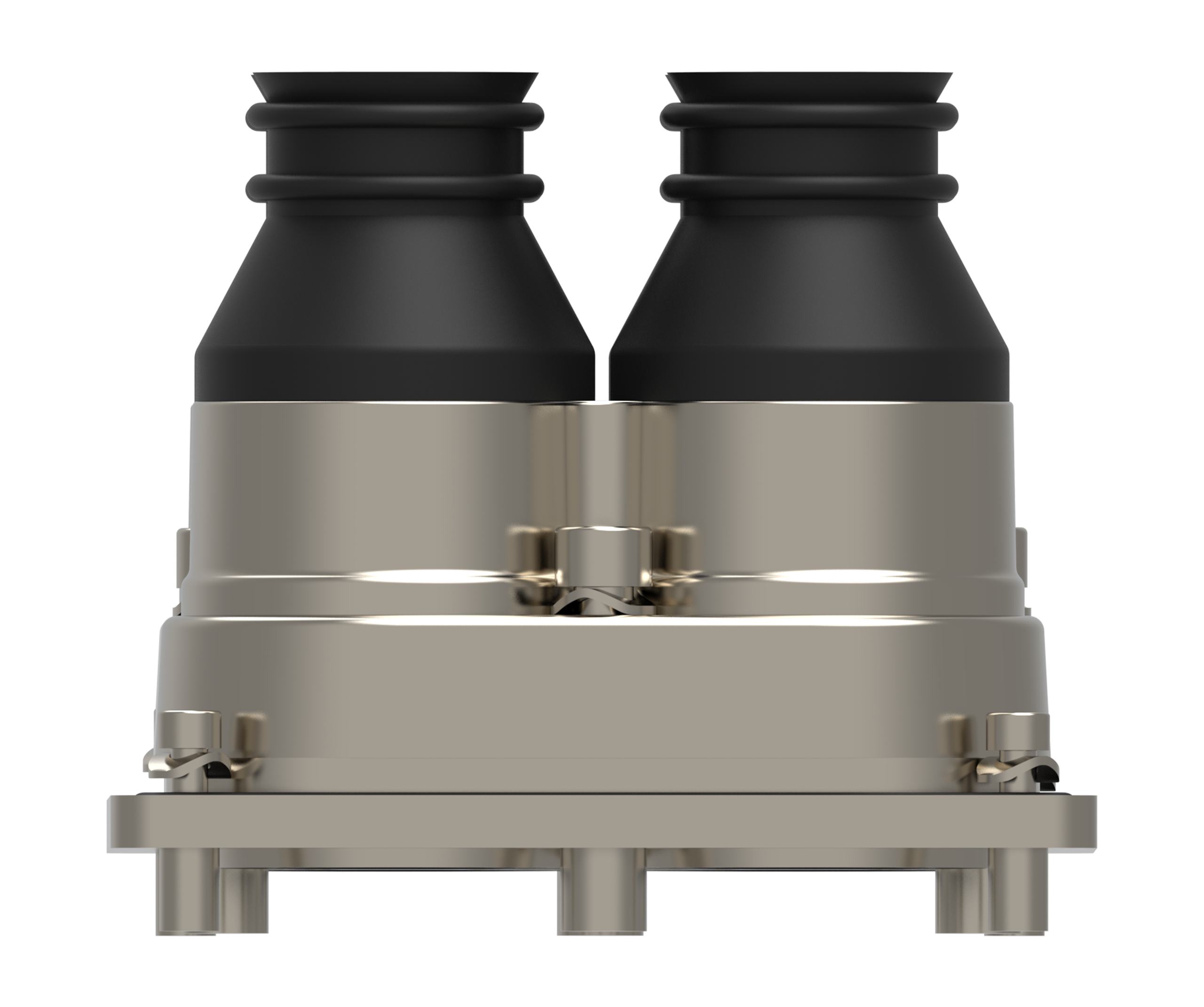

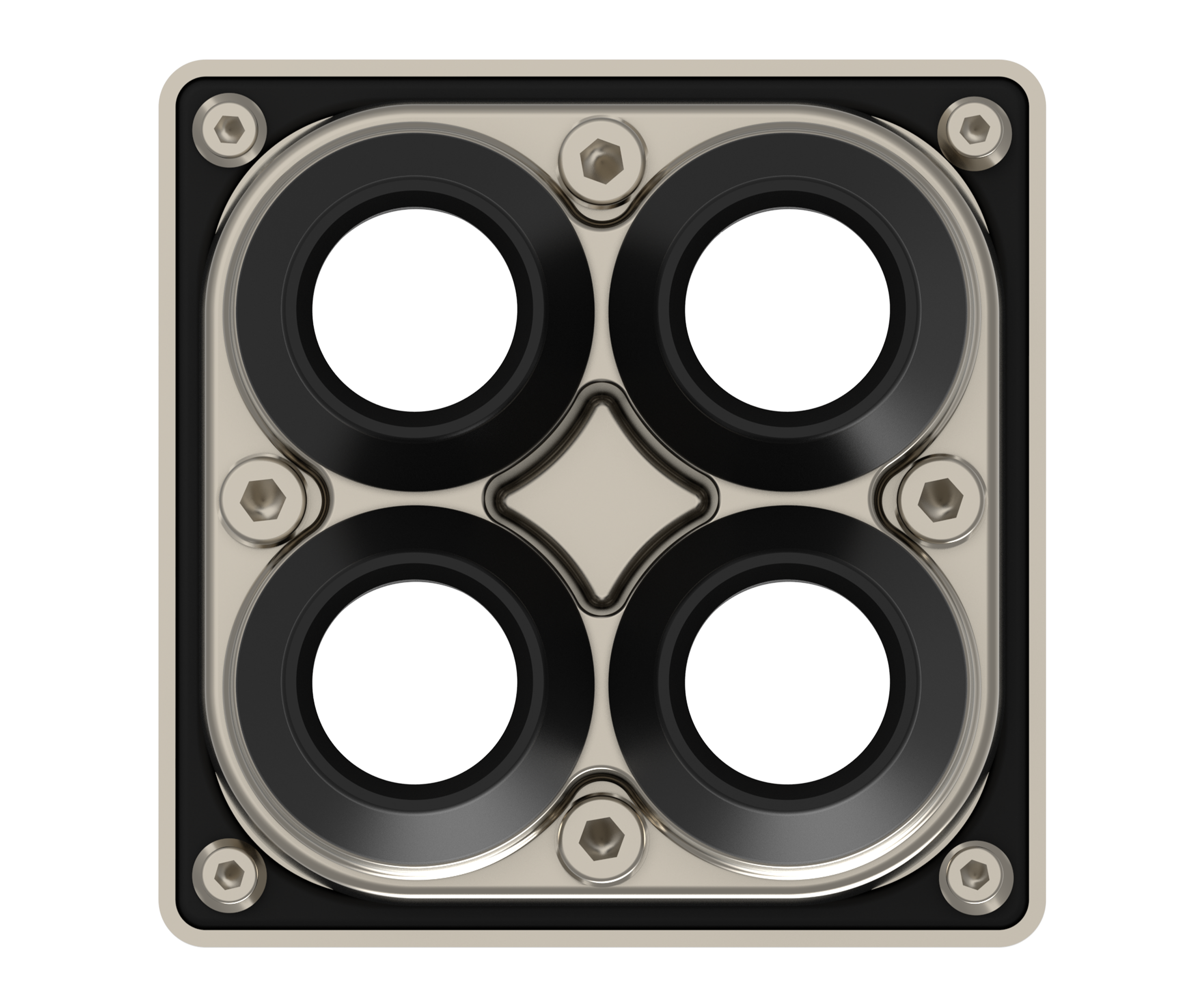

Quadro EMC kabelinnføringsplate

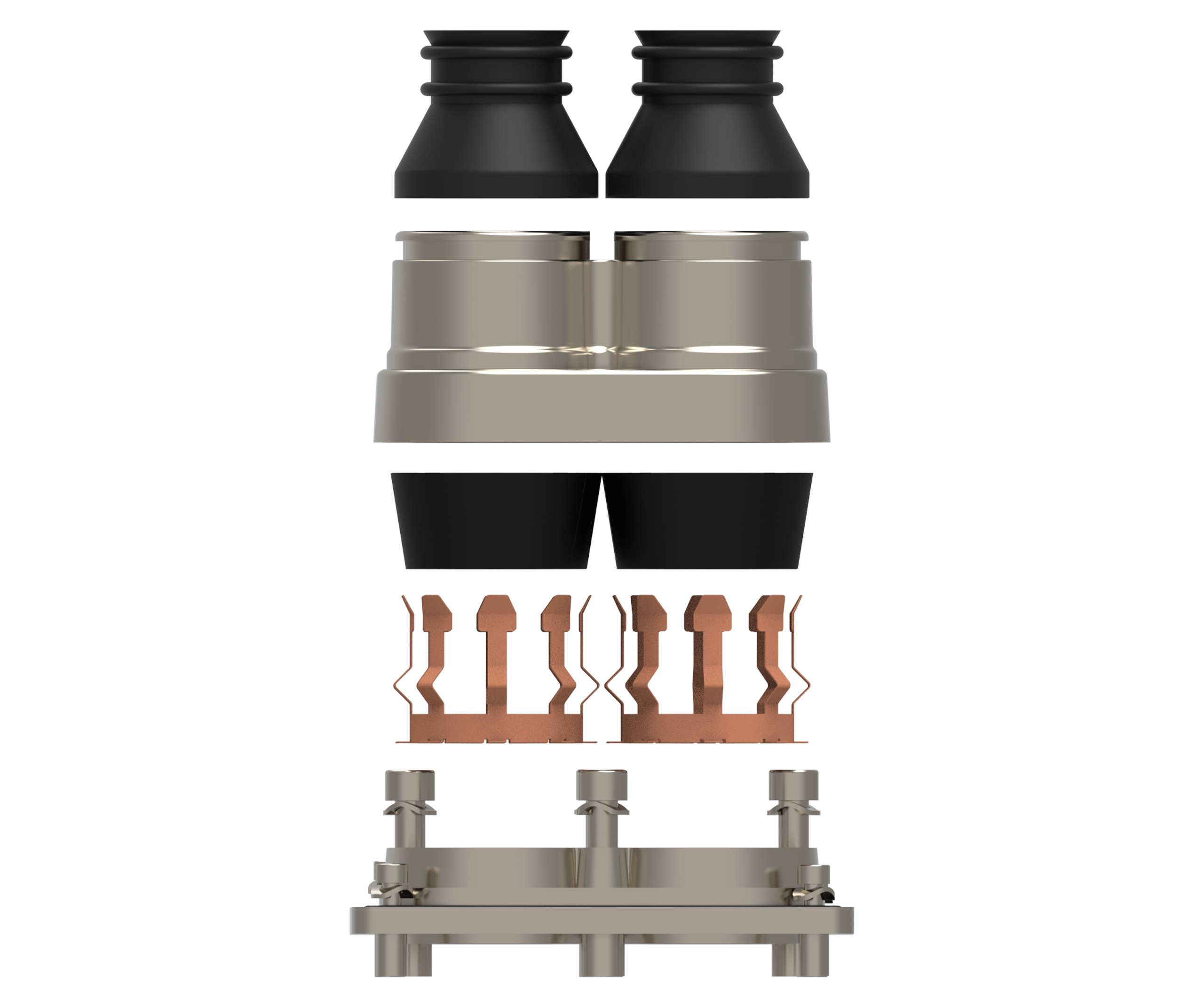

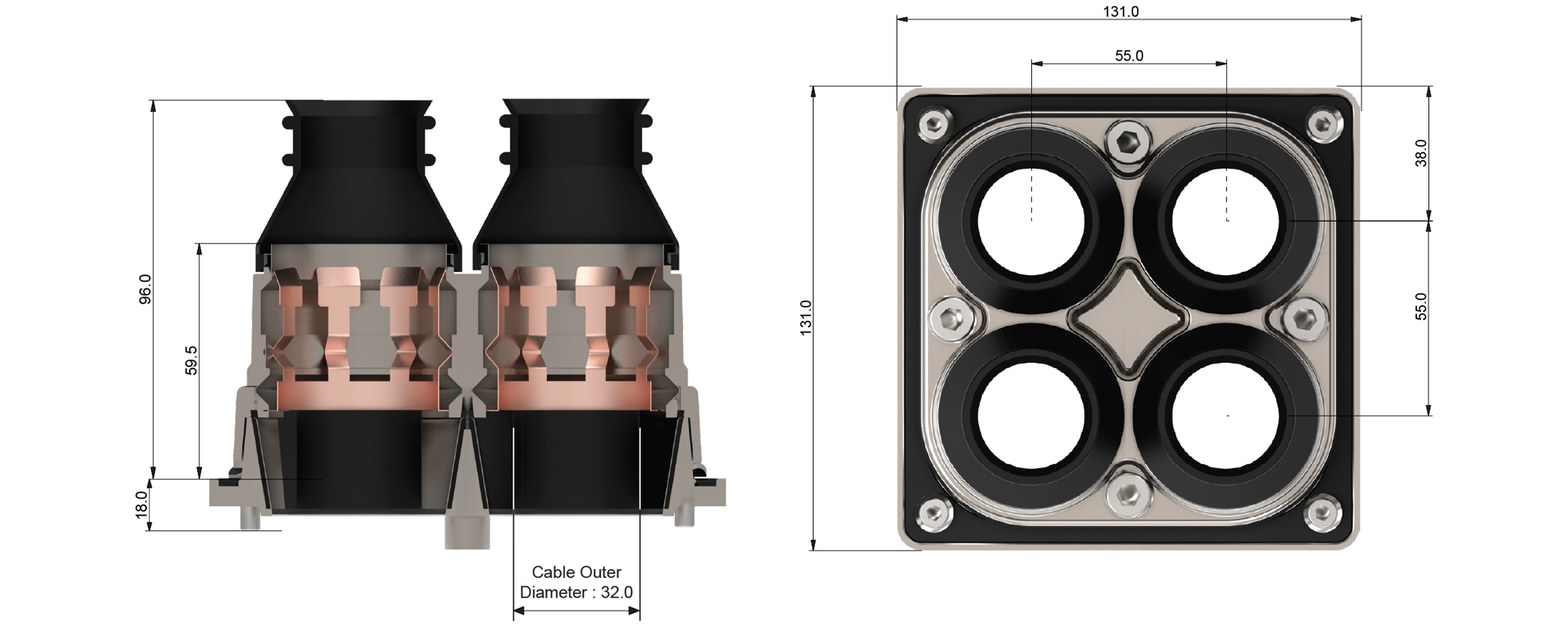

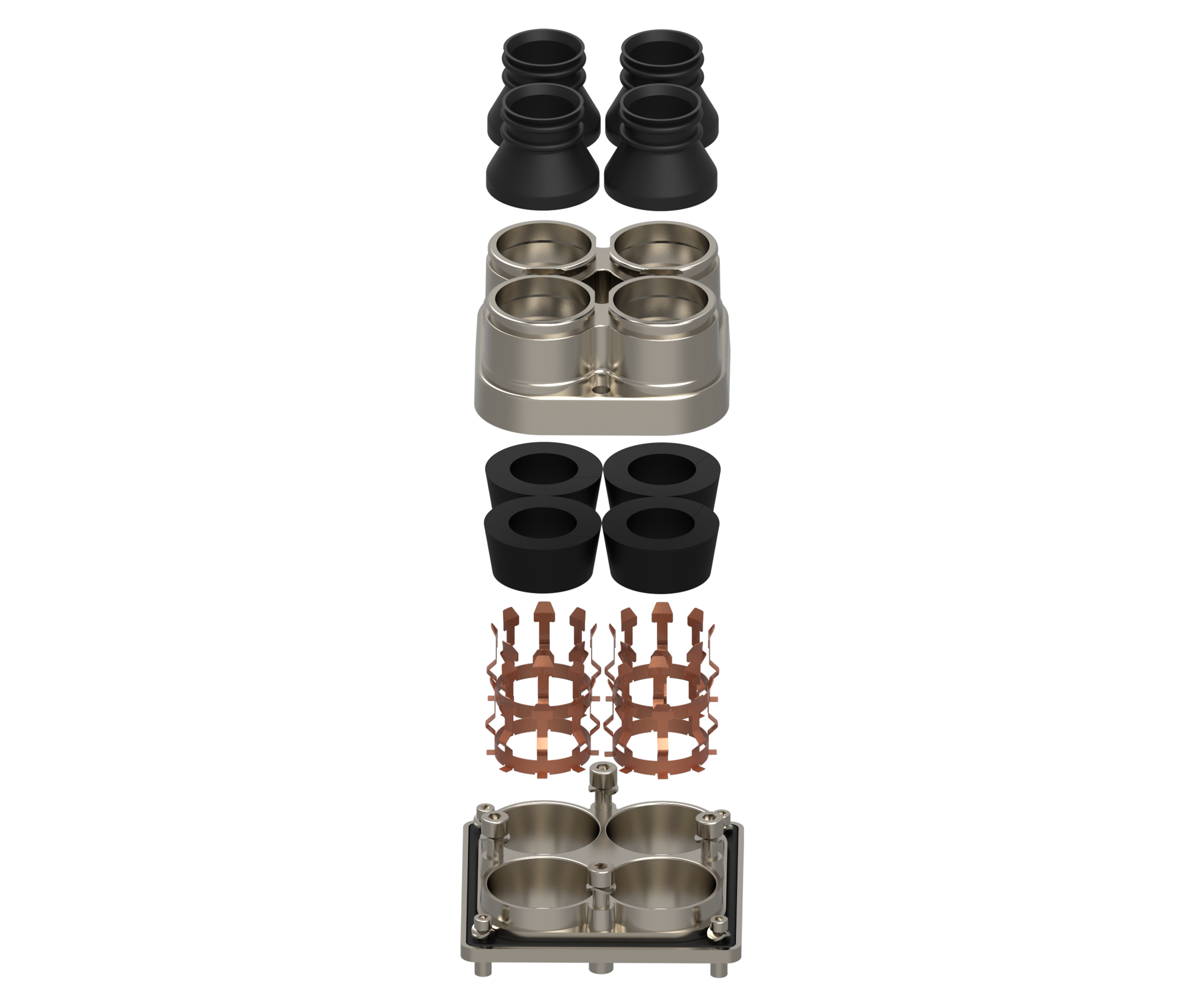

○Kabelinnføringsplate for opptil 4 skjermede kabler med kontinuerlig 360° EMC-skjerming
○Kompakt design for trange paneler; rask montering med minimalt verktøy og IP54 beskyttelsesgrad.
