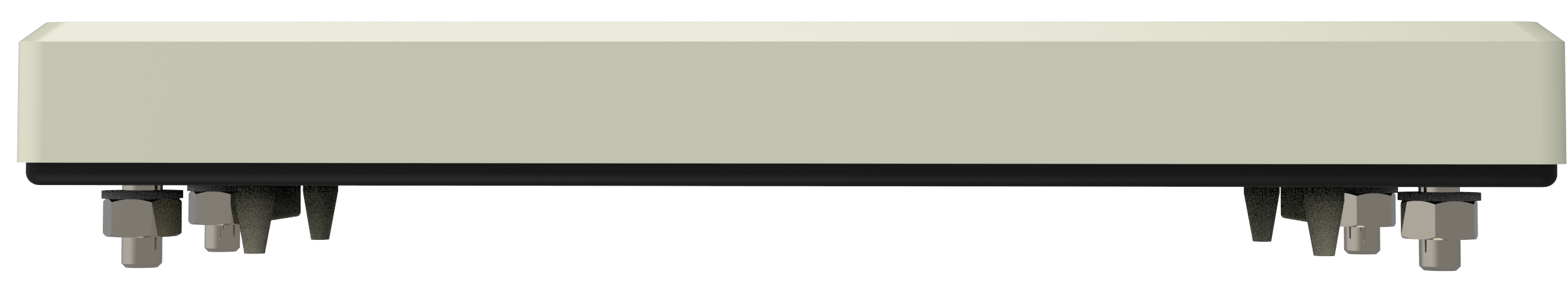

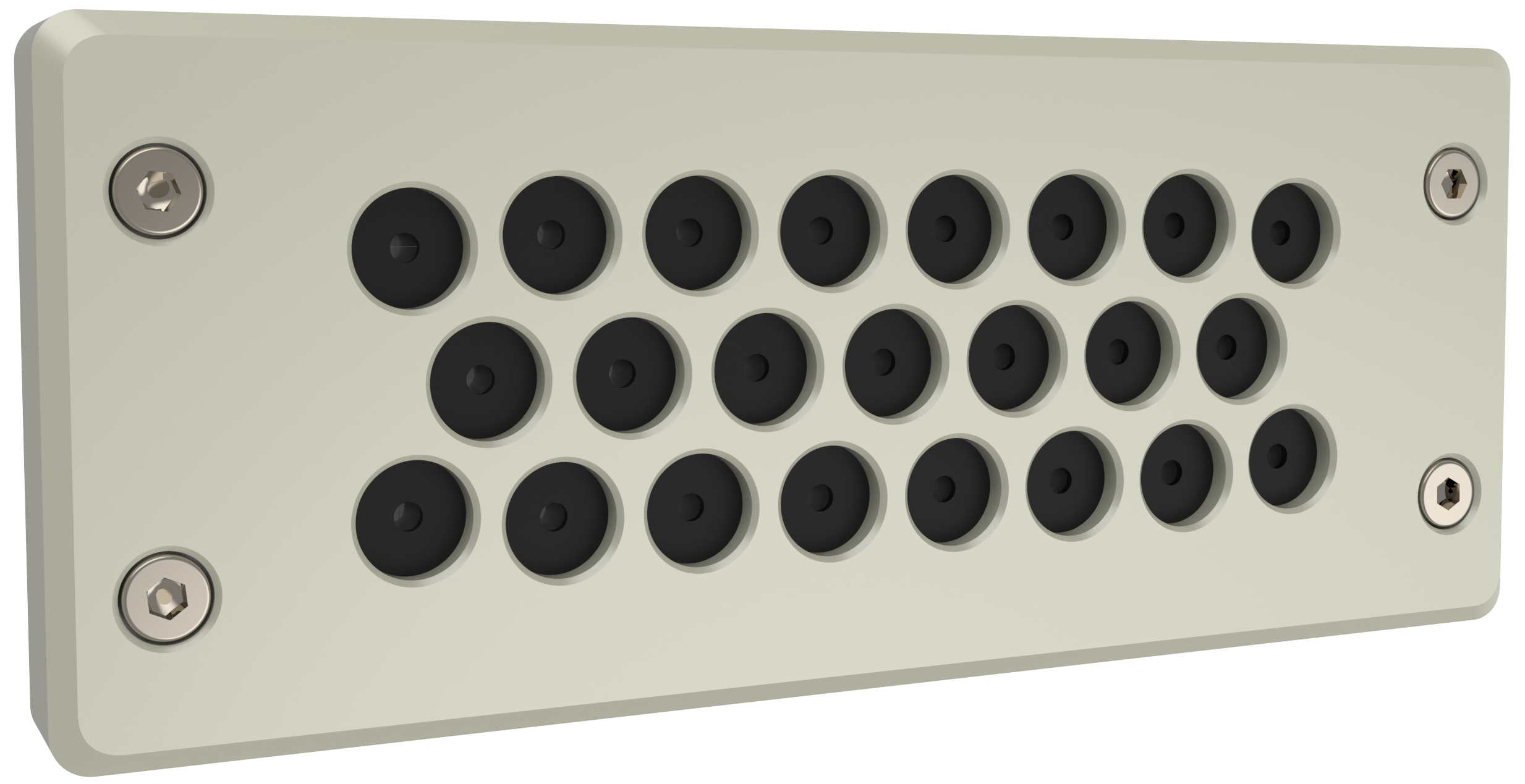

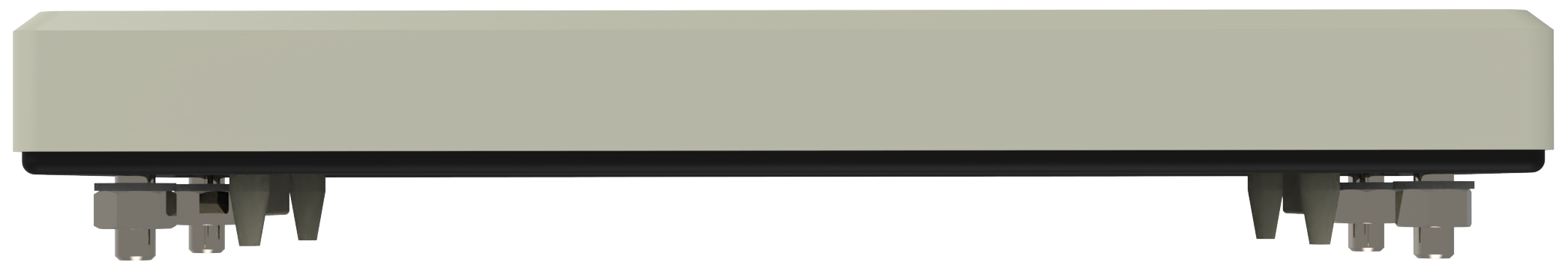

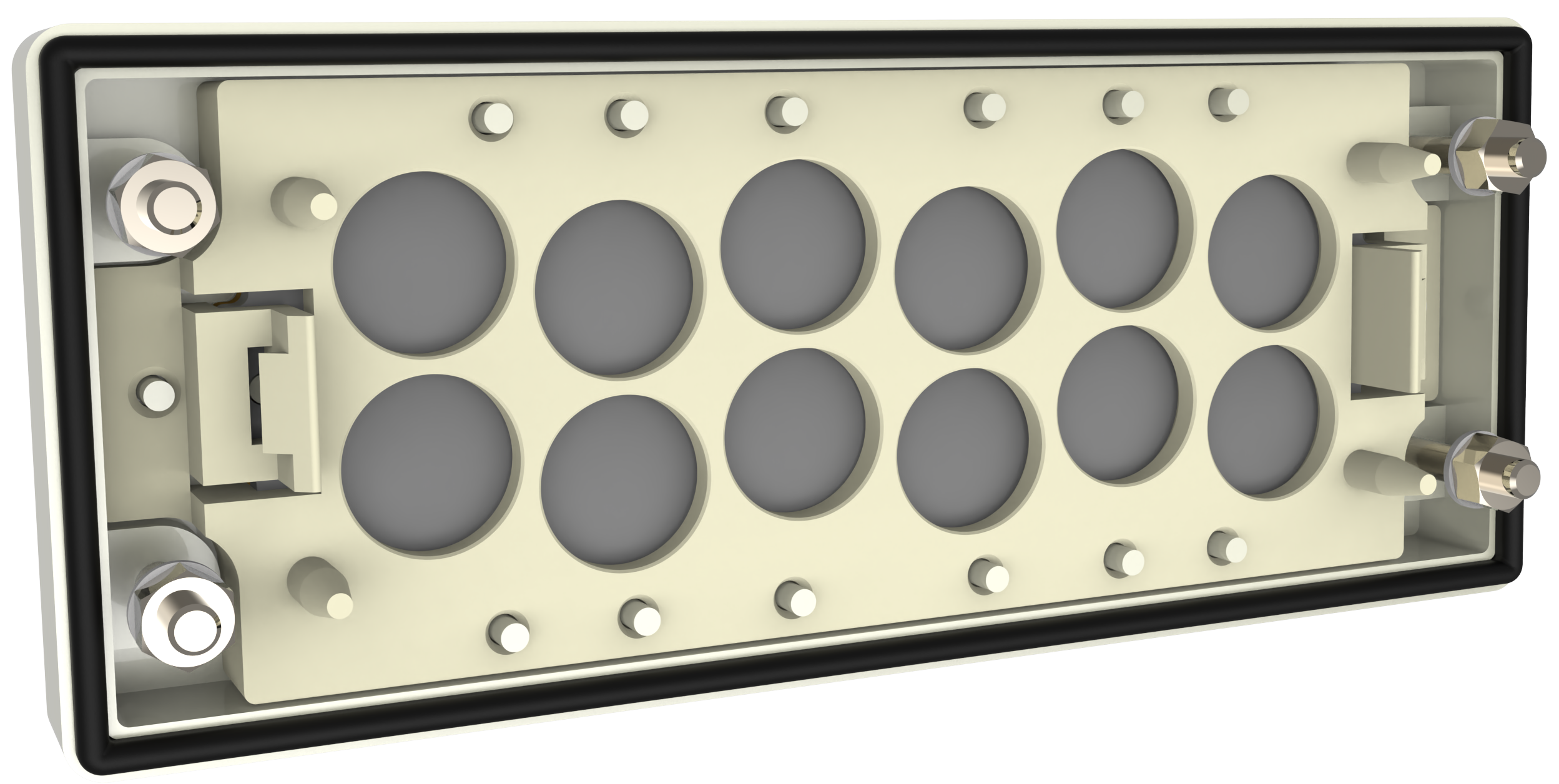

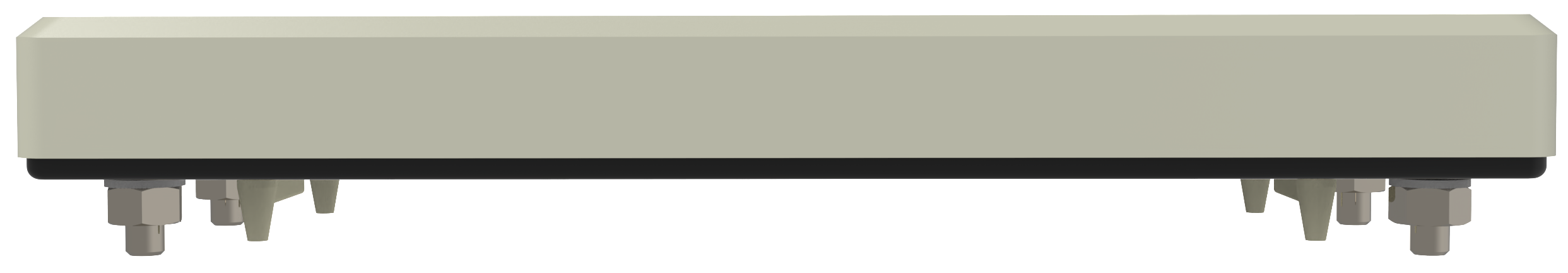

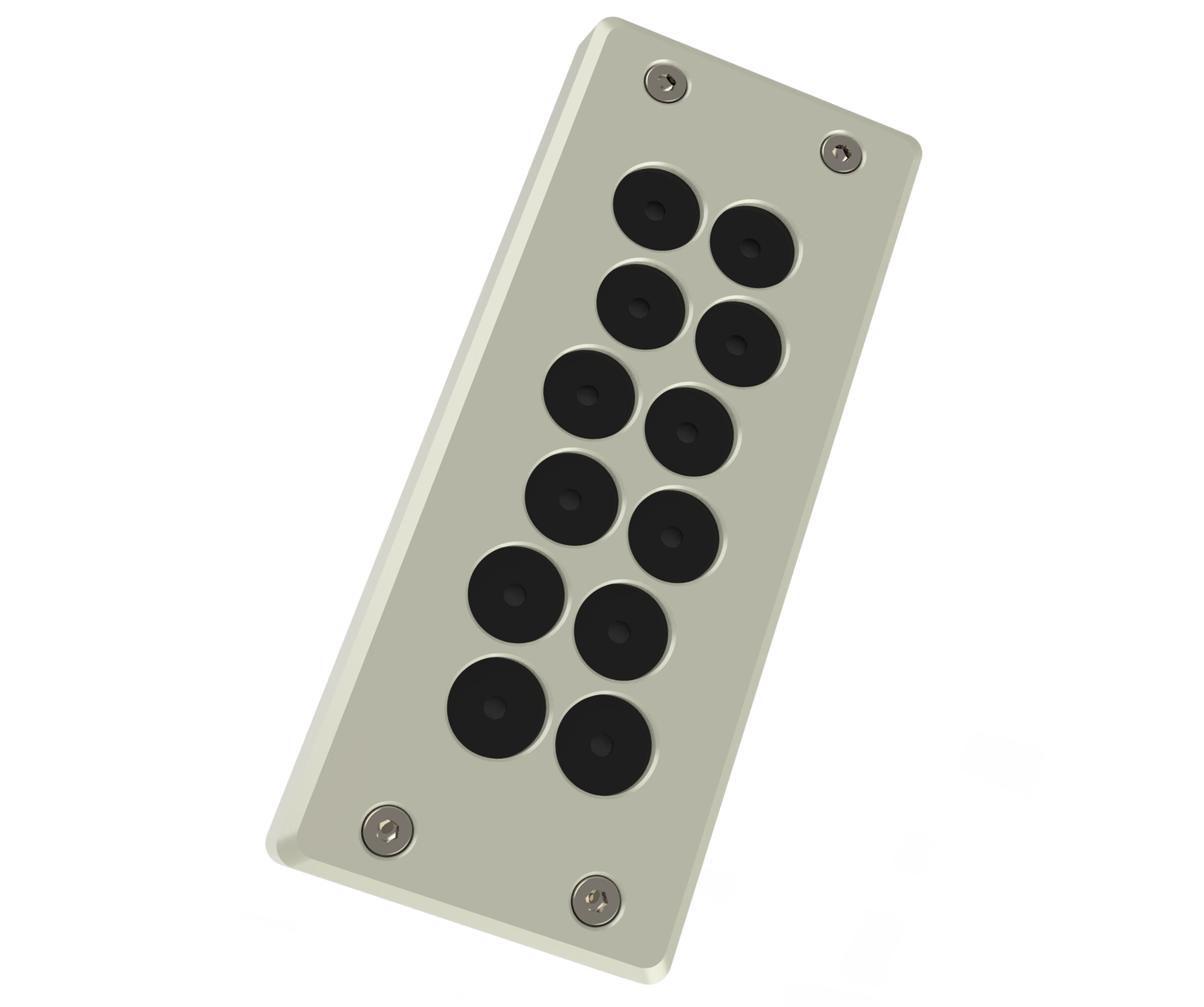

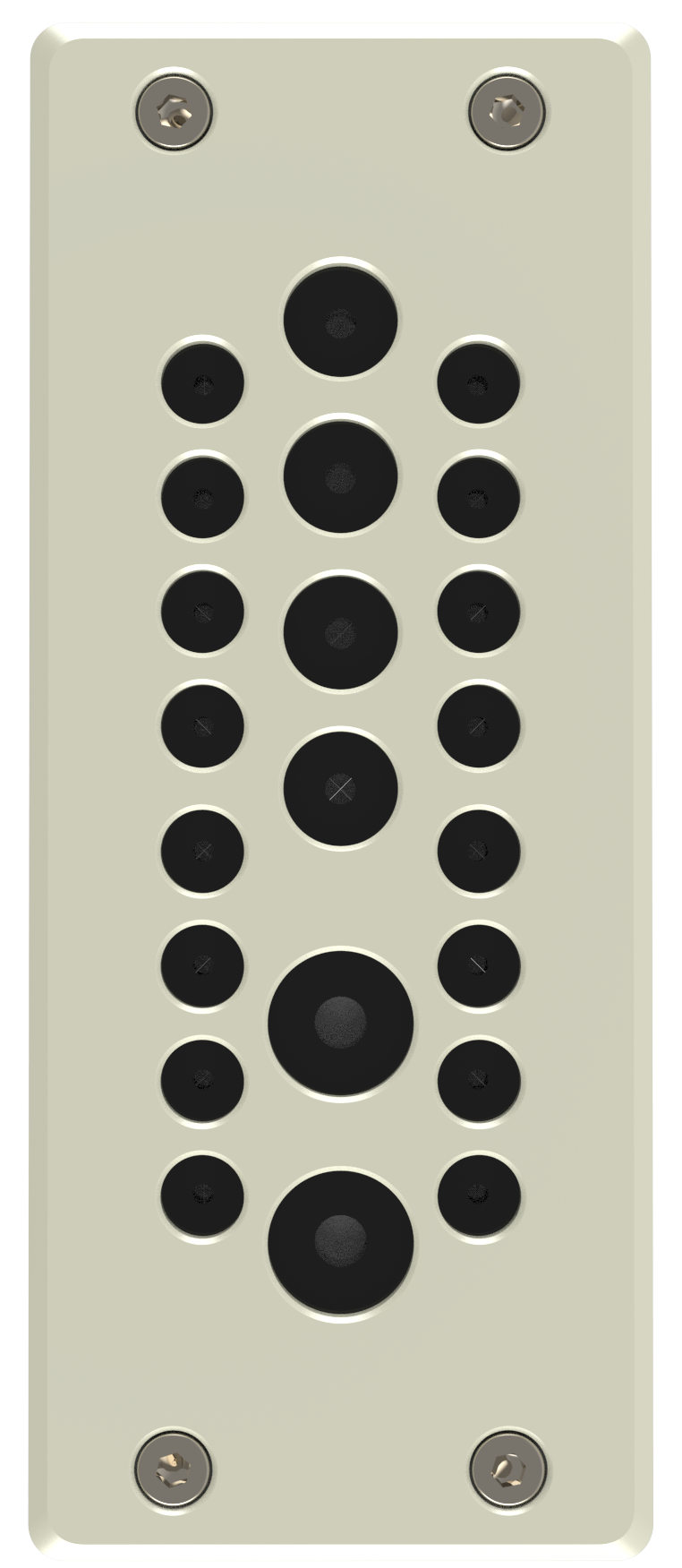

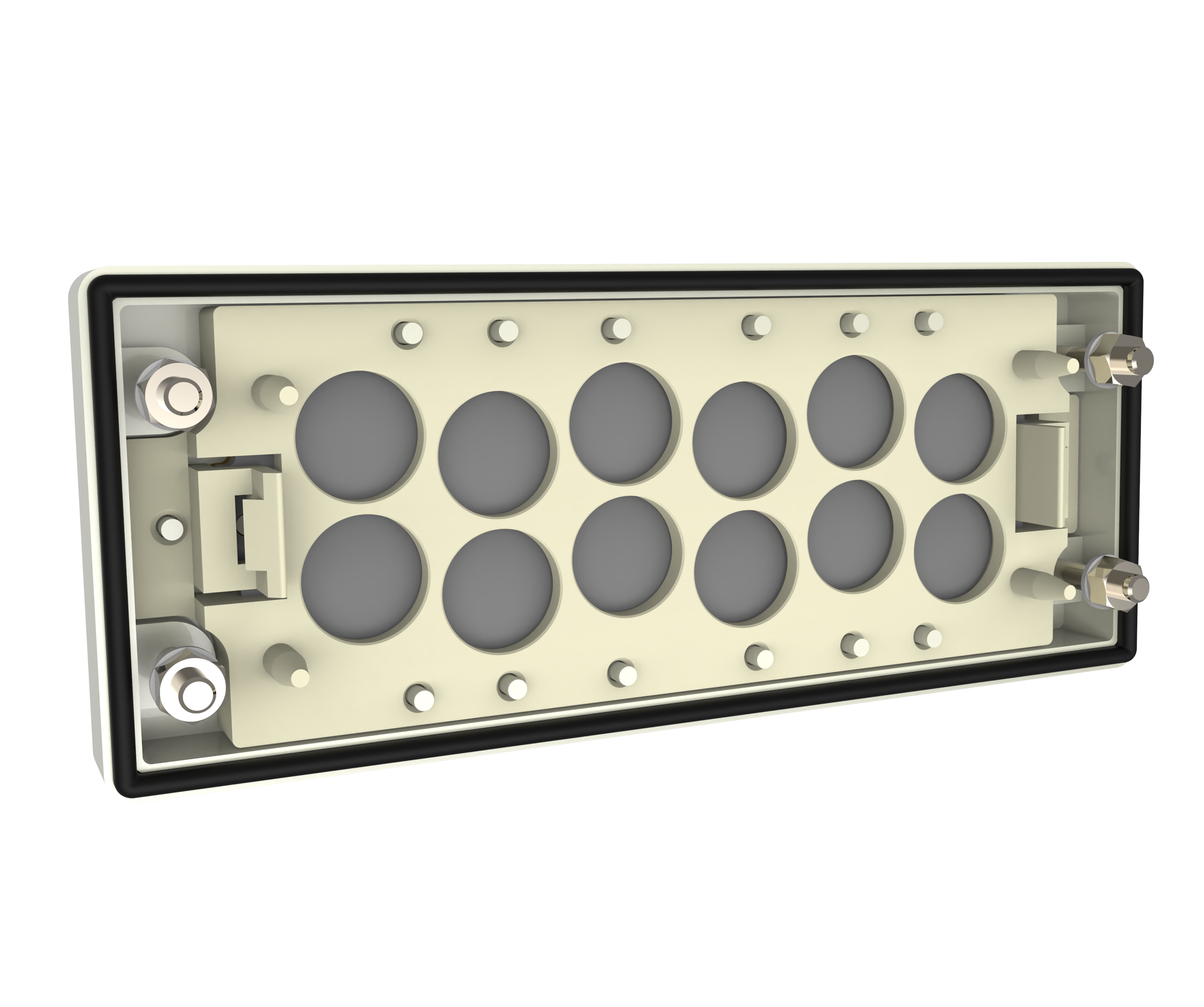

BRM kabelinnføringsplate
○Kabelinnføringsplate for ukablede kabler
○Kan brukes i stedet for kabelnippel der plassen er begrenset
○Ultrafleibel membran sikrer beskyttelsesgrad for kabeldiametere fra 5,0 til 13,0 mm
○Snap-in montering mulig for kapslingsvegger med tykkelse 1,5–2,0 mm.
Spesifikasjoner
| Frame | Depth C | Height B | Plate Type | Clamping Range Ø mm | No. Of Cable Entries | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|---|
| 5.826771653543307 | 0.531496062992126 | 2.362204724409449 | BRM00 | - | 0 | — | BRM00-1 | — | |
| 5.826771653543307 | 0.531496062992126 | 2.362204724409449 | BRM00 | - | 0 | — | BRM00-2 | — | |

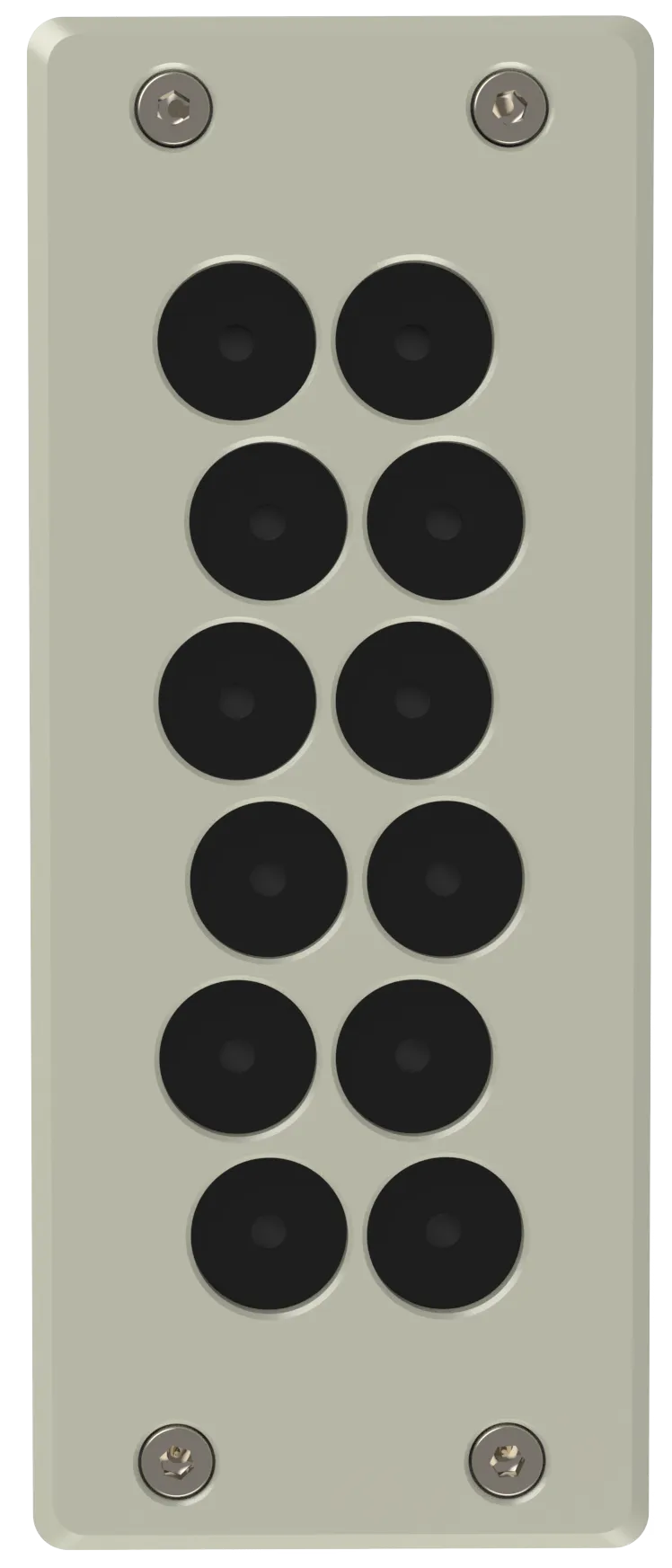

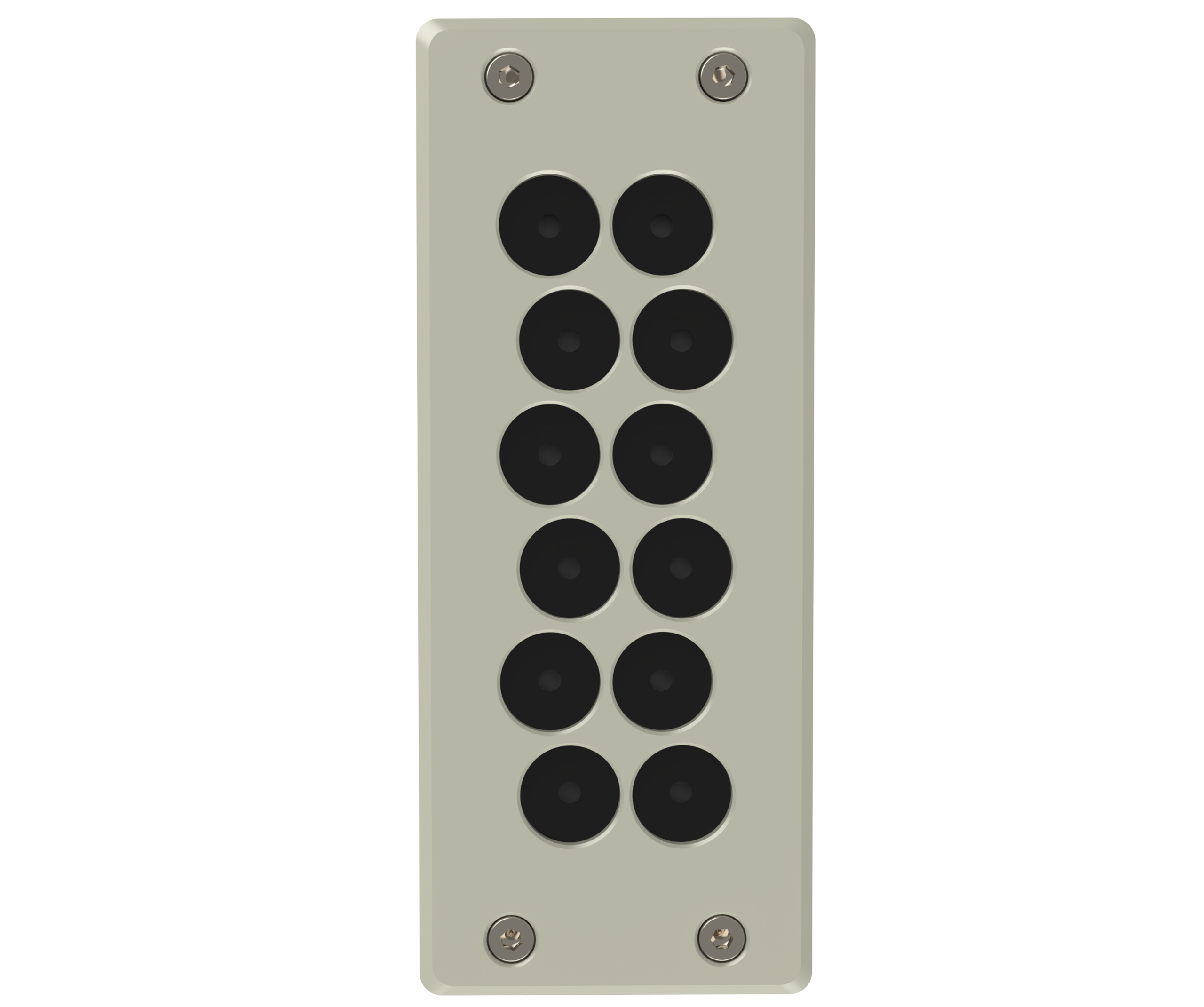

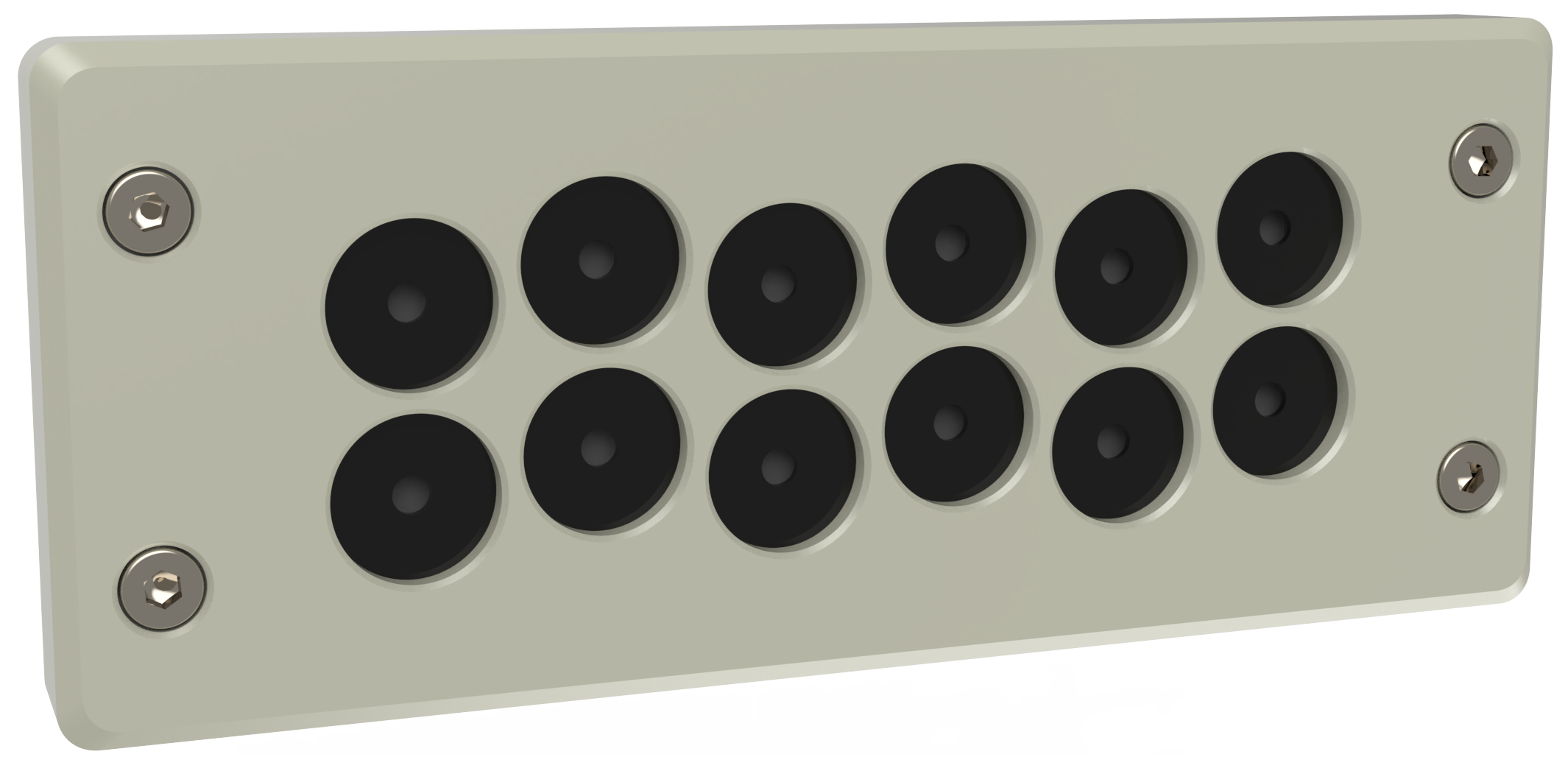

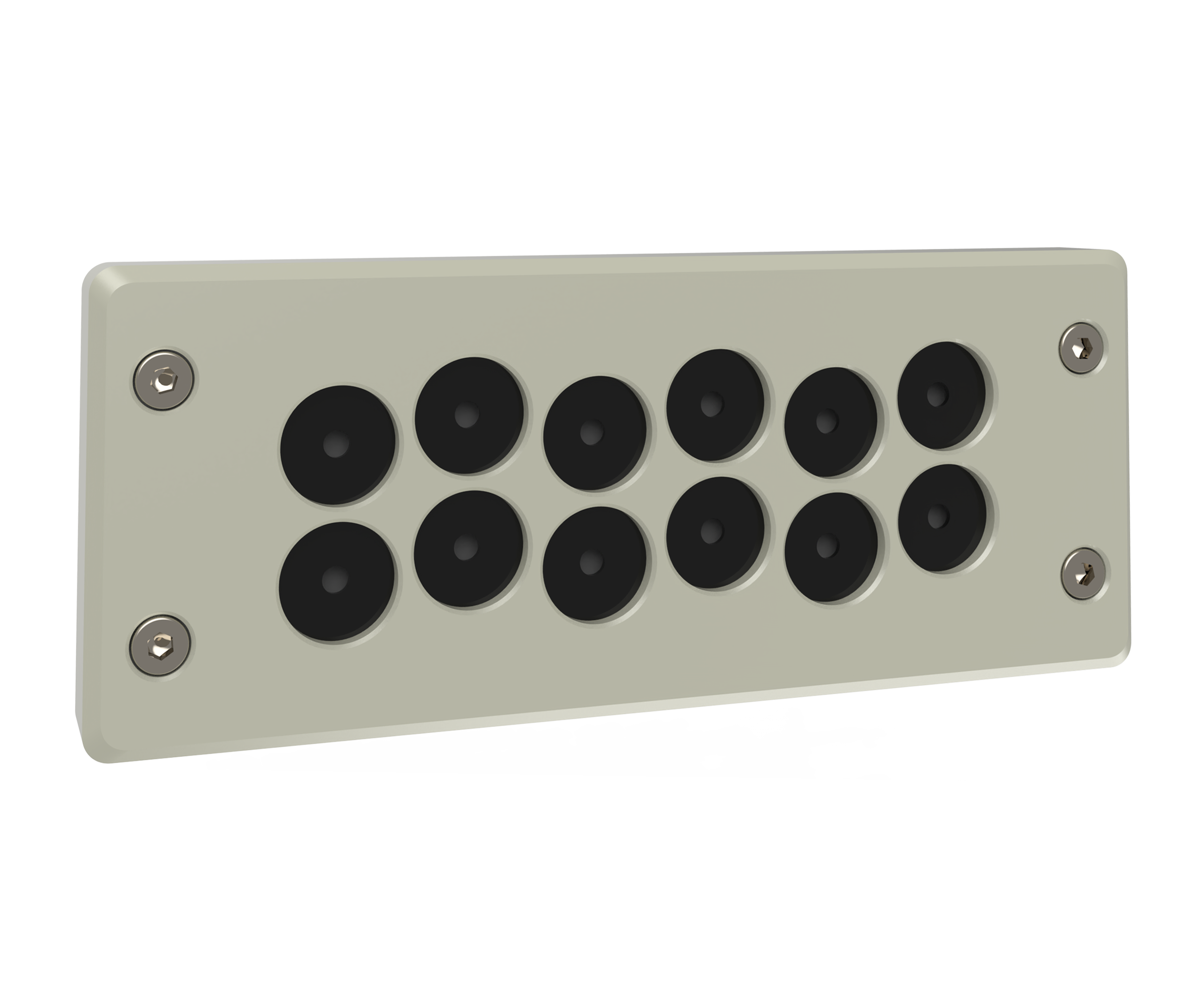

| — | — | — | BRM12 | 0,157 - 0,512 | 12 | — | BRM12-1 | — | |
| — | — | — | BRM12 | 0,157 - 0,512 | 12 | — | BRM12-2 | — | |

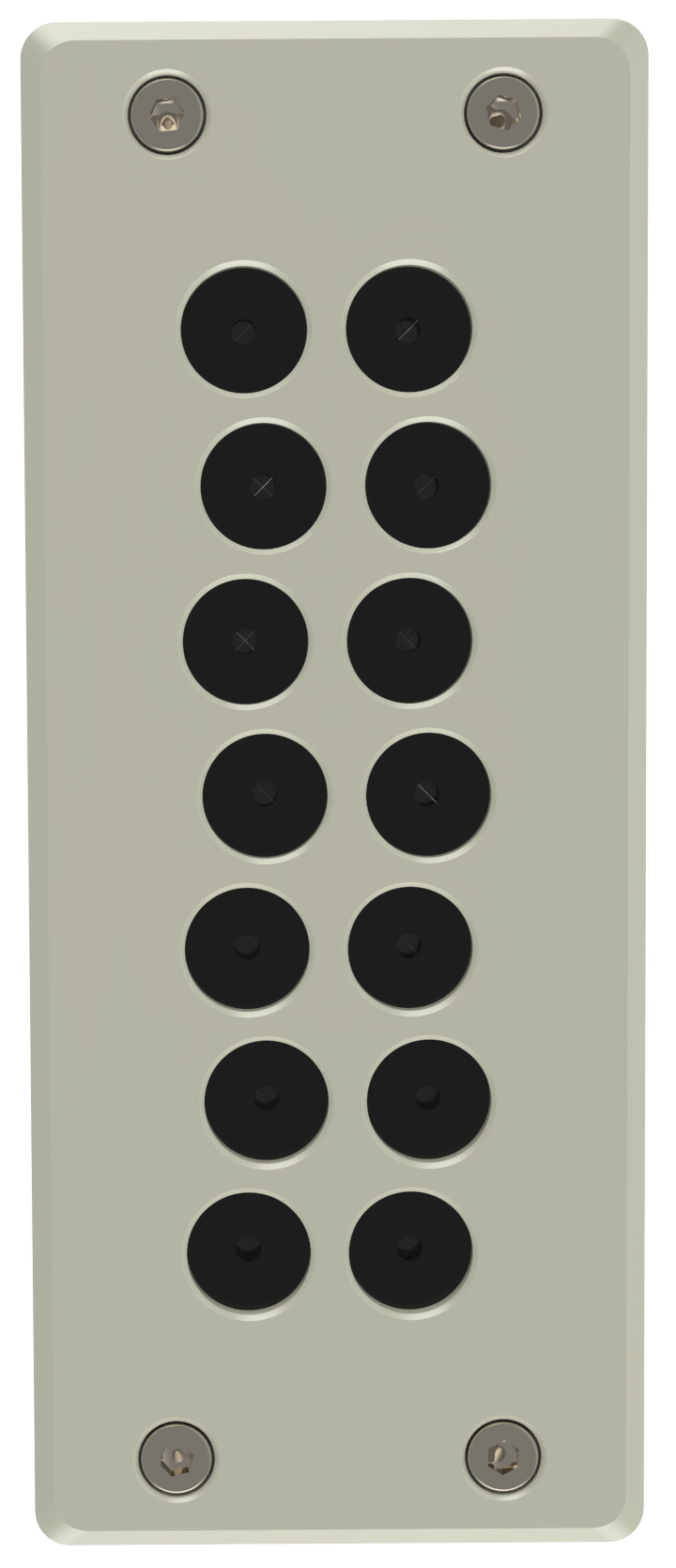

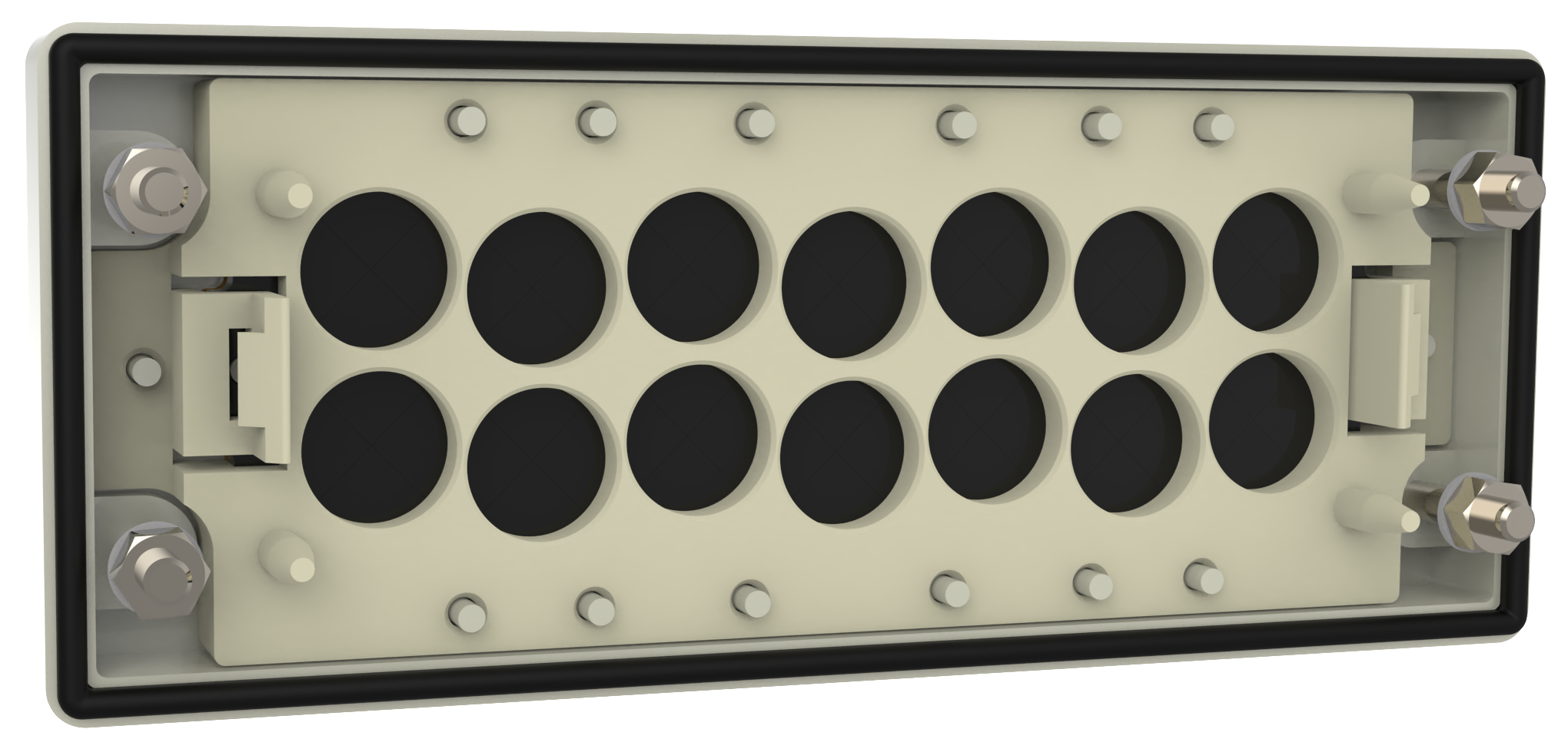

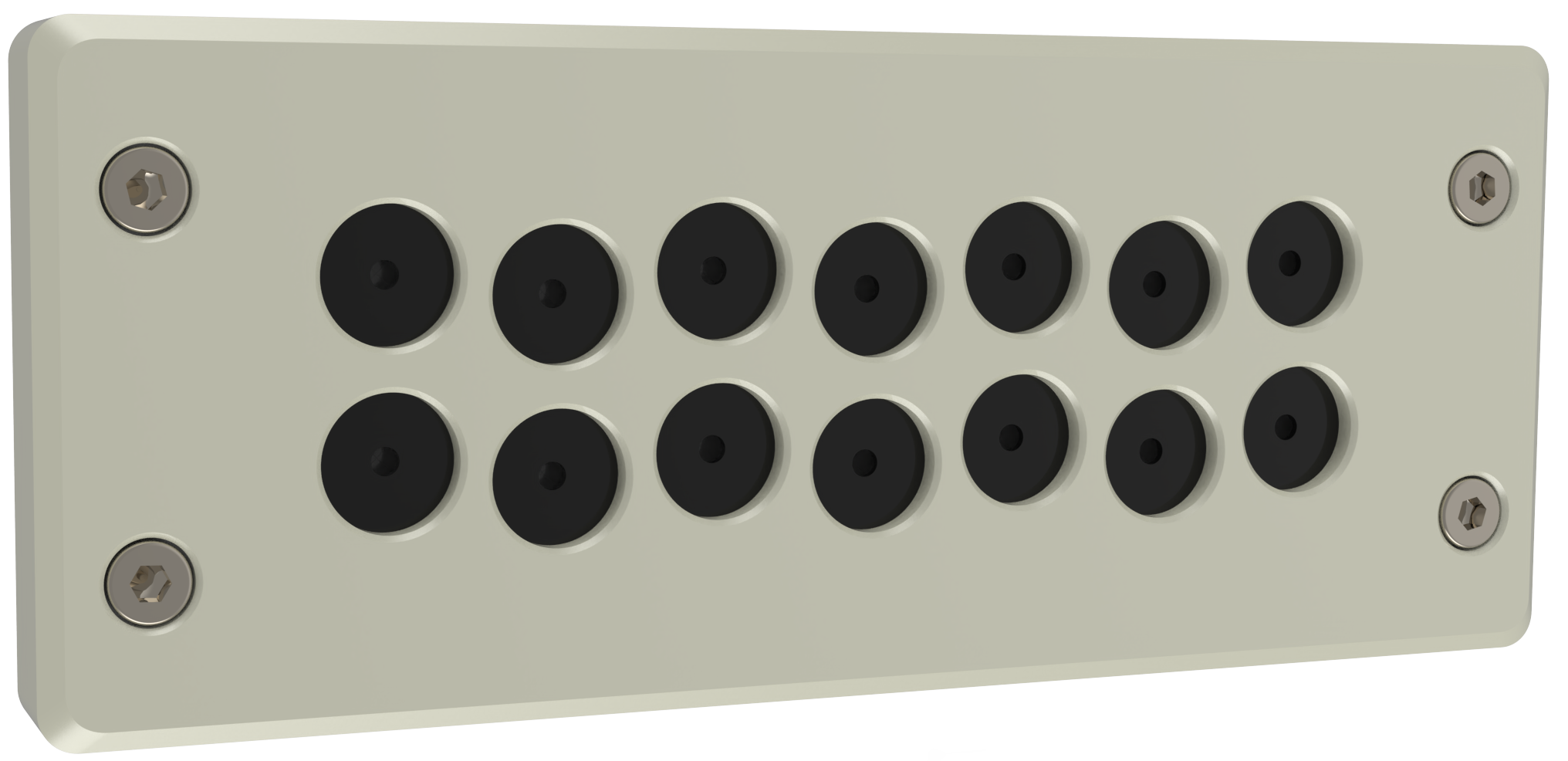

| — | — | — | BRM14 | 0,197 - 0,433 | 14 | — | BRM14-1 | — | |
| — | — | — | BRM14 | 0,197 - 0,433 | 14 | — | BRM14-2 | — | |

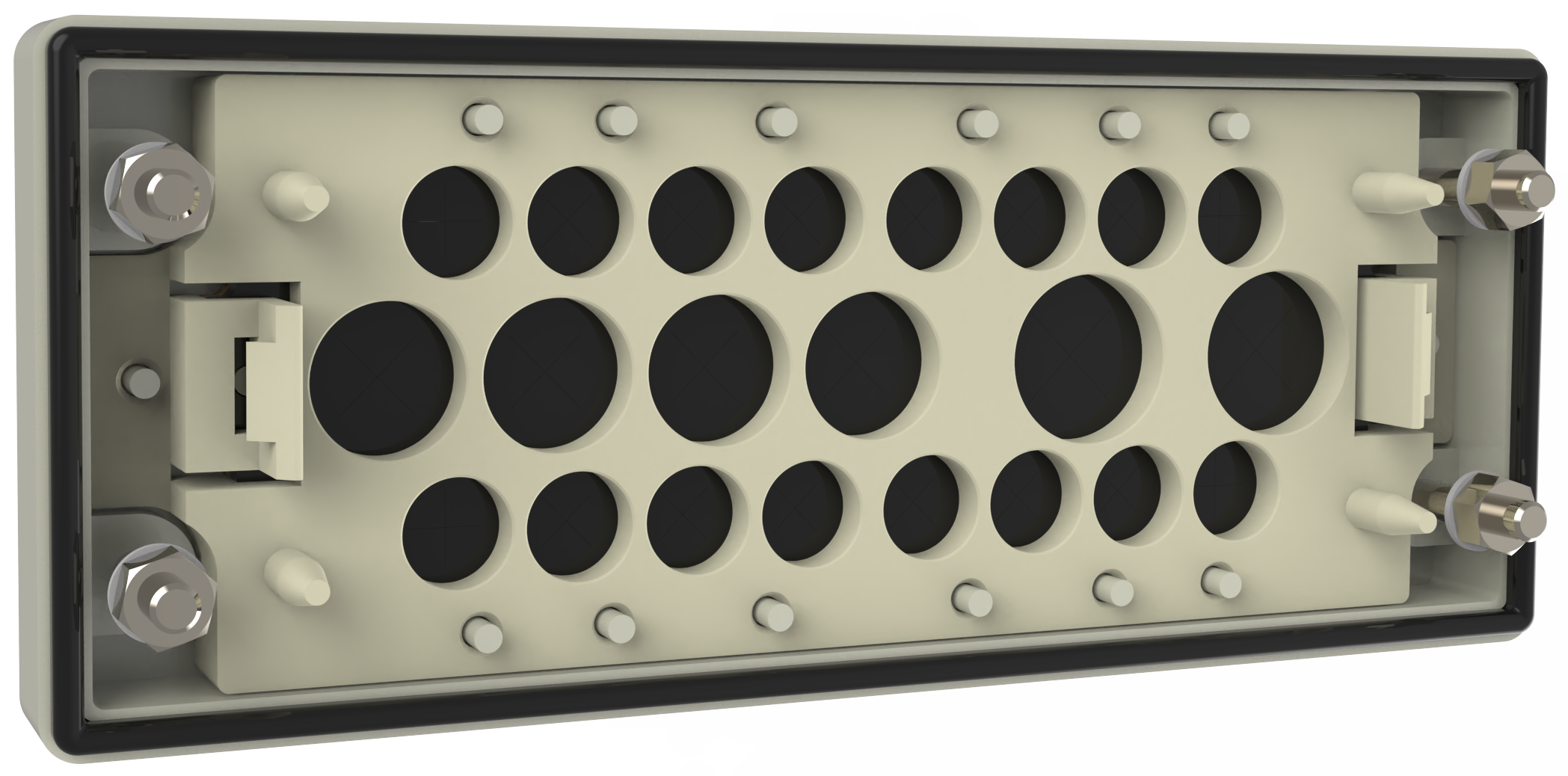

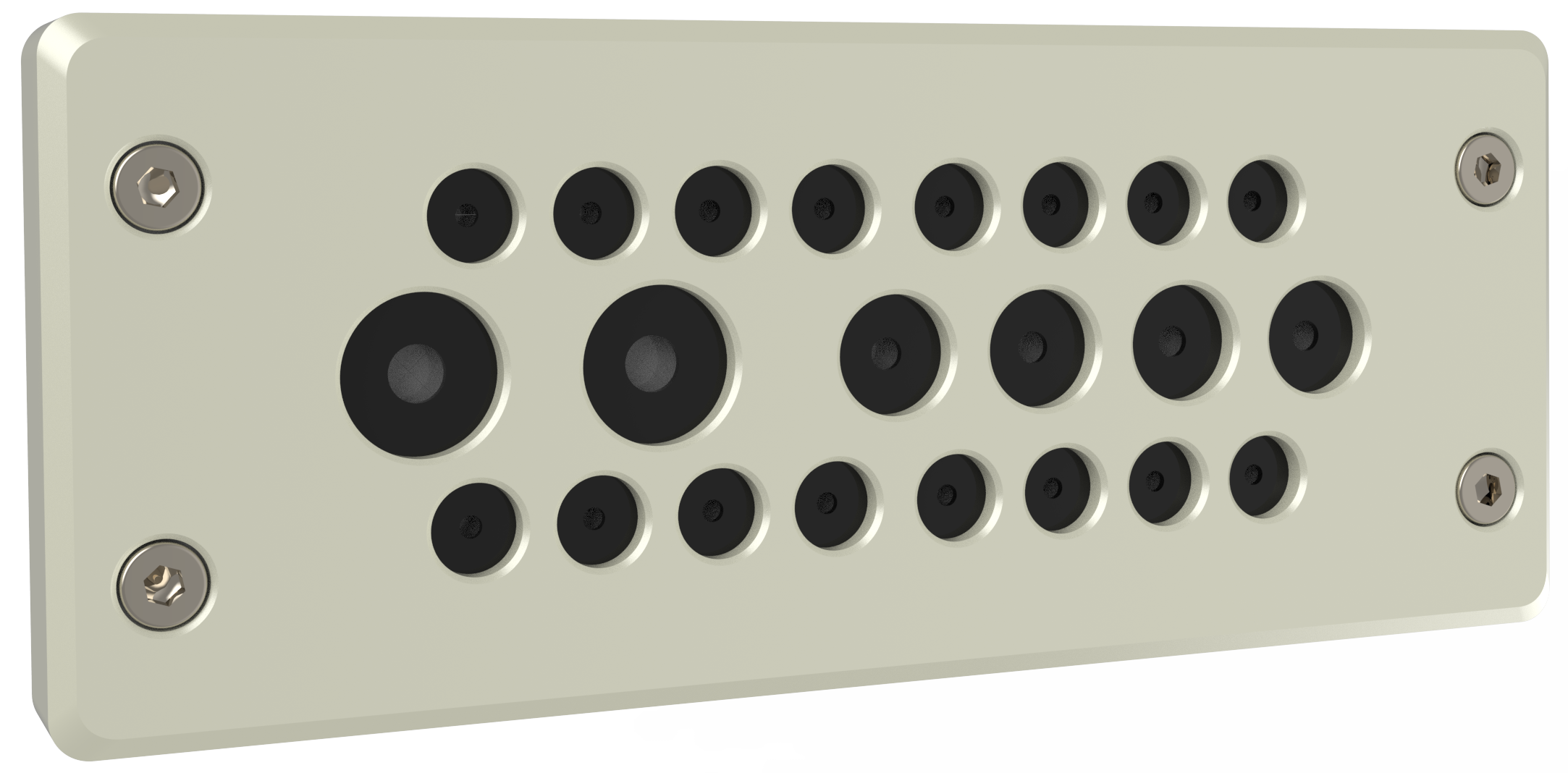

| — | — | — | BRM22 | 16 x 0,118 - 0,256 | 22 (16+4+2) | — | BRM22-1 | — | |
| — | — | — | BRM22 | 16 x 0,118 - 0,256 | 22 (16+4+2) | — | BRM22-2 | — | |

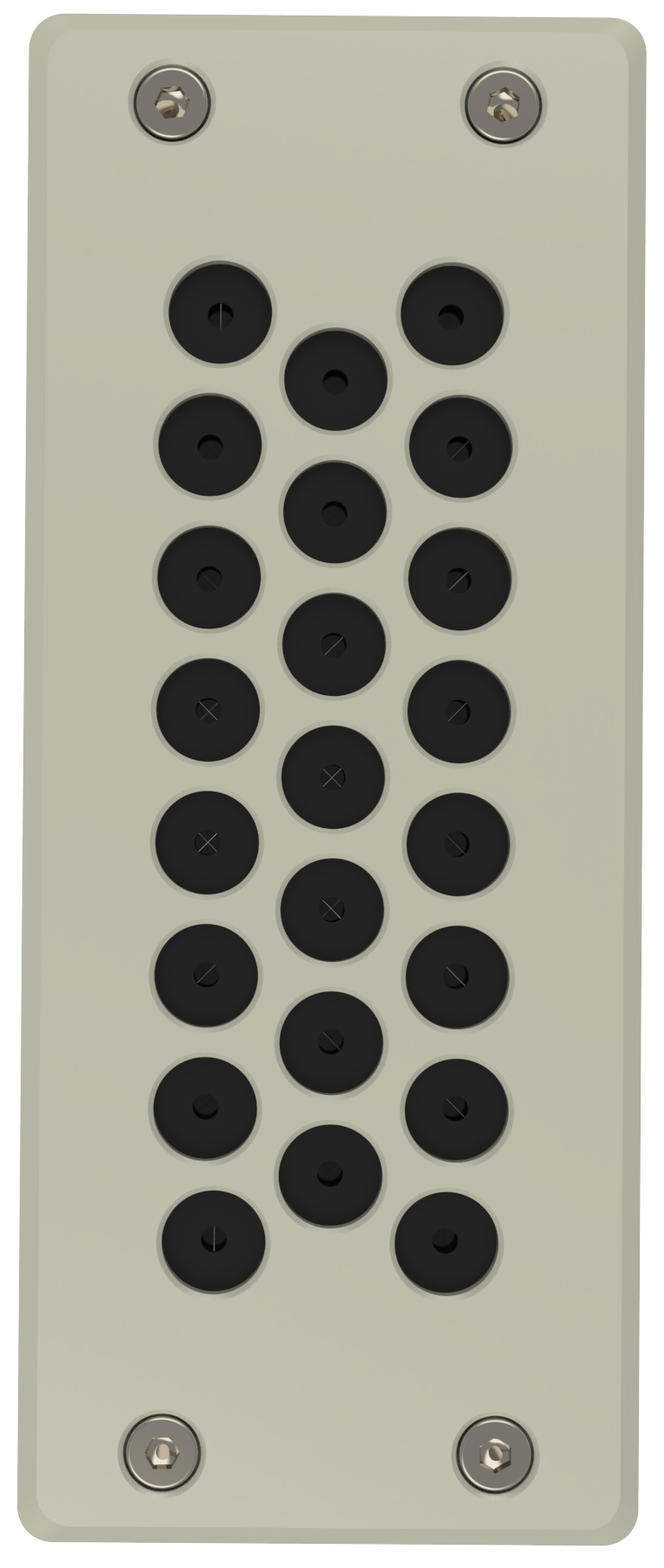

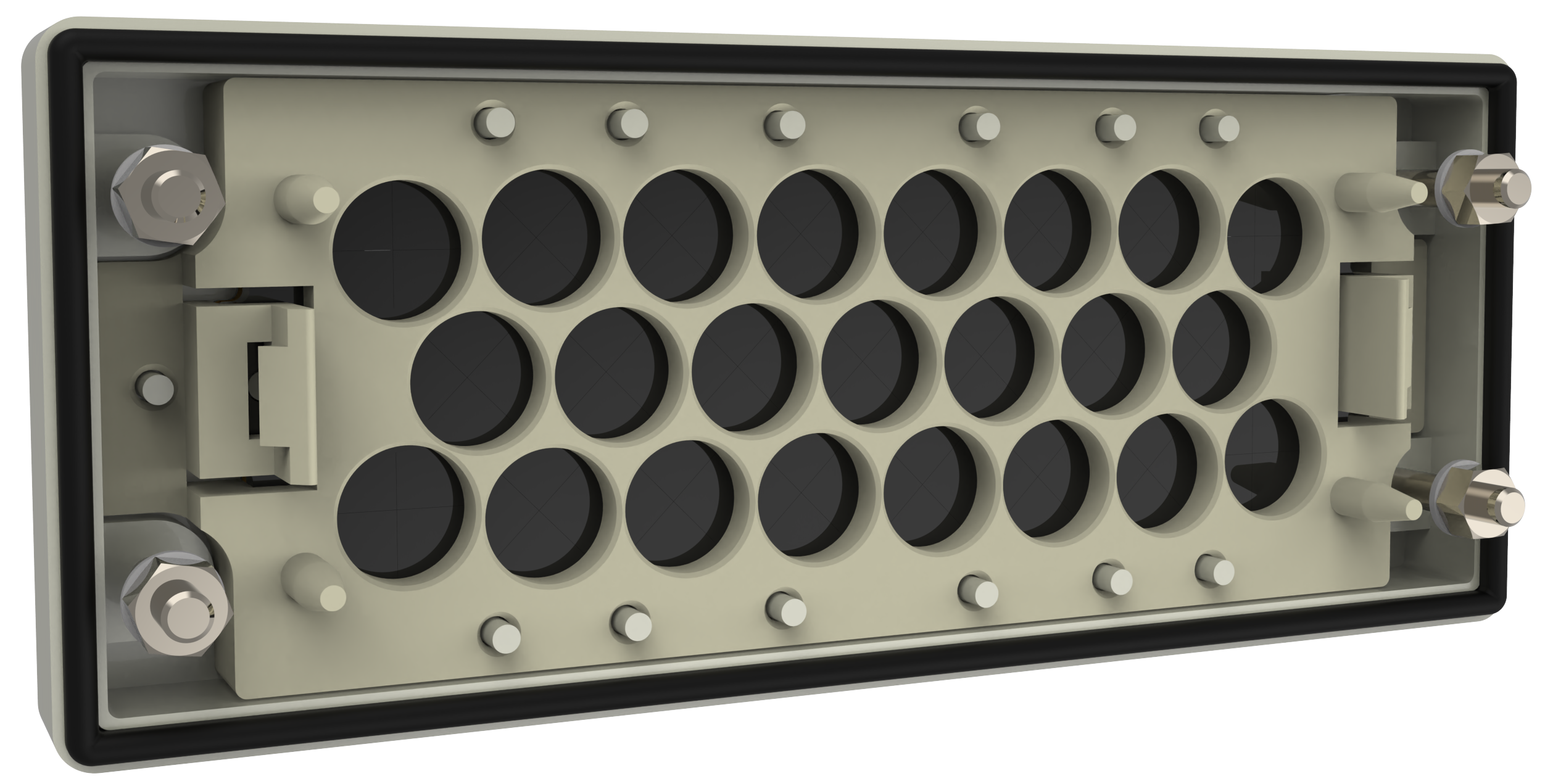

| — | — | — | BRM23 | 0,157 - 0,335 | 23 | — | BRM23-1 | — | |
| — | — | — | BRM23 | 0,157 - 0,335 | 23 | — | BRM23-2 | — | |

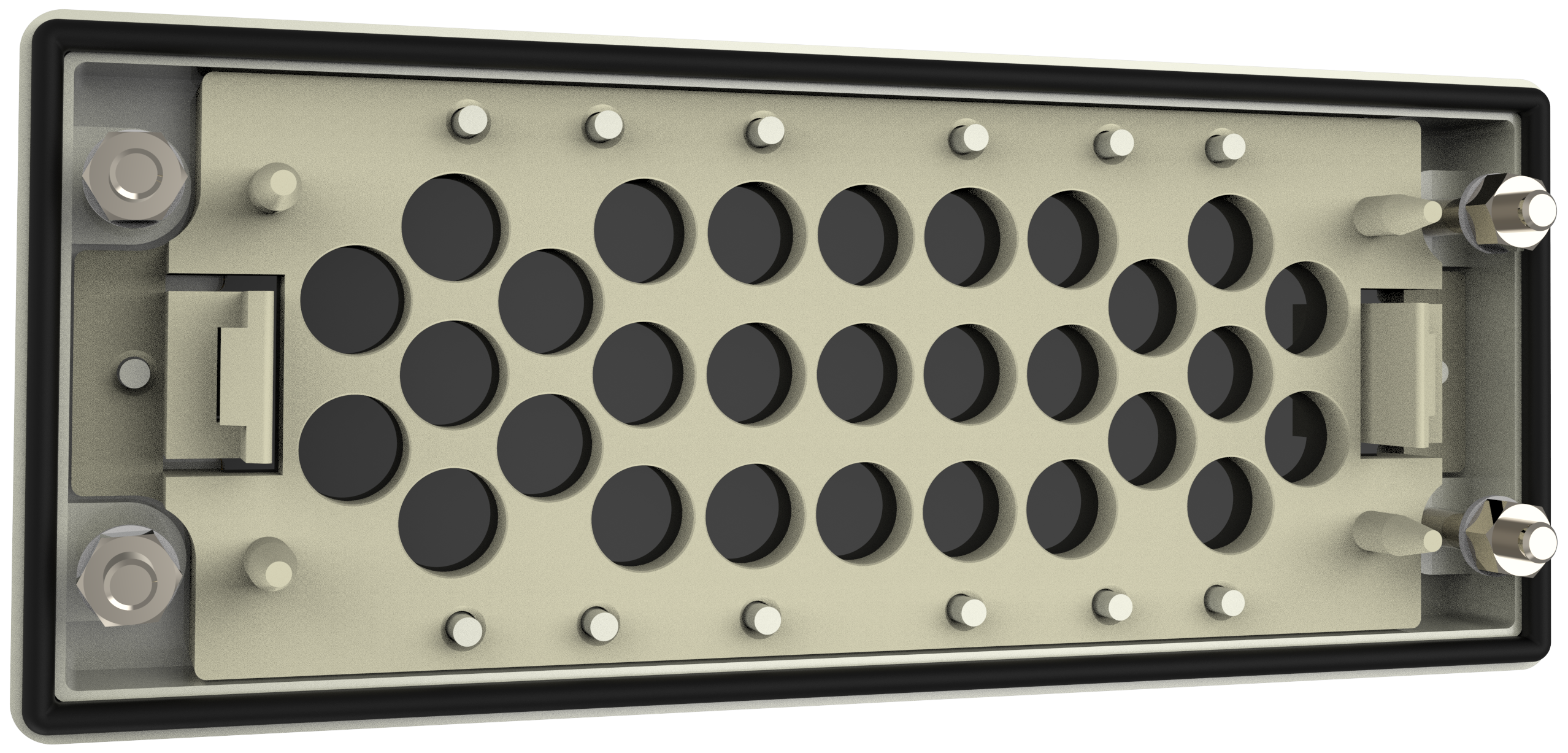

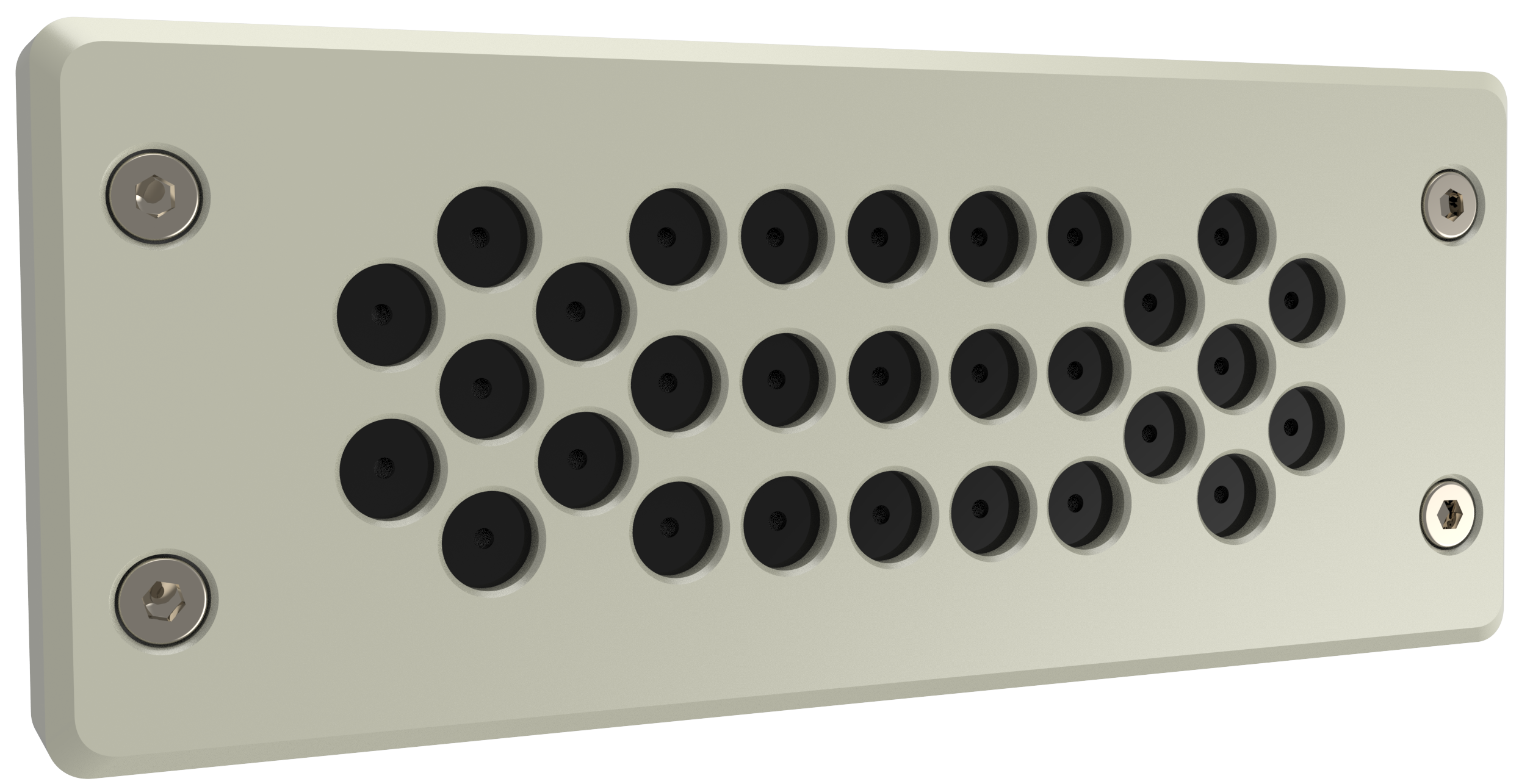

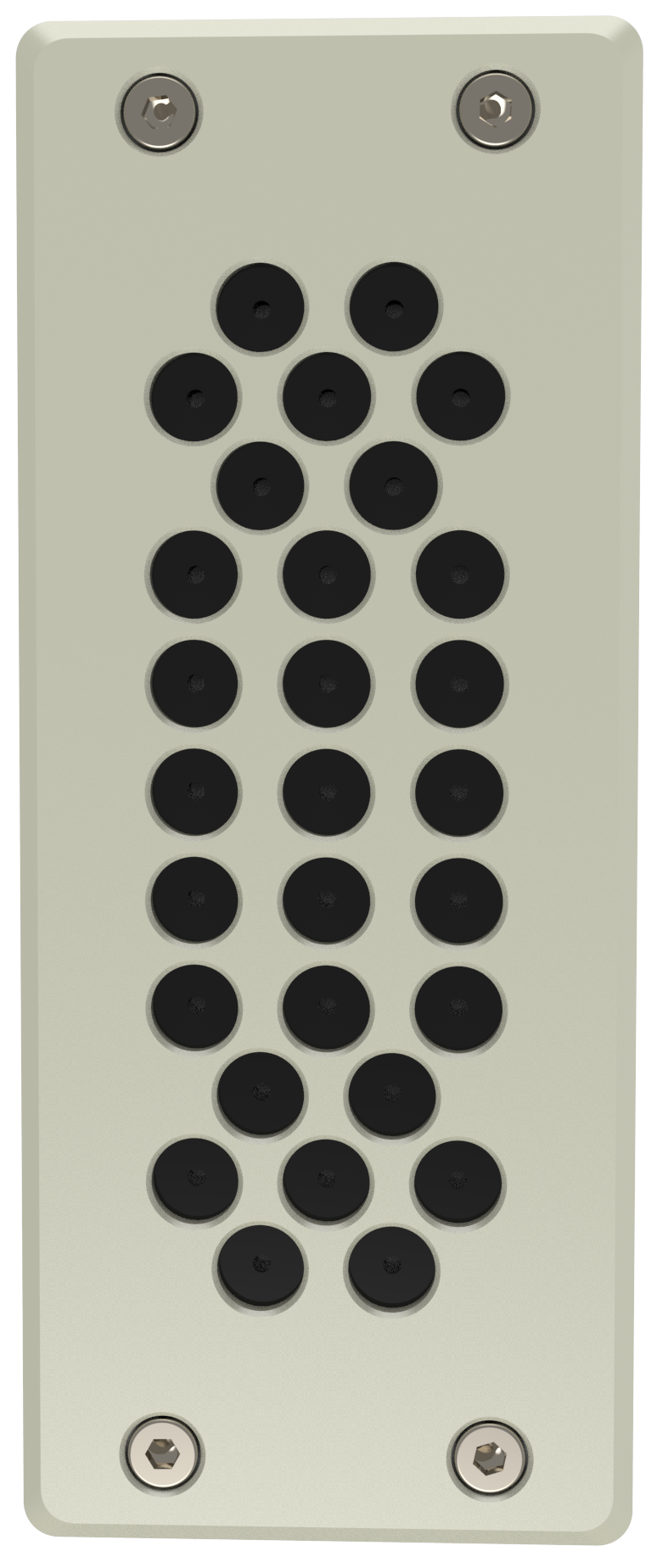

| — | — | — | BRM29 | 0,157 - 0,276 | 29 | — | BRM29-1 | — | |
| — | — | — | BRM29 | 0,157 - 0,276 | 29 | — | BRM29-2 | — |
