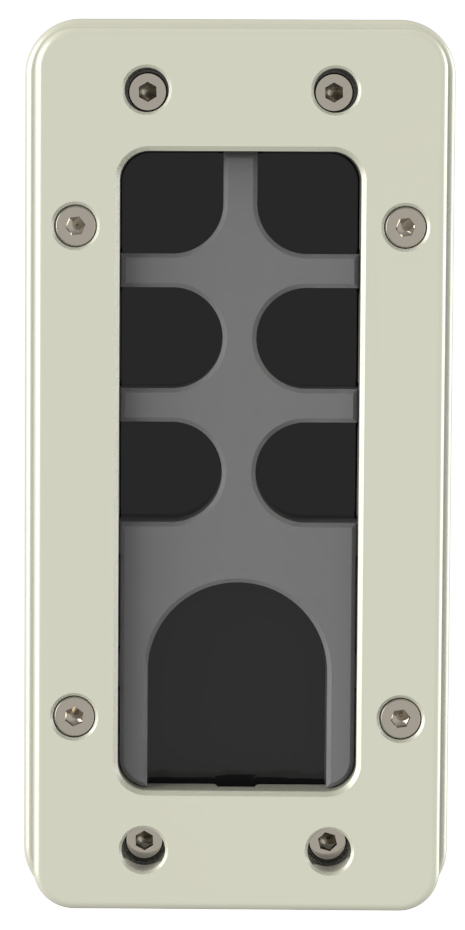

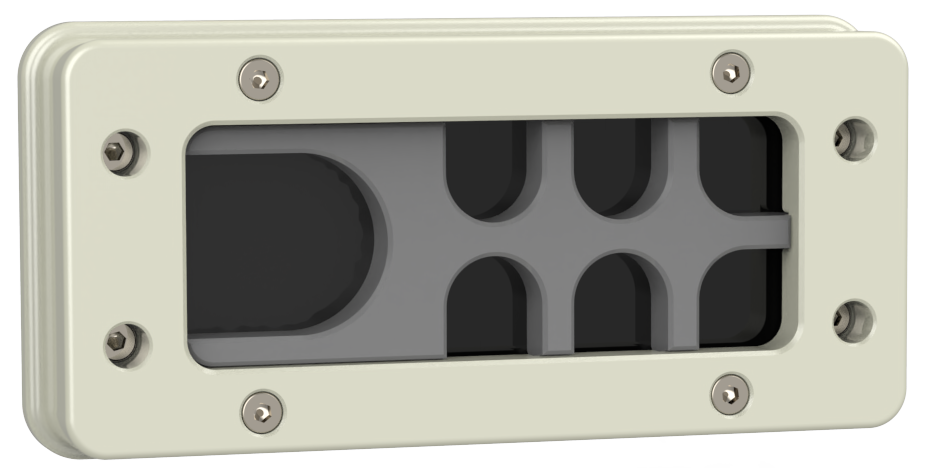

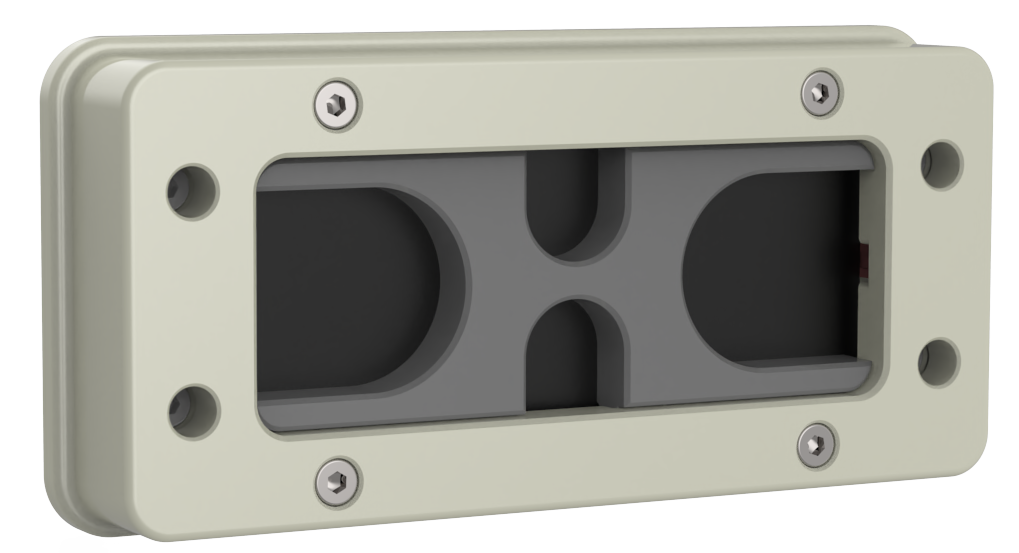

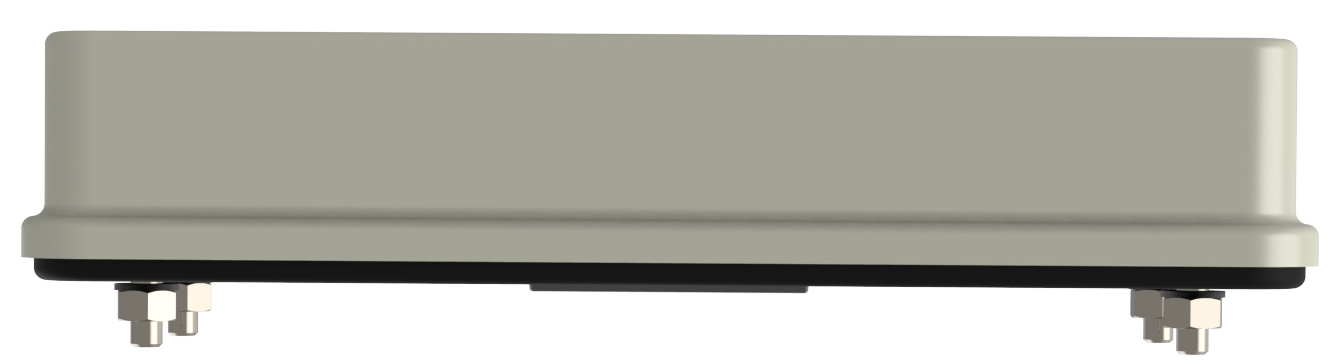

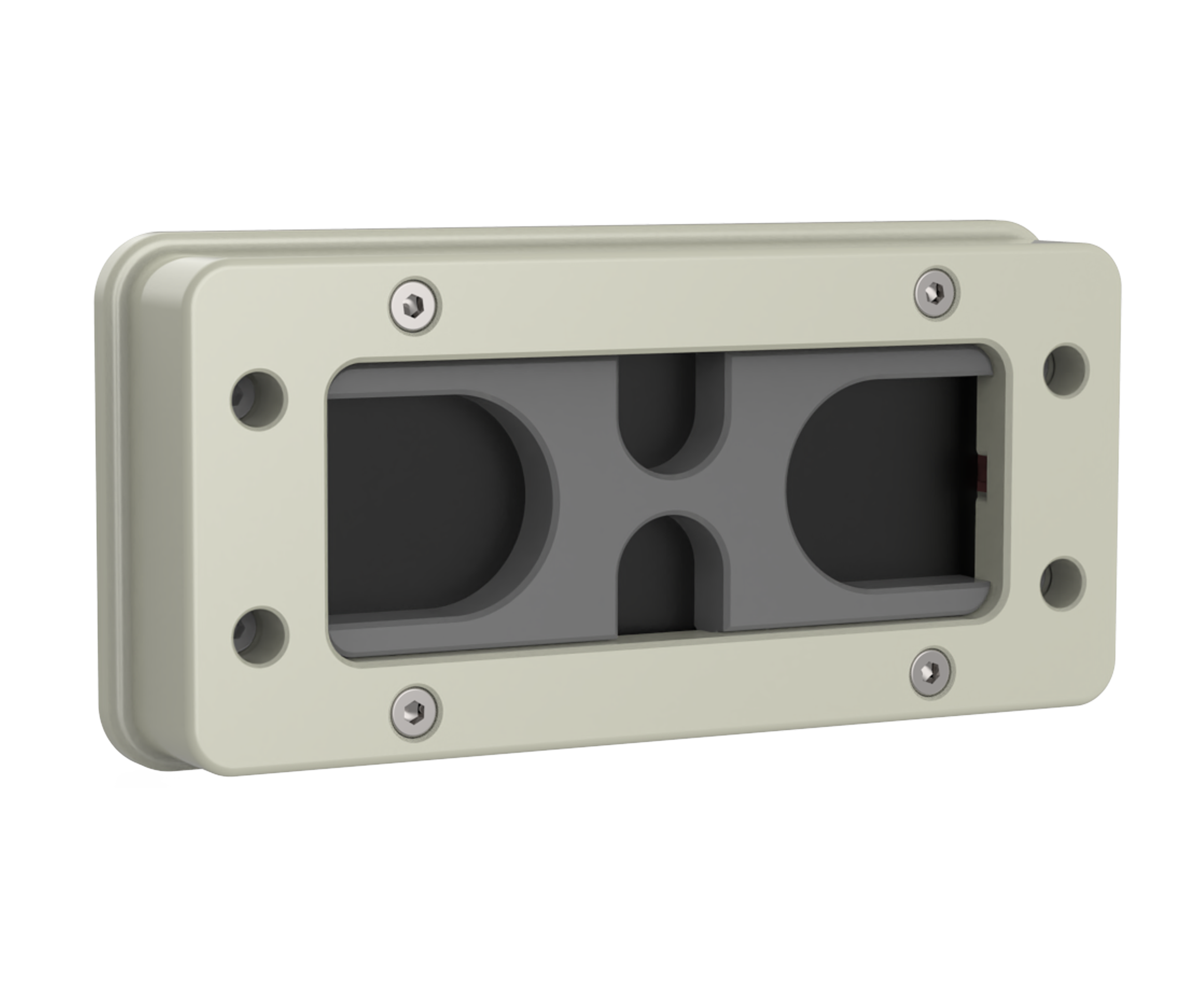

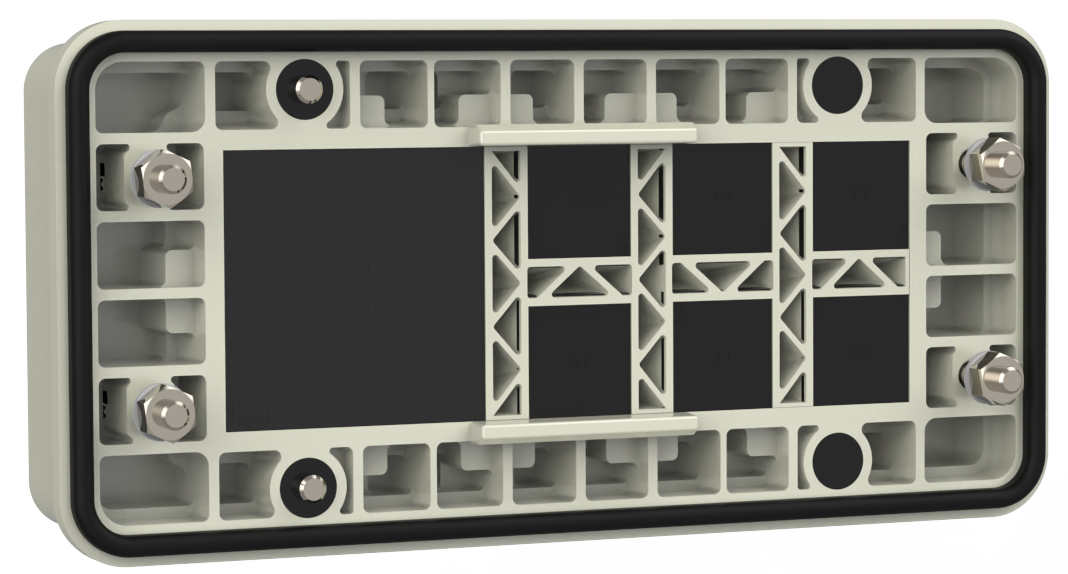

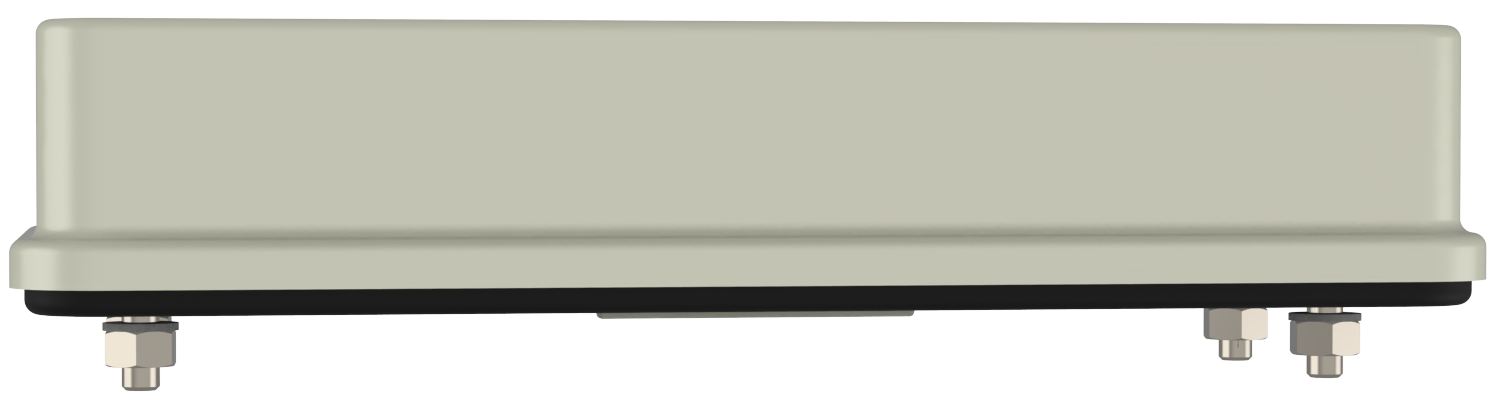

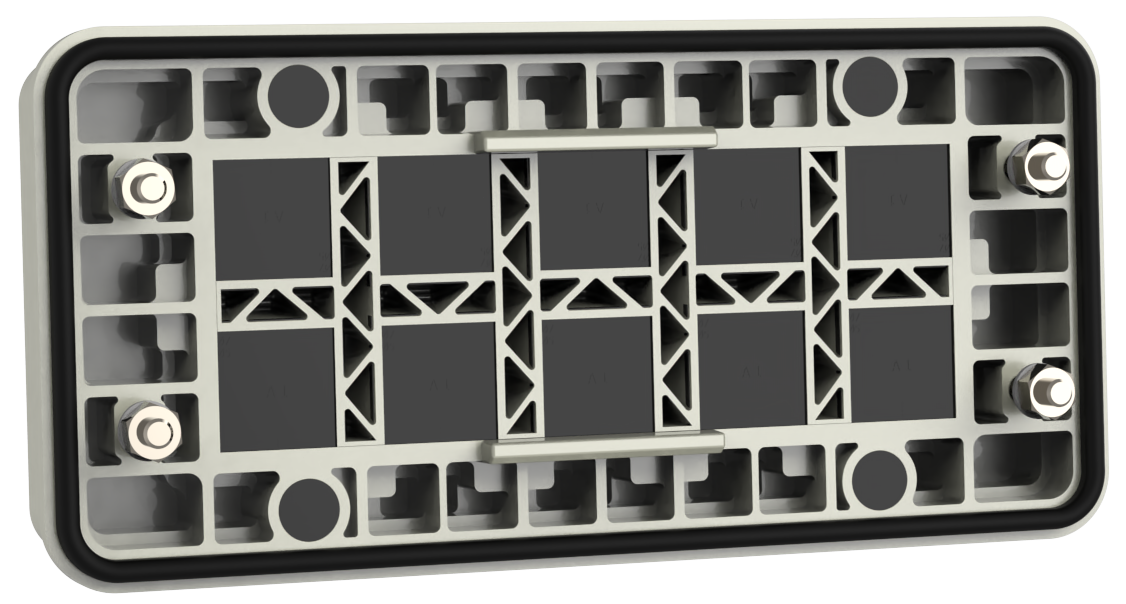

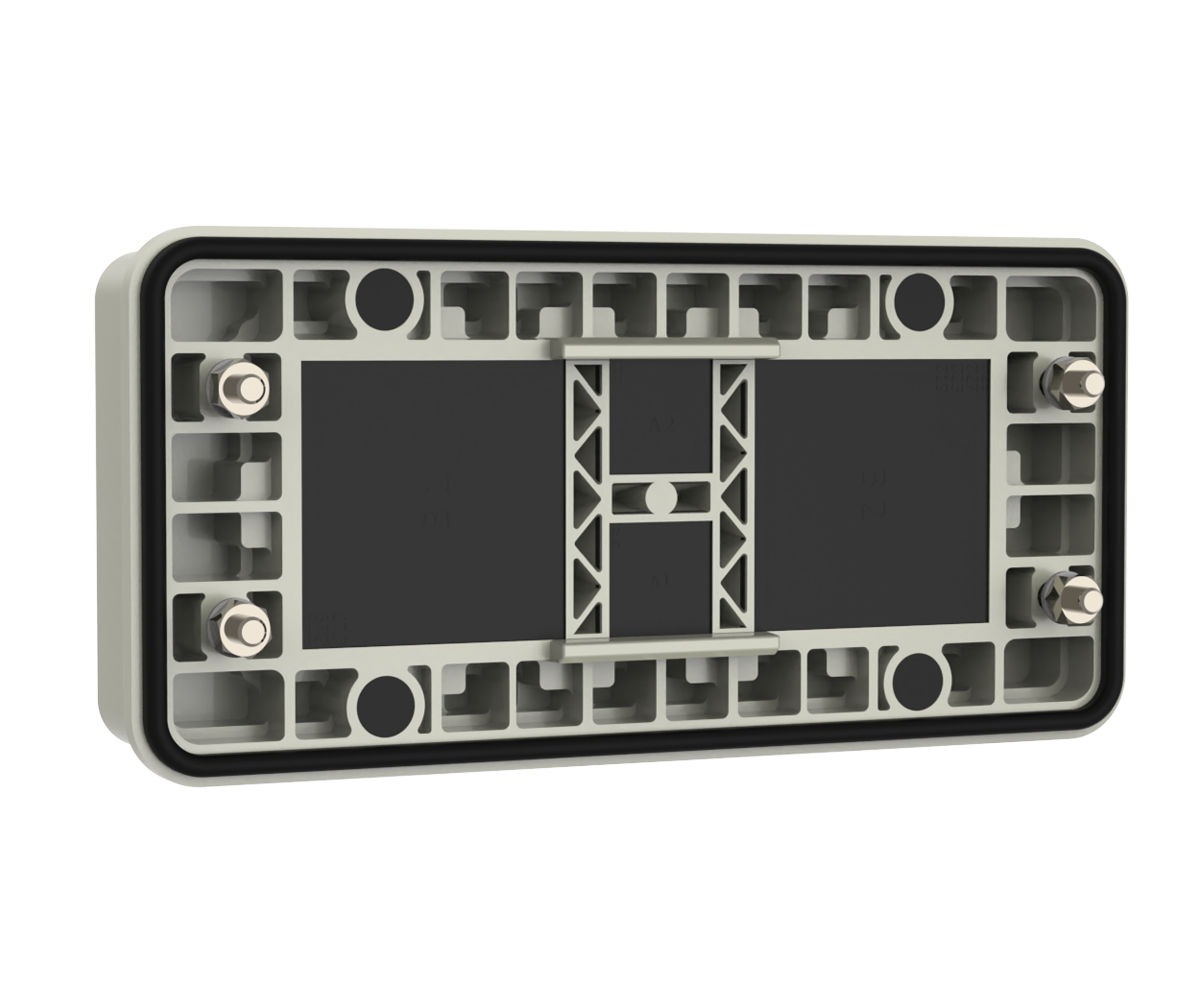

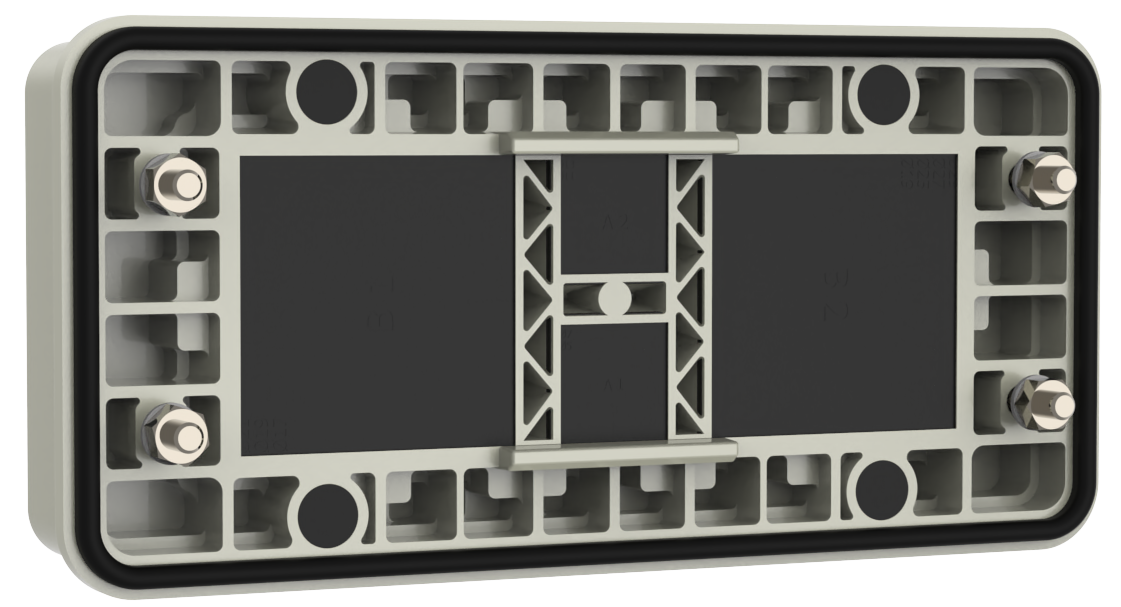

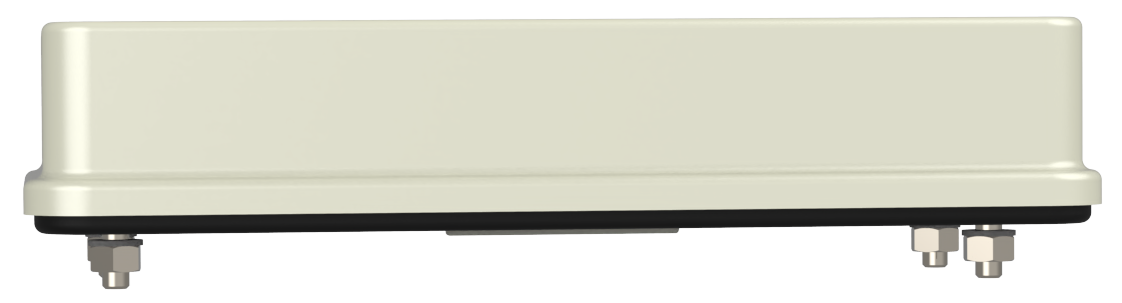

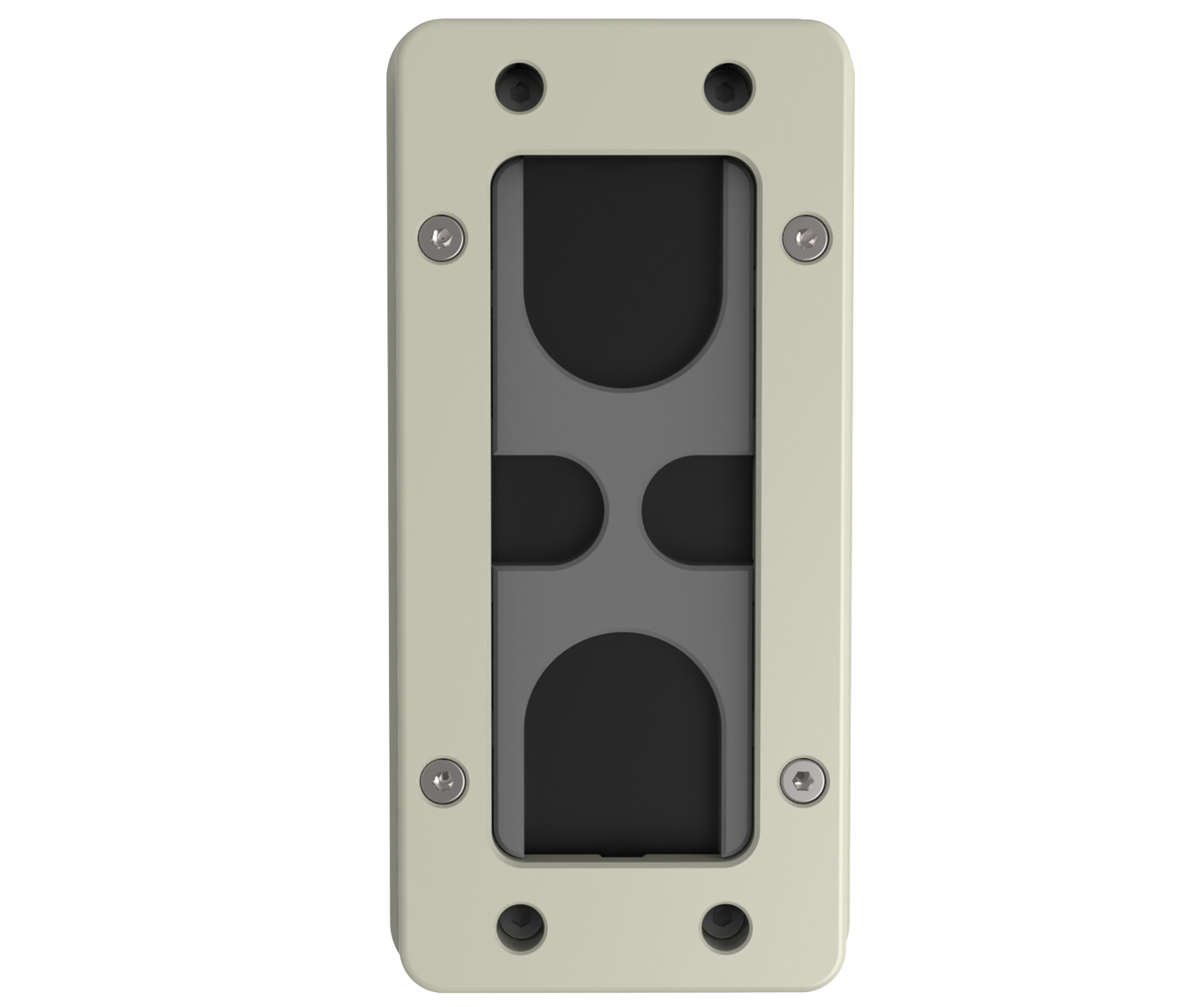

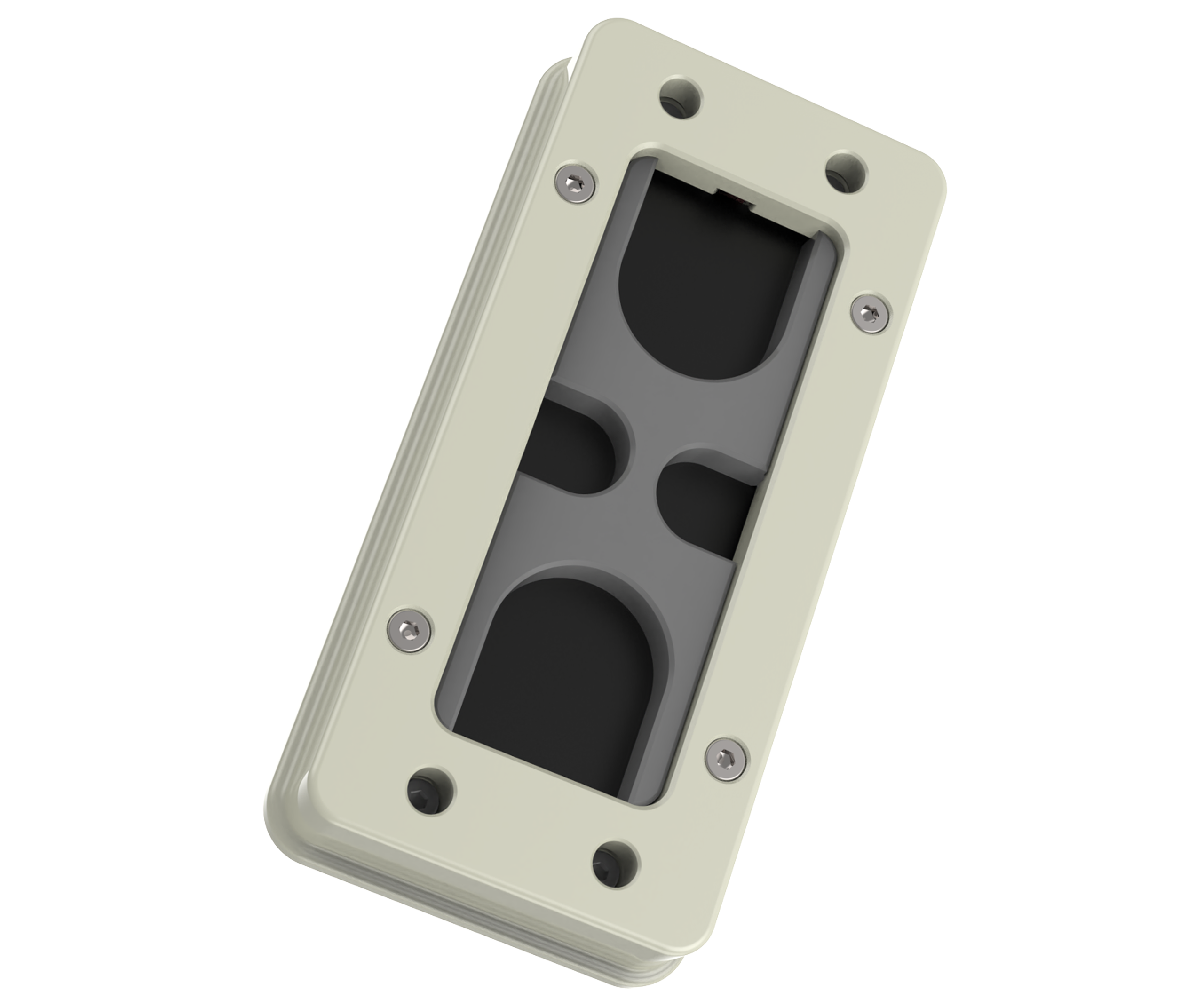

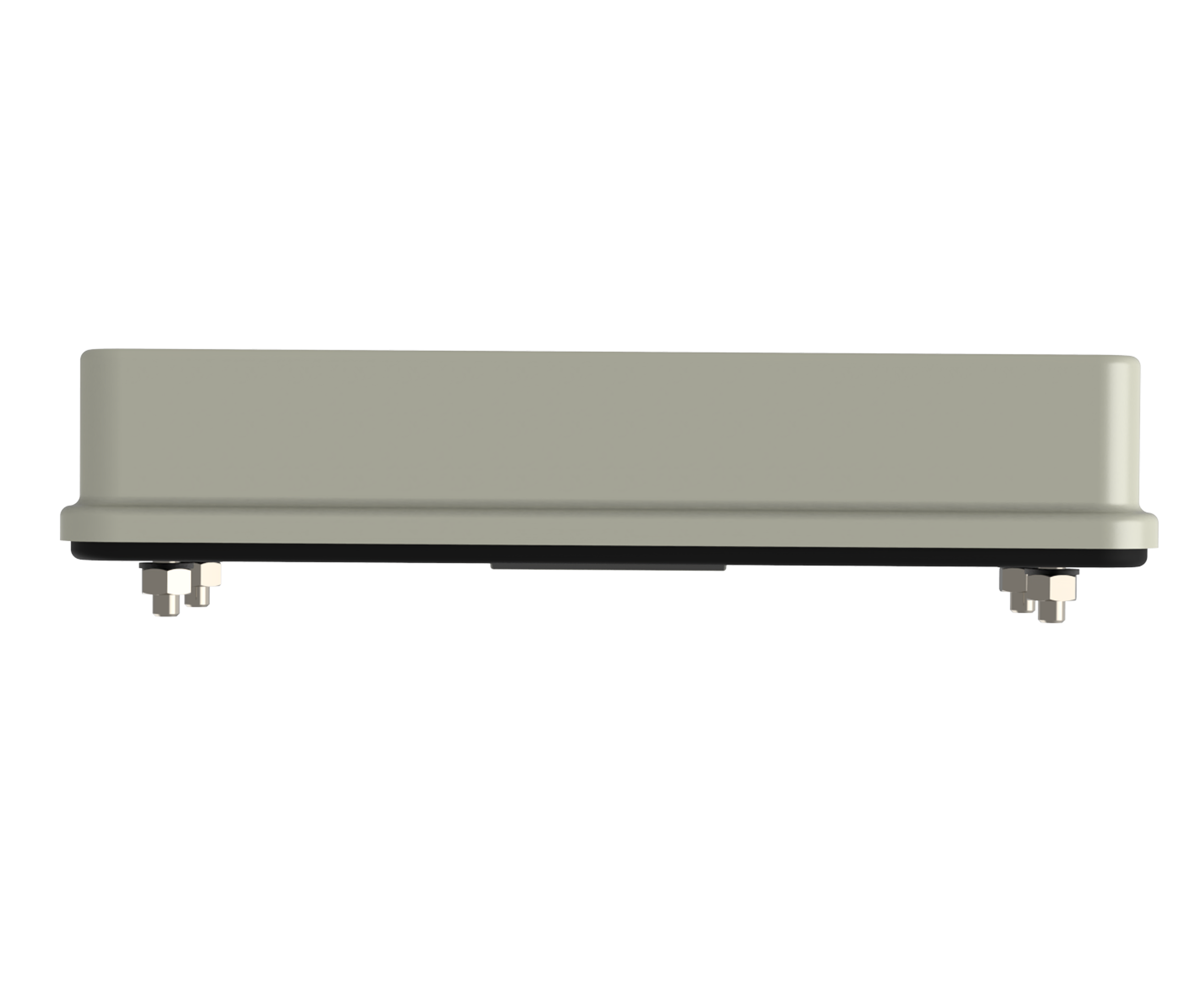

BPA kabelinnføringsplate
○Kabelinnføringsplate for kablede og ukablede kabler
○Brukes i stedet for kabelnippel der det er begrenset plass på kapslingen

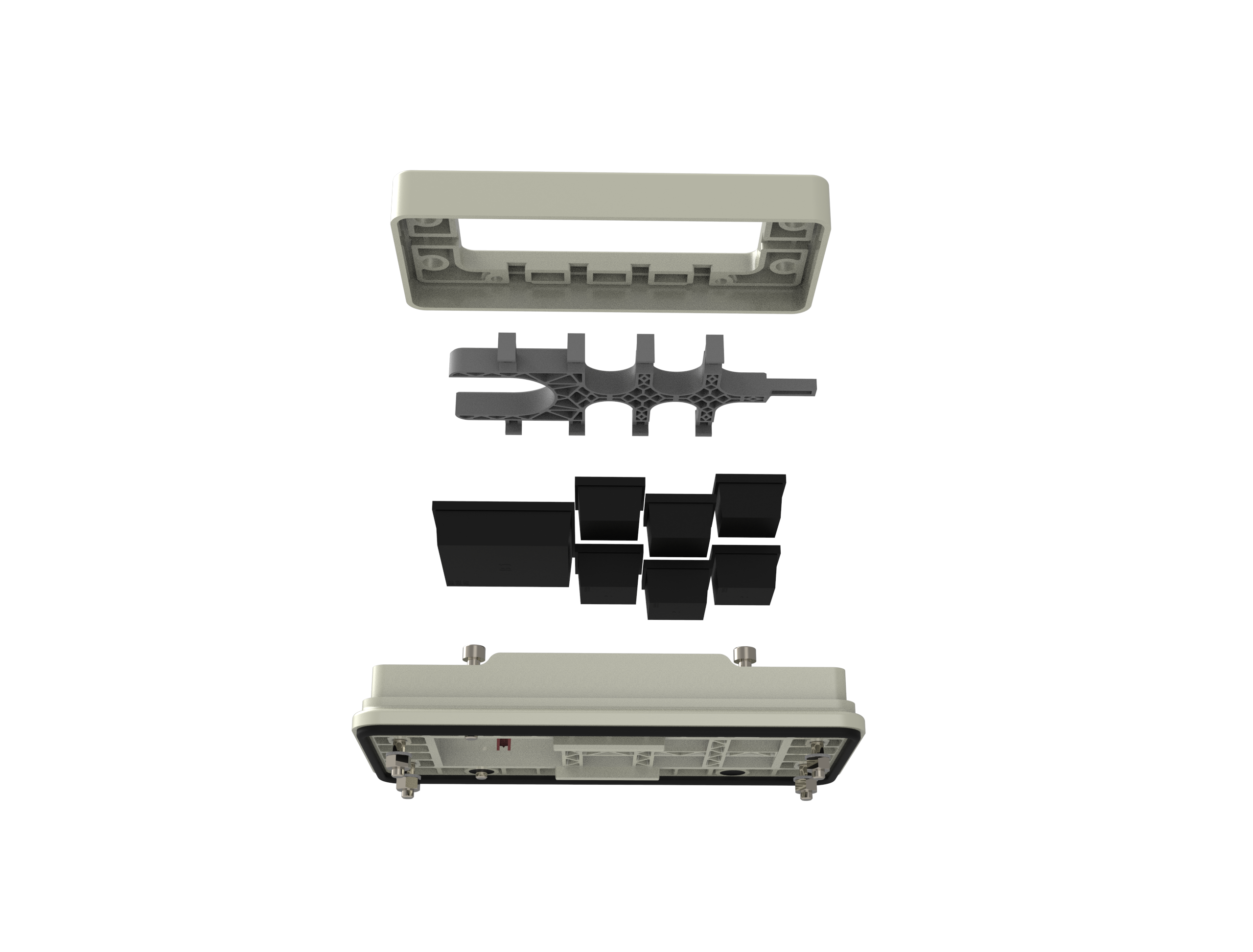

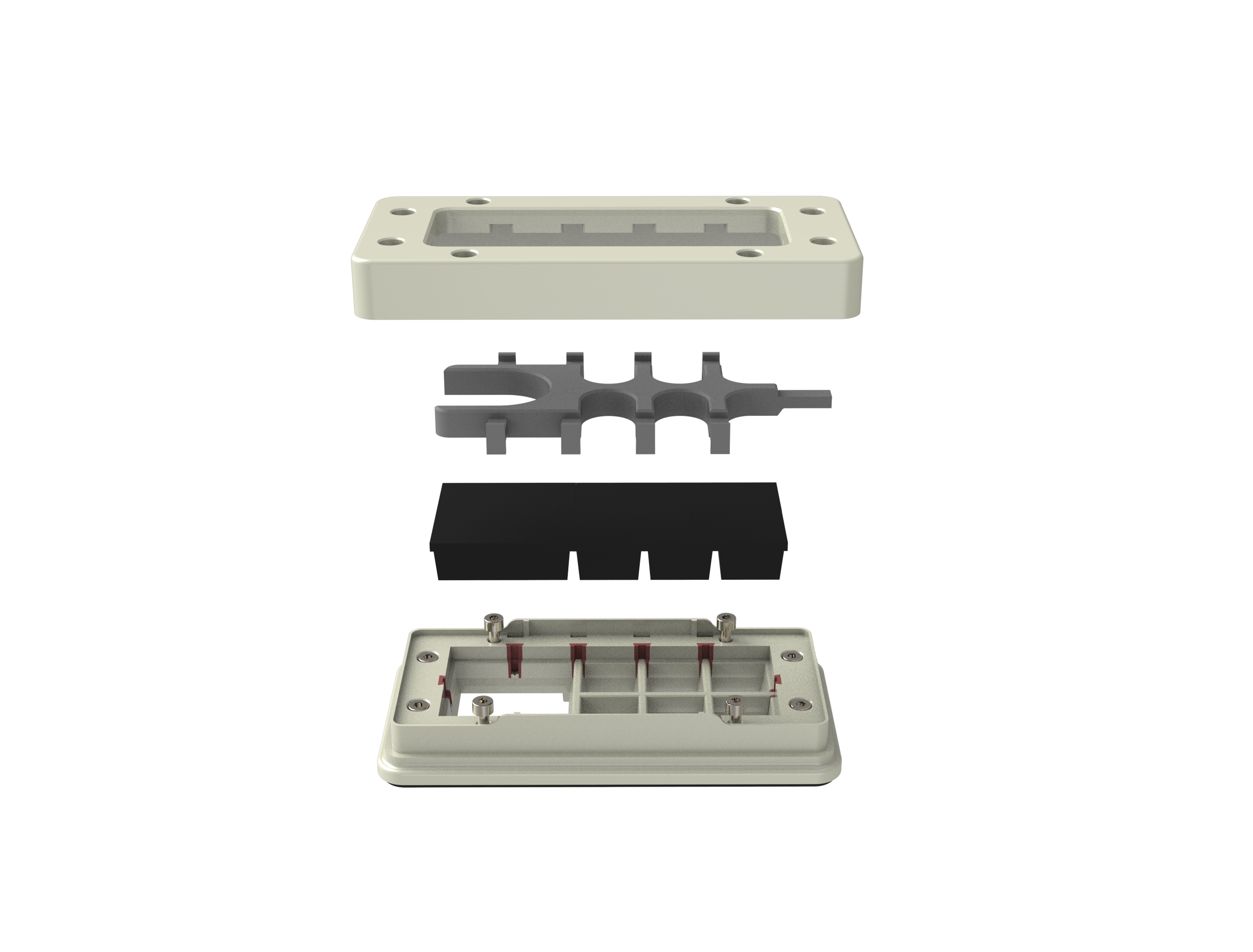

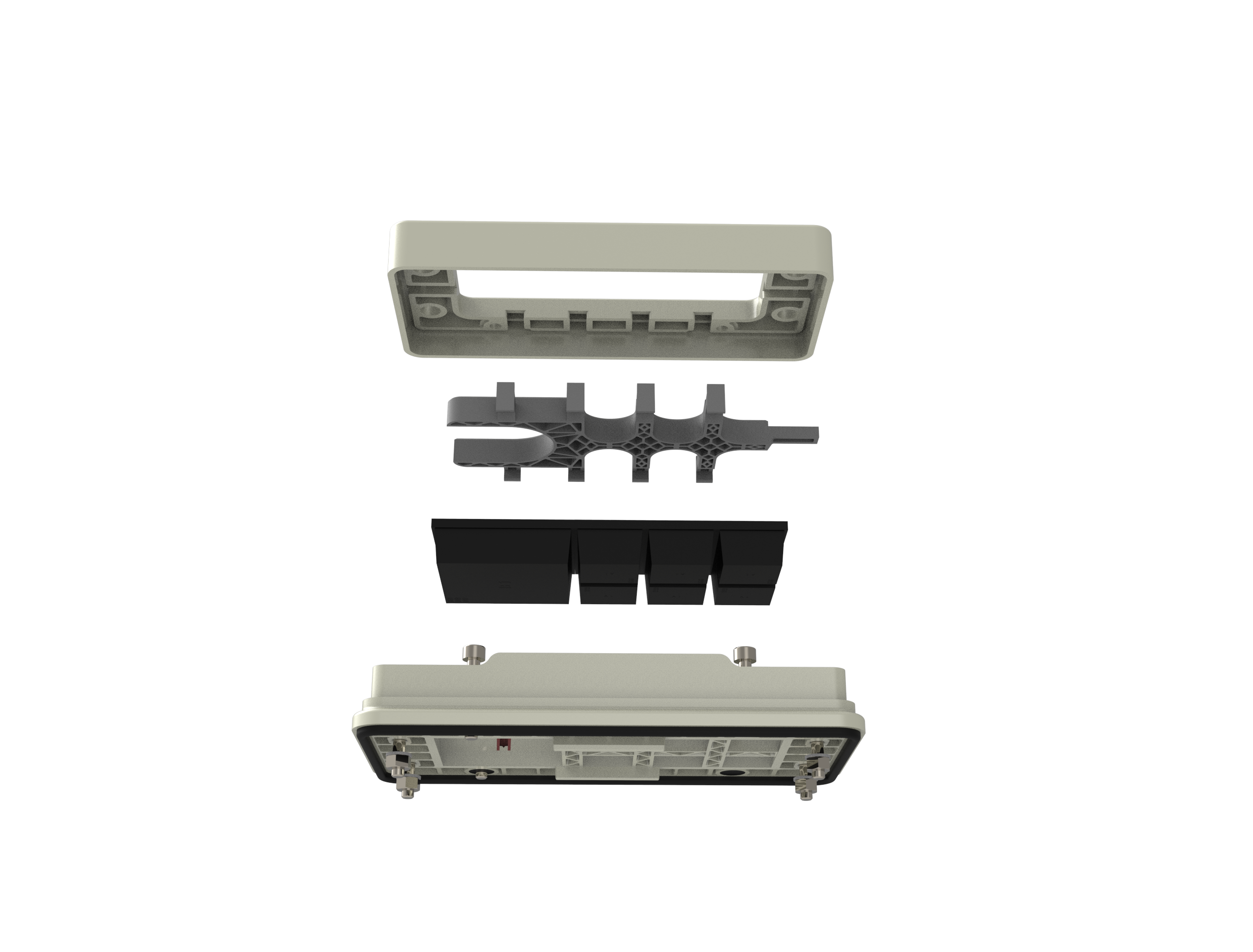

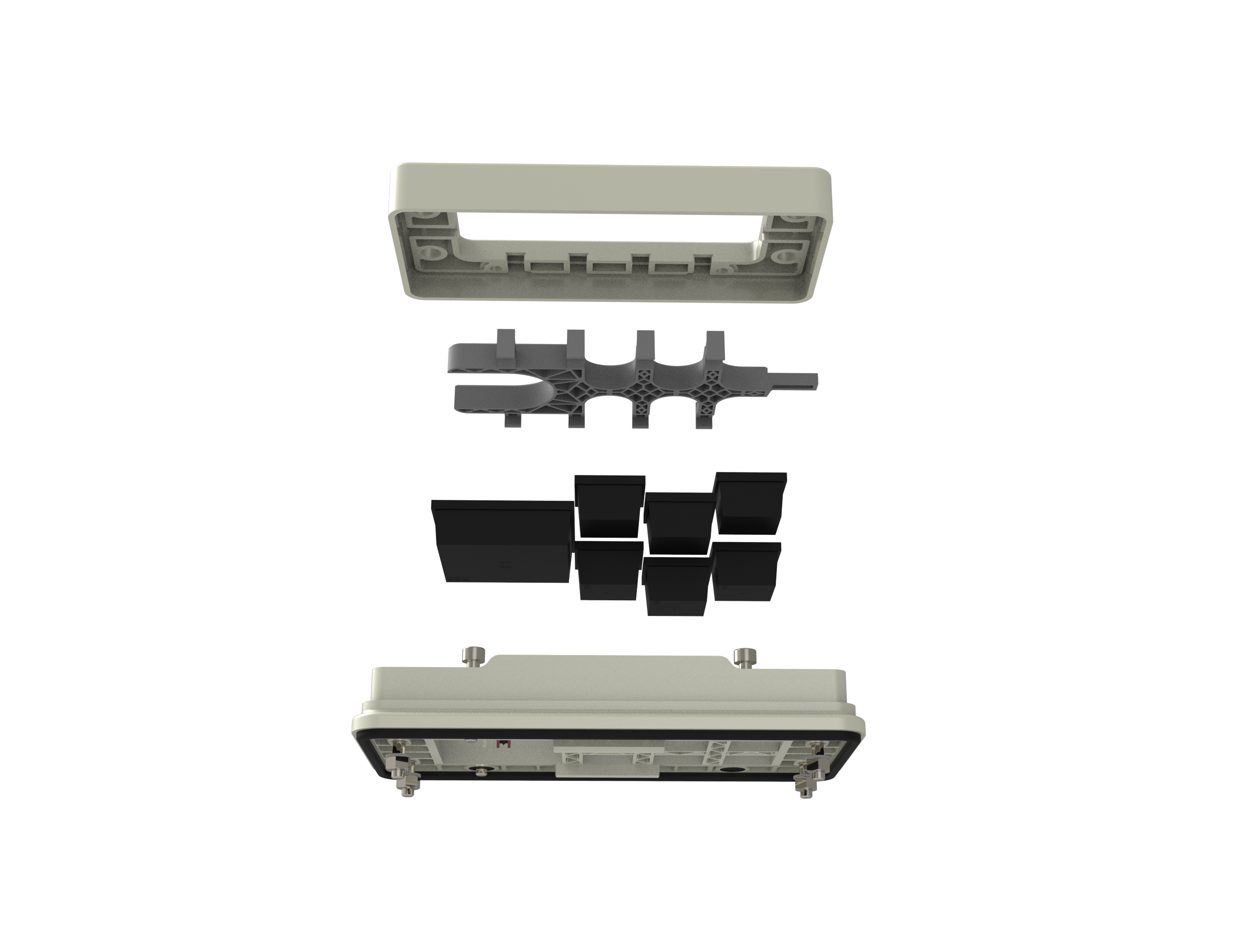

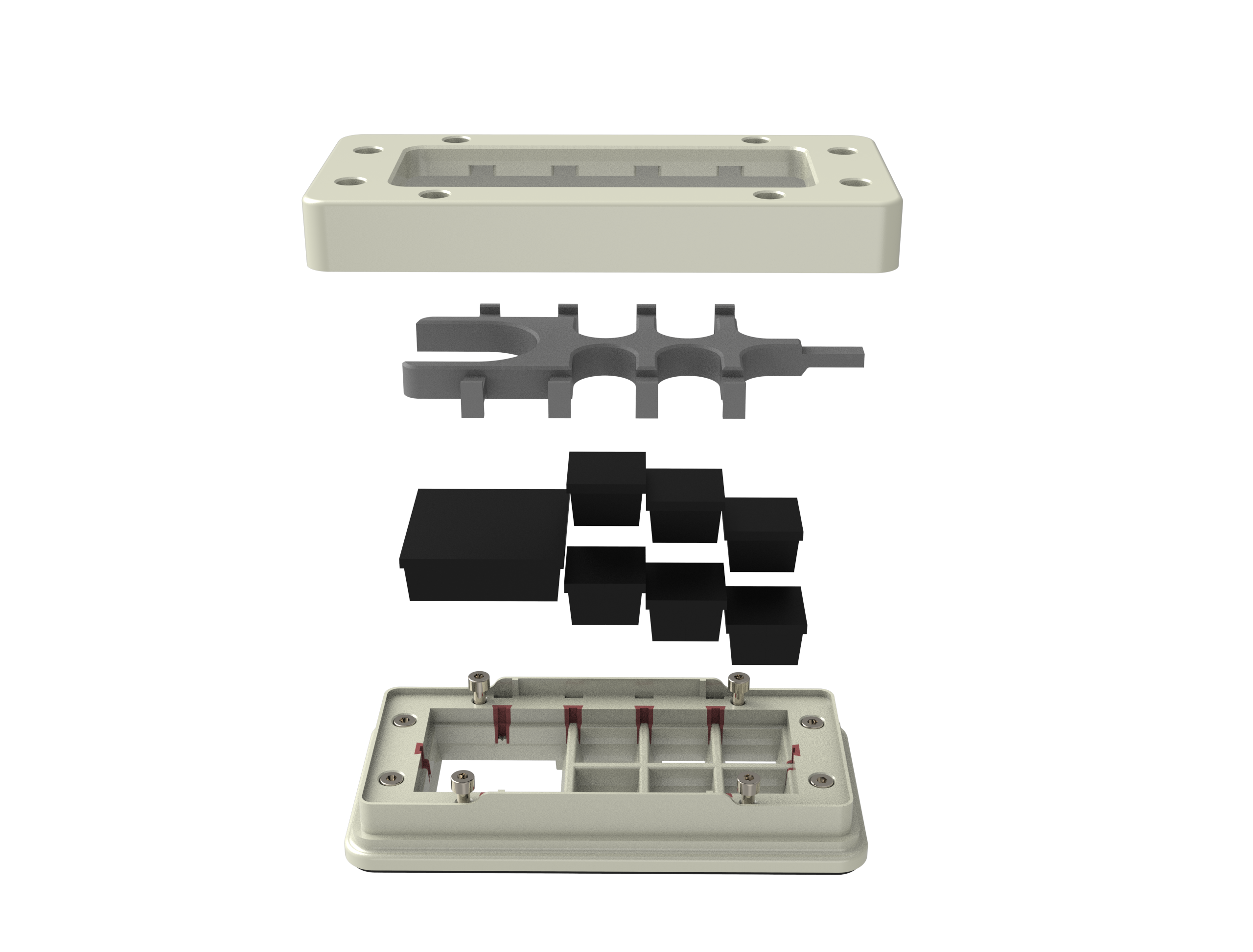

○Den koniske utformingen sikrer høy strekkavlastning når gummiinnsatsene presses inn i setene.
Spesifikasjoner
| Frame | Depth 'C' | Height 'B' | Plate Type | No. of Cable | Seal Quantity | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|---|

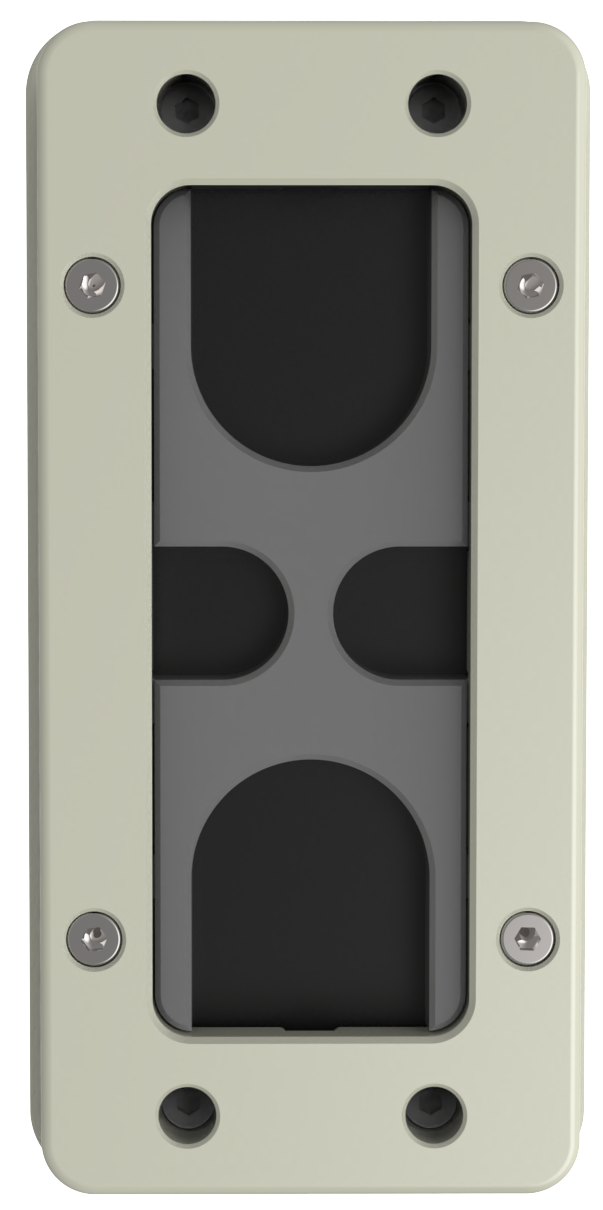

| 156.5 | 27.5 | 75.5 | BPA-S-04 | 4 (2B+2A) | 2A | — | BPA-S-04-1 | — | |
| 156.5 | 27.5 | 75.5 | BPA-S-04 | 4 (2B+2A) | 2A | — | BPA-S-04-2 | — | |
| 156.5 | 27.5 | 75.5 | BPA-S-04 | 4 (2B+2A) | 2B | — | BPA-S-04-1 | — | |
| 156.5 | 27.5 | 75.5 | BPA-S-04 | 4 (2B+2A) | 2B | — | BPA-S-04-2 | — | |
| 156.5 | 27.5 | 75.5 | BPA-S-07 | 7 (1B+6A) | 6A | — | BPA-S-07-1 | — | |
| 156.5 | 27.5 | 75.5 | BPA-S-07 | 7 (1B+6A) | 6A | — | BPA-S-07-2 | — | |
| 156.5 | 27.5 | 75.5 | BPA-S-07 | 7 (1B+6A) | 1B | — | BPA-S-07-1 | — | |
| 156.5 | 27.5 | 75.5 | BPA-S-07 | 7 (1B+6A) | 1B | — | BPA-S-07-2 | — | |

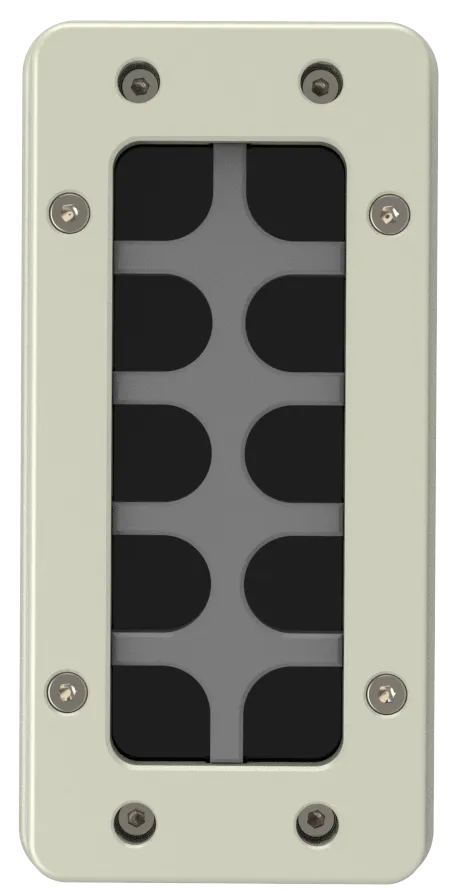

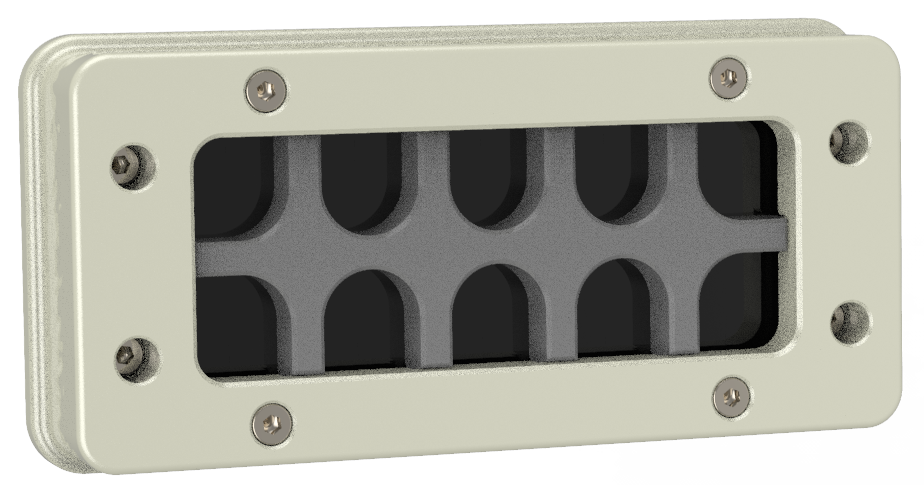

| 156.5 | 27.5 | 75.5 | BPA-S-10 | 10 (0B+10A) | 10A | — | BPA-S-10-1 | — | |
| 156.5 | 27.5 | 75.5 | BPA-S-10 | 10 (0B+10A) | 10A | — | BPA-S-10-2 | — |
