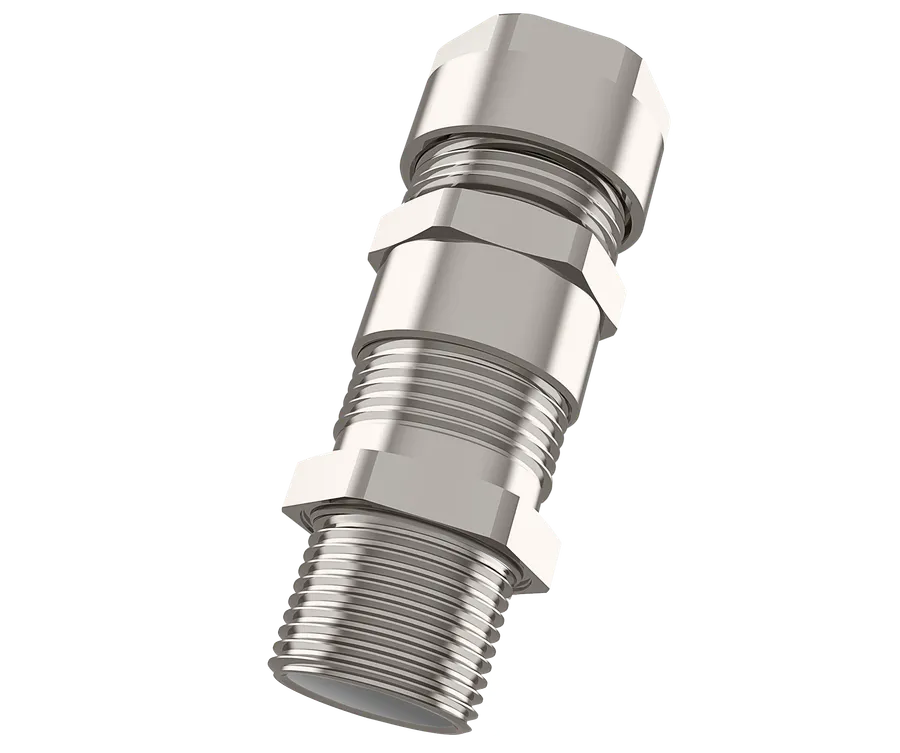

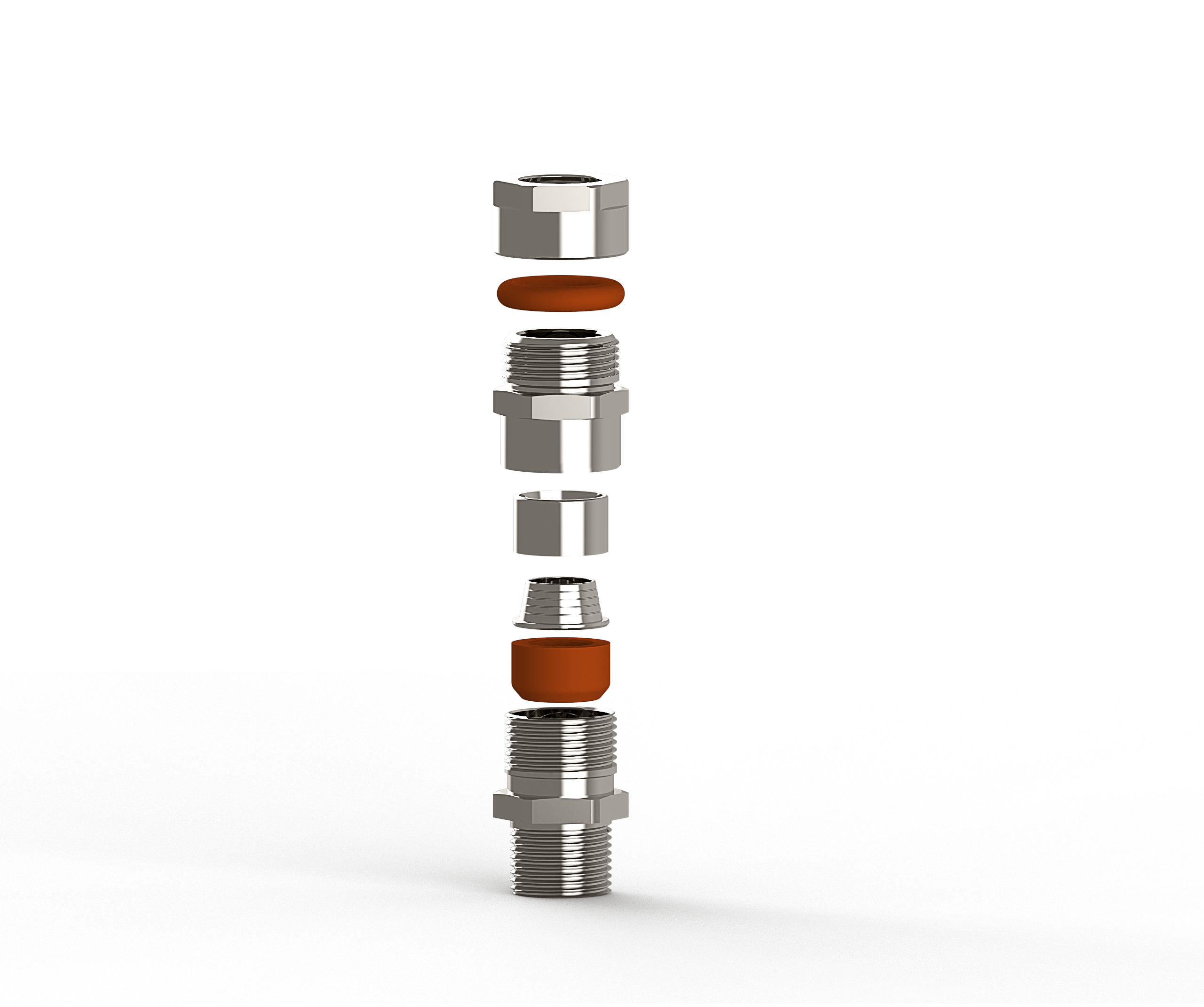

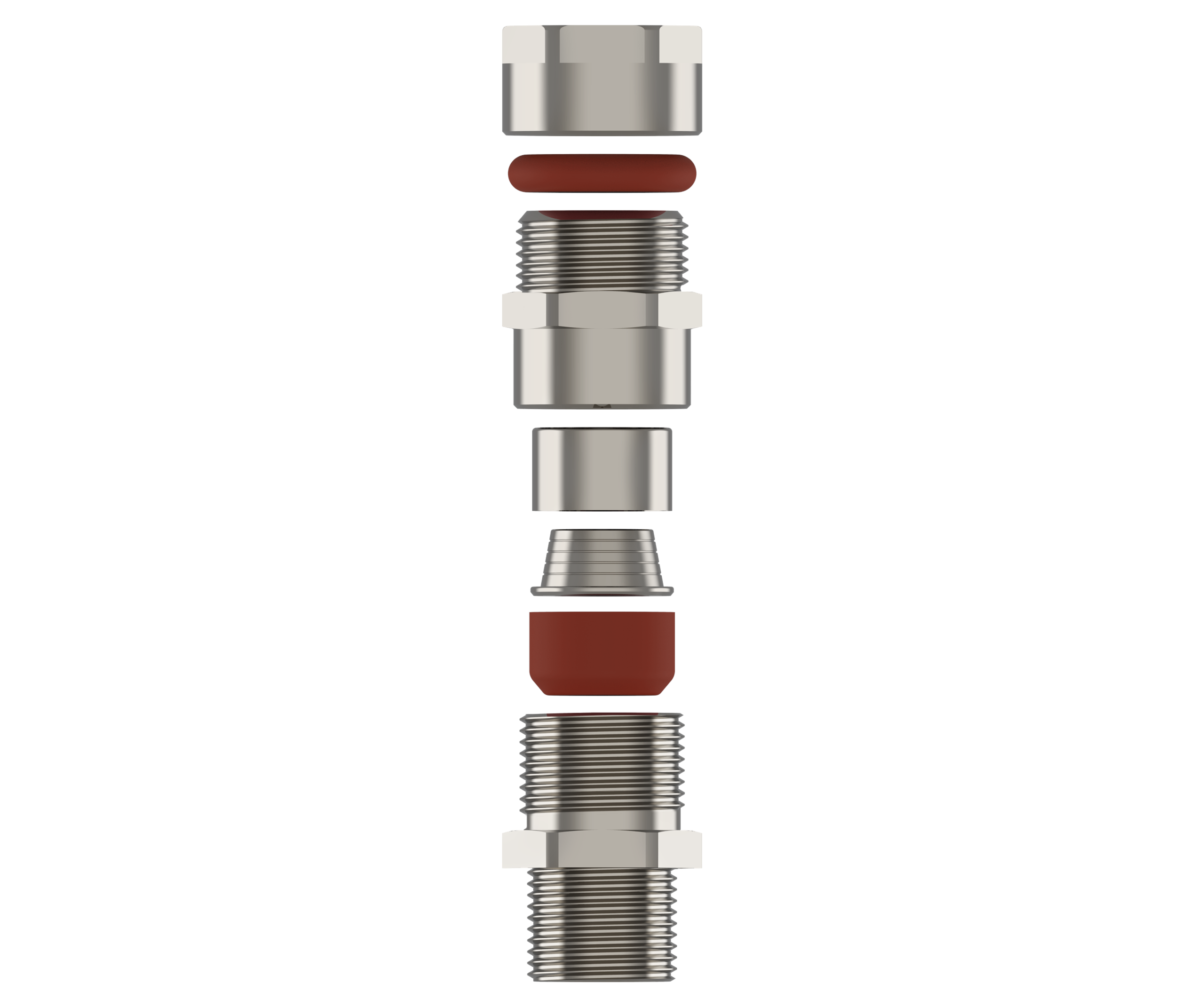

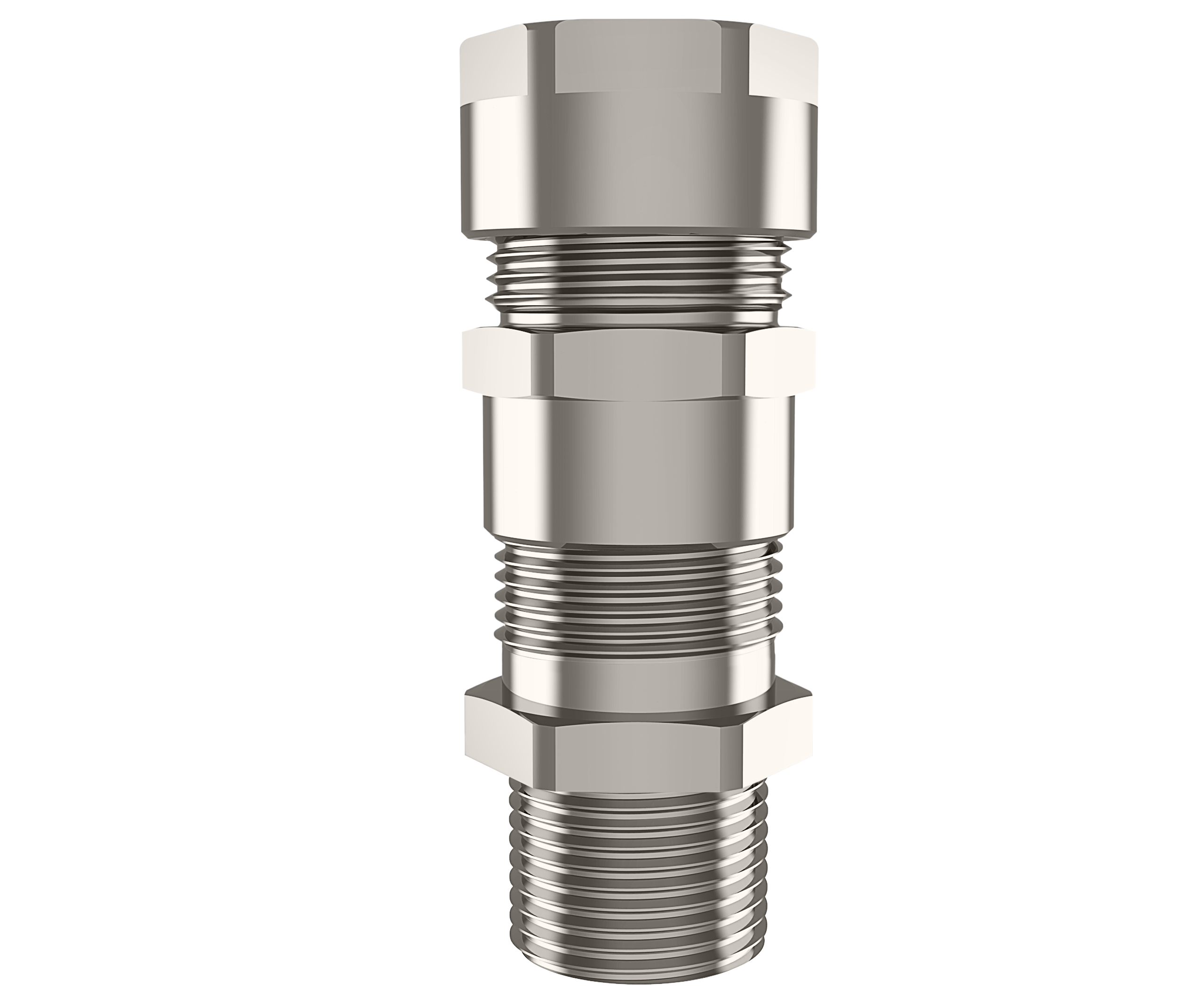

Industriell Volans kabelnippel

Name: Industriell Volans kabelnippel
Brand: Bimed Teknik

○Dobbeltettende armert kabelnippel egnet for armerte kabler (SWA, SWB, STA, PWA, AWA, skjermet)

○Tilgjengelig i messing, nikkelbelagt messing, rustfritt stål eller aluminium med metrisk gjenge og NPT-gjenge.

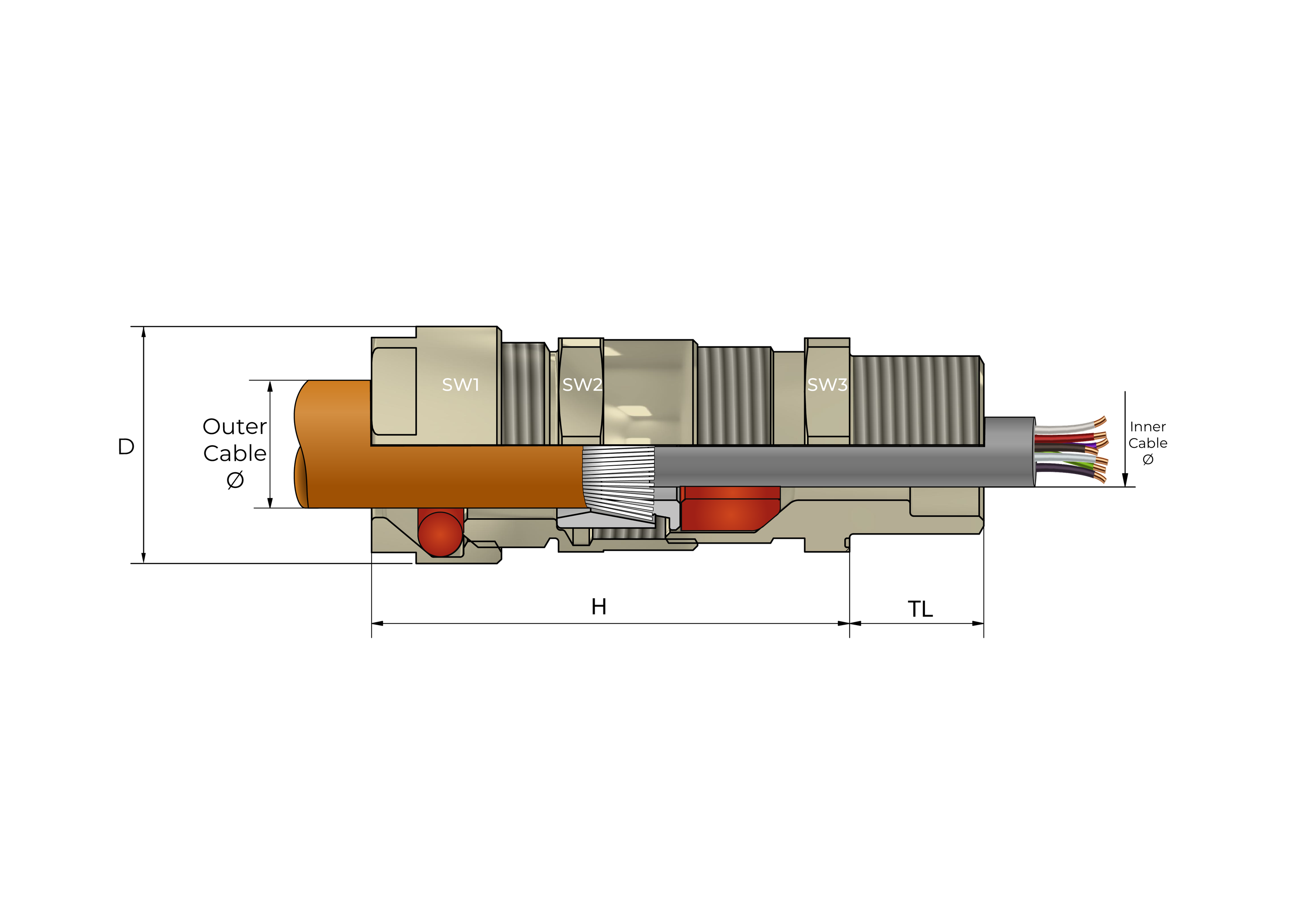

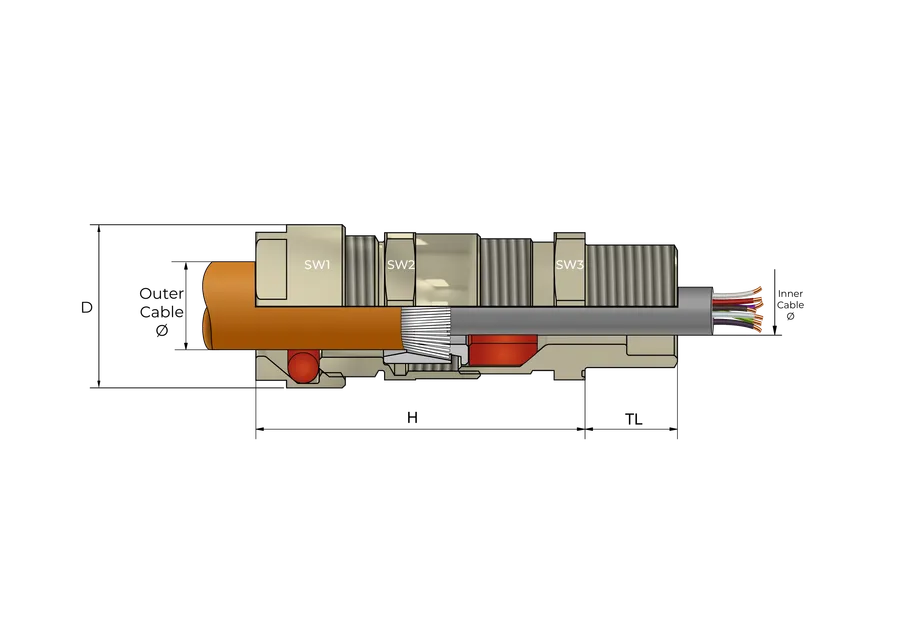

Spesifikasjoner

Gjengestørrelse	Gjengelengde	Nøkkelvidde	Skjermdiameter	Diameter	Maks høyde 'H'	Outer Cable Ø	Inner Cable Ø	Armour Cable Ø	Varenummer	BIMED Kode	3D File	Datablad
M12x1,5	15	22/21/21	0,2 - 0,8	24	57	5,5 - 12,0	3,0 - 8,0	0,8 - 1,25	—	VOL-E0SM	—	PDF
M16x1,5	15	22/21/24	0,2 - 0,8	26.5	57	5,5 - 12,0	3,0 - 8,0	0,8 - 1,25	—	VOL-E01SM	—	PDF
M16x1,5	15	24/25/24	0,2 - 0,8	26.5	57	9,0 - 16,0	6,0 - 12,0	0,8 - 1,25	—	VOL-E01M	—	PDF
M20x1,5	15	22/21/30	0,2 - 0,8	33	57	5,5 - 12,0	3,0 - 8,0	0,8 - 1,25	—	VOL-E1XSM	—	PDF
M20x1,5	15	24/25/30	0,2 - 0,8	33	57	9,0 - 16,0	6,0 - 12,0	0,8 - 1,25	—	VOL-E1SM	—	PDF
M20x1,5	15	30/30/30	0,2 - 0,8	33	60	12,0 - 20,0	6,0 - 14,0	0,8 - 1,25	—	VOL-E1M	—	PDF
M25x1,5	15	24/25/36	0,2 - 0,8	39.8	57	9,0 - 16,0	6,0 - 12,0	0,8 - 1,25	—	VOL-E2XSM	—	PDF
M25x1,5	15	30/30/36	0,2 - 0,8	39.8	60	12,0 - 20,0	6,0 - 14,0	0,8 - 1,25	—	VOL-E2SM	—	PDF
M25x1,5	15	36/36/36	0,2 - 0,8	39.8	66	16,0 - 26,0	11,0 - 20,0	1,25 - 1,6	—	VOL-E2M	—	PDF
M32x1,5	15	30/30/46	0,2 - 0,8	51	60	12,0 - 20,0	6,0 - 14,0	0,8 - 1,25	—	VOL-E3XSM	—	PDF
M32x1,5	15	36/36/46	0,2 - 0,8	51	66	16,0 - 26,0	11,0 - 20,0	1,25 - 1,6	—	VOL-E3SM	—	PDF
M32x1,5	15	46/46/46	0,2 - 0,8	51	76	20,0 - 33,0	16,0 - 26,5	1,6 - 2,0	—	VOL-E3M	—	PDF
M40x1,5	15	46/46/55	0,2 - 0,8	62.5	76	20,0 - 33,0	16,0 - 26,5	1,6 - 2,0	—	VOL-E4SM	—	PDF
M40x1,5	15	55/55/55	0,2 - 0,8	62.5	85	29,0 - 41,0	22,0 - 32,5	1,6 - 2,0	—	VOL-E4M	—	PDF
M40x1,5	15	36/36/55	0,2 - 0,8	62.5	66	16,0 - 26,0	11,0 - 20,0	1,25 - 1,6	—	VOL-E4XSM	—	PDF
M50x1,5	15	46/46/65	0,2 - 0,8	74.5	76	20,0 - 33,0	16,0 - 26,5	1,6 - 2,0	—	VOL-E5XSM	—	PDF
M50x1,5	15	55/55/65	0,2 - 0,8	74.5	85	29,0 - 41,0	22,0 - 32,5	1,6 - 2,0	—	VOL-E5SM	—	PDF
M50x1,5	15	65/65/65	0,2 - 1,0	74.5	100	36,0 - 52,0	29,0 - 44,0	1,8 - 2,5	—	VOL-E5M	—	PDF
M63x1,5	15	55/55/80	0,2 - 0,8	91	85	29,0 - 41,0	22,0 - 32,5	1,6 - 2,0	—	VOL-E6XSM	—	PDF
M63x1,5	15	65/65/80	0,2 - 1,0	91	100	36,0 - 52,0	29,0 - 44,0	1,8 - 2,5	—	VOL-E6SM	—	PDF
M63x1,5	15	80/80/80	0,2 - 1,0	91	102	50,0 - 65,0	43,0 - 56,0	1,8 - 2,5	—	VOL-E6M	—	PDF
M75x1,5	15	65/65/95	0,2 - 1,0	106	100	36,0 - 52,0	29,0 - 44,0	1,8 - 2,5	—	VOL-E7XSM	—	PDF
M75x1,5	15	80/80/95	0,2 - 1,0	106	102	50,0 - 65,0	43,0 - 56,0	1,8 - 2,5	—	VOL-E7SM	—	PDF
M75x1,5	15	95/95/95	0,2 - 1,0	106	115	61,0 - 78,0	54,0 - 68,0	1,8 - 2,5	—	VOL-E7M	—	PDF
M80x1,5	20	80/80/106	0,2 - 1,0	118	102	50,0 - 65,0	43,0 - 56,0	1,8 - 2,5	—	VOL-E80XSM	—	PDF
M80x1,5	20	95/95/106	0,2 - 1,0	118	115	61,0 - 78,0	54,0 - 68,0	1,8 - 2,5	—	VOL-E80SM	—	PDF
M80x1,5	20	106/106/106	0,3 - 1,0	118	126	75,0 - 89,0	65,0 - 75,0	2,0 - 3,5	—	VOL-E80M	—	PDF
M90x1,5	20	95/95/106	0,2 - 1,0	118	115	61,0 - 78,0	54,0 - 68,0	1,8 - 2,5	—	VOL-E8SM	—	PDF
M90x1,5	20	106/106/106	0,3 - 1,0	118	126	75,0 - 89,0	65,0 - 78,0	2,0 - 3,5	—	VOL-E8M	—	PDF
M100x1,5	20	106/106/127	0,3 - 1,0	139	126	75,0 - 89,0	65,0 - 78,0	2,0 - 3,5	—	VOL-E9SM	—	PDF
M100x1,5	20	127/127/127	0,3 - 1,0	139	134	88,0 - 104,0	76,0 - 92,0	2,5 - 4,0	—	VOL-E9AM	—	PDF
