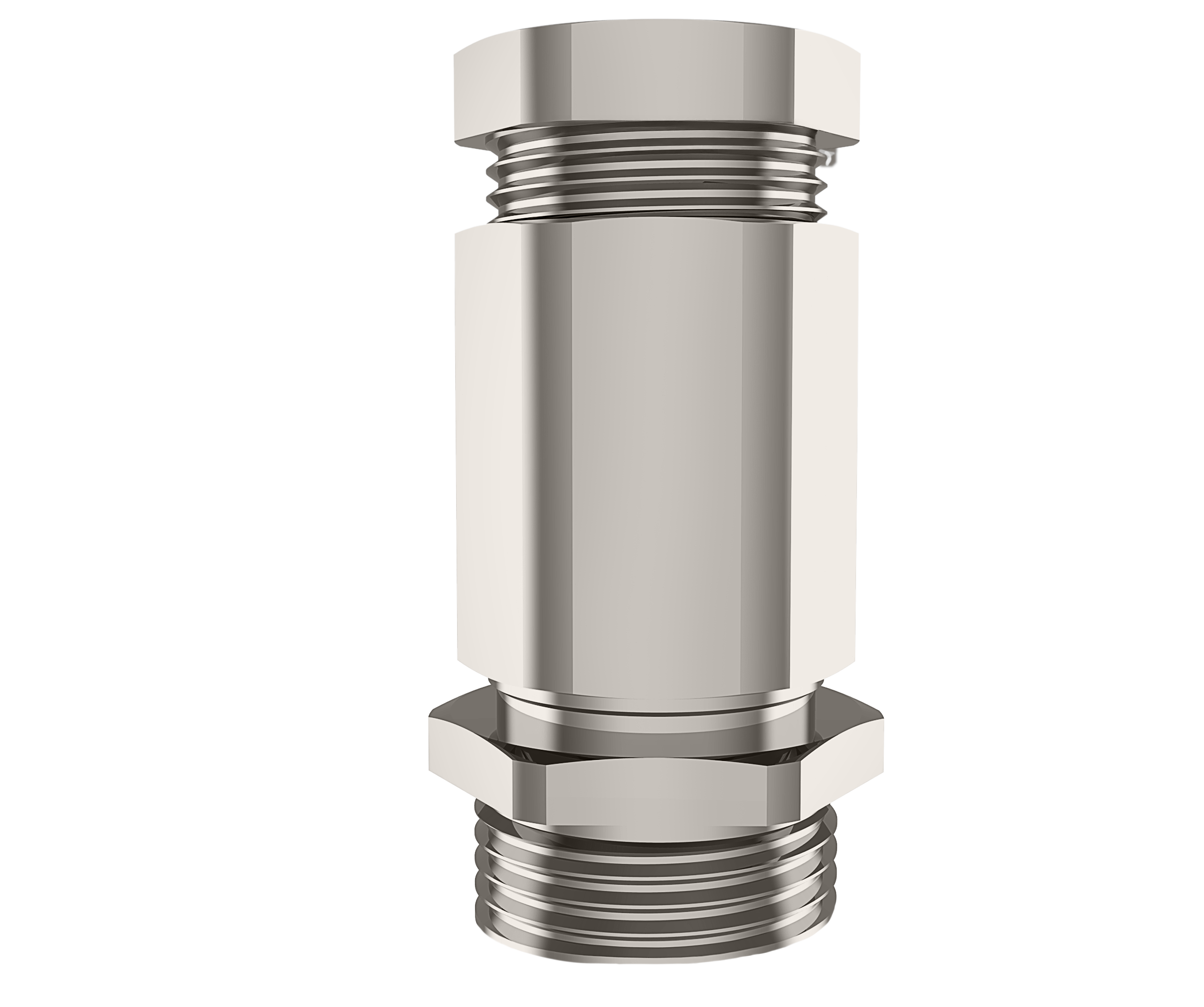

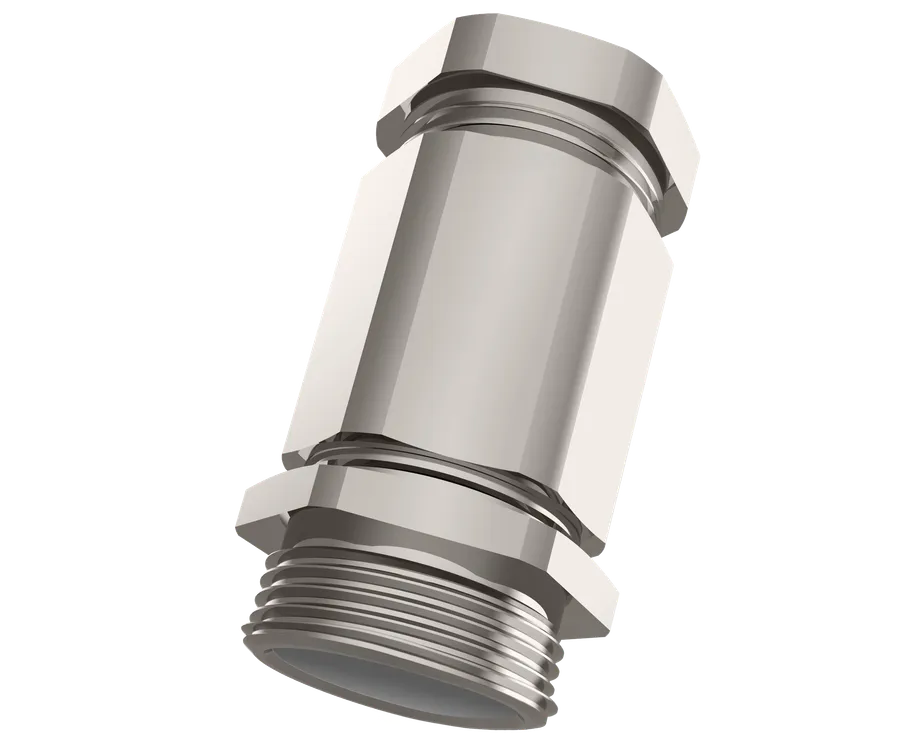

Kabelnippel for armerte kabler
○Spesialdesignet kabelnippel for armerte kabler med stort temperaturområde

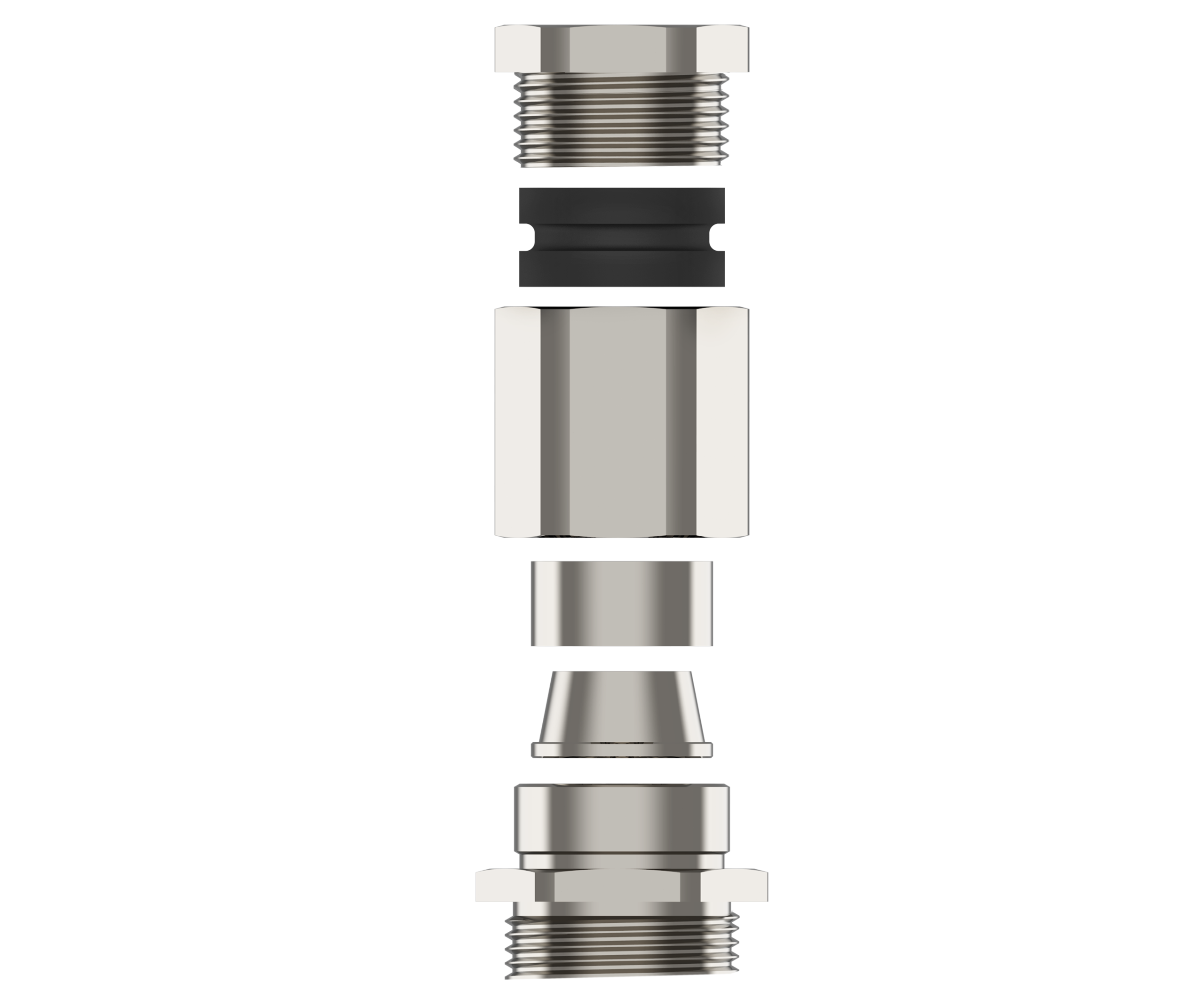

○Enkel montering: installer kabelnippel – forbered ståltråder – før inn kabel – stram kappe
○Gir høy strekkavlastning og pålitelig tetning.
Spesifikasjoner

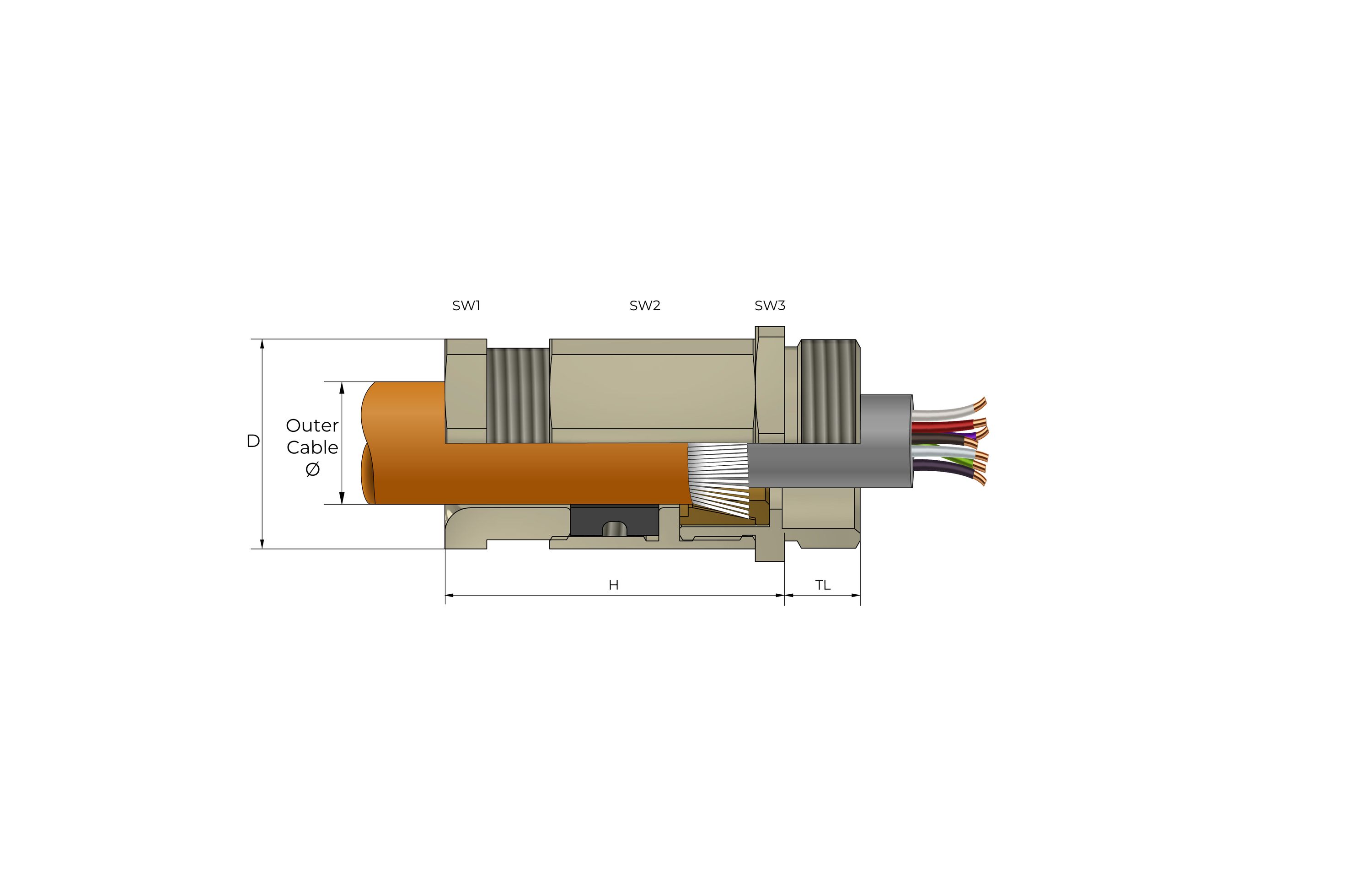

| Gjengestørrelse | Klemområdet | Gjengelengde | Nøkkelvidde | Armour Wire Ø | Diameter | Maks høyde 'H' | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|---|---|
| M16x1,5 | 8,0 - 15,0 | 9 | 25/25/24 | 0,3 - 1,3 | 27 | 42.5 | — | KBET01M | — | |
| M20x1,5 | 8,0 - 15,0 | 9 | 25/25/24 | 0,3 - 1,3 | 27 | 42.5 | — | KBET1M | — | |
| M20x1,5 | 13,5 - 21,0 | 9 | 30/30/29 | 0,4 - 1,3 | 33 | 43.5 | — | KBET1LM | — | |
| M25x1,5 | 8,0 - 15,0 | 9 | 25/25/28 | 0,3 - 1,3 | 31 | 42.5 | — | KBET2SM | Get File | |
| M25x1,5 | 13,5 - 21,0 | 9 | 30/30/29 | 0,4 - 1,3 | 33 | 43.5 | — | KBET2M | — | |
| M25x1,5 | 18,0 - 27,0 | 9 | 40/40/40 | 0,4 - 1,6 | 44.5 | 50 | — | KBET2LM | — | |
| M32x1,5 | 18,0 - 27,0 | 9 | 40/40/40 | 0,4 - 1,6 | 44.5 | 50 | — | KBET3SM | — | |
| M32x1,5 | 23,0 - 33,0 | 9 | 43/43/43 | 0,4 - 2,0 | 47 | 53.5 | — | KBET3M | — | |
| M40x1,5 | 29,0 - 40,0 | 9 | 52/52/52 | 0,4 - 2,0 | 59 | 57 | — | KBET4M | — | |
| M50x1,5 | 35,0 - 48,0 | 9 | 60/60/60 | 0,4 - 2,5 | 66.5 | 69.5 | — | KBET5SM | — | |
| M50x1,5 | 42,0 - 56,0 | 9 | 75/74/70 | 0,6 - 2,5 | 83 | 76.5 | — | KBET5M | — | |
| M63x1,5 | 42,0 - 56,0 | 9 | 75/74/70 | 0,6 - 2,5 | 83 | 76.5 | — | KBET6SM | — | |
| M63x1,5 | 53,0 - 66,0 | 9 | 85/85/80 | 0,6 - 2,5 | 94 | 77.5 | — | KBET6M | — | |
| M75x1,5 | 53,0 - 66,0 | 9 | 85/85/80 | 0,6 - 2,5 | 94 | 77.5 | — | KBET7SM | — | |
| M75x1,5 | 63,0 - 75,0 | 9 | 95/95/90 | 0,6 - 2,5 | 105 | 81 | — | KBET7M | — |
