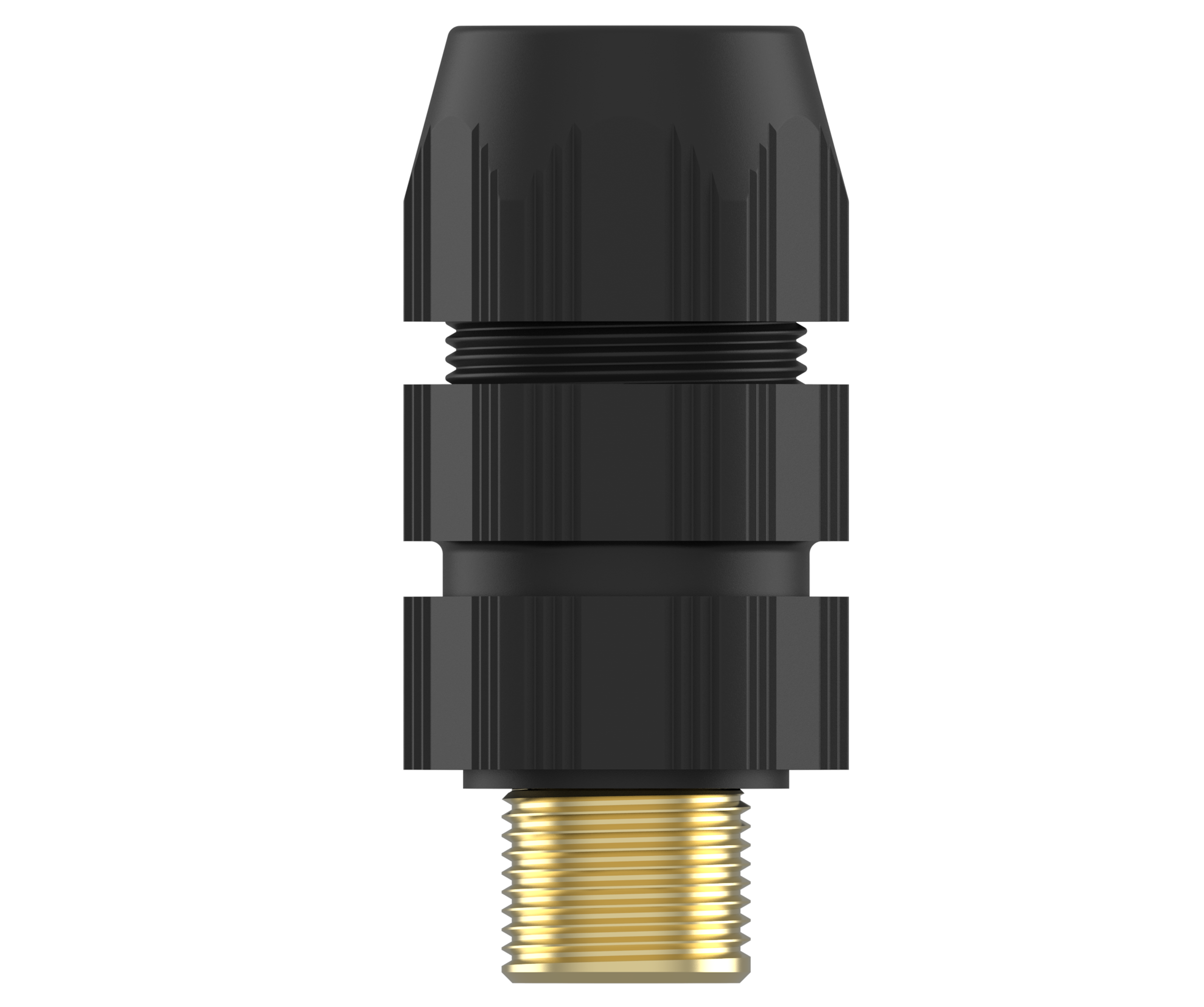

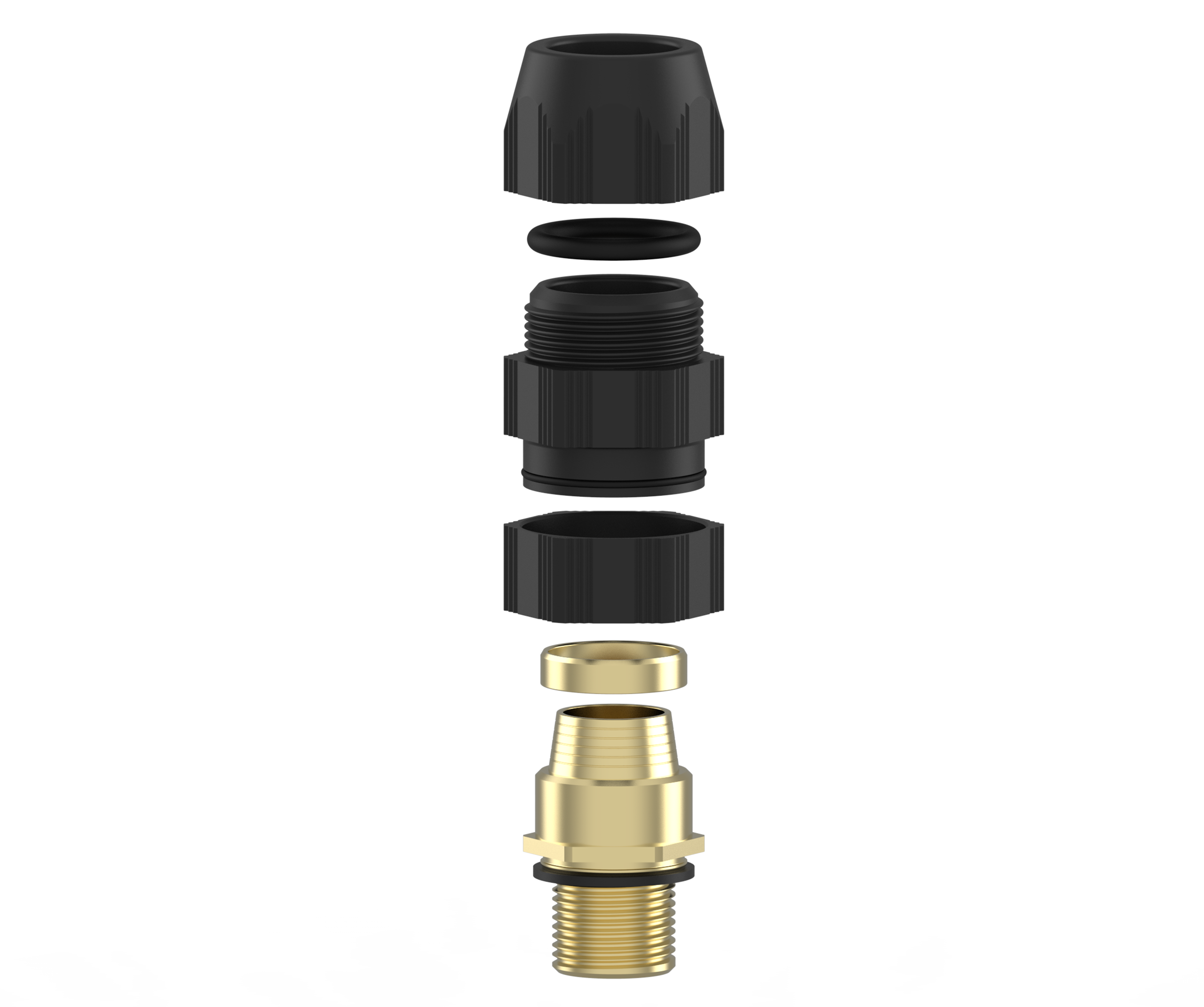

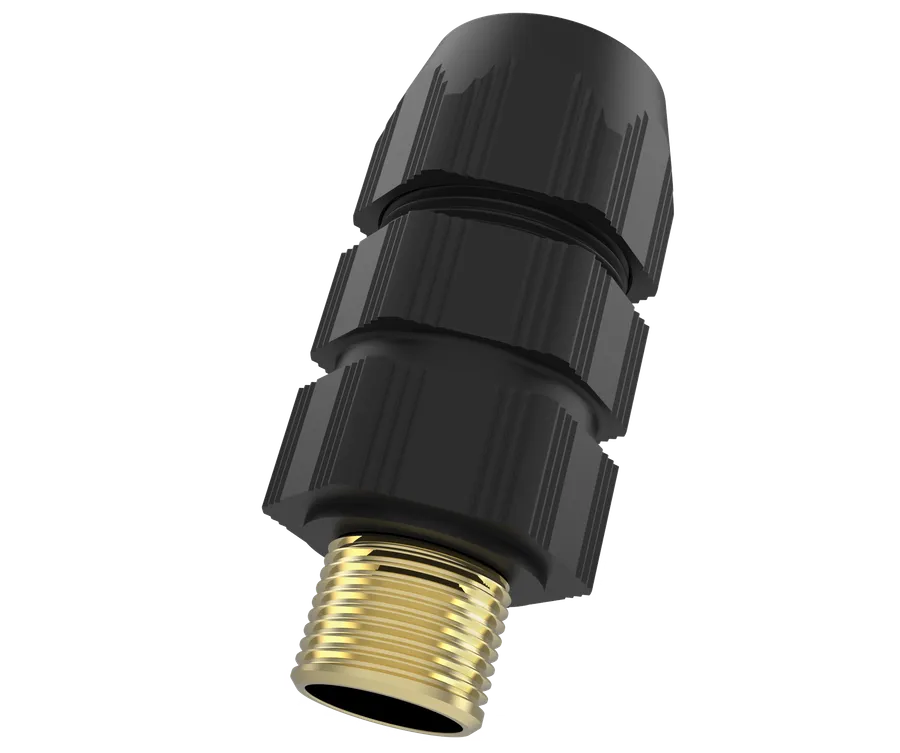

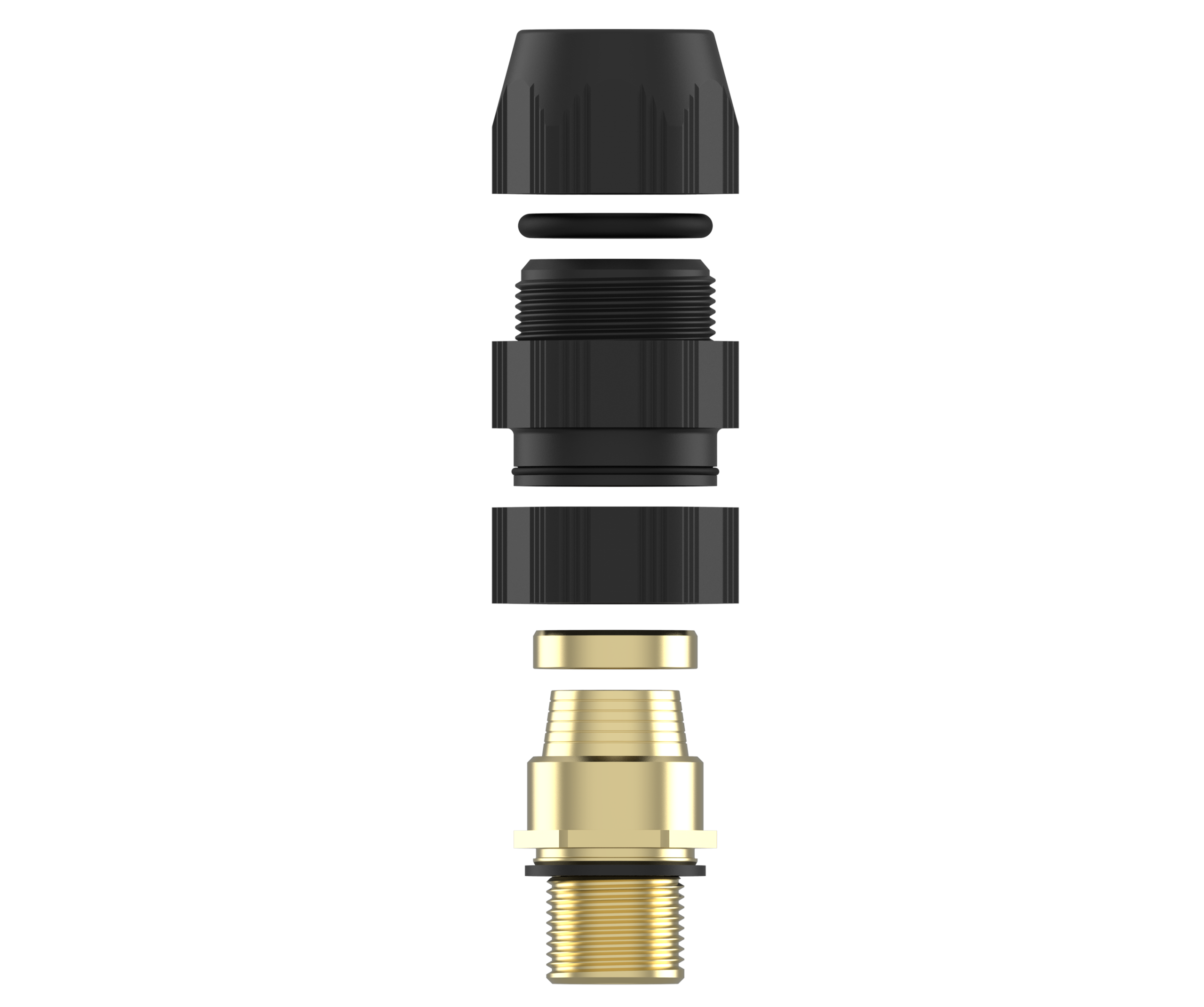

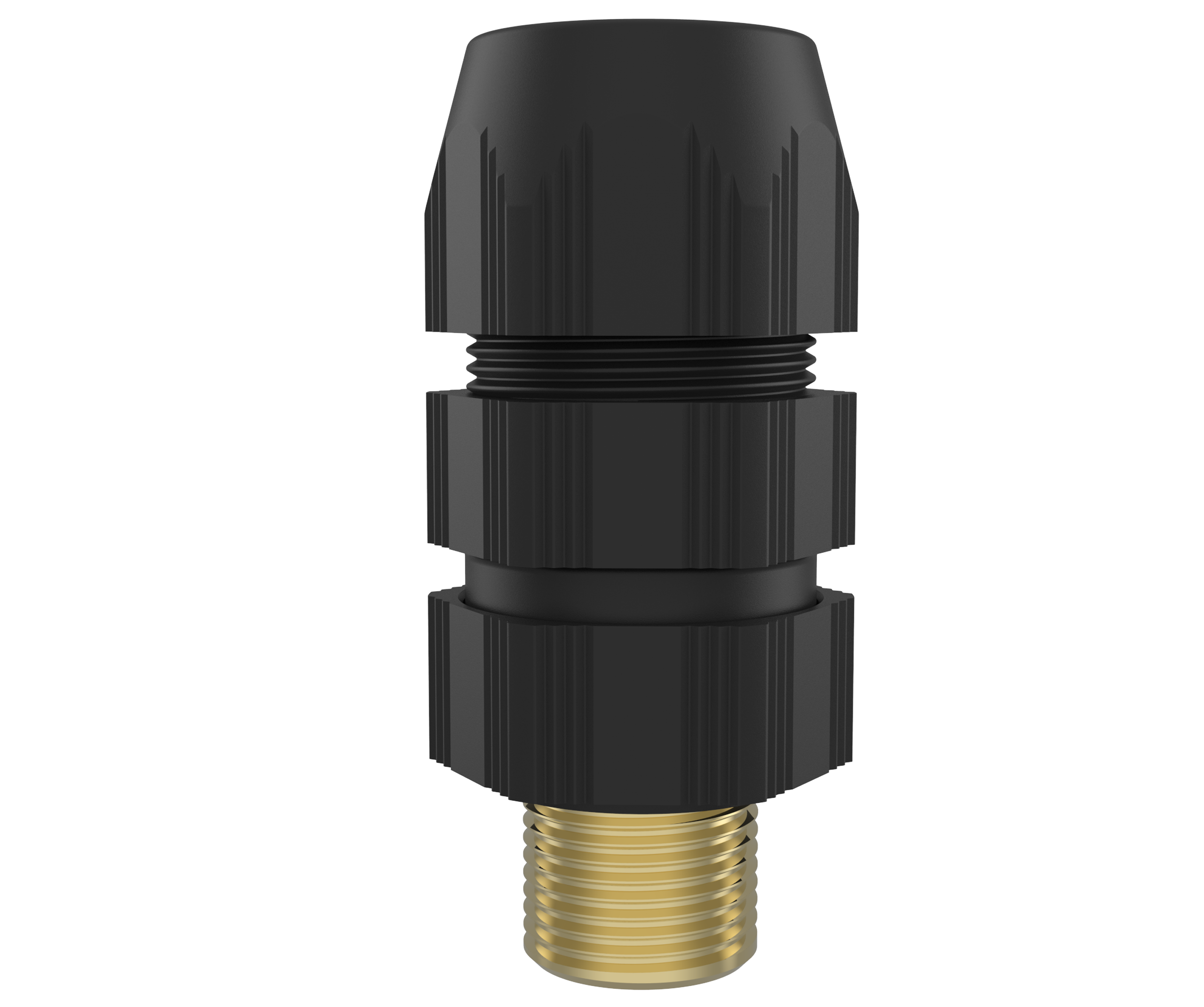

Korrosjonsbestandig kabelnippel
○Halogenfri kabelnippel for korrosive miljøer uten behov for ekstra kapsling
○Jordkontinuitet i armeringen sikres via metallisk armeringsring og kabelnippelkropp.
Spesifikasjoner

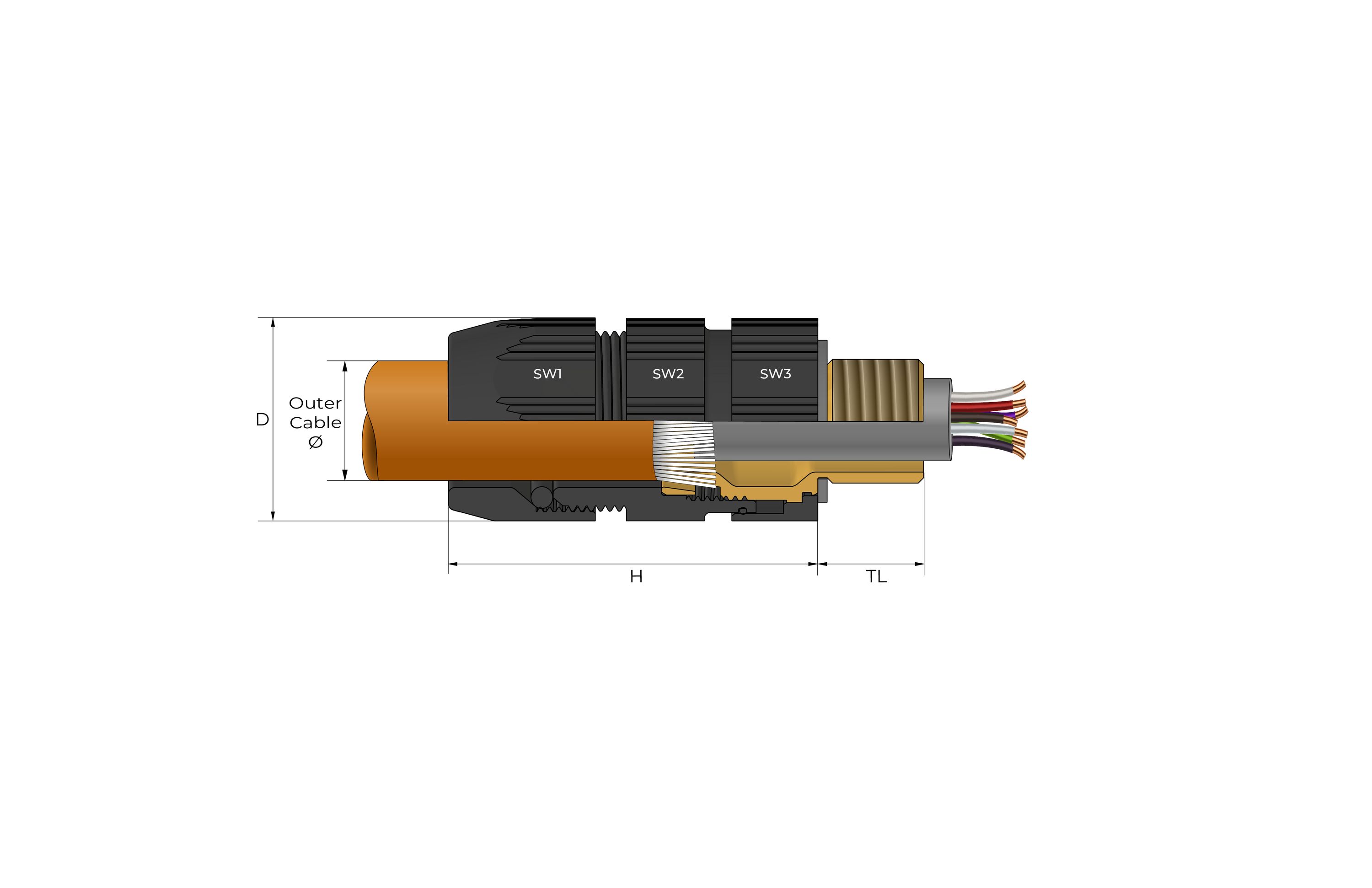

| Gjengestørrelse | Gjengelengde | Nøkkelvidde | Armour Wire Ø | Diameter | Outer Cable Ø | Min. Height 'H' | Max. Inner Cable Ø | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M20x1,5 | 17 | 27/27/27 | 0,80 - 1,25 | 30 | 8,0 - 12,0 | 51 | 12 | — | BCW-21 | — | |
| M20x1,5 | 17 | 27/27/27 | 0,80 - 1,25 | 30 | 10,5 - 16,0 | 51 | 12 | — | BCW-22 | — | |
| M20x1,5 | 17 | 32/32/32 | 0,80 - 1,25 | 35.5 | 15,5 - 21,0 | 51 | 16 | — | BCW-23 | Get File | |
| M25x1,5 | 17 | 41/41/41 | 1,20 - 1,60 | 45.5 | 20,5 - 27,5 | 61 | 21 | — | BCW-25 | — | |
| M32x1,5 | 17 | 50/50/50 | 1,60 - 2,00 | 55.5 | 27,0 - 35,0 | 71 | 28 | — | BCW-27 | — | |
| M40x1,5 | 22 | 58/58/58 | 1,60 - 2,00 | 63 | 33,0 - 41,0 | 73 | 32 | — | BCW-29 | — | |
| M50x1,5 | 22 | 72/72/72 | 2,00 - 2,50 | 79 | 37,0 - 47,0 | 79 | 44 | — | BCW-30 | — | |
| M50x1,5 | 22 | 72/72/72 | 2,00 - 2,50 | 79 | 45,0 - 53,0 | 79 | 44 | — | BCW-31 | — | |
| M63x1,5 | 22 | 85/85/85 | 2,00 - 2,50 | 93 | 50,0 - 60,0 | 82 | 56 | — | BCW-32 | — | |
| M63x1,5 | 22 | 85/85/85 | 2,00 - 2,50 | 93 | 58,0 - 66,0 | 82 | 56 | — | BCW-33 | — |
