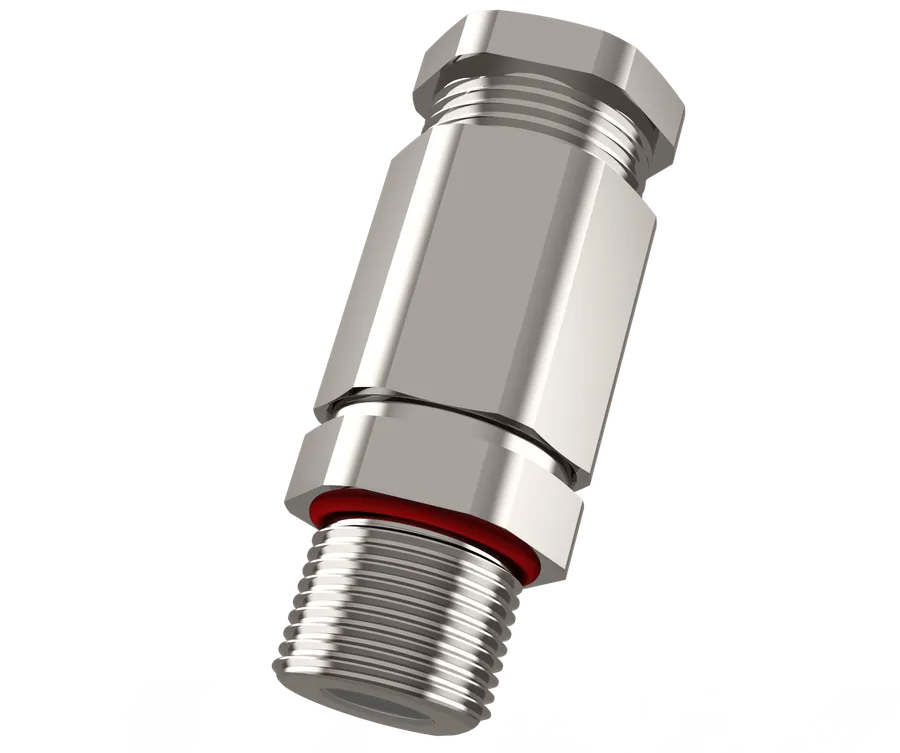

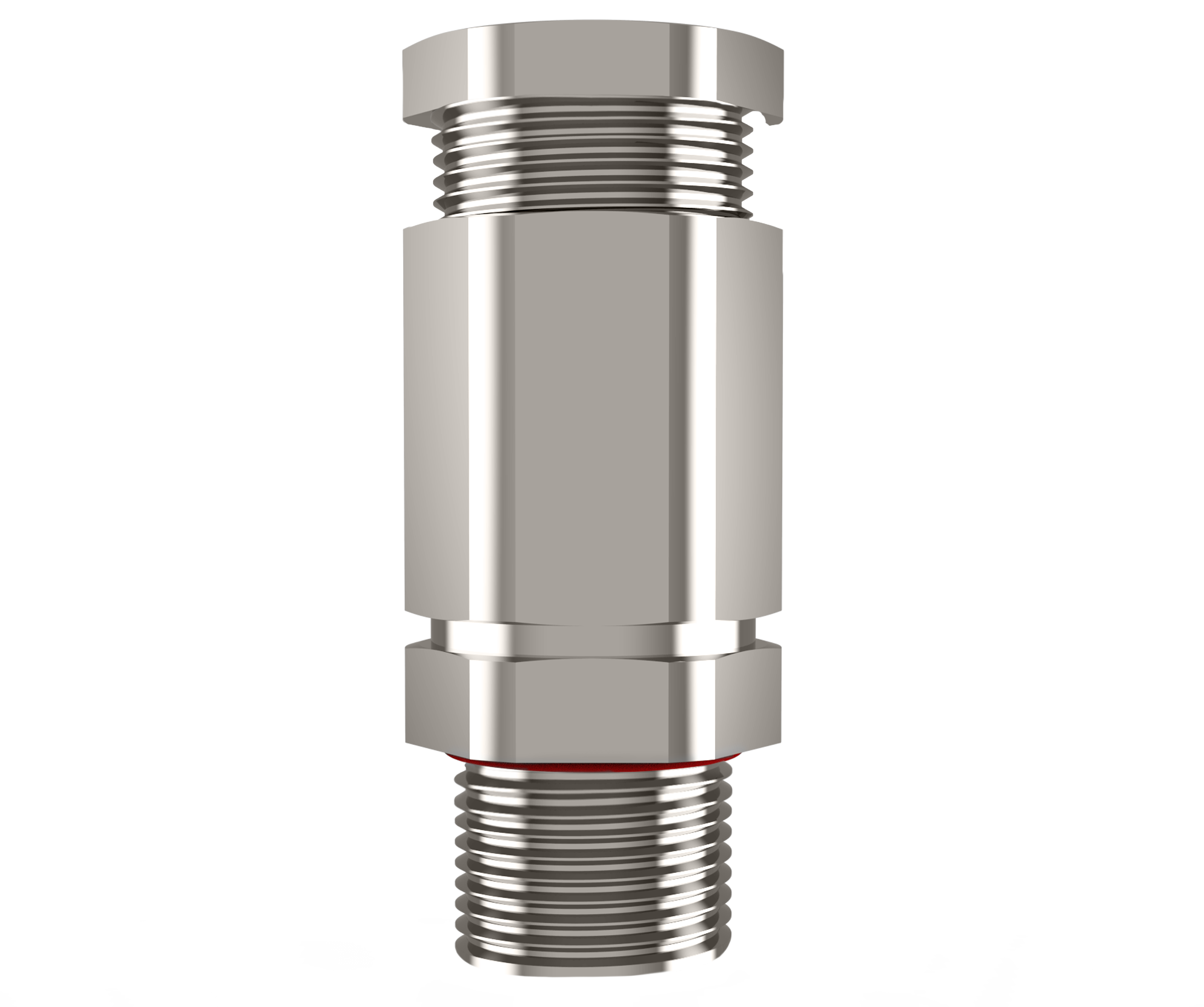

Centaurus Ikke-armert

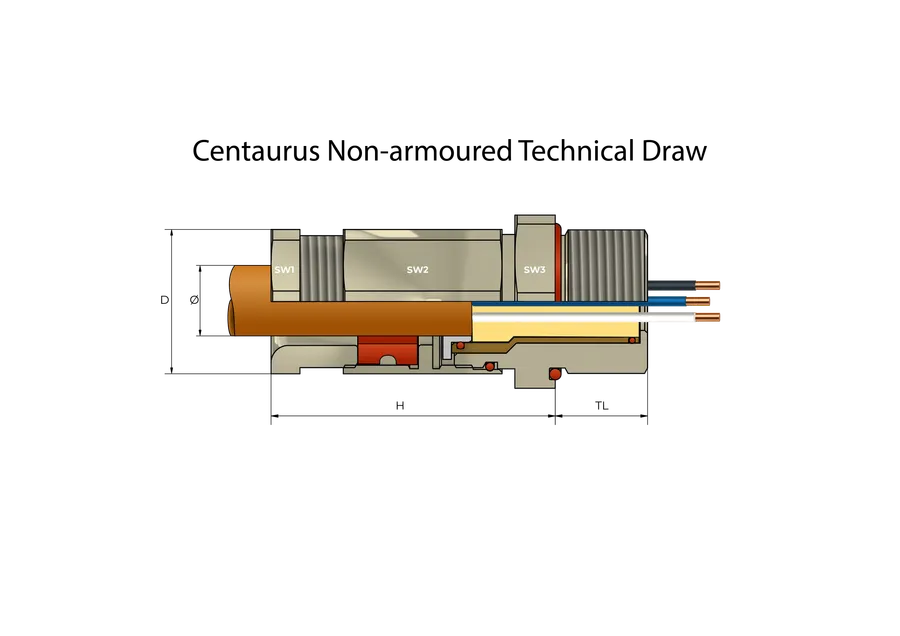

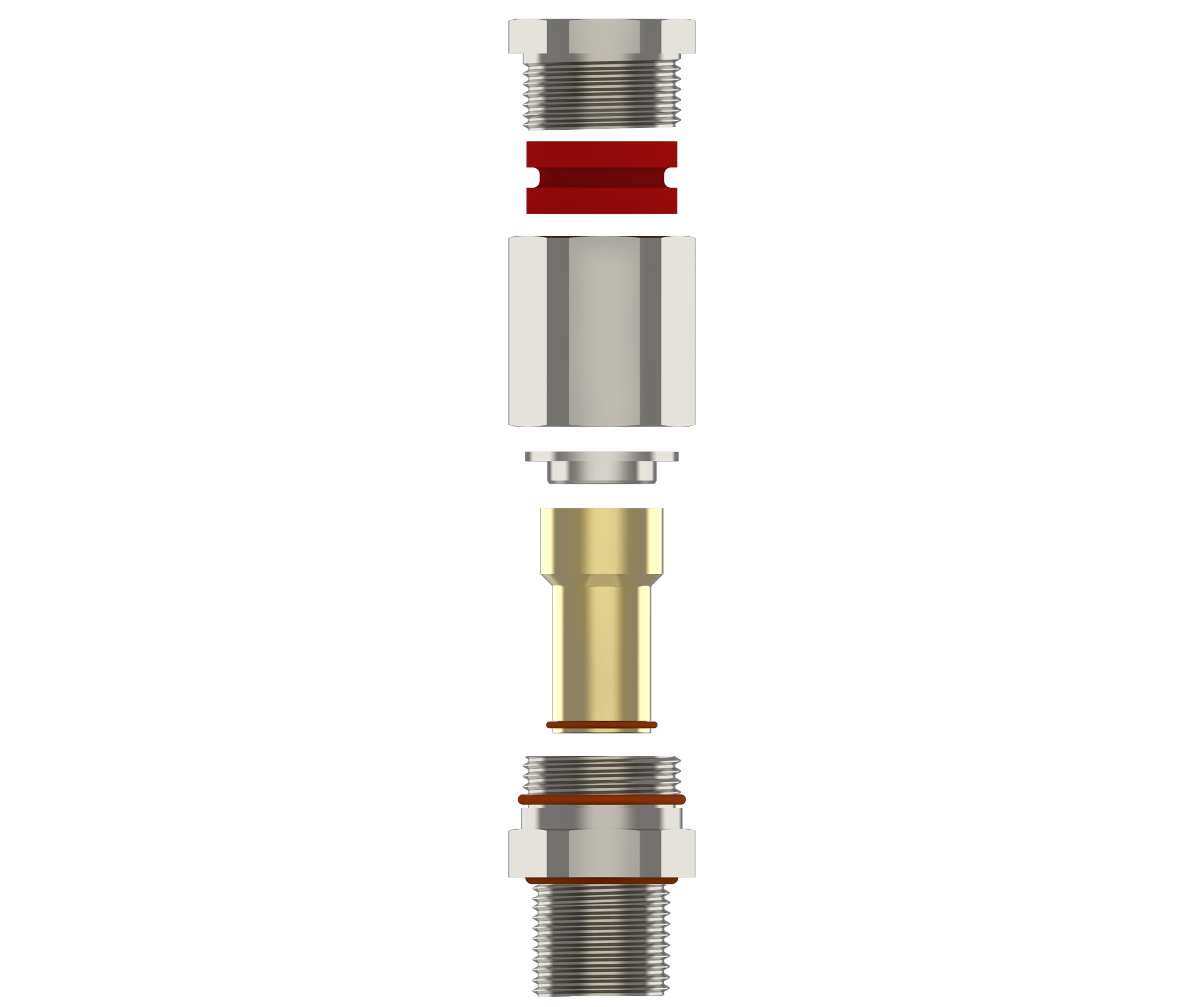

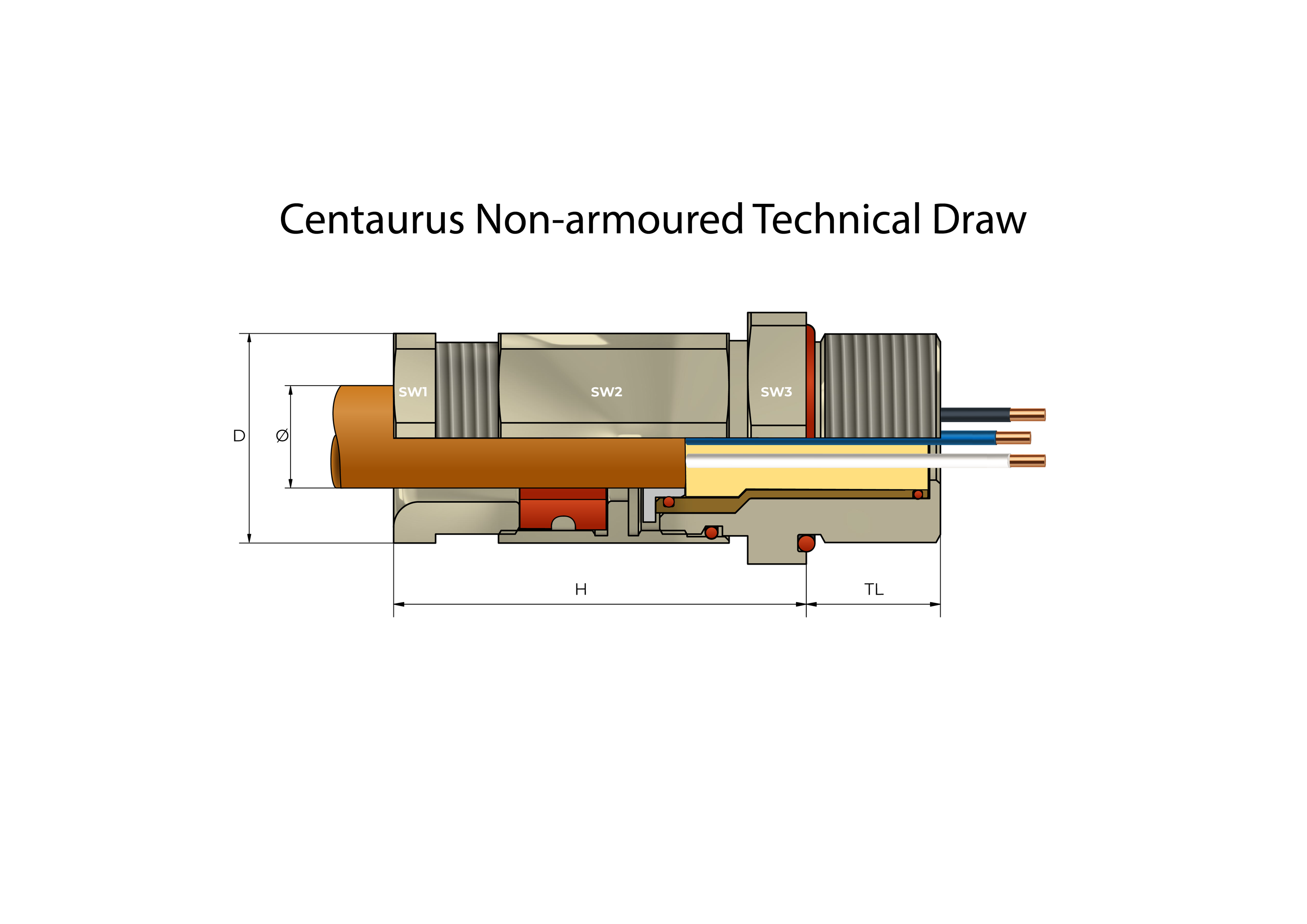

○Ex-kabelnippel med barrieretetning for uarmerte kabler, med eksplosjonssikker kompositttetning rundt de individuelle kabelkjernene. ATEX- og IECEx-sertifisert i henhold til Ex eb, Ex db og Ex tb for Gruppe I, II og III.
Spesifikasjoner
| Klemområdet | Gjengelengde | Nøkkelvidde | Diameter | Maks høyde 'H' | Thread Size "M" | Max. No. of Cores | Max. Over Core Ø | Min. Required Compound | Varenummer | BIMED Kode | 3D File |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3,0 - 8,5 | 16 | 25/25/25 | 27 | 51 | M20x1,5 | 9 | 9.5 | 7 | — | KBCTN1XSM | — |
| 6,0 -13,0 | 16 | 25/25/25 | 27 | 51 | M20x1,5 | 9 | 9.5 | 7 | — | KBCTN1SM | Get File |
| 8,0 - 15,0 | 16 | 25/25/25 | 27 | 51 | M20x1,5 | 9 | 9.5 | 7 | — | KBCTN1M | — |
| 8,0 - 15,0 | 16 | 25/25/30 | 33 | 51 | M25x1,5 | 9 | 9.5 | 7 | — | KBCTN2SM | — |
| 13,5 - 21,0 | 16 | 30/30/30 | 33 | 52.5 | M25x1,5 | 11 | 12 | 9 | — | KBCTN2M | — |
| 13,5 - 21,0 | 16 | 30/30/30 | 33 | 52.5 | M20x1,5 | 11 | 12 | 9 | — | KBCTN1LM | — |
| 18,0 - 27,0 | 16 | 40/40/40 | 44.5 | 60 | M25x1,5 | 22 | 15 | 20 | — | KBCTN2LM | — |
| 18,0 - 27,0 | 16 | 40/40/40 | 44.5 | 60 | M32x1,5 | 22 | 15 | 20 | — | KBCTN3M | — |
| 23,0 - 33,0 | 16 | 43/43/43 | 47 | 61.5 | M32x1,5 | 36 | 21.5 | 31 | — | KBCTN3LM | — |
| 23,0 - 33,0 | 16 | 43/43/45 | 50 | 61.5 | M40x1,5 | 36 | 21.5 | 31 | — | KBCTN4SM | — |
| 29,0 - 40,0 | 16 | 50/50/50 | 55.5 | 69.5 | M40x1,5 | 55 | 29 | 60 | — | KBCTN4M | — |
| 29,0 - 40,0 | 16 | 50/50/55 | 61 | 69.5 | M50x1,5 | 55 | 29 | 60 | — | KBCTN5SM | — |
| 35,0 - 48,0 | 16 | 58/58/58 | 64 | 75 | M50x1,5 | 75 | 37 | 90 | — | KBCTN5M | — |
| 35,0 - 48,0 | 20 | 58/58/68 | 75 | 75 | M63x1,5 | 75 | 37 | 90 | — | KBCTN6SM | — |
| 42,0 - 56,0 | 20 | 75/75/75 | 83 | 97.5 | M63x1,5 | 99 | 46 | 193 | — | KBCTN6M | — |
| 42,0 - 56,0 | 20 | 75/75/80 | 89 | 97.5 | M75x1,5 | 99 | 46 | 193 | — | KBCTN7SM | — |
| 54,0 - 70,0 | 20 | 100/100/100 | 110.5 | 106.5 | M75x1,5 | 129 | 58 | 337 | — | KBCTN7M | — |
| 54,0 - 70,0 | 20 | 100/100/100 | 110.5 | 106.5 | M90x1,5 | 129 | 58 | 337 | — | KBCTN8M | — |
