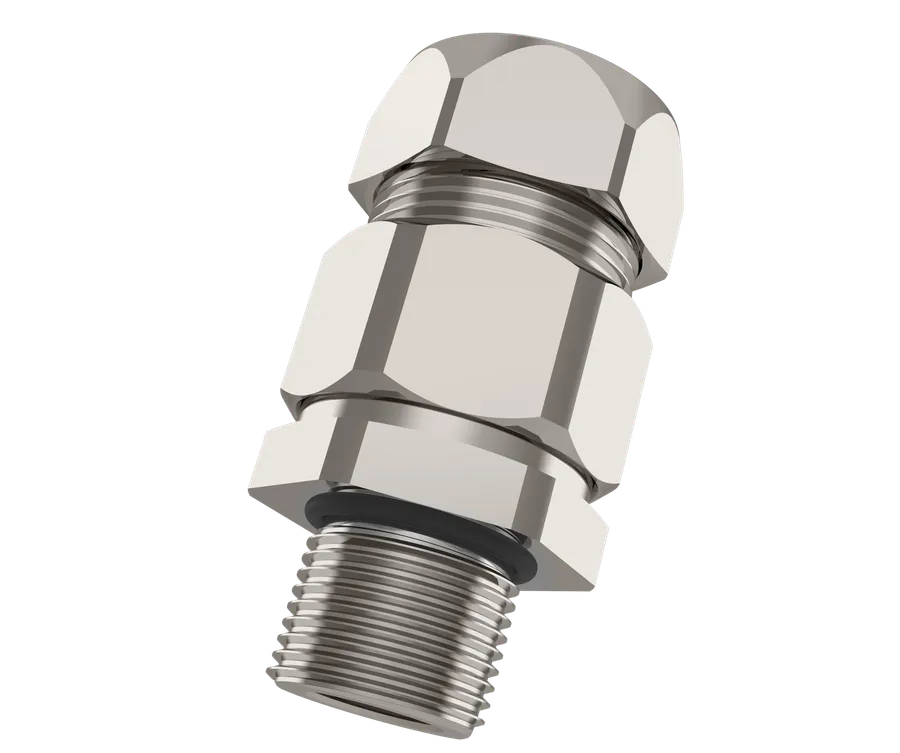

Centaurus Konduit
○Konduitkobling for eksplosjonsfarlige områder (Gruppe II og III) med barrieretetning, for uarmerte kabler i fleksibelt konduit. ATEX- og IECEx-sertifisert i henhold til Ex eb, Ex db og Ex tb.
Spesifikasjoner

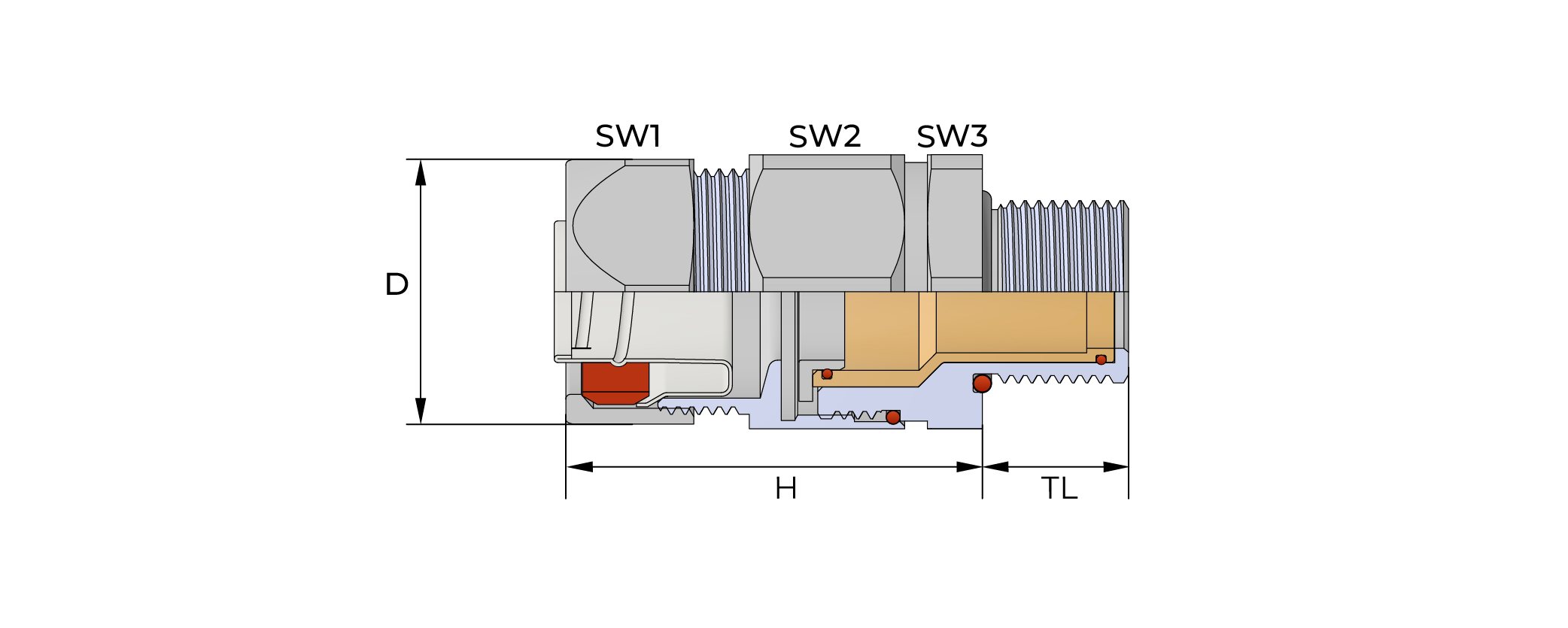

| Klemområdet | Gjengelengde | Nøkkelvidde | Diameter | Conduit Size | Thread Size "M" | Max. No. of Cores | Max. Over Core Ø | Min. Required Compound | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3,0 - 8,5 | 16 | 25/25/26 | 29 | 3/8" | M20x1,5 | 9 | 9.5 | 7 | — | KBCTNLS1XSM | — | |
| 6,0 -13,0 | 16 | 30/30/26 | 33 | 3/8" | M20x1,5 | 9 | 9.5 | 7 | — | KBCTNLS1SM | — | |
| 8,0 - 15,0 | 16 | 25/29/29 | 32.7 | 1/2" | M20x1,5 | 9 | 9.5 | 7 | — | KBCTNLS1M | — | |
| 8,0 - 15,0 | 16 | 30/33/35 | 39 | 3/4" | M25x1,5 | 9 | 9.5 | 7 | — | KBCTNLS2SM | — | |
| 13,5 - 21,0 | 16 | 30/30/29 | 33 | 1/2" | M20x1,5 | 11 | 12 | 9 | — | KBCTNLS1LM | — | |
| 13,5 - 21,0 | 16 | 30/33/35 | 39 | 3/4" | M25x1,5 | 11 | 12 | 9 | — | KBCTNLS2M | — | |
| 18,0 - 27,0 | 16 | 40/40/35 | 44.5 | 3/4" | M25x1,5 | 22 | 15 | 20 | — | KBCTNLS2LM | — | |
| 18,0 - 27,0 | 16 | 40/43/45 | 50 | 1" | M32x1,5 | 22 | 15 | 20 | — | KBCTNLS3M | — | |
| 23,0 - 33,0 | 16 | 43/43/45 | 50 | 1" | M32x1,5 | 36 | 21.5 | 31 | — | KBCTNLS3LM | — | |
| 23,0 - 33,0 | 16 | 45/52/54 | 60 | 1 1/4" | M40x1,5 | 36 | 21.5 | 31 | — | KBCTNLS4SM | — | |
| 29,0 - 40,0 | 16 | 50/52/54 | 60 | 1 1/4" | M40x1,5 | 55 | 29 | 60 | — | KBCTNLS4M | — | |
| 29,0 - 40,0 | 16 | 55/60/63 | 69.3 | 1 1/2" | M50x1,5 | 55 | 29 | 60 | — | KBCTNLS5SM | — | |
| 35,0 - 48,0 | 16 | 58/63/63 | 69.3 | 1 1/2" | M50x1,5 | 75 | 37 | 90 | — | KBCTNLS5M | — |
