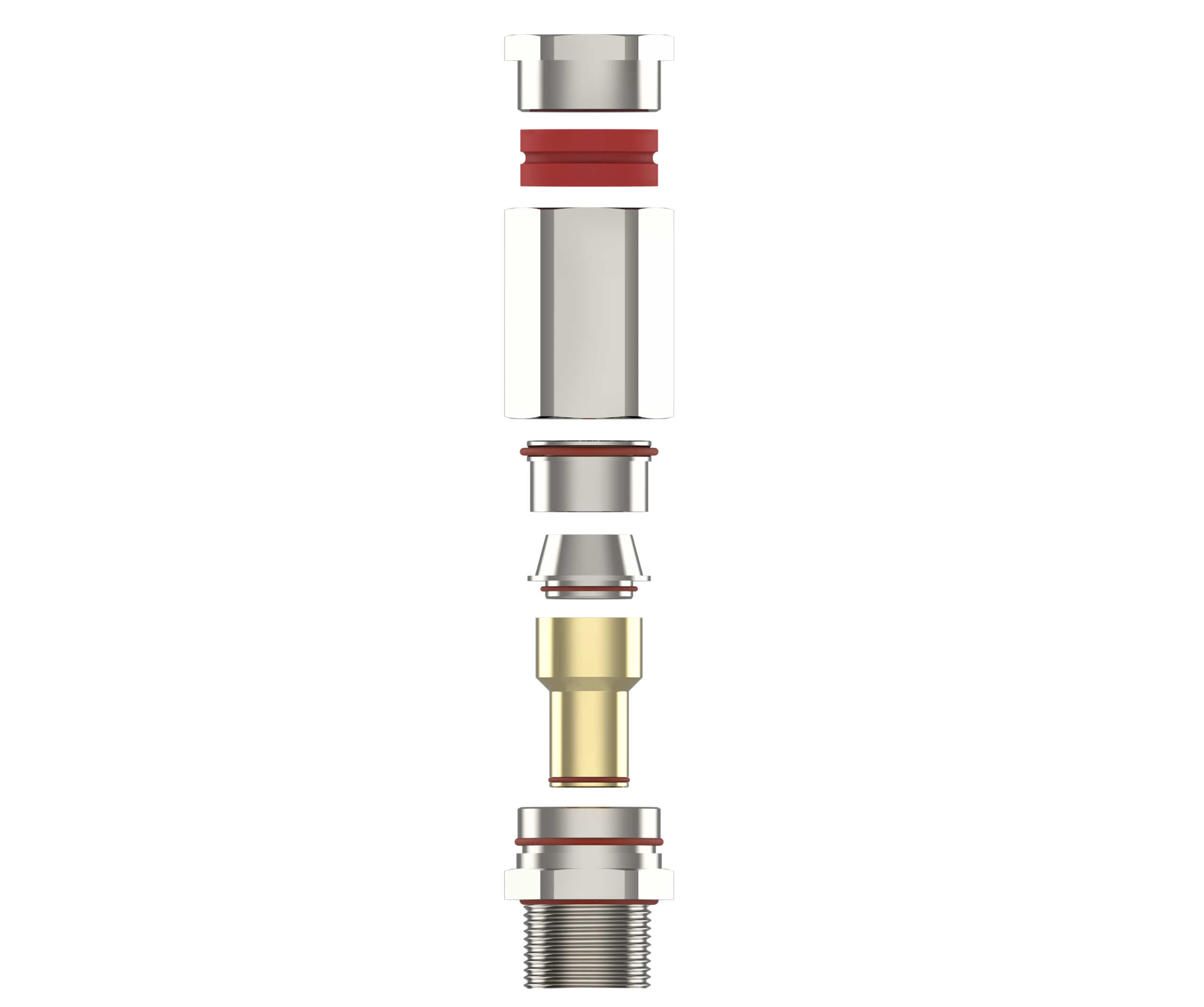

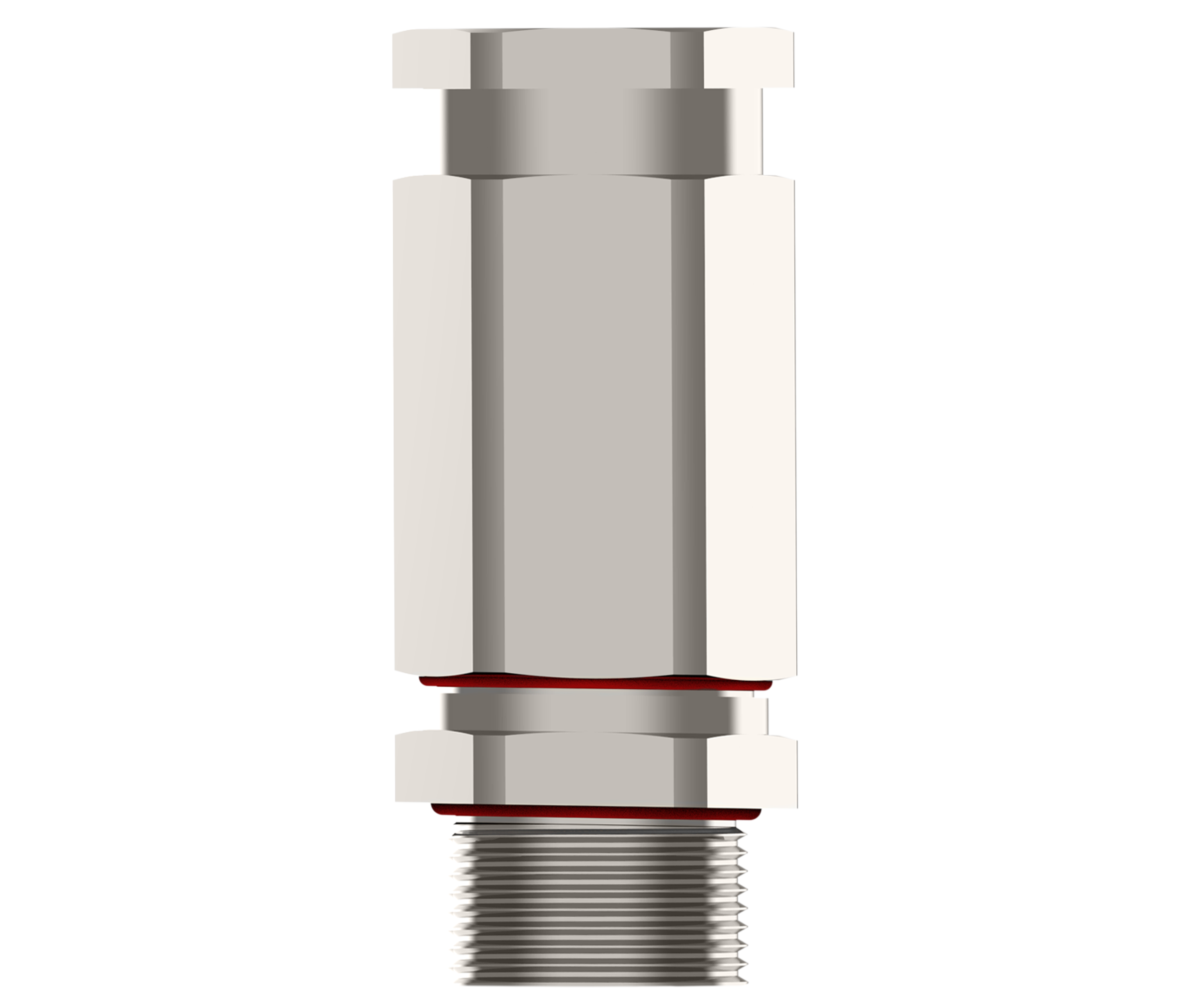

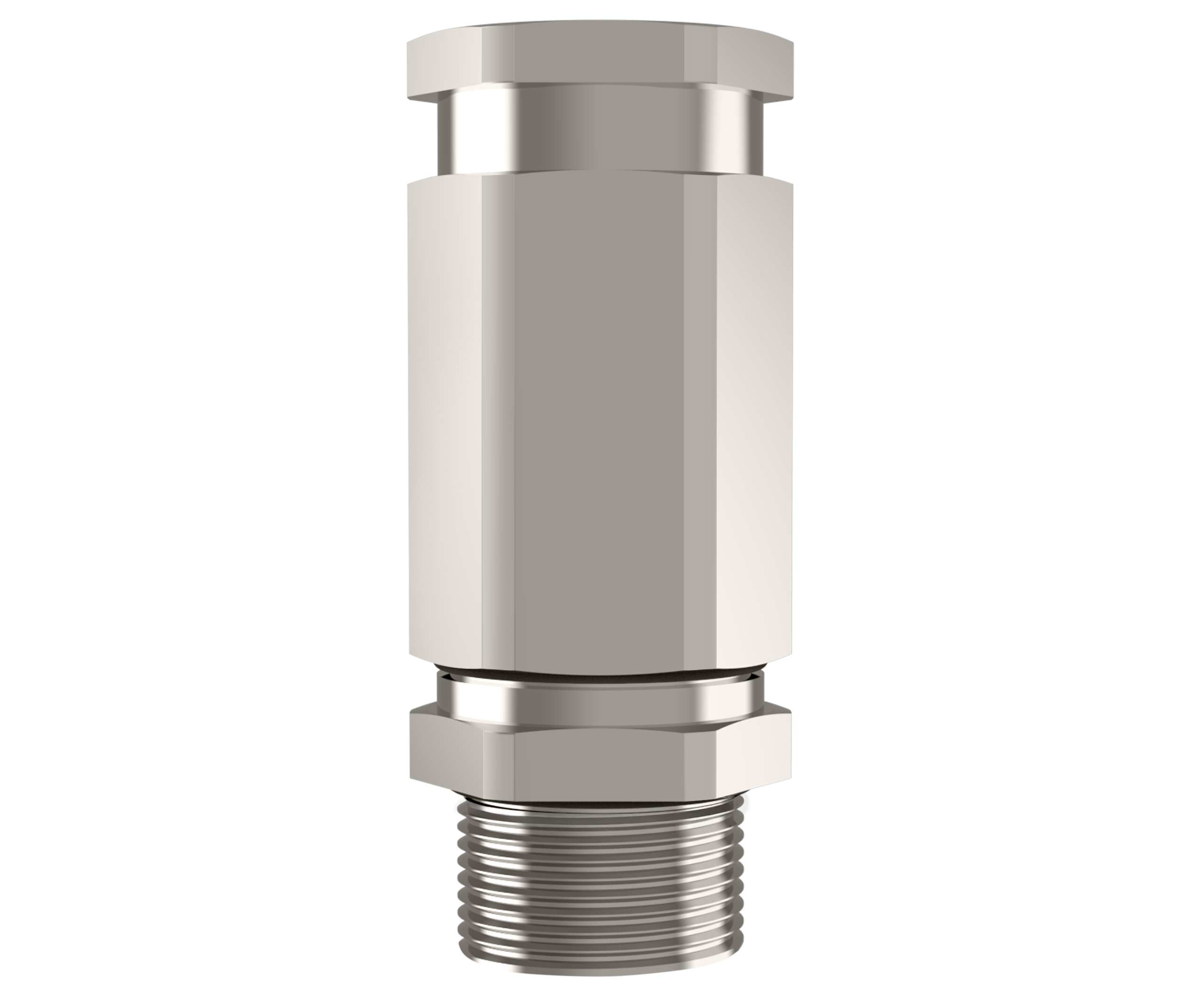

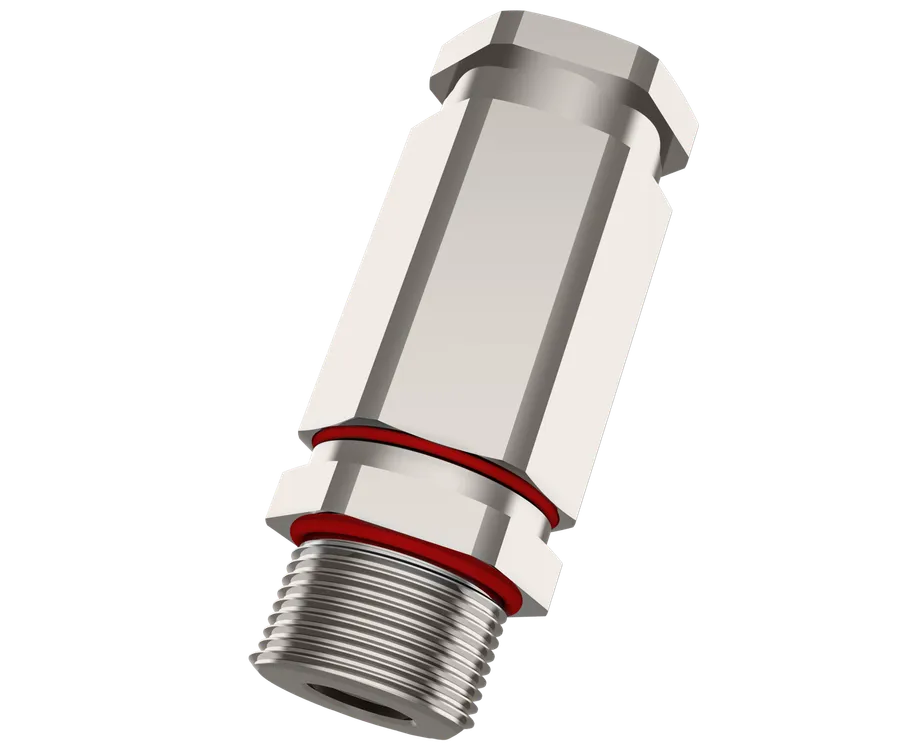

Centaurus Armert
○Ex-kabelnippel med barrieretetning for armerte og flettede kabler (SWA, AWA, STA, SWB, PWA og skjermede)
○Tilbyr eksplosjonssikker kompositttetning rundt de individuelle kabelkjernene og er ATEX- og IECEx-sertifisert i henhold til Ex eb, Ex db og Ex tb.
Spesifikasjoner
| Klemområdet | Gjengelengde | Nøkkelvidde | Diameter | Maks høyde 'H' | Thread Size "M" | Max. No. of Cores | Max. Over Core Ø | Min. Required Compound | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3,0-8,5 | 16 | 25/25/25 | 27 | 61.5 | M20x1.5 | 9 | 9.5 | 7 | — | KBCTA1XSM | — | |
| 6,0-13,0 | 16 | 25/25/25 | 27 | 61.5 | M20x1.5 | 9 | 9.5 | 7 | — | KBCTA1SM | — | |
| 8,0-15,0 | 16 | 25/25/25 | 27 | 61.5 | M20x1.5 | 9 | 9.5 | 7 | — | KBCTA1M | — | |
| 8,0-15,0 | 16 | 30/25/25 | 33 | 61.5 | M25x1.5 | 9 | 9.5 | 7 | — | KBCTA2SM | — | |
| 13,5-21,0 | 16 | 30/30/30 | 33 | 63.2 | M20x1.5 | 11 | 12 | 9 | — | KBCTA1LM | — | |
| 13,5-21,0 | 16 | 30/30/30 | 33 | 63.2 | M25x1.5 | 11 | 12 | 9 | — | KBCTA2M | Get File | |
| 18,0-27,0 | 16 | 40/40/40 | 44.5 | 70.5 | M25x1.5 | 22 | 15 | 20 | — | KBCTA2LM | — | |
| 18,0-27,0 | 16 | 40/40/40 | 44.5 | 70.5 | M32x1.5 | 22 | 15 | 20 | — | KBCTA3M | — | |
| 23,0-33,0 | 16 | 43/43/43 | 47 | 72.3 | M32x1.5 | 36 | 21.5 | 31 | — | KBCTA3LM | — | |
| 23,0-33,0 | 16 | 45/43/43 | 50 | 72.3 | M40x1.5 | 36 | 21.5 | 31 | — | KBCTA4SM | — | |
| 29,0-40,0 | 16 | 50/50/50 | 55.5 | 80.5 | M40x1.5 | 55 | 29 | 60 | — | KBCTA4M | — | |
| 29,0-40,0 | 16 | 55/50/50 | 61 | 80.5 | M50x1.5 | 55 | 29 | 60 | — | KBCTA5SM | — | |
| 35,0-48,0 | 16 | 58/58/58 | 64 | 88.3 | M50x1.5 | 75 | 37 | 90 | — | KBCTA5M | — | |
| 35,0-48,0 | 16 | 58/58/58 | 64 | 88.3 | M63x1.5 | 75 | 37 | 90 | — | KBCTA6SM | — | |
| 42,0-56,0 | 20 | 75/75/75 | 83 | 117.7 | M63x1.5 | 99 | 46 | 193 | — | KBCTA6M | — | |
| 42,0-56,0 | 20 | 80/75/75 | 89 | 117.7 | M75x1.5 | 99 | 46 | 193 | — | KBCTA7SM | — | |
| 54,0-70,0 | 20 | 100/100/100 | 110.5 | 124.1 | M75x1.5 | 129 | 58 | 337 | — | KBCTA7M | — | |
| 54,0-70,0 | 20 | 100/100/100 | 110.5 | 124.1 | M90x1.5 | 129 | 58 | 337 | — | KBCTA8M | — |
