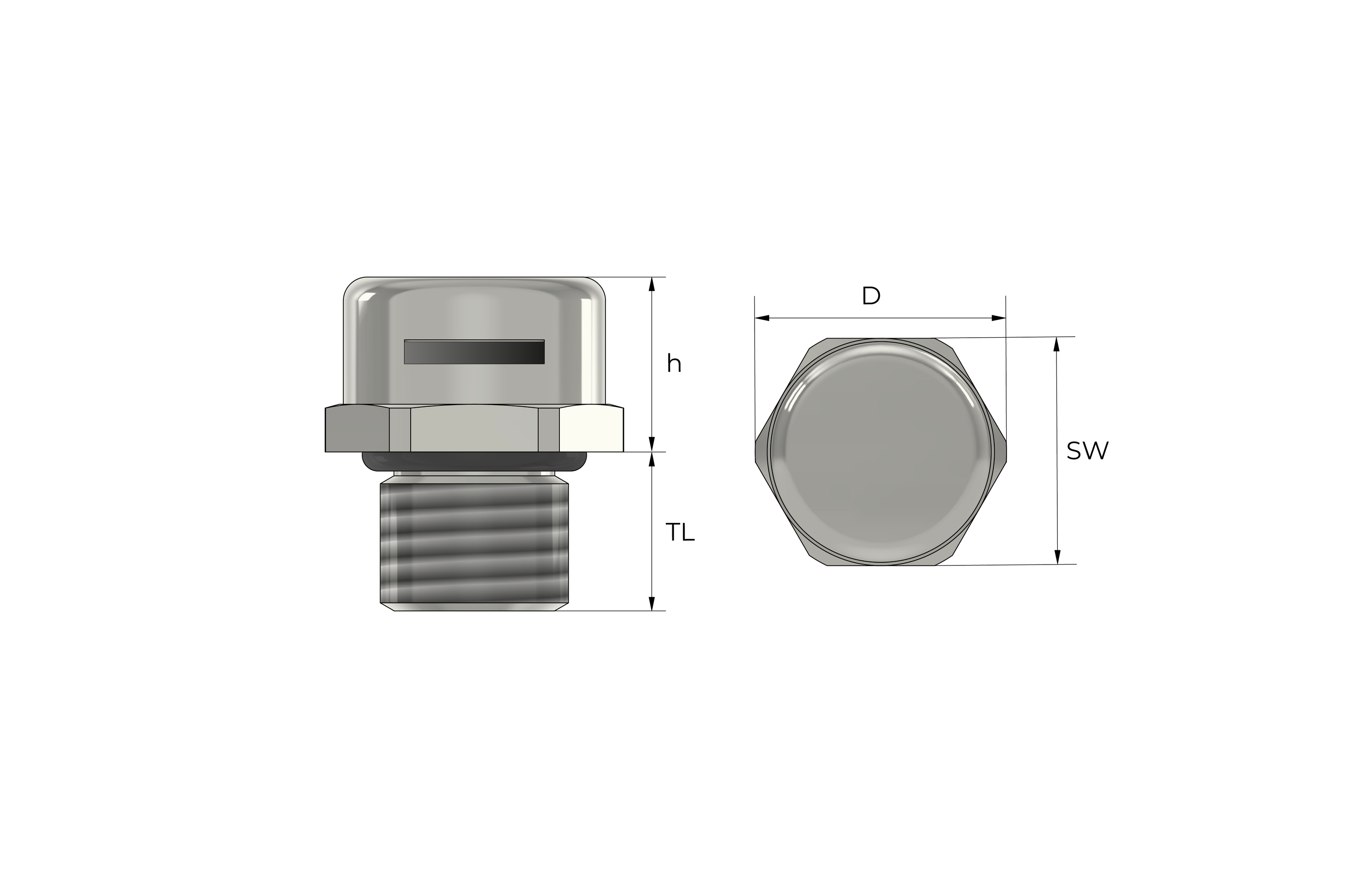

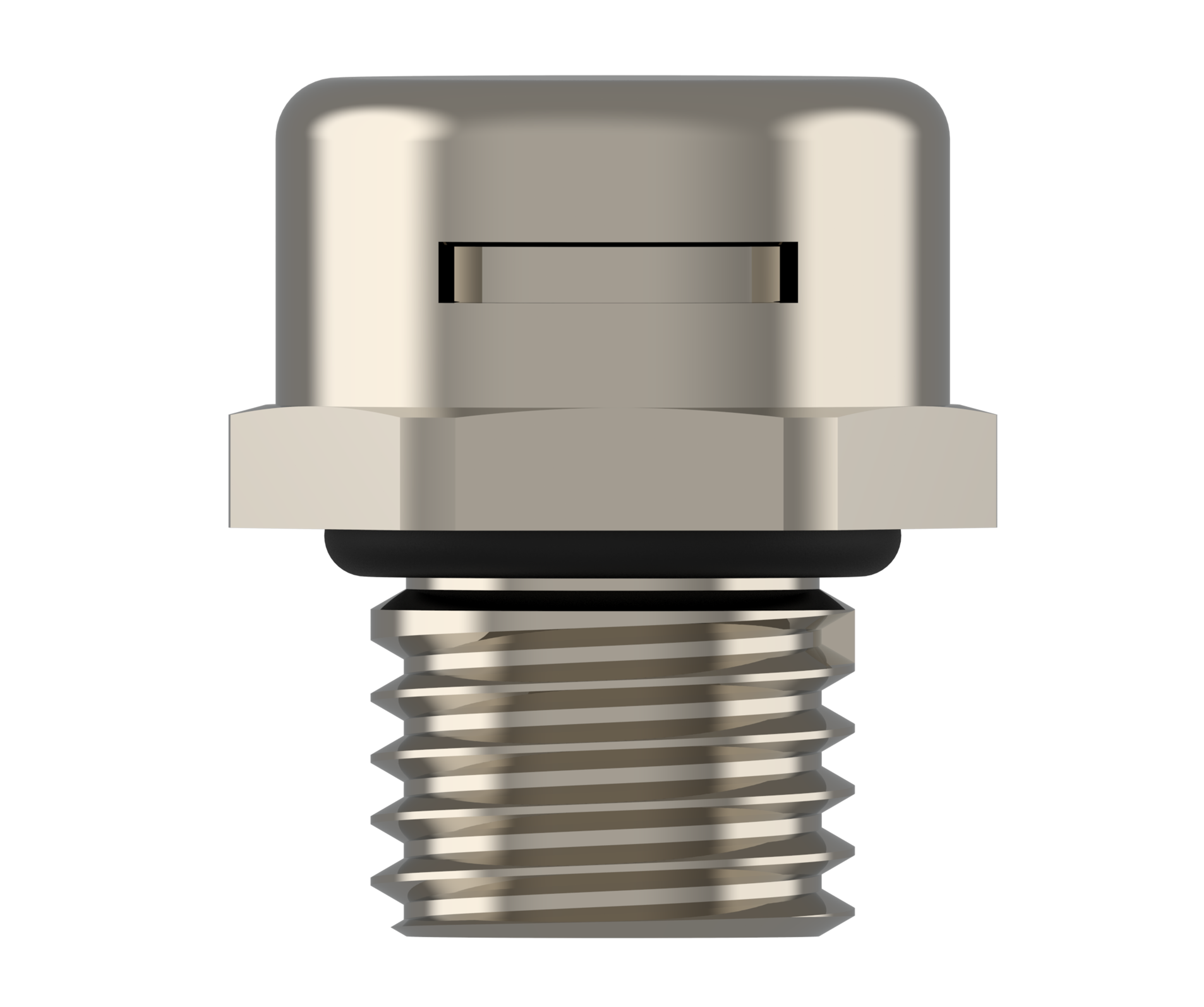

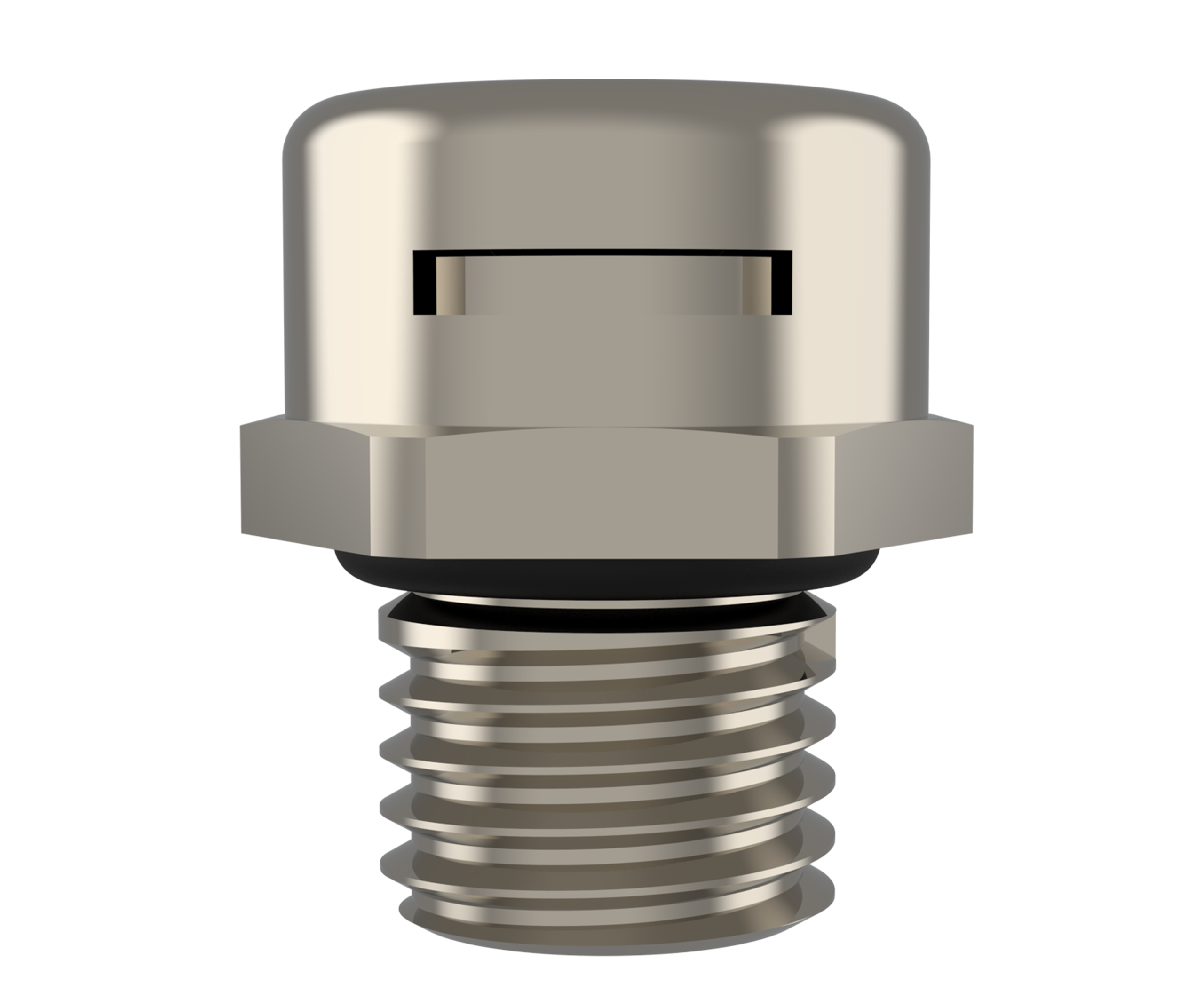

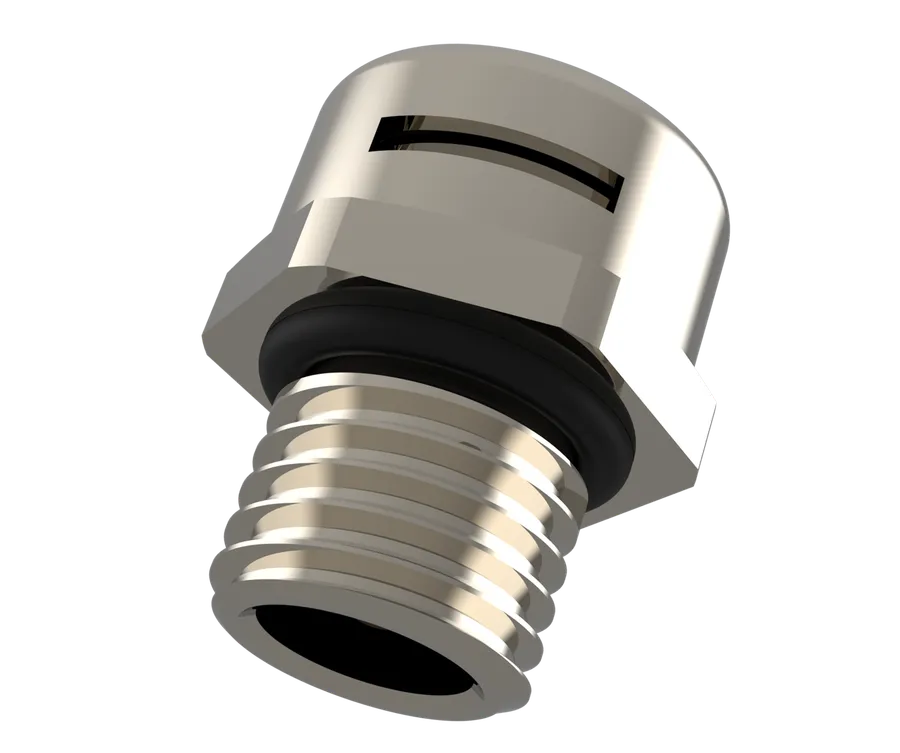

Hydra – Ventilasjonsplugg
○Ex-ventilasjonsplugg som balanserer trykkforskjeller mellom kapsling og omgivelser for å hindre kondensering. ATEX- og IECEx-sertifisert i henhold til Ex eb og Ex tb, egnet for iboende sikre kretser.
Spesifikasjoner
| Gjengestørrelse | Gjengelengde | Diameter | Nøkkelvidde | Height 'H' | Water Pressure | Air Flow ΔP=70 mBar / 1 psi I/h | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|---|---|
| M12x1,5 | 6 | 18.8 | 17 | 11 | 0.9 | 16 | — | SBBVP-X01 (TL6) | — | |
| M12x1,5 | 6 | 18.8 | 17 | 11 | 0.5 | 25 | — | MBBVP-X01 (TL6) | — | |
| M12x1,5 | 6 | 18.8 | 17 | 11 | 0.2 | 120 | — | HBBVP-X01 (TL6) | — | |
| M12x1,5 | 6 | 18.8 | 17 | 11 | 0.1 | 300 | — | UHBBVP-X01 (TL6) | — | |
| M12x1,5 | 10 | 18.8 | 17 | 11 | 0.9 | 16 | — | SBBVP-X01L (TL10) | — | |
| M12x1,5 | 10 | 18.8 | 17 | 11 | 0.5 | 25 | — | MBBVP-X01L (TL10) | — | |
| M12x1,5 | 10 | 18.8 | 17 | 11 | 0.2 | 120 | — | HBBVP-X01L (TL10) | — | |
| M12x1,5 | 10 | 18.8 | 17 | 11 | 0.1 | 300 | — | UHBBVP-X01L (TL10) | — | |
| M16x1,5 | 6 | 20 | 18 | 12 | 0.9 | 16 | — | SBBVP-X02 (TL6) | — | |
| M16x1,5 | 6 | 20 | 18 | 12 | 0.5 | 25 | — | MBBVP-X02 (TL6) | — | |
| M16x1,5 | 6 | 20 | 18 | 12 | 0.2 | 120 | — | HBBVP-X02 (TL6) | — | |
| M16x1,5 | 6 | 20 | 18 | 12 | 0.1 | 300 | — | UHBBVP-X02 (TL6) | — | |
| M16x1,5 | 10 | 20 | 18 | 12 | 0.9 | 16 | — | SBBVP-X02L (TL10) | — | |
| M16x1,5 | 10 | 20 | 18 | 12 | 0.5 | 25 | — | MBBVP-X02L (TL10) | — | |
| M16x1,5 | 10 | 20 | 18 | 12 | 0.2 | 120 | — | HBBVP-X02L (TL10) | — | |
| M16x1,5 | 10 | 20 | 18 | 12 | 0.1 | 300 | — | UHBBVP-X02L (TL10) | — | |
| M20x1,5 | 10 | 24.5 | 22 | 13 | 0.1 | 300 | — | UHBBVP-X03L (TL10) | — | |
| M20x1,5 | 6 | 24.5 | 22 | 13 | 0.9 | 16 | — | SBBVP-X03 (TL6) | — | |
| M20x1,5 | 6 | 24.5 | 22 | 13 | 0.5 | 25 | — | MBBVP-X03 (TL6) | — | |
| M20x1,5 | 6 | 24.5 | 22 | 13 | 0.2 | 120 | — | HBBVP-X03 (TL6) | — | |
| M20x1,5 | 6 | 24.5 | 22 | 13 | 0.1 | 300 | — | UHBBVP-X03 (TL6) | — | |
| M20x1,5 | 10 | 24.5 | 22 | 13 | 0.9 | 16 | — | SBBVP-X03L (TL10) | — | |
| M20x1,5 | 10 | 24.5 | 22 | 13 | 0.5 | 25 | — | MBBVP-X03L (TL10) | — | |
| M20x1,5 | 10 | 24.5 | 22 | 13 | 0.2 | 120 | — | HBBVP-X03L (TL10) | — |
