Fornax

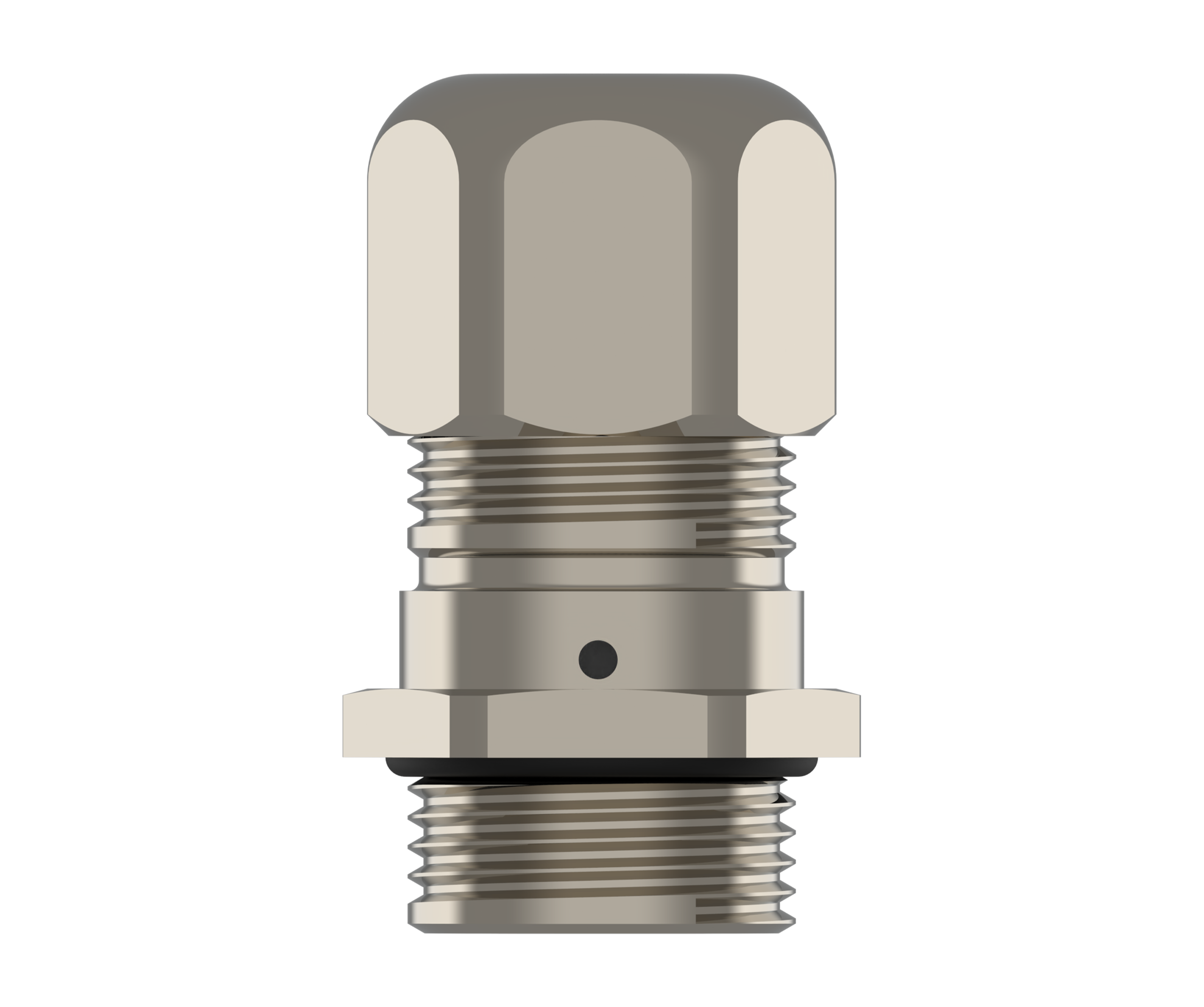

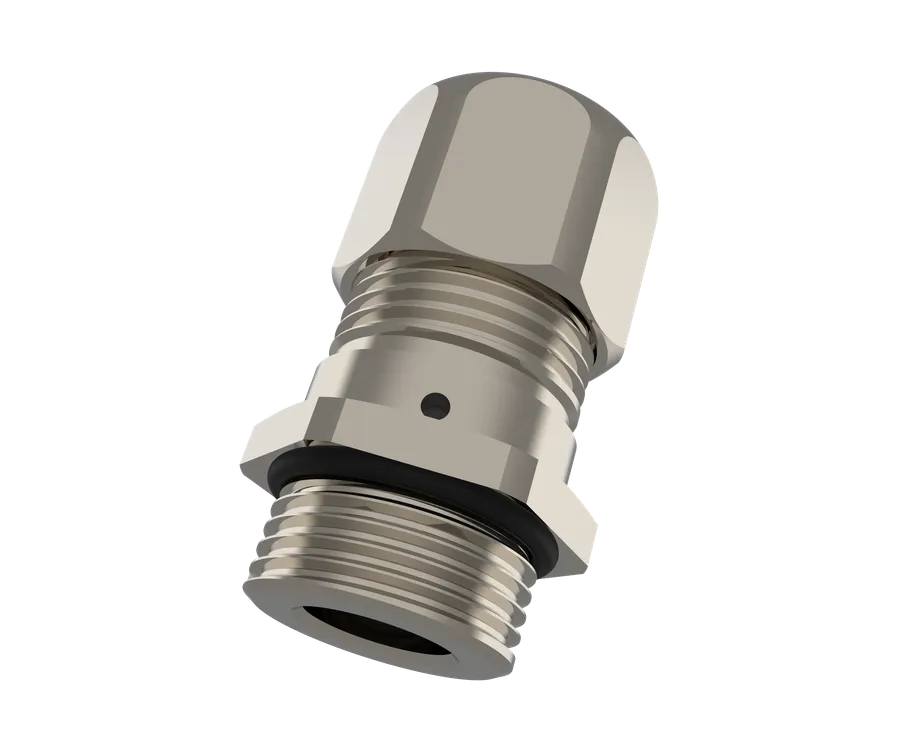

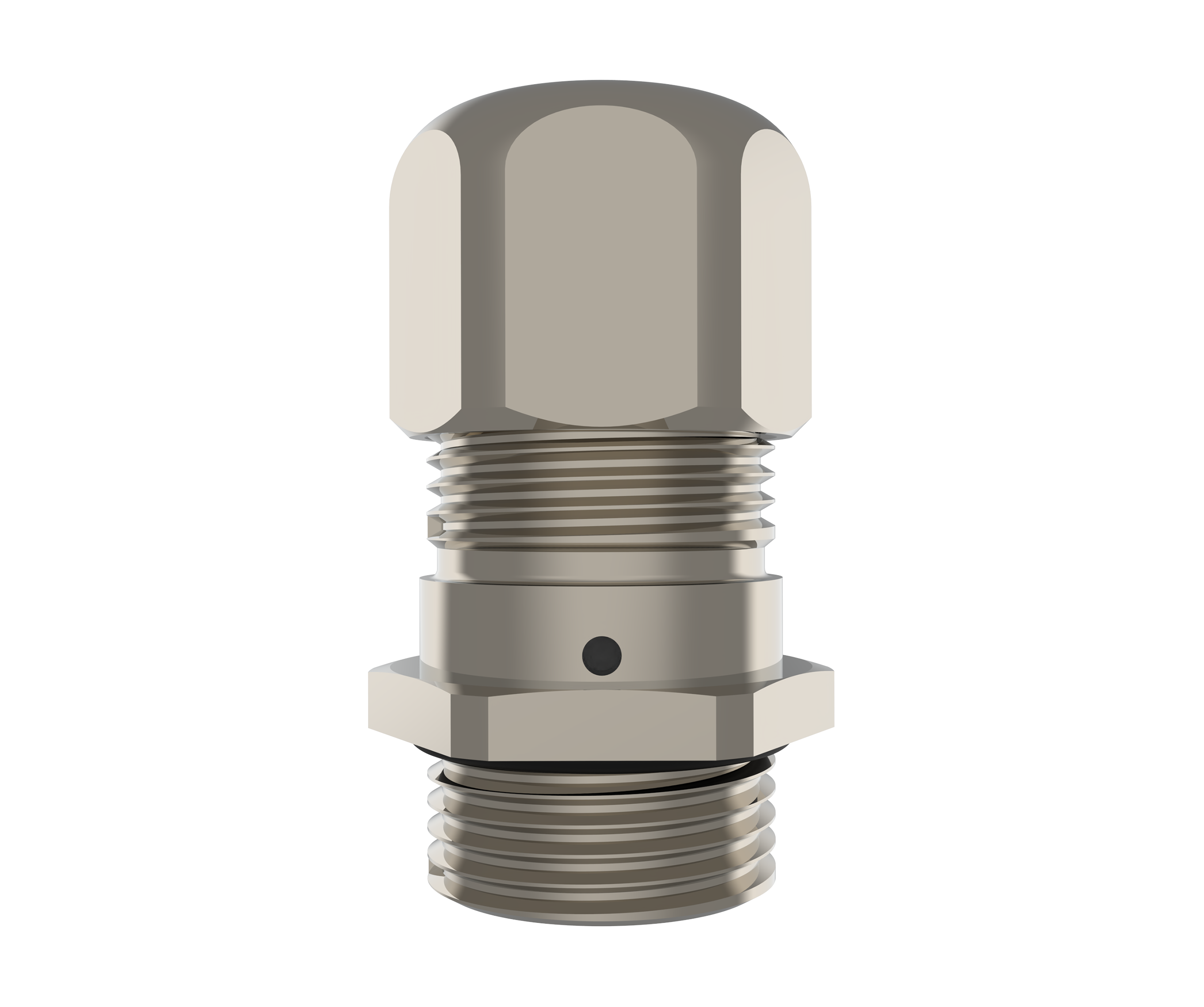

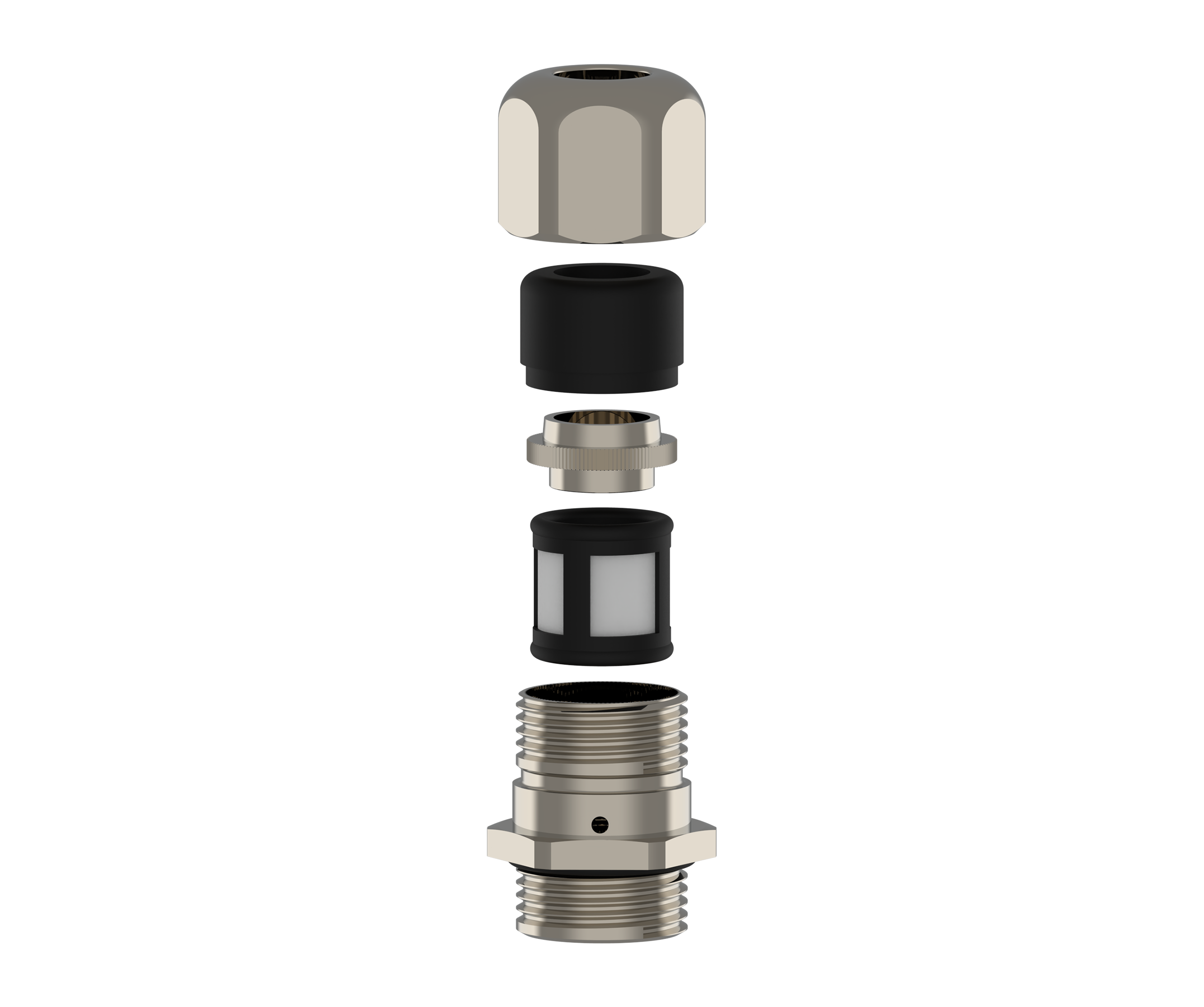

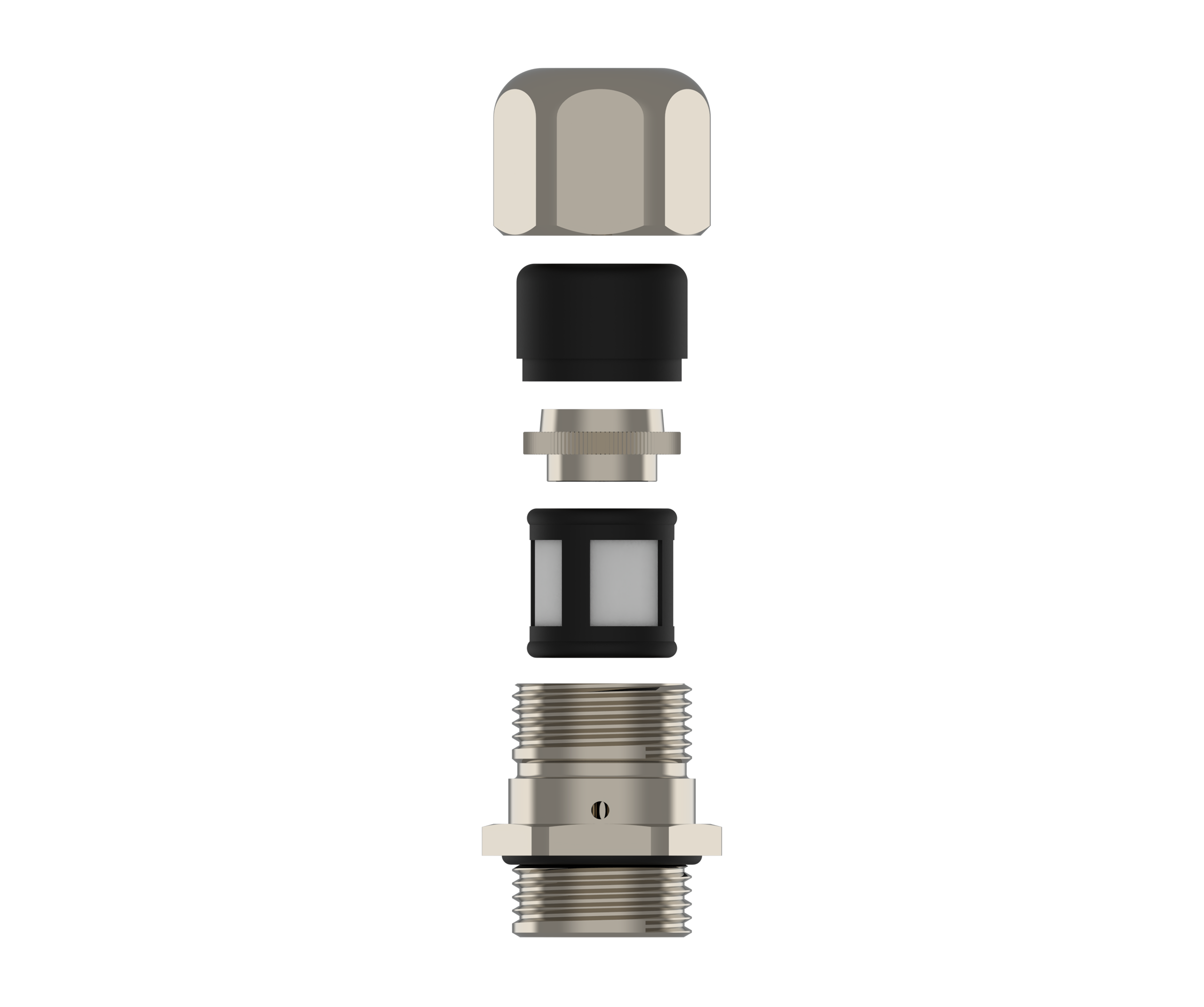

○Ex-kabelnippel kombinert med trykkbalanseelement som hindrer kondensering forårsaket av trykkforskjeller mellom kapslingens inner- og ytterside. ATEX- og IECEx-sertifisert i henhold til Ex eb og Ex tb, egnet for iboende sikre kretser.
Spesifikasjoner

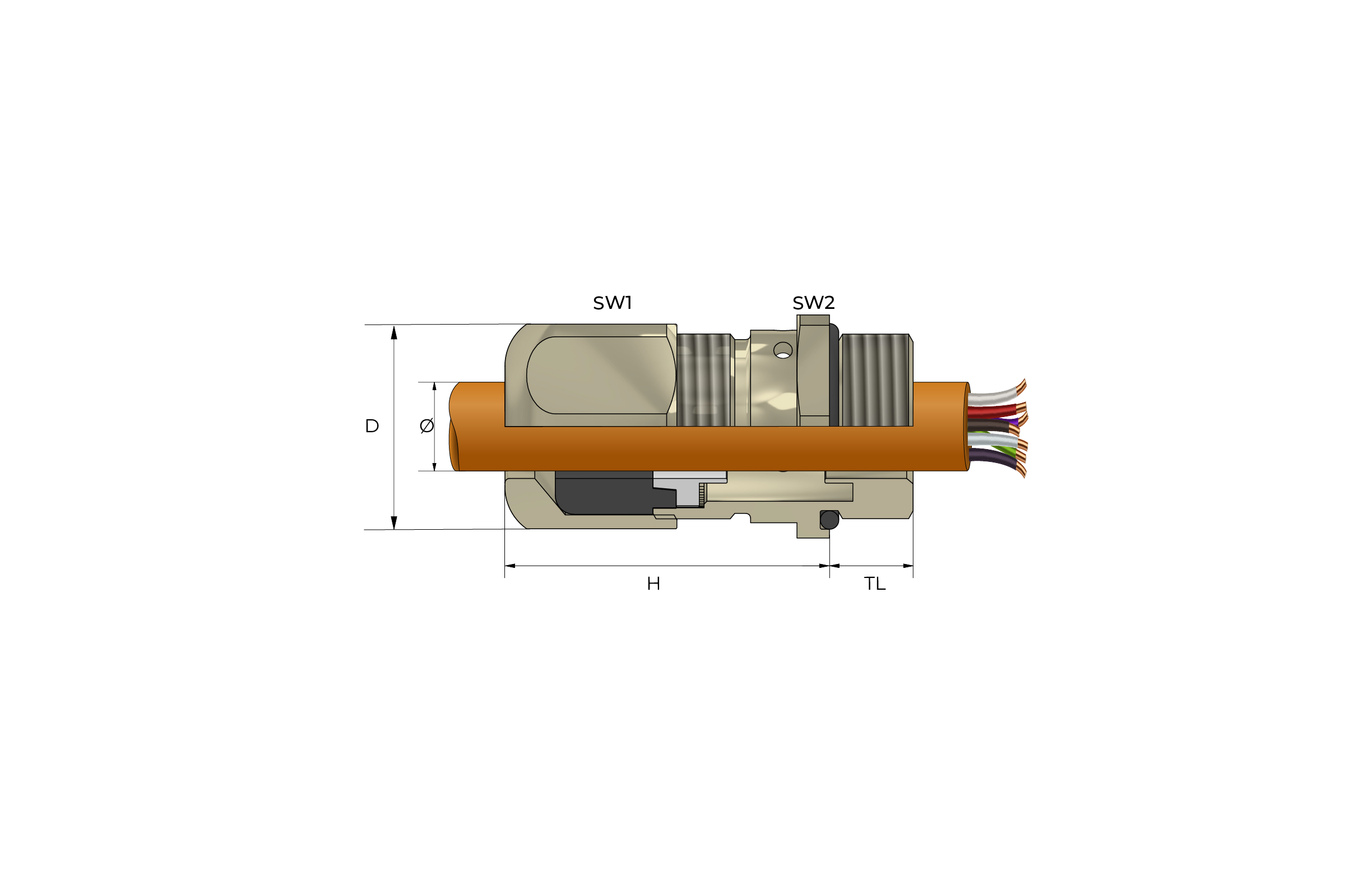

| Gjengestørrelse | Klemområdet | Gjengelengde | Nøkkelvidde | Diameter | Maks høyde 'H' | Water Intrusion Pressure | Average Air Flow for ΔP = 70 mbar | Varenummer | BIMED Kode | 3D File | Datablad |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M20x1,5 | 5,0 – 11,0 | 9 | 22/24 | 26.5 | 37 | 0.1 | 20 | — | EBVEG1M | — |
