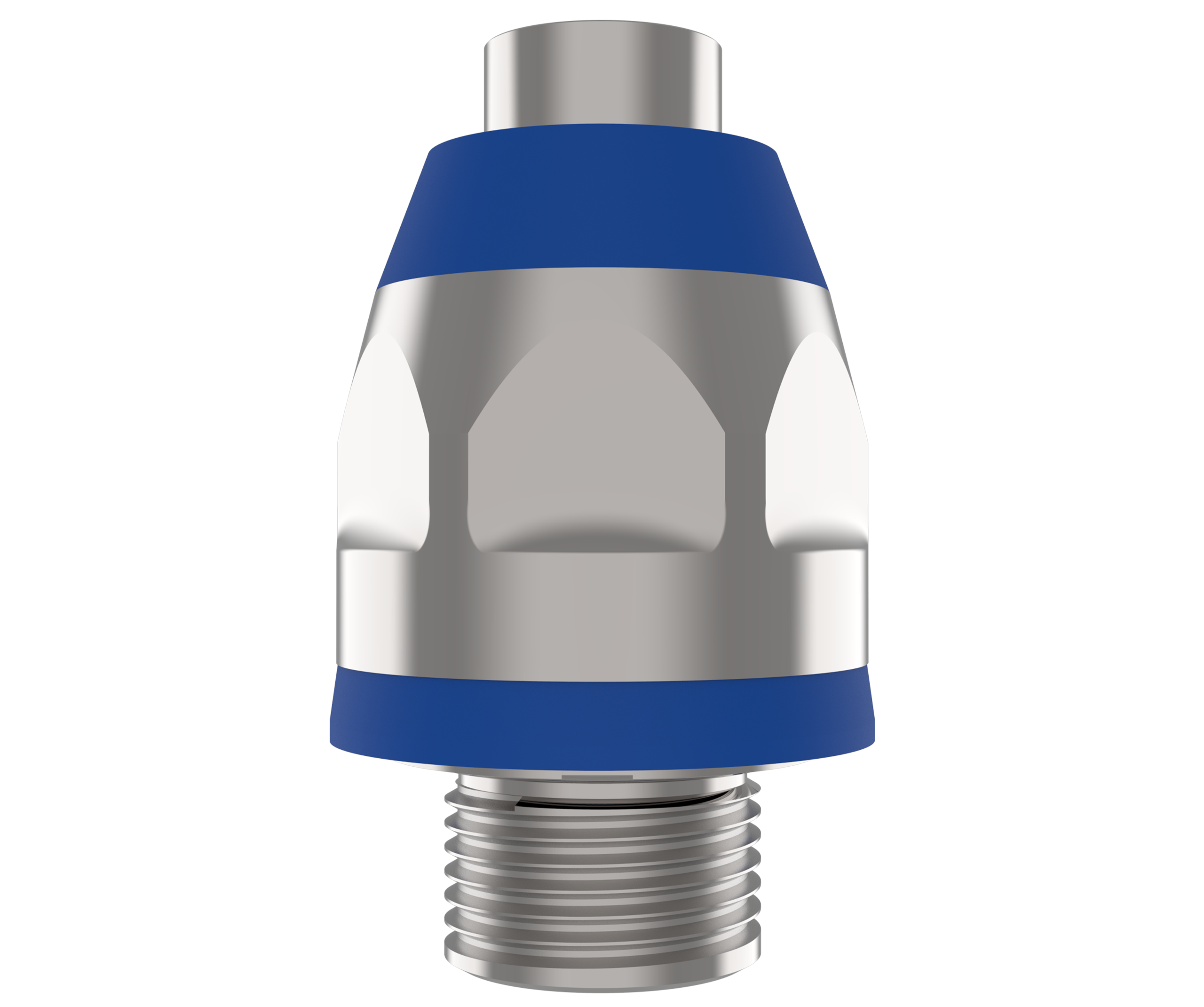

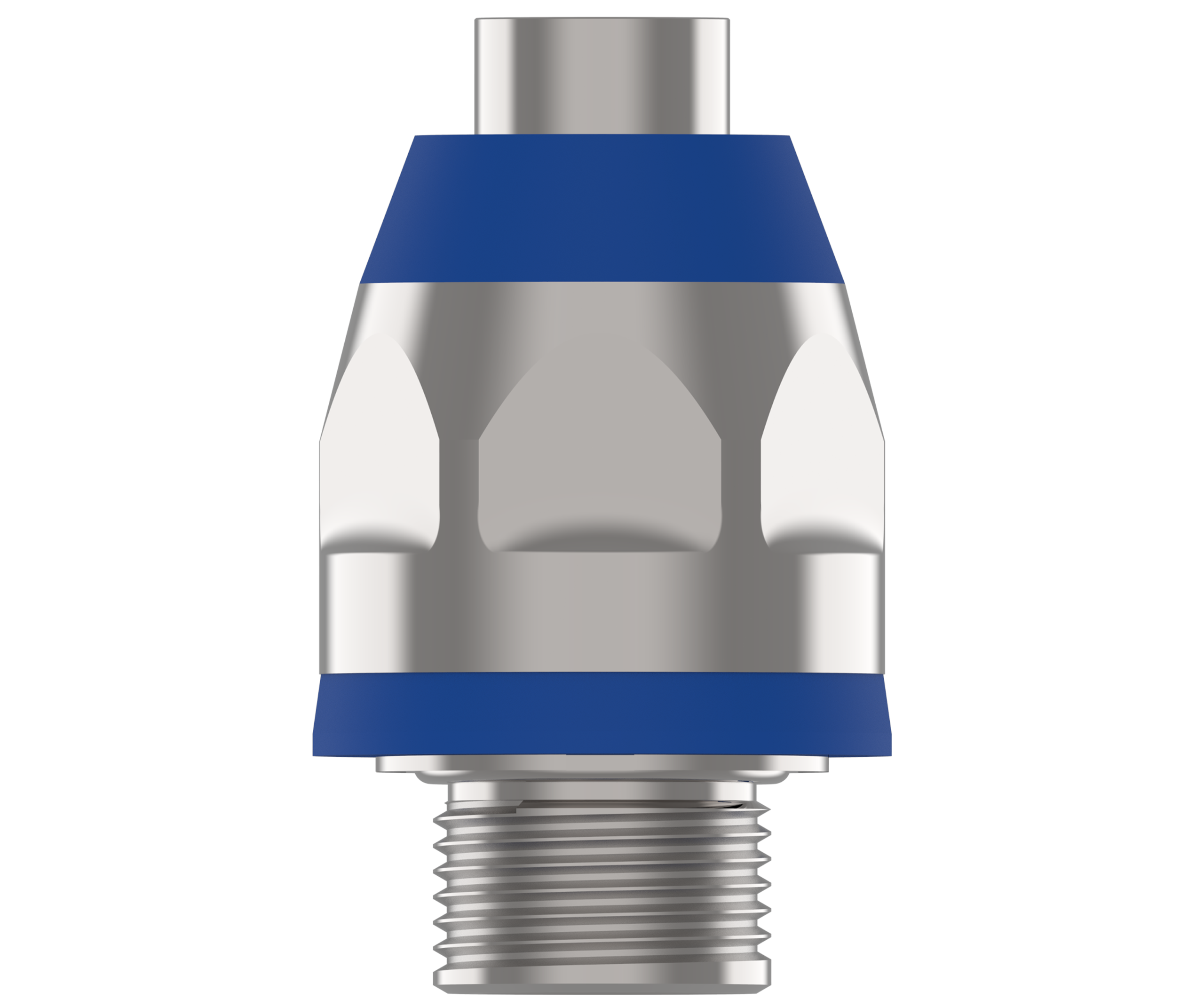

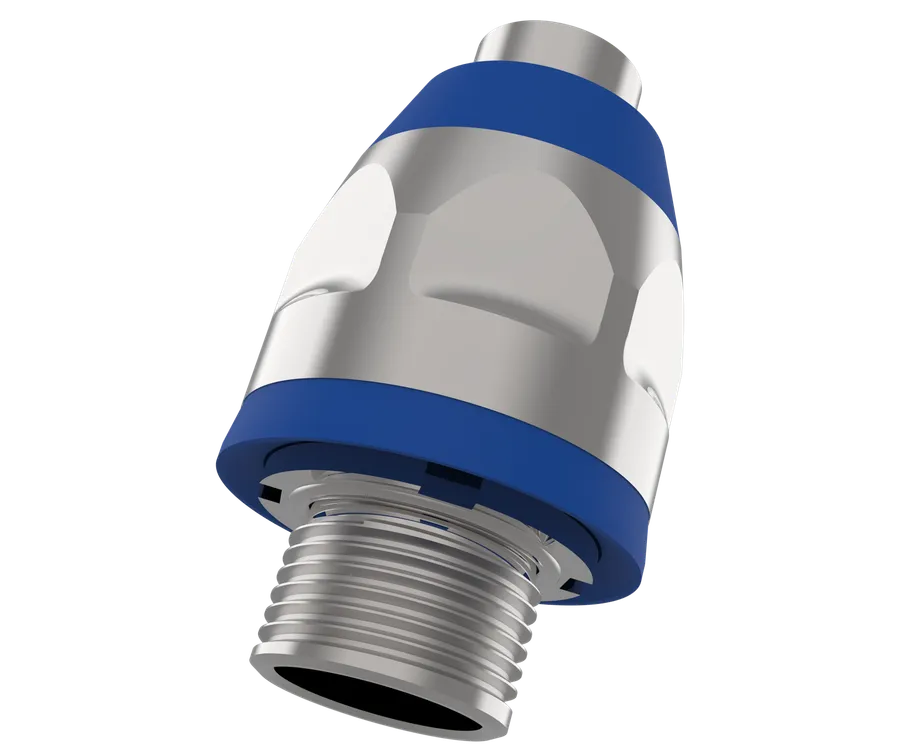

Hygienisk konduitkobling i rustfritt stål
○Konduitkobling i rustfritt stål for næringsmiddelindustrien, farmasøytisk produksjon og renromsteknologi
○Glatt overflate uten eksponerte gjenger; tetningsmateriell iht. FDA 21 CFR 177.2600, egnet for høytrykksrensing med damp.
Spesifikasjoner

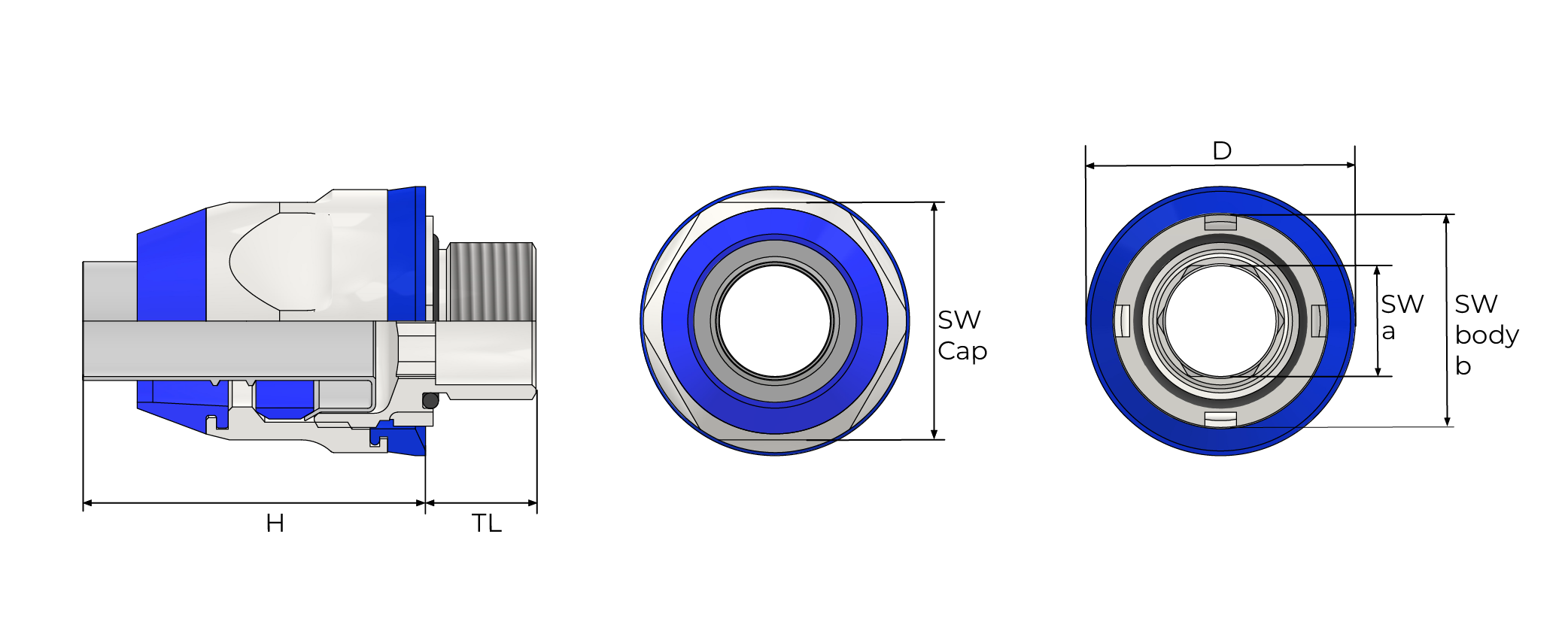

| Gjengestørrelse | Gjengelengde | Diameter | Maks høyde 'H' | Nøkkelvidde | Allen SW | Locknut SW | Crescent SW | Conduit Size | Varenummer | BIMED Kode | 3D File |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M16x1,5 | 11.5 | 31.1 | 39 | 27 | 11 | 19 | 24 | 3/8" | — | BMHF1-01-L | Get File |
| M20x1,5 | 13 | 34 | 39.5 | 30 | 14 | 24 | 27 | 1/2" | — | BMHF1-02-L | Get File |
| M25x1,5 | 15 | 41 | 44.5 | 36 | 19 | 30 | 33 | 3/4" | — | BMHF1-03-L | Get File |
| M32x1,5 | 15 | 52.7 | 53.5 | 46 | 25 | 36 | 42 | 1" | — | BMHF1-04-L | Get File |
| M40x1,5 | 16 | 62 | 61.5 | 54 | 32 | 46 | 50 | 1 1/4" | — | BMHF1-05-L | Get File |
| M50x1,5 | 18 | 70 | 65.5 | 63 | 36 | 60 | 58 | 1 1/2" | — | BMHF1-06-L | Get File |
| M63x1,5 | 20 | 84.6 | 70.5 | 77 | 48 | 70 | 72 | 2" | — | BMHF1-07-L | Get File |
